Page 33 of 123
AUDIO EQUIPMENT
34 -
EON system
This connects stations which are part
of the same network. It enables the
b r o a d c a s t o f t r a f i c i n f o r m a t i o n o r a
PTY programme, by a station that is
part of the same network as the sta-
tion to which you are listening.
This service is available when you
have selected the TA t r a f i c i n f o r m a -
tion programme or the PTY function.
Search by type of programme
(PTY)
This allows you to listen to stations broad-
c a s t i n g a s p e c i i c t y p e o f p r o g r a m m e
(news, culture, sport, rock, etc.).
To search for a
PTY programme :

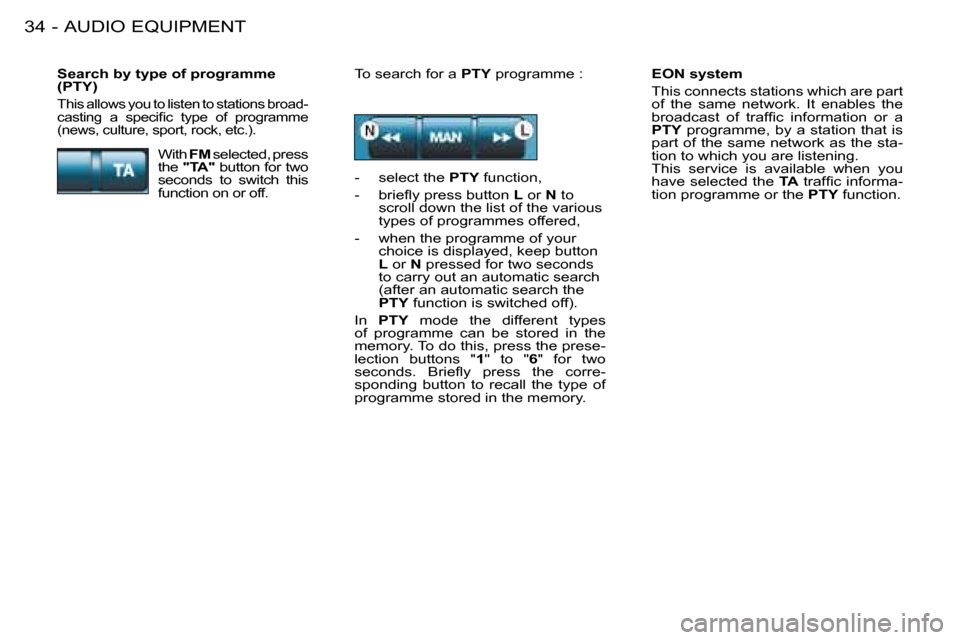

With FM selected, press
the "TA" button for two
seconds to switch this
function on or off. - select the
PTY function,
- b r i e l y p r e s s b u t t o n L or N to
scroll down the list of the various
types of programmes offered,
- when the programme of your choice is displayed, keep button
L or N pressed for two seconds
to carry out an automatic search
(after an automatic search the
PTY function is switched off).
In PTY mode the different types
of programme can be stored in the
memory. To do this, press the prese-
lection buttons " 1" to " 6" for two
s e c o n d s . B r i e l y p r e s s t h e c o r r e -
sponding button to recall the type of
programme stored in the memory.
Page 34 of 123
35
AUDIO EQUIPMENT
-
Ejection of a disc Selecting a track
S h u f l e ( R D M )
When the CD player is selected,
press and hold button Q for two sec-
onds. The tracks will be played in
random sequence. Pressing the but-
ton again for two seconds returns
you to normal play.
S h u f l e m o d e i s d e - a c t i v a t e d e a c h
time the set is switched off.
COMPACT DISC
Press button L to select the next
track.
Press button N to return to the start
of the current track or to select the
previous track.
Accelerated play
Press and hold button L or N for for-
wards or backwards accelerated play.
Accelerated play stops as soon as
the button is released.
After insertion of a disc,
printed face upwards,
the player starts auto-
matically.
If a disc is already inserted, press
button Q.
Press button S to eject
the disc from the player.
The use of copied compact
discs may cause faults.
Insert circular compact discs
only.
Selecting CD mode
Page 35 of 123
AUDIO EQUIPMENT
36 -
RADIO RECEPTION
(AERIAL ADJUSTMENT)
Notes on radio reception. Your radio
will be subject to phenomena which
do not affect domestic radio sets.
Both MW/LW and FM reception are
subject to various forms of interfe-
r e n c e , w h i c h a r e n o r e l e c t i o n o n t h e
quality of your equipment but are due
to the nature of the signals and the
way in which they are transmitted.
On MW/LW, interference may be no-
ticed when passing underneath high
voltage power lines, under bridges or
in tunnels. On FM, interference may be the
result of increasing distance from the
t r a n s m i t t e r , d e l e c t i o n o f t h e s i g n a l
by obstacles (mountains, hills, buil-
dings, etc.), or of being in an area not
covered by a transmitter.
Saloon: recommended position for
the front aerial for best reception.
N o p a r t i c u l a r p o s i t i o n f o r t h e i x e d
rear aerial (preset aerial).
Page 36 of 123
37
AUDIO EQUIPMENT
-

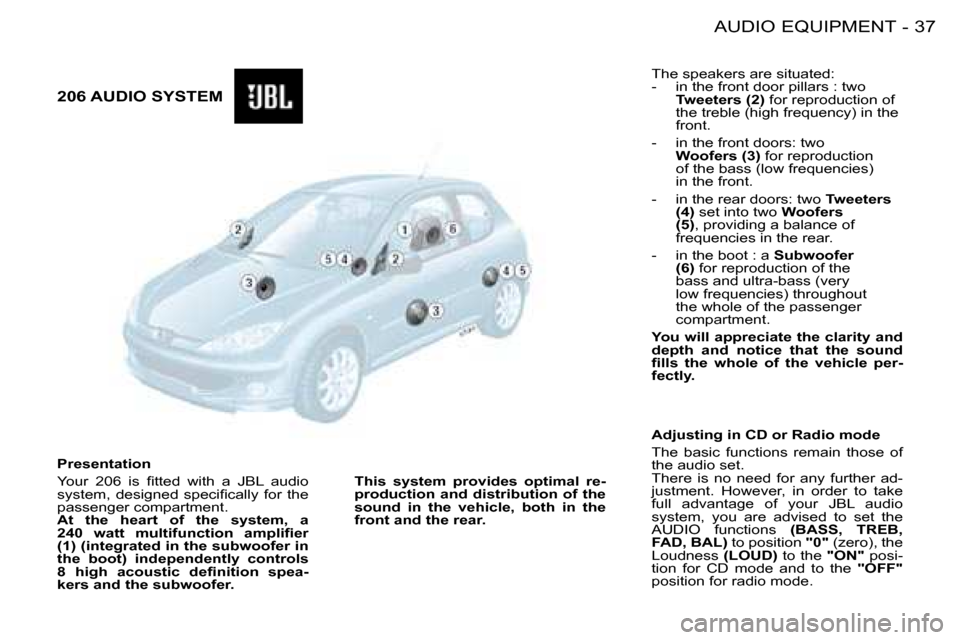

206 AUDIO SYSTEM
Presentation
Y o u r 2 0 6 i s i t t e d w i t h a J B L a u d i o
s y s t e m , d e s i g n e d s p e c i i c a l l y f o r t h e
passenger compartment.
At the heart of the system, a
2 4 0 w a t t m u l t i f u n c t i o n a m p l i i e r
(1) (integrated in the subwoofer in
the boot) independently controls
8 h i g h a c o u s t i c d e i n i t i o n s p e a -
kers and the subwoofer. The speakers are situated:
- in the front door pillars : two
Tweeters (2) for reproduction of
the treble (high frequency) in the
front.
- in the front doors: two Woofers (3) for reproduction
of the bass (low frequencies)
in the front.
- in the rear doors: two Tweeters
(4) set into two Woofers
(5) , providing a balance of
frequencies in the rear.
- in the boot : a Subwoofer
(6) for reproduction of the
bass and ultra-bass (very
low frequencies) throughout
the whole of the passenger
compartment.
You will appreciate the clarity and
depth and notice that the sound
i l l s t h e w h o l e o f t h e v e h i c l e p e r -
fectly.
This system provides optimal re-
production and distribution of the
sound in the vehicle, both in the
front and the rear. Adjusting in CD or Radio mode
The basic functions remain those of
the audio set.
There is no need for any further ad-
justment. However, in order to take
f u l l a d v a n t a g e o f y o u r J B L a u d i o
system, you are advised to set the
AUDIO functions
(BASS, TREB,
FAD, BAL) to position "0" (zero), the
Loudness (LOUD) to the "ON" posi-
tion for CD mode and to the "OFF"
position for radio mode.
Page 37 of 123
Page 38 of 123
39
COMFORT
-

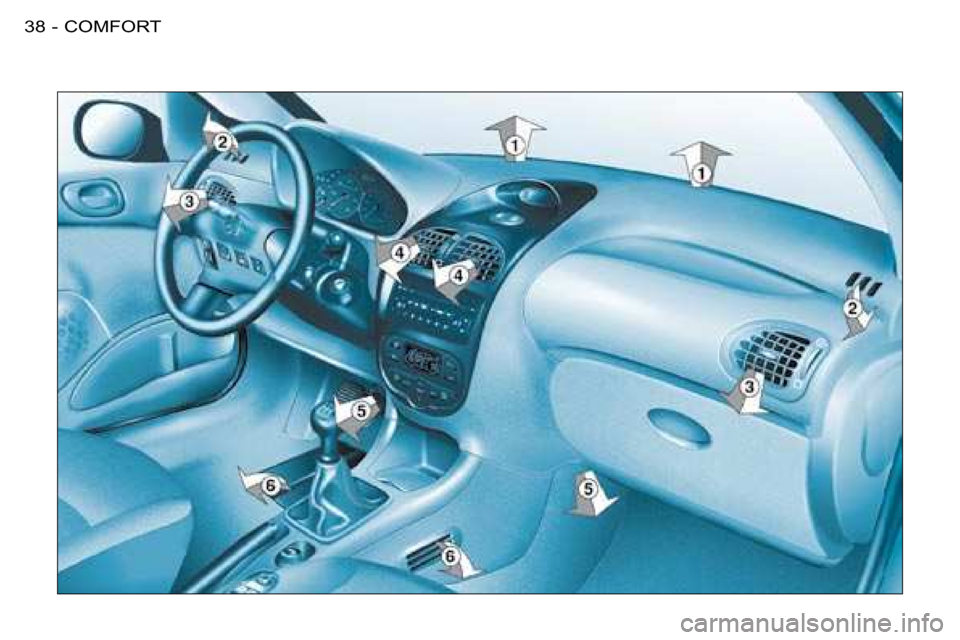

VENTILATION
1. Windscreen de-icing or
demisting vents.
2. Front door windows
de-icing or demisting
vents.
3. Side vents.
4. Centre vents.
5. Air outlet to front
footwells.
6. Air outlet to rear footwells
(with automatic air
conditioning only). Advice on operation and
notes
P l a c e t h e a i r l o w c o n t r o l a t a l e v e l
s u f i c i e n t t o e n s u r e a n a d e q u a t e r e
-
newal of air in the passenger com-
partment.
W h e n t h e a i r l o w c o n t r o l i s i n t h e
OFF position (system switched off),
temperature-related comfort is no
longer guaranteed. However, a slight
l o w o f a i r , d u e t o t h e m o v e m e n t o f
the vehicle, can still be felt.
Select the air distribution which is
m o s t s u i t e d t o y o u r r e q u i r e m e n t s a n d
the weather conditions.
Change the temperature setting pro-
gressively for greater comfort.
Place the air intake control in the
"Exterior air" position, this facilitates
demisting.
If the interior temperature remains
very high following a long period
parked in the sun, do not hesitate to
ventilate the passenger compartment
for a few minutes.
To obtain a perfectly uniform distribu-
tion of air, do not cover the exterior
air intake grille, the vents, the air pas-
sages and the air outlets in the foot-
wells. In certain cases of particularly ardu-
ous use (towing the maximum load
on a steep gradient in a high temper-
ature), cutting off the air conditioning
permits recovery of the engine power
and, therefore improvement of the
towing capacity.
Ensure that the passenger com-
p a r t m e n t i l t e r , l o c a t e d b y t h e w i n d
-
screen, under the bonnet, is in good
c o n d i t i o n . H a v e t h e i l t e r e l e m e n t s
replaced regularly. If you drive in a
dusty environment, change them
twice as often.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month to keep it in perfect working
order.
The water formed by the condensa-
tion of the air conditioning system is
discharged via an opening provided
for this purpose. Therefore, a pud-
dle may form underneath the vehicle
when stationary.
If the system does not produce
cold air, do not use it and contact a
PEUGEOT dealer.
Page 39 of 123
COMFORT
40 -
DE-ICING AND DEMISTING
De-icing the rear screen and
mirrors
When the engine is running,
pressing this button de-ices
the rear screen and exterior
mirrors.
It switches off automatically, after approximately twelve minutes,
to prevent an excessive consumption
of current. Pressing the button again
restarts operation for twelve minutes.
It is possible to stop the operation of
the de-icing before it is switched off
automatically by pressing the button
again.
Switch off the de-icing as soon as
you consider this necessary as low
current consumption reduces fuel
consumption. Manual demisting
T o q u i c k l y d e m i s t t h e w i n d s c r e e n a n d
side windows:
- switch on the air conditioning,
- place the temperature and air
l o w c o n t r o l s i n t h e m a x i m u m
position,
- close the central vents,
- place the exterior air intake control on the left, in the
"Exterior Air" position. Automatic demisting,
visibility programme
In some cases, the AUTO programme
m a y n o t b e s u f i c i e n t t o d e m i s t t h e
windscreen and side windows (hu-
midity, several passengers, ice...).
Select the
"visibility" demisting pro-
gramme by pressing this button to
c l e a r t h e w i n d o w s q u i c k l y .
To exit from this programme and re-
turn to the AUTO programme, press
the AUTO button.
Page 40 of 123
41
COMFORT
-
HEATING / VENTILATION
The heating and ventilation can only operate when the e ngine is running.
2. Air distribution adjustment
1. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
s u i t y o u r r e q u i r e m e n t s .
Windscreen and side win-
dows (de-icing/demisting).
Windscreen, side windows
and footwells. Footwells.
Centre and side vents.
These settings are recommended for
cold climates.
This setting is recommended for hot
climates.
The air distribution can be adjusted
by placing the control in an interme-
diate position. 3 . A i r l o w a d j u s t m e n t
Turn the control from position
1 to position 4 to obtain an
a i r l o w s u f i c i e n t t o e n s u r e
your comfort.
4. Air intake / Air recirculation
The recirculation of interior air pre-
vents exterior odours and smoke en-
tering the passenger compartment.
The intake of exterior air prevents
and eliminates misting of the wind-
screen and side windows.
Air intake.
Air recirculation.
Move the manual control 4 to the
right for the "Interior air recirculation"
position.
Move the manual control 4 to the
left to return to the "Exterior air in-
take" position as soon as possible
to prevent deterioration of the air
q u a l i t y .
