Page 9 of 123
FAMILIARISATION
12 -

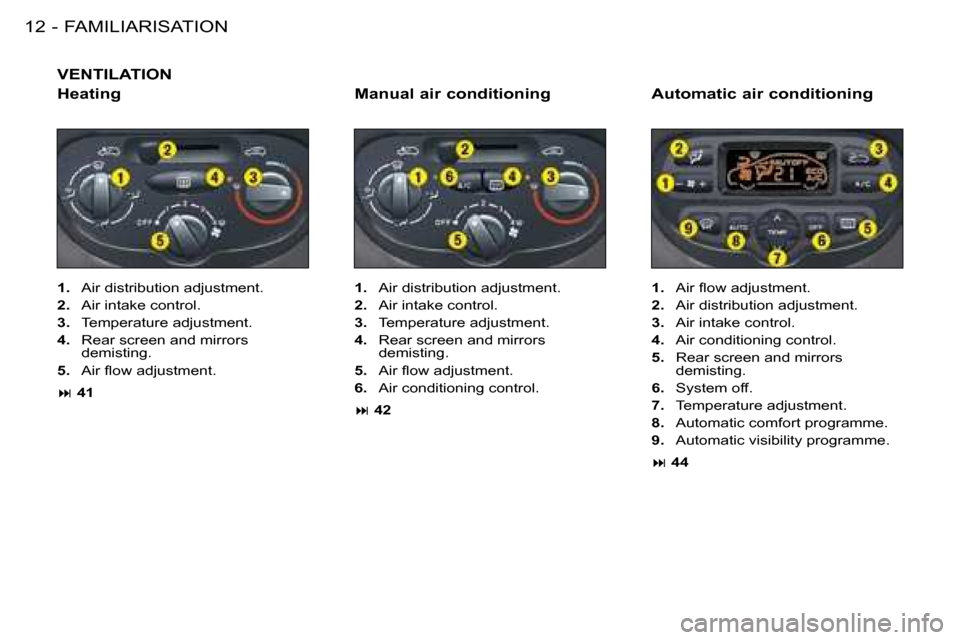

VENTILATION
1. Air distribution adjustment.
2. Air intake control.
3. Temperature adjustment.
4. Rear screen and mirrors
demisting.
5. A i r l o w a d j u s t m e n t .
6. Air conditioning control.
: 42 1.
A i r l o w a d j u s t m e n t .
2. Air distribution adjustment.
3. Air intake control.
4. Air conditioning control.
5. Rear screen and mirrors
demisting.
6. System off.
7. Temperature adjustment.
8. Automatic comfort programme.
9. Automatic visibility programme.
: 44
1.
Air distribution adjustment.
2. Air intake control.
3. Temperature adjustment.
4. Rear screen and mirrors
demisting.
5. A i r l o w a d j u s t m e n t .
: 41
Heating Manual air conditioning Automatic air conditioning
Page 10 of 123
13
FAMILIARISATION
-
VENTILATION

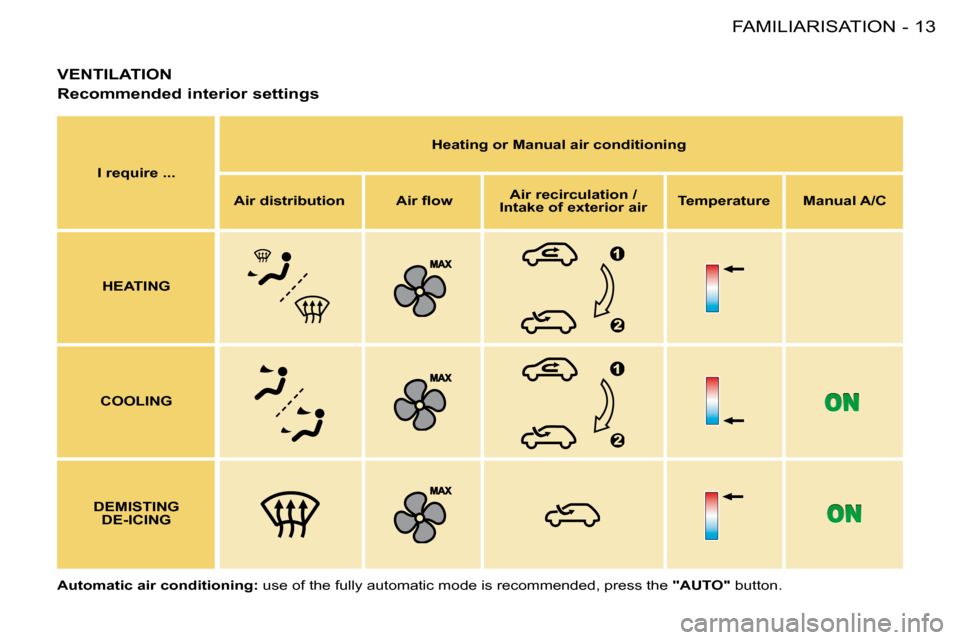

Recommended interior settings
I require ... Heating or Manual air conditioning
Air distribution A i r l o wAir recirculation /
Intake of exterior air Temperature Manual A/C
HEATING
COOLING
DEMISTING DE-ICING
Automatic air conditioning: u s e o f t h e f u l l y a u t o m a t i c m o d e i s r e c o m m e n d e d , p r e s s t h e "AUTO" button.
Page 11 of 123
FAMILIARISATION
14 -
MONITORING
Instrument panel
A. W h e n t h e i g n i t i o n i s o n , t h e
fuel gauge needle should
rise.
B. W h e n t h e e n g i n e i s r u n n i n g , i t s
a s s o c i a t e d l o w l e v e l w a r n i n g
l i g h t s h o u l d s w i t c h o f f .
C. W h e n t h e i g n i t i o n i s o n , t h e o i l
level indicator should display
b e t w e e n o n e a n d s i x s q u a r e s f o r
a f e w s e c o n d s .
I f t h e l e v e l s a r e n o t c o r r e c t , t o p u p
the corresponding level. : 17, 24 Warning lights
1.
W h e n t h e i g n i t i o n i s o n , t h e
o r a n g e a n d r e d w a r n i n g l i g h t s
come on.
2. W h e n t h e e n g i n e i s r u n n i n g ,
t h e s e w a r n i n g l i g h t s s h o u l d
s w i t c h o f f .
I f w a r n i n g l i g h t s r e m a i n o n , r e f e r t o
the page concerned. : 19 Controls
Lighting of the indicator light indi-
cates the status of the corresponding
function.
A.
Deactivation of the rear electric
w i n d o w s .
: 68
B. Deactivation of the ESP and
ASR systems.
: 82
C. Central Locking/Unlocking.
: 60
Page 12 of 123
15
FAMILIARISATION
-
KEEPING YOUR PASSENGERS SAFE
Front passenger air bag
1. Insertion of the key.
2. Selection of the position:
"ON" ( a c t i v a t i o n ) , w i t h f r o n t
p a s s e n g e r o r " f o r w a r d f a c i n g "
c h i l d s e a t ,
"OFF" ( d i s a r m i n g ) , w i t h
"rear facing" child seat.
3. Removal of the key keeping the
s w i t c h i n t h i s p o s i t i o n .
: 84 Driver's seat belt and
air bags
A.
Driver's seat belt not fastened or
u n f a s t e n e d w a r n i n g l i g h t ,
lit in red.
B. P a s s e n g e r a i r b a g w a r n i n g l i g h t ;
lit if the air bag is disarmed.
C. A i r b a g s w a r n i n g l i g h t ; o f f a f t e r
t h e i g n i t i o n i s s w i t c h e d o n .
: 21
STARTING
Ignition switch
1. Stop position.
2. Accessories position.
3. Running position.
4. Starting position.
Page 13 of 123
FAMILIARISATION
16 -
DRIVING SAFELY
Speed limiter
1. Speed limiter mode Selection /
Off.
2. Decreasing of the programmed
value.
3. Increasing of the programmed
value.
4. Speed limiter On / Off.
T h e s p e e d l i m i t e r o p e r a t e s w i t h
a programmed speed of at least
20 mph (30 km/h).
V a l u e s m u s t b e s e t w i t h t h e e n g i n e
running. : 77 Cruise control
1.
Cruise control mode Selection /
Off.
2. Decreasing of the programmed
value.
3. Increasing of the programmed
value.
4. Cruise control On / Off.
I n o r d e r t o b e p r o g r a m m e d o r a c t i v a t e d , the vehicle speed must be above
2 5 m p h ( 4 0 k m / h ) , w i t h a t l e a s t f o u r t h
gear engaged on the manual gear-
box. : 79 Display on the instrument
panel
The cruise control or speed limiter
mode appears on the instrument
panel display
A w h e n i t i s s e l e c t e d ;
an indicator light B comes on on the
i n s t r u m e n t p a n e l w h e n i t i s a c t i v a t e d .
Cruise control
Speed limiter
Page 14 of 123
17
INSTRUMENTS and CONTROLS
-
1. Seat belt not fastened warning
light
2. Passenger air bag disarmed
warning light
3. Air bags warning light
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)
warning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator 9.
Total distance recorder, service,
engine oil level and speed
limiter/cruise control indicator
10. Right hand direction indicator
11. Emission control system
warning light
12. Main beam headlamps indicator
light
13. H a n d b r a k e , l o w b r a k e l u i d
level and electronic brake force
distribution warning light
14. Dipped beam headlamps
indicator light
15. Battery charge warning light
16. Engine oil pressure and
temperature warning light
17. Engine oil temperature indicator 18.
Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat button
24. Fuel level indicator
25. Low fuel level warning light
26. Dynamic stability control
(ESP/ASR) warning light
27. Speed limiter/cruise control
indicator light
INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX
Page 15 of 123
INSTRUMENTS and CONTROLS
18 -
1. Seat belt not fastened warning
light
2. Passenger air bag disarmed
warning light
3. Air bags warning light
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)
warning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, service,
engine oil level and speed
limiter/cruise control indicator 9.
Right hand direction indicator
10. Emission control system warning
light
11. Main beam headlamps indicator
light
12. H a n d b r a k e , l o w b r a k e l u i d
level and electronic brake force
distribution warning light
13. Dipped beam headlamps
indicator light
14. Battery charge warning light
15. Engine oil pressure and
temperature warning light
16. Operating programmes
17. Gear indicator
18. Total distance recorder button 19.
Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat button
24. Fuel level indicator
25. Low fuel level warning light
26. Dynamic stability control
(ESP/ASR) warning light
27. Speed limiter/cruise control
indicator light
INSTRUMENT DIALS: PETROL AUTOMATIC GEARBOX
Page 16 of 123
19
INSTRUMENTS and CONTROLS
-
WARNING LIGHTS
A p e r m a n e n t l y l i t w a r n i n g l i g h t o r o n e l a s h i n g , w i t h t h e e n g i n e r u n n i n g , i n d i c a t e s a n o p e r a t i n g f a u l t o f t h e u n i t
c o n c e r n e d .
T h e i l l u m i n a t i o n o f c e r t a i n w a r n i n g l i g h t s m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e m u l t i-
f u n c t i o n d i s p l a y . D o n o t i g n o r e t h i s w a r n i n g : c o n s u l t a P E U G E O T d e a l e r a s s o o n a s p o s s i b l e .
I f t h e c e n t r a l S T O P w a r n i n g l i g h t c o m e s o n w h e n y o u a r e d r i v i n g , s t o p y o u r v e h i c l e i m m e d i a t e l y , w h e r e i t i s s a f e t o
d o s o .
Central (STOP)
warning light
Linked to the warning lights:
- engine oil pressure and temperature,
- handbrake,
- l o w b r a k e l u i d l e v e l ,
- electronic brake force distribution fault.
Linked to the coolant temperature in-
dicator.
Y o u m u s t s t o p i f t h e l i g h t l a s h e s
w i t h t h e e n g i n e r u n n i n g .
Consult a PEUGEOT dealer. E n g i n e o i l p r e s s u r e
a n d t e m p e r a t u r e
warning light
Linked to the central (STOP) warn-
ing light.
Y o u m u s t s t o p .
This warning light indicates one of
the following:
- i n s u f i c i e n t o i l p r e s s u r e ,
- a lack of oil in the lubrication circuit. Top up the level,
- an oil temperature which is too high. The warning light is
accompanied by an audible
signal. To lower the
oil temperature, reduce your
speed.
Consult a PEUGEOT dealer. H a n d b r a k e , l o w
b r a k e f l u i d l e v e l a n d
E l e c t r o n i c B r a k e F o r c e
D i s t r i b u t i o n f a u l t
warning light
Linked to the central (STOP) warn-
ing light.
This indicates one of the following:
- that the handbrake is applied or not fully released,
- a n e x c e s s i v e d r o p i n b r a k e l u i d level (if the warning light remains
on even when the handbrake is
released),
- a fault in the Electronic Brake Force Distribution, if lit at the
same time as the ABS warning
light.
Y o u m u s t s t o p .
Consult a PEUGEOT dealer.
