ON-VEHICLE MAINTENANCE
ENGINE OIL
InspectionINFOID:0000000003793121
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop
it and allow 10 minutes before checking.
1. Pull out oil level gauge and wipe it clean.

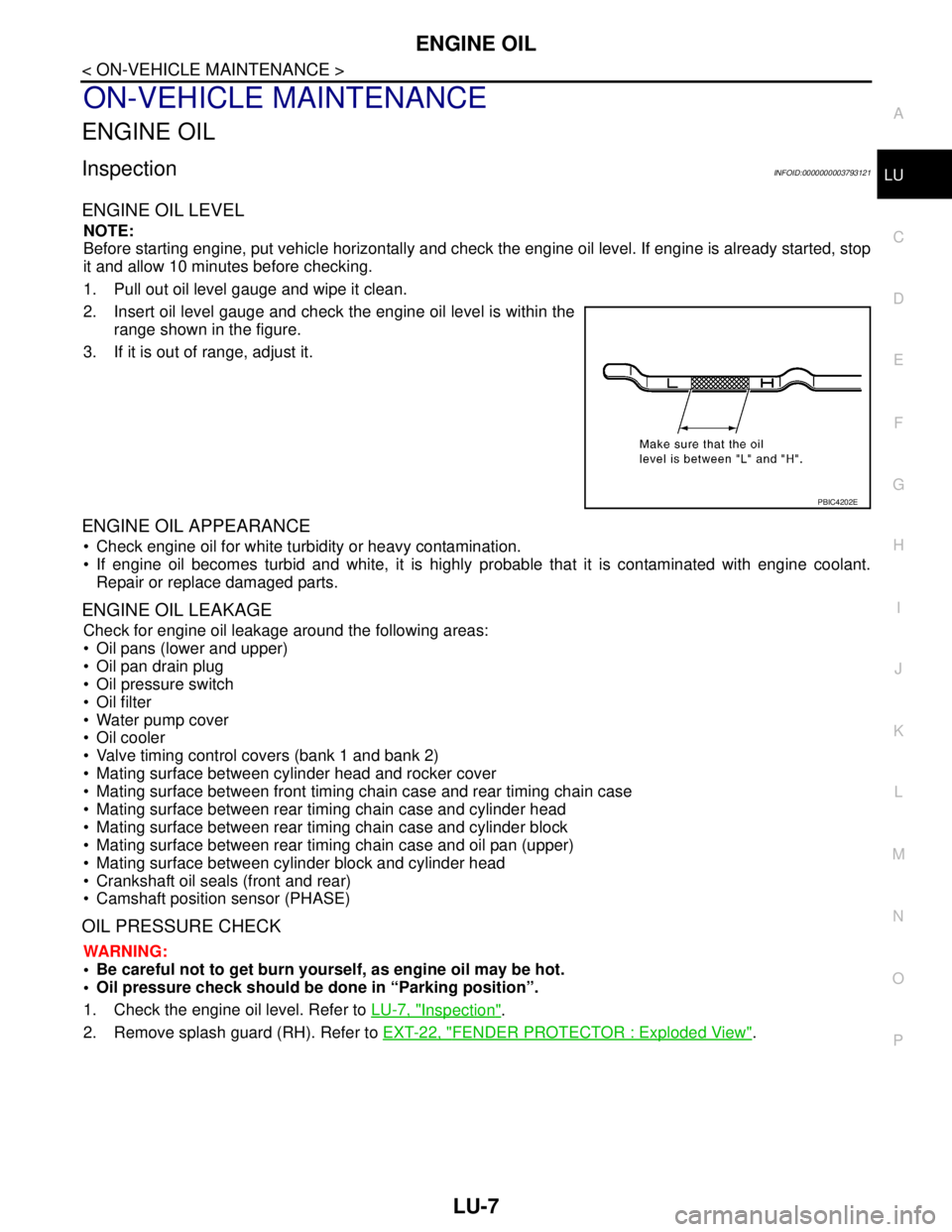

2. Insert oil level gauge and check the engine oil level is within the
range shown in the figure.
3. If it is out of range, adjust it.
ENGINE OIL APPEARANCE
 Check engine oil for white turbidity or heavy contamination.
 If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.
Repair or replace damaged parts.
ENGINE OIL LEAKAGE
Check for engine oil leakage around the following areas:
 Oil pans (lower and upper)
 Oil pan drain plug
 Oil pressure switch
 Oil filter
 Water pump cover
 Oil cooler
 Valve timing control covers (bank 1 and bank 2)
 Mating surface between cylinder head and rocker cover
 Mating surface between front timing chain case and rear timing chain case
 Mating surface between rear timing chain case and cylinder head
 Mating surface between rear timing chain case and cylinder block
 Mating surface between rear timing chain case and oil pan (upper)
 Mating surface between cylinder block and cylinder head
 Crankshaft oil seals (front and rear)
 Camshaft position sensor (PHASE)
OIL PRESSURE CHECK
WARNING:
• Be careful not to get burn yourself, as engine oil may be hot.
 Oil pressure check should be done in “Parking position”.
1. Check the engine oil level. Refer to LU-7, "
Inspection".
2. Remove splash guard (RH). Refer to EXT-22, "
FENDER PROTECTOR : Exploded View".
PBIC4202E

MWI-2
DIAGNOSIS SYSTEM (METER) .......................32
Diagnosis Description .............................................32
CONSULT-III Function (METER/M&A) ...................33
COMPONENT DIAGNOSIS ........................37
U1000 CAN COMM CIRCUIT ............................37
Description ..............................................................37
DTC Logic ...............................................................37
Diagnosis Procedure .............................................37
U1010 CONTROL UNIT (CAN) .........................38
Description ..............................................................38
DTC Logic ...............................................................38
Diagnosis Procedure ..............................................38
B2205 VEHICLE SPEED ...................................39
Description ..............................................................39
DTC Logic ...............................................................39
Diagnosis Procedure .............................................39
B2267 ENGINE SPEED .....................................40
Description ..............................................................40
DTC Logic ...............................................................40
Diagnosis Procedure ..............................................40
B2268 WATER TEMP ........................................41
Description ..............................................................41
DTC Logic ...............................................................41
Diagnosis Procedure ..............................................41
POWER SUPPLY AND GROUND CIRCUIT .....42
COMBINATION METER ...........................................42
COMBINATION METER : Diagnosis Procedure ....42
BCM (BODY CONTROL MODULE) .........................42
BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ...............................................................
42
IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) .............................
43
IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................
43
FUEL LEVEL SENSOR SIGNAL CIRCUIT .......45
Description ..............................................................45
Component Function Check ...................................45
Diagnosis Procedure .............................................45
Component Inspection ............................................46
METER CONTROL SWITCH SIGNAL CIR-
CUIT ...................................................................
48
Description ..............................................................48
Diagnosis Procedure ..............................................48
Component Inspection ............................................49
OIL PRESSURE SWITCH SIGNAL CIRCUIT ...50
Description ..............................................................50
Component Function Check ...................................50
Diagnosis Procedure ..............................................50
Component Inspection ............................................50
PARKING BRAKE SWITCH SIGNAL CIR-
CUIT ...................................................................
52
Description ..............................................................52
Diagnosis Procedure ...............................................52
Component Inspection ............................................52
ECU DIAGNOSIS .......................................53
COMBINATION METER ....................................53
Reference Value .....................................................53
Wiring Diagram - METER - .....................................59
Fail-Safe ..................................................................66
DTC Index ...............................................................67
BCM (BODY CONTROL MODULE) ..................68
Reference Value .....................................................68
Wiring Diagram - BCM - ..........................................91
Fail-safe ..................................................................97
DTC Inspection Priority Chart ...............................99
DTC Index ............................................................100
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) ................
102
Reference Value ...................................................102
Wiring Diagram - IPDM E/R - ................................110
Fail-safe ................................................................113
DTC Index ............................................................115
SYMPTOM DIAGNOSIS ...........................116
THE FUEL GAUGE POINTER DOES NOT
MOVE ................................................................
116
Description ............................................................116
Diagnosis Procedure .............................................116
THE METER CONTROL SWITCH IS INOPER-
ATIVE ................................................................
117
Description ............................................................117
Diagnosis Procedure .............................................117
THE OIL PRESSURE WARNING LAMP
DOES NOT TURN ON ......................................
118
Description ............................................................118
Diagnosis Procedure .............................................118
THE OIL PRESSURE WARNING LAMP
DOES NOT TURN OFF ....................................
119
Description ............................................................119
Diagnosis Procedure .............................................119
THE PARKING BRAKE RELEASE WARNING
CONTINUES DISPLAYING, OR DOES NOT
DISPLAY ...........................................................
120
Description ............................................................120
Diagnosis Procedure .............................................120
THE DOOR OPEN WARNING CONTINUES
DISPLAYING, OR DOES NOT DISPLAY ........
121
Description ............................................................121

MWI-6
< FUNCTION DIAGNOSIS >
METER SYSTEM
FUNCTION DIAGNOSIS
METER SYSTEM
METER SYSTEM
METER SYSTEM : System DiagramINFOID:0000000003792507
METER SYSTEM : System DescriptionINFOID:0000000003792508
COMBINATION METER

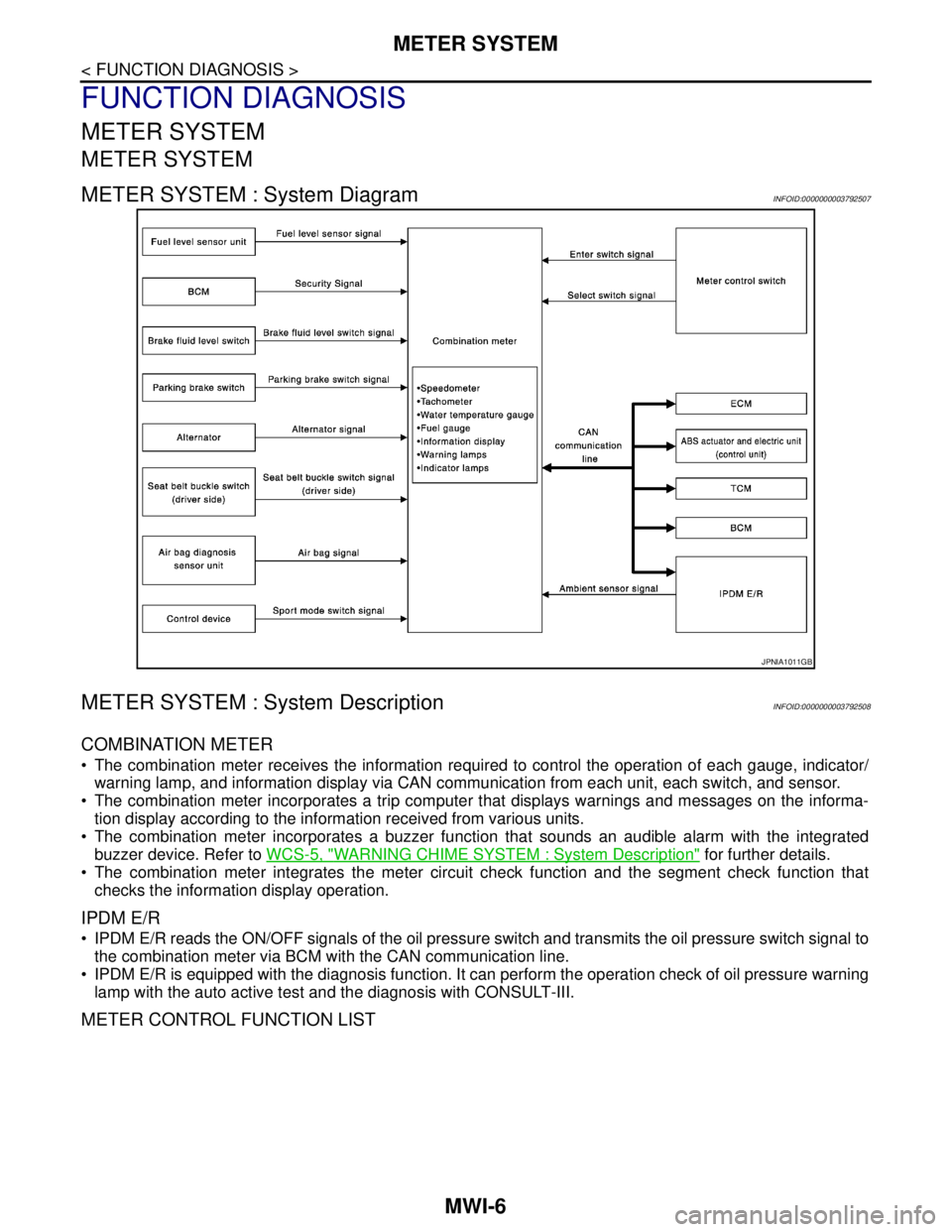

 The combination meter receives the information required to control the operation of each gauge, indicator/
warning lamp, and information display via CAN communication from each unit, each switch, and sensor.
 The combination meter incorporates a trip computer that displays warnings and messages on the informa-
tion display according to the information received from various units.
 The combination meter incorporates a buzzer function that sounds an audible alarm with the integrated
buzzer device. Refer to WCS-5, "
WARNING CHIME SYSTEM : System Description" for further details.
 The combination meter integrates the meter circuit check function and the segment check function that
checks the information display operation.
IPDM E/R
 IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch signal to
the combination meter via BCM with the CAN communication line.
 IPDM E/R is equipped with the diagnosis function. It can perform the operation check of oil pressure warning
lamp with the auto active test and the diagnosis with CONSULT-III.
METER CONTROL FUNCTION LIST
JPNIA1011GB

MWI
METER SYSTEM
MWI-7
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
System Description Signal source
Meter/gaugeSpeedometer Receives vehicle speed signal and indicates vehicle speed.ABS actuator and elec-
tric unit (control unit)
Tachometer Receives engine speed signal and indicates engine speed. ECM
Fuel gauge Receives fuel level sensor signal and indicates fuel level. Fuel level sensor unit
Engine coolant tem-
perature gaugeReceives engine coolant temperature signal and indicates coolant
temperature.ECM
Warning lamp/
indicator lampOil pressure warning
lampReceives oil pressure warning lamp signal and illuminates warning
lamp.IPDM E/R
Master warning Illuminates according to warning output on information display. —
Information
displayDoor open warning Receives door switch signals and displays warning. BCM
Trunk open warning Receives trunk switch signals and displays warning. BCM
Parking brake re-
lease warningReceives parking brake switch signal and vehicle speed signal and
displays warnings.Parking brake switch
ABS actuator and elec-
tric unit (control unit)
Low fuel warningReceives fuel gauge signal and displays warning if fuel level de-
creases to 11 (2-2/5 Imp gal) or less.Fuel level sensor unit
Low outside tempera-
ture warningMonitors ambient sensor signal and displays warning if ambient
temperature decreases to 3°C (37°F) or less. (If enabled)Ambient sensor
Instantaneous fuel
consumptionCalculates instantaneous fuel consumption based on received ve-
hicle speed signals and fuel consumption monitor signal and dis-
plays it.ECM
ABS actuator and elec-
tric unit (control unit)
Average fuel con-
sumptionCalculates average fuel consumption in a reset-to-reset interval
based on received vehicle speed signals and fuel consumption
monitor signal and displays it.ECM
ABS actuator and elec-
tric unit (control unit)
Average vehicle
speedCalculates average vehicle speed in a reset-to-reset interval based
on received vehicle speed signals and displays it.ABS actuator and elec-
tric unit (control unit)
Travel time Displays accumulated key switch ON time from reset to reset. —
Travel distanceCalculates accumulated travel distance in a reset-to-reset interval
based on received vehicle speed signals and displays it.ABS actuator and elec-
tric unit (control unit)
Possible driving dis-
tanceCalculates possible driving distance based on received fuel con-
sumption monitor signal, vehicle speed signals and fuel level sen-
sor signal and displays it.ABS actuator and elec-
tric unit (control unit)
ECM
Fuel level sensor unit
Ambient air tempera-
tureCorrects ambient air temperature value based on received ambient
sensor signals and displays it.Ambient sensor

MWI
METER SYSTEM
MWI-9
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

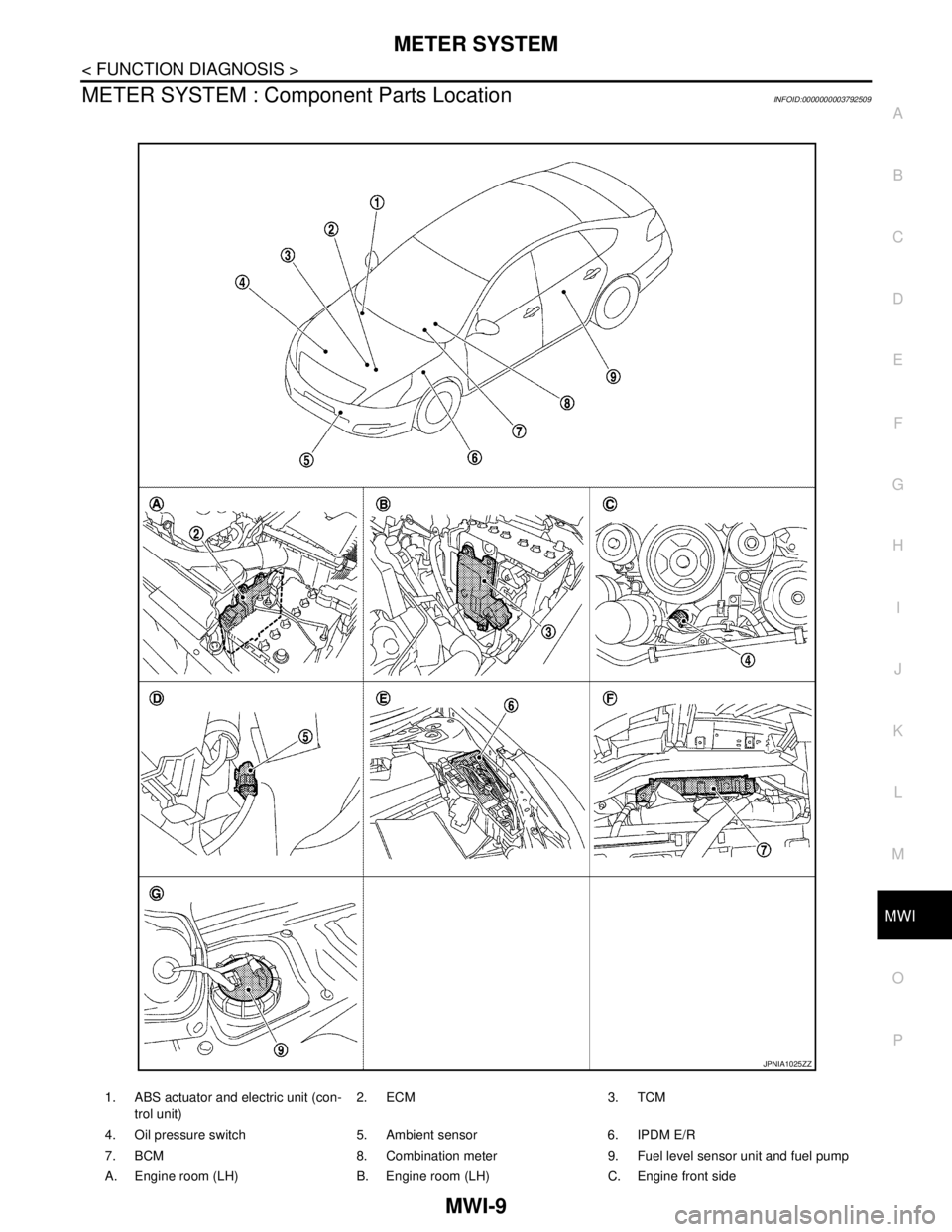

METER SYSTEM : Component Parts LocationINFOID:0000000003792509
1. ABS actuator and electric unit (con-
trol unit)2. ECM 3. TCM
4. Oil pressure switch 5. Ambient sensor 6. IPDM E/R
7. BCM 8. Combination meter 9. Fuel level sensor unit and fuel pump
A. Engine room (LH) B. Engine room (LH) C. Engine front side
JPNIA1025ZZ

MWI-10
< FUNCTION DIAGNOSIS >
METER SYSTEM
METER SYSTEM : Component Description
INFOID:0000000003792510
SPEEDOMETER
SPEEDOMETER : System DiagramINFOID:0000000003792511
SPEEDOMETER : System DescriptionINFOID:0000000003792512
 The ABS actuator and electric unit (control unit) converts the rectangular wave signal provided by the wheel
sensor to a vehicle speed signal and transmits it to the combination meter via CAN communication.
 The combination meter indicates the vehicle speed to the speedometer according to the vehicle speed sig-
nal received via CAN communication.
D. Front bumper (left back) E. Engine room (LH) F. Behind the combination meter
G. Lower left side of rear seat
Unit Description
Combination meterControls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors.
 Speedometer  Tachometer
 Engine coolant temperature gauge  Fuel gauge
 Warning lamps  Indicator lamps
 Information display
IPDM E/RIPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch
signal to the combination meter via BCM with CAN communication line.
Fuel level sensor unit Refer to MWI-45, "
Description".
Oil pressure switch Refer to MWI-50, "
Description".
ECMTransmits the following signals to the combination meter with CAN communication line.
 Engine speed signal  Engine coolant temperature signal
 Fuel consumption monitor signal
ABS actuator and electric unit
(control unit)Transmits the vehicle speed signal to the combination meter with CAN communication line.
BCM Transmits signals provided by various units to the combination meter with CAN communication line.
Control device Transmits the sport mode switch signal to the combination meter.
TCM Transmits the shift position signal to the combination meter with CAN communication line.
Meter control switch Refer to MWI-48, "
Description".
Brake fluid level switch Transmits the brake fluid level switch signal to the combination meter.
Parking brake switch Refer to MWI-52, "
Description".
JPNIA1012GB

MWI
METER SYSTEM
MWI-11
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
SPEEDOMETER : Component Parts LocationINFOID:0000000003879299
1. ABS actuator and electric unit (con-
trol unit)2. ECM 3. TCM
4. Oil pressure switch 5. Ambient sensor 6. IPDM E/R
7. BCM 8. Combination meter 9. Fuel level sensor unit and fuel pump
A. Engine room (LH) B. Engine room (LH) C. Engine front side
JPNIA1025ZZ

MWI-12
< FUNCTION DIAGNOSIS >
METER SYSTEM
SPEEDOMETER : Component Description
INFOID:0000000003792514
TACHOMETER
TACHOMETER : System DiagramINFOID:0000000003792515
TACHOMETER : System DescriptionINFOID:0000000003792516
 ECM converts the pulse signal provided by the crankshaft position sensor to an engine speed signal and
transmits it to the combination meter with CAN communication line.
 The combination meter indicates the engine speed to the tachometer according to the engine speed signal
received via CAN communication.
D. Front bumper (left back) E. Engine room (LH) F. Behind the combination meter
G. Lower left side of rear seat
Unit Description
Combination meterIndicates the vehicle speed to the speedometer according to the vehicle speed signal received from
ABS actuator and electric unit (control unit) via CAN communication.
ABS actuator and electric unit
(control unit)Transmits the vehicle speed signal to the combination meter with CAN communication line.
JPNIA1013GB
