Page 4491 of 5121
TM-18
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
MECHANICAL SYSTEM
Component Parts Location
INFOID:0000000003848922
*1: Primary pressure sensor is included in CVT assembly.
*2: Control valve assembly is included in CVT assembly.
NOTE:
The following components are included in control valve assembly (7).
PNP switch
Primary speed sensor
Step motor
Secondary pressure solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve
Shift control valve
Secondary valve
Manual valve
Lock-up select solenoid valve
1. Sport mode switch 2. Shift position indicator 3. SPORT indicator lamp
4.
TCM5. Secondary speed sensor 6.
Primary pressure sensor
*1
7.
Control valve assembly*28. CVT unit connector 9. Accelerator pedal position sensor
A. Control device B. Combination meter C. Engine room LH
D. CVT assembly E. Accelerator pedal, upper
JPDIA0747ZZ
Page 4492 of 5121
![NISSAN TEANA 2008 Service Manual MECHANICAL SYSTEM
TM-19
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CVT fluid temperature sensor
Secondary pressure sensor
ROM assembly
Component DescriptionINFOID:00000 NISSAN TEANA 2008 Service Manual MECHANICAL SYSTEM
TM-19
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CVT fluid temperature sensor
Secondary pressure sensor
ROM assembly
Component DescriptionINFOID:00000](/manual-img/5/57391/w960_57391-4491.png)
MECHANICAL SYSTEM
TM-19
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CVT fluid temperature sensor
Secondary pressure sensor
ROM assembly
Component DescriptionINFOID:0000000003848923
Item Function
Torque converterThe torque converter is the device that increases the engine torque as well as the con-
ventional AT and transmits it to the transaxle.
Oil pumpThe adoption of a trochoidal oil pump with a flow control valve actuated directly by the
engine enables the sufficient discharge from an oil pump in the low-rpm range and the
adequate discharge adjustments in the high-rpm range.
Planetary gear
Perform the transmission of drive power and the switching of forward/backward move-
ment. Forward clutch
Reverse brake
Primary pulley It is composed of a pair of pulleys (the groove width is changed freely in the axial direc-
tion) and the steel belt (the steel star wheels are placed continuously and the belt is guid-
ed with the multilayer steel rings on both sides). The groove width changes according to
wrapping radius of steel belt and pulley from low status to overdrive status continuously
with non-step. It is controlled with the oil pressures of primary pulley and secondary pul-
ley. Secondary pulley
Steel belt
Output gear
Reduction gear consists of primary deceleration (output gear and idler gear in pair) and
secondary deceleration (reduction gear and final gear in pair). Each of them uses a he-
lical gear. Idler gear
Reduction gear
Final gear
Differential
Manual shaft
The parking rod rotates the parking pole and the parking pole engages with the parking
gear when the manual shaft is in “P” position. As a result the parking gear and the output
axis are fixed. Parking rod
Parking pawl
Parking gear
Page 4494 of 5121
![NISSAN TEANA 2008 Service Manual HYDRAULIC CONTROL SYSTEM
TM-21
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P Normal Control
Optimize the line pressure and secondary pressure, depending on driving conditions, o NISSAN TEANA 2008 Service Manual HYDRAULIC CONTROL SYSTEM
TM-21
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P Normal Control
Optimize the line pressure and secondary pressure, depending on driving conditions, o](/manual-img/5/57391/w960_57391-4493.png)
HYDRAULIC CONTROL SYSTEM
TM-21
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P Normal Control
Optimize the line pressure and secondary pressure, depending on driving conditions, on the basis of the throt-
tle position, the engine speed, the primary pulley (input) revolution speed, the secondary pulley (output) revo-
lution speed, the brake signal, the PNP switch signal, the lock-up signal, the voltage, the target gear ratio, the
fluid temperature, and the fluid pressure.
Feedback Control
For the normal fluid control and the select fluid control, secondary pressure is detected for feedback control by
using a secondary pressure sensor to set a high-precision secondary pressure.
Component Parts LocationINFOID:0000000003848926
*1: Primary pressure sensor is included in CVT assembly.
*2: Control valve assembly is included in CVT assembly.
NOTE:
The following components are included in control valve assembly (7).
PNP switch
1. Sport mode switch 2. Shift position indicator 3. SPORT indicator lamp
4.
TCM5. Secondary speed sensor 6.
Primary pressure sensor
*1
7.
Control valve assembly*28. CVT unit connector 9. Accelerator pedal position sensor
A. Control device B. Combination meter C. Engine room LH
D. CVT assembly E. Accelerator pedal, upper
JPDIA0747ZZ
Page 4495 of 5121
![NISSAN TEANA 2008 Service Manual TM-22
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
HYDRAULIC CONTROL SYSTEM
Primary speed sensor
Step motor
Secondary pressure solenoid valve
Line pressure solenoid valve
Torque converter clutch sol NISSAN TEANA 2008 Service Manual TM-22
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
HYDRAULIC CONTROL SYSTEM
Primary speed sensor
Step motor
Secondary pressure solenoid valve
Line pressure solenoid valve
Torque converter clutch sol](/manual-img/5/57391/w960_57391-4494.png)
TM-22
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
HYDRAULIC CONTROL SYSTEM
Primary speed sensor
Step motor
Secondary pressure solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve
Shift control valve
Secondary valve
Manual valve
Lock-up select solenoid valve
CVT fluid temperature sensor
Secondary pressure sensor
ROM assembly
Component DescriptionINFOID:0000000003848927
TRANSAXLE ASSEMBLY
EXCEPT TRANSAXLE ASSEMBLY
Name Function
Torque converter regulator valve Optimizes the supply pressure for the torque converter depending on driving conditions.
Pressure regulator valve Optimizes the discharge pressure from the oil pump depending on driving conditions.
TCC control valve Activates or deactivates the lock-up.
Locks up smoothly by opening lock-up operation excessively.
Shift control valveControls inflow/outflow of line pressure from the primary pulley depending on the stroke
difference between the stepping motor and the primary pulley.
Secondary valve Controls the line pressure from the secondary pulley depending on operating conditions.
Clutch regulator valve Adjusts the clutch operating pressure depending on operating conditions.
Manual valveTransmits the clutch operating pressure to each circuit in accordance with the selected
position.
Select control valve Engages forward clutch, reverse brake smoothly depending on select operation.
Select switch valveThe select switch valve enables to select engagement/disengagement of lock-up clutch
and that of forward clutch and reverse clutch.
TCC solenoid valveTM-62
Secondary pressure solenoid valveTM-72
Line pressure solenoid valveTM-66
Ste p m ot orTM-97
Lock-up select solenoid valveTM-94
Primary speed sensorTM-52
Secondary speed sensorTM-55
PNP switchTM-47
Primary pulley
TM-19
Secondary pulley
Forward clutch
Torque converter
Name Function
TCMJudges driving condition according to signals from each sensor, and optimally controls
variable speed mechanism.
Accelerator pedal position sensorTM-88
Page 4496 of 5121
![NISSAN TEANA 2008 Service Manual CONTROL SYSTEM
TM-23
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CONTROL SYSTEM
System DiagramINFOID:0000000003848928
System DescriptionINFOID:0000000003848929
The CVT senses NISSAN TEANA 2008 Service Manual CONTROL SYSTEM
TM-23
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CONTROL SYSTEM
System DiagramINFOID:0000000003848928
System DescriptionINFOID:0000000003848929
The CVT senses](/manual-img/5/57391/w960_57391-4495.png)
CONTROL SYSTEM
TM-23
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CONTROL SYSTEM

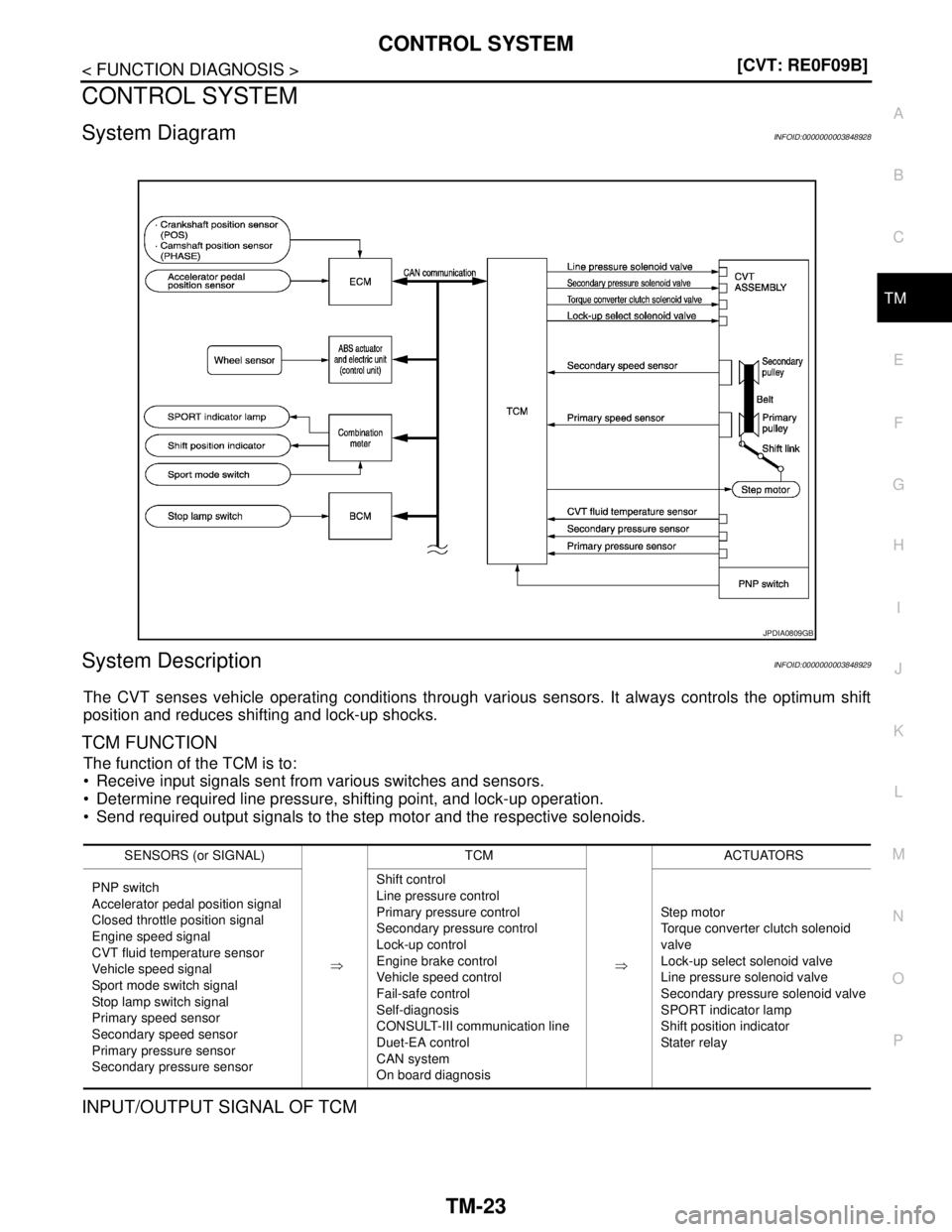

System DiagramINFOID:0000000003848928
System DescriptionINFOID:0000000003848929
The CVT senses vehicle operating conditions through various sensors. It always controls the optimum shift
position and reduces shifting and lock-up shocks.
TCM FUNCTION
The function of the TCM is to:
Receive input signals sent from various switches and sensors.
Determine required line pressure, shifting point, and lock-up operation.
Send required output signals to the step motor and the respective solenoids.
INPUT/OUTPUT SIGNAL OF TCM
JPDIA0809GB
SENSORS (or SIGNAL)
⇒TCM
⇒ACTUATORS
PNP switch
Accelerator pedal position signal
Closed throttle position signal
Engine speed signal
CVT fluid temperature sensor
Vehicle speed signal
Sport mode switch signal
Stop lamp switch signal
Primary speed sensor
Secondary speed sensor
Primary pressure sensor
Secondary pressure sensorShift control
Line pressure control
Primary pressure control
Secondary pressure control
Lock-up control
Engine brake control
Vehicle speed control
Fail-safe control
Self-diagnosis
CONSULT-III communication line
Duet-EA control
CAN system
On board diagnosisStep motor
Torque converter clutch solenoid
valve
Lock-up select solenoid valve
Line pressure solenoid valve
Secondary pressure solenoid valve
SPORT indicator lamp
Shift position indicator
Stater relay
Page 4497 of 5121
TM-24
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
CONTROL SYSTEM
*1: Input via CAN communications.
*2: Output via CAN communications.
*3: If these input and output signals are different, the TCM triggers the fail-safe function.Control itemFluid
pressure
controlSelect con-
trolShift con-
trolLock-up
controlCAN com-
munica-
tion controlFail-safe
function
*3
InputPNP switch XXXXXX
Accelerator pedal position signal
*1XXXXXX
Closed throttle position signal
*1X XXX
Engine speed signal
*1XX XXX
CVT fluid temperature sensor X X X X X
Sport mode switch signal
*1X XXX
Stop lamp switch signal
*1X XXX
Primary speed sensor X XXXX
Secondary speed sensor XXXXXX
Primary pressure sensor X X
Secondary pressure sensor X X X
TCM power supply voltage signal XXXXXX
OutputSte p m ot or X X
TCC solenoid valve X X X
Lock-up select solenoid valve X X X
Line pressure solenoid valve X X X X
Secondary pressure solenoid valve X X X
SPORT indicator signal
*2XX
Page 4498 of 5121
CONTROL SYSTEM
TM-25
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

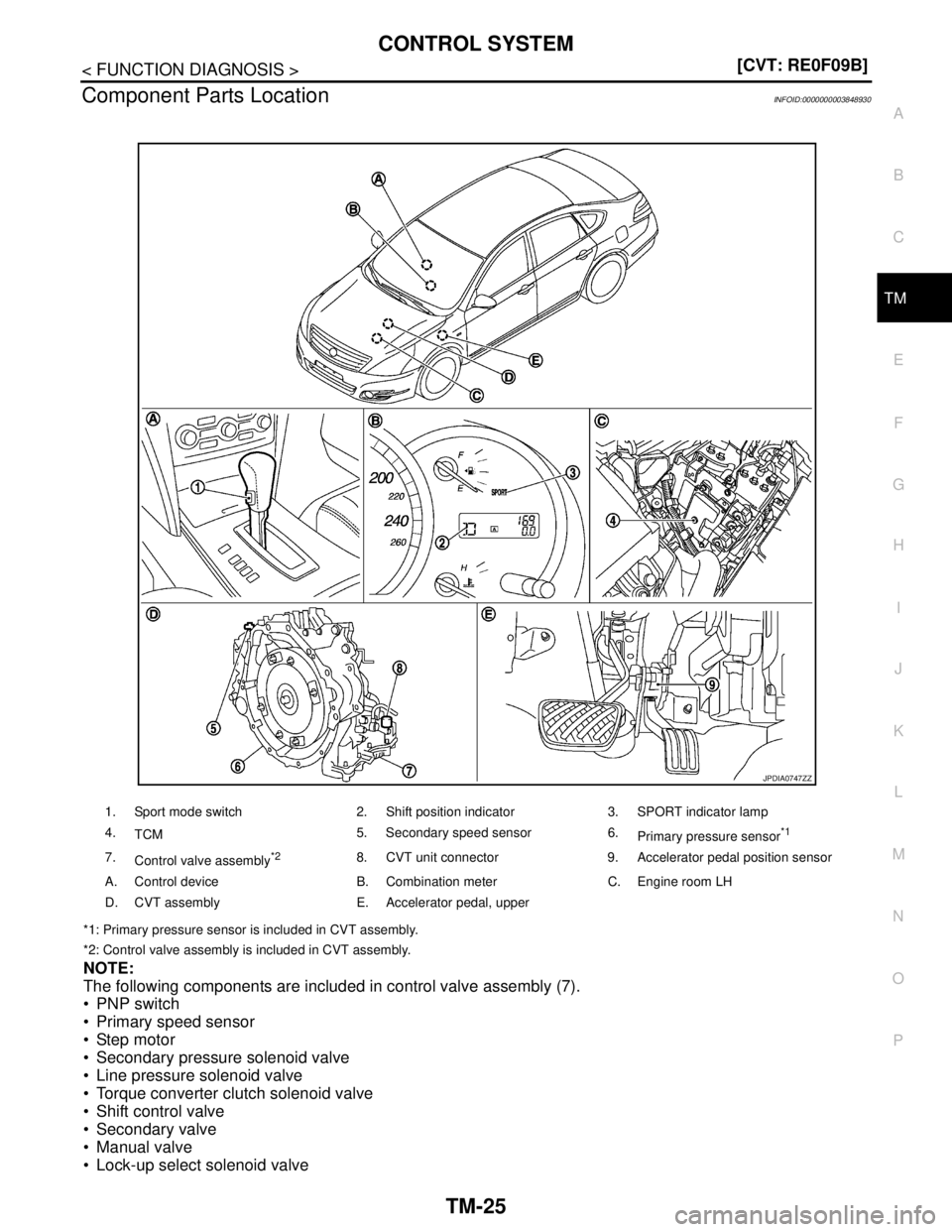

Component Parts LocationINFOID:0000000003848930
*1: Primary pressure sensor is included in CVT assembly.
*2: Control valve assembly is included in CVT assembly.
NOTE:
The following components are included in control valve assembly (7).
PNP switch
Primary speed sensor
Step motor
Secondary pressure solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve
Shift control valve
Secondary valve
Manual valve
Lock-up select solenoid valve
1. Sport mode switch 2. Shift position indicator 3. SPORT indicator lamp
4.
TCM5. Secondary speed sensor 6.
Primary pressure sensor
*1
7.
Control valve assembly*28. CVT unit connector 9. Accelerator pedal position sensor
A. Control device B. Combination meter C. Engine room LH
D. CVT assembly E. Accelerator pedal, upper
JPDIA0747ZZ
Page 4499 of 5121
TM-26
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
CONTROL SYSTEM
CVT fluid temperature sensor
Secondary pressure sensor
ROM assembly
Component DescriptionINFOID:0000000003848931
TRANSAXLE ASSEMBLY
EXCEPT TRANSAXLE ASSEMBLY
Name Function
PNP switchTM-47
CVT fluid temperature sensorTM-50
Primary speed sensorTM-52
Secondary speed sensorTM-55
Primary pressure sensorTM-80
Secondary pressure sensorTM-74
Ste p m ot orTM-97
TCC solenoid valveTM-62
Lock-up select solenoid valveTM-94
Line pressure solenoid valveTM-66
Secondary pressure solenoid valveTM-72
Name Function
TCMTM-22
Stop lamp switchTM-44
