2008 NISSAN TEANA sensor

DIAGNOSIS SENSOR UNIT
SRC-133
< ECU DIAGNOSIS >
C
D
E
F
G
I
J
K
L
MA
B
SRC
N
O
P
CONTROL UNIT
[B1058-B1063]Air bag diagnosis sensor unit is out of order or mis-matched Replace air bag diagnosis sensor unit
ASSIST A/B MODULE
[OPEN]
[B1065]Front passenger air bag module circuit is open 1. Replace wiring harness/harness
connector
2. Replace front passenger air bag
module
3. Replace air bag diagnosis sensor
unit ASSIST A/B MODULE
[VB-SHORT]
[B1066]Front passenger air bag module circuit is shorted to some power
supply circuit
ASSIST A/B MODULE
[GND-SHORT]
[B1067]Front passenger air bag module circuit is shorted to ground
ASSIST A/B MODULE
[SHORT]
[B1068]Front passenger air bag module circuits are shorted to each other
CONTROL UNIT
[B1074-B1079]Air bag diagnosis sensor unit is out of order or mis-matched Replace air bag diagnosis sensor unit
PRE-TEN FRONT RH
[OPEN]
[B1081]Front RH seat belt pre-tensioner circuit is open 1. Replace wiring harness/harness
connector
2. Replace front RH seat belt pre-
tensioner
3. Replace air bag diagnosis sensor
unit PRE-TEN FRONT RH
[VB-SHORT]
[B1082]Front RH seat belt pre-tensioner circuit is shorted to some power
supply circuit
PRE-TEN FRONT RH
[GND-SHORT]
[B1083]Front RH seat belt pre-tensioner circuit is shorted to ground
PRE-TEN FRONT RH
[SHORT]
[B1084]Front RH seat belt pre-tensioner circuits are shorted to each other
PRE-TEN FRONT LH
[OPEN]
[B1086]Front LH seat belt pre-tensioner circuit is open 1. Replace wiring harness/harness
connector
2. Replace front LH seat belt pre-
tensioner
3. Replace air bag diagnosis sensor
unit PRE-TEN FRONT LH
[VB-SHORT]
[B1087]Front LH seat belt pre-tensioner circuit is shorted to some power
supply circuit
PRE-TEN FRONT LH
[GND-SHORT]
[B1088]Front LH seat belt pre-tensioner circuit is shorted to ground
PRE-TEN FRONT LH
[SHORT]
[B1089]Front LH seat belt pre-tensioner circuits are shorted to each other
CONTROL UNIT
[B1090-B1095]Air bag diagnosis sensor unit is out of order or mis-matched Replace air bag diagnosis sensor unit
CONTROL UNIT
[ B 11 0 6 - B 1111 ]Air bag diagnosis sensor unit is out of order or mis-matched Replace air bag diagnosis sensor unit
SATELLITE SENS RH
[UNIT FAIL]
[ B 111 3 ]
[ B 111 4 ]
SATELLITE SENS RH
[COMM FAIL]
[ B 111 5 ]
[UNMATCH]
[ B 111 6 ]RH satellite sensor is out of order 1. Replace wiring harness/harness
connector
2. Replace RH satellite sensor
3. Replace air bag diagnosis sensor
unit Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

SRC-134
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT
SATELLITE SENS LH
[UNIT FAIL]
[ B 111 8 ]
[ B 111 9 ]
SATELLITE SENS LH
[COMM FAIL]
[B1120]
[UNMATCH]
[B1121]LH satellite sensor is out of order 1. Replace wiring harness/harness
connector
2. Replace LH satellite sensor
3. Replace air bag diagnosis sensor
unit
CONTROL UNIT
[ B 11 2 2 - B 11 2 7 ]Air bag diagnosis sensor unit is out of order or mis-matched Replace air bag diagnosis sensor unit
SIDE MODULE RH
[OPEN]
[B1129]Front RH side air bag module circuit is open 1. Replace wiring harness/harness
connector
2. Replace front RH side air bag
module
3. Replace air bag diagnosis sensor
unit SIDE MODULE RH
[VB-SHORT]
[B1130]Front RH side air bag module circuit is shorted to some power sup-
ply circuit
SIDE MODULE RH
[GND-SHORT]
[B1131]Front RH side air bag module circuit is shorted to ground
SIDE MODULE RH
[SHORT]
[B1132]Front LH seat belt pre-tensioner circuits are shorted to each other
SIDE MODULE LH
[OPEN]
[B1134]Front LH side air bag module circuit is open 1. Replace wiring harness/harness
connector
2. Replace front LH side air bag
module
3. Replace air bag diagnosis sensor
unit SIDE MODULE LH
[VB-SHORT]
[B1135]Front LH side air bag module circuit is shorted to some power sup-
ply circuit
SIDE MODULE LH
[GND-SHORT]
[B1136]Front LH side air bag module circuit is shorted to ground
SIDE MODULE LH
[SHORT]
[B1137]Front LH side air bag module circuits are shorted to each other
CONTROL UNIT
[ B 11 3 8 - B 11 4 3 ]Air bag diagnosis sensor unit is out of order or mis-matched Replace air bag diagnosis sensor unit
ACU
[B1144]Air bag diagnosis sensor unit is out of order or mis-matched Replace air bag diagnosis sensor unit
CURTAIN MODULE RH
[OPEN]
[B1145]RH side curtain air bag module circuit is open 1. Replace wiring harness/harness
connector
2. Replace RH side curtain air bag
module
3. Replace air bag diagnosis sensor
unit CURTAIN MODULE RH
[VB-SHORT]
[B1146]RH side curtain air bag module circuit is shorted to some power
supply circuit
CURTAIN MODULE RH
[GND-SHORT]
[B1147]RH side curtain air bag module circuit is shorted to ground
CURTAIN MODULE RH
[SHORT]
[B1148]RH side curtain air bag module circuits are shorted to each other Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

DIAGNOSIS SENSOR UNIT
SRC-135
< ECU DIAGNOSIS >
C
D
E
F
G
I
J
K
L
MA
B
SRC
N
O
P

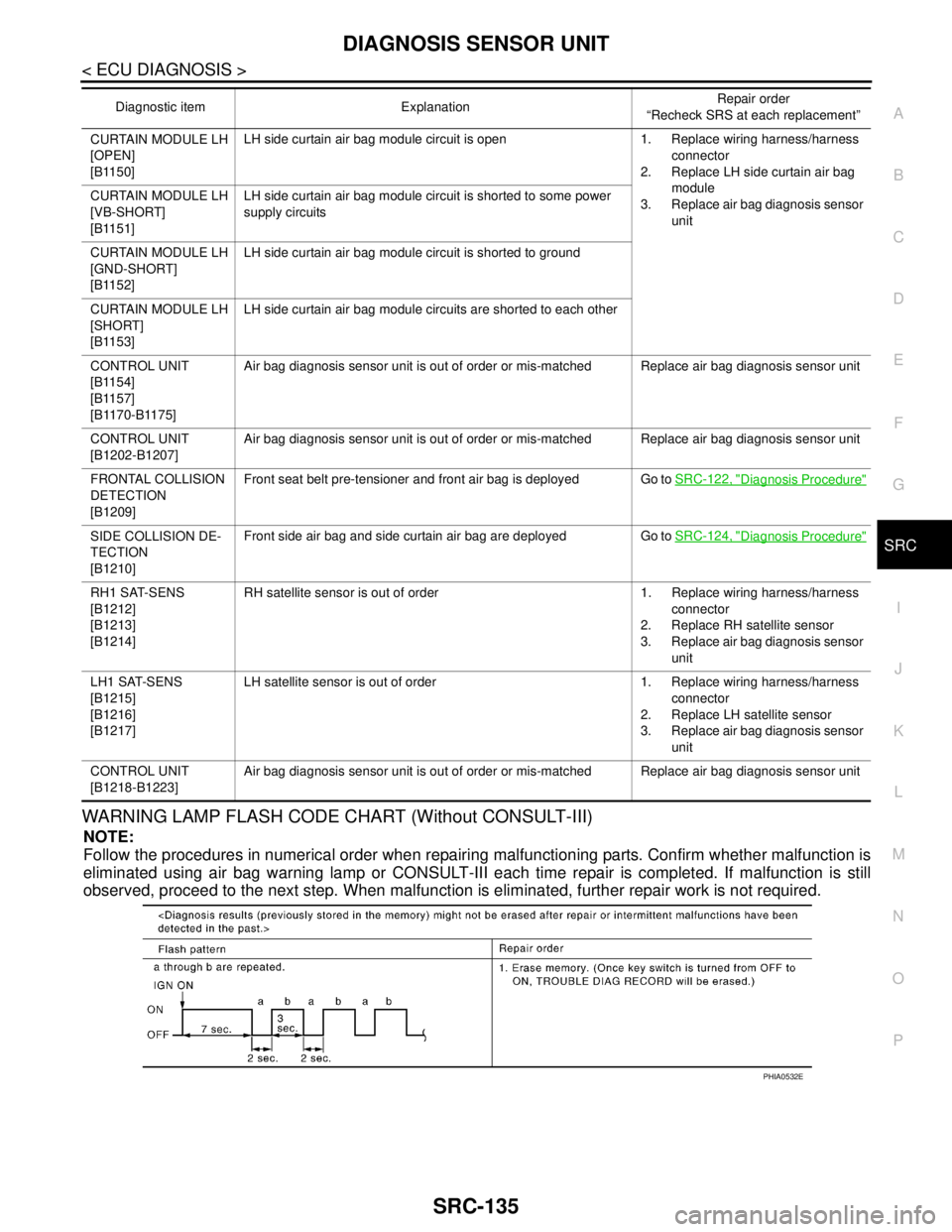

WARNING LAMP FLASH CODE CHART (Without CONSULT-III)
NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp or CONSULT-III each time repair is completed. If malfunction is still
observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.
CURTAIN MODULE LH
[OPEN]
[B1150]LH side curtain air bag module circuit is open 1. Replace wiring harness/harness
connector
2. Replace LH side curtain air bag
module
3. Replace air bag diagnosis sensor
unit CURTAIN MODULE LH
[VB-SHORT]
[B1151]LH side curtain air bag module circuit is shorted to some power
supply circuits
CURTAIN MODULE LH
[GND-SHORT]
[B1152]LH side curtain air bag module circuit is shorted to ground
CURTAIN MODULE LH
[SHORT]
[B1153]LH side curtain air bag module circuits are shorted to each other
CONTROL UNIT
[B1154]
[B1157]
[ B 11 7 0 - B 11 7 5 ]Air bag diagnosis sensor unit is out of order or mis-matched Replace air bag diagnosis sensor unit
CONTROL UNIT
[B1202-B1207]Air bag diagnosis sensor unit is out of order or mis-matched Replace air bag diagnosis sensor unit
FRONTAL COLLISION
DETECTION
[B1209]Front seat belt pre-tensioner and front air bag is deployed Go to SRC-122, "
Diagnosis Procedure"
SIDE COLLISION DE-
TECTION
[B1210]Front side air bag and side curtain air bag are deployed Go to SRC-124, "Diagnosis Procedure"
RH1 SAT-SENS
[B1212]
[B1213]
[B1214]RH satellite sensor is out of order 1. Replace wiring harness/harness
connector
2. Replace RH satellite sensor
3. Replace air bag diagnosis sensor
unit
LH1 SAT-SENS
[B1215]
[B1216]
[B1217]LH satellite sensor is out of order 1. Replace wiring harness/harness
connector
2. Replace LH satellite sensor
3. Replace air bag diagnosis sensor
unit
CONTROL UNIT
[B1218-B1223]Air bag diagnosis sensor unit is out of order or mis-matched Replace air bag diagnosis sensor unit Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”
PHIA0532E

SRC-136
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT

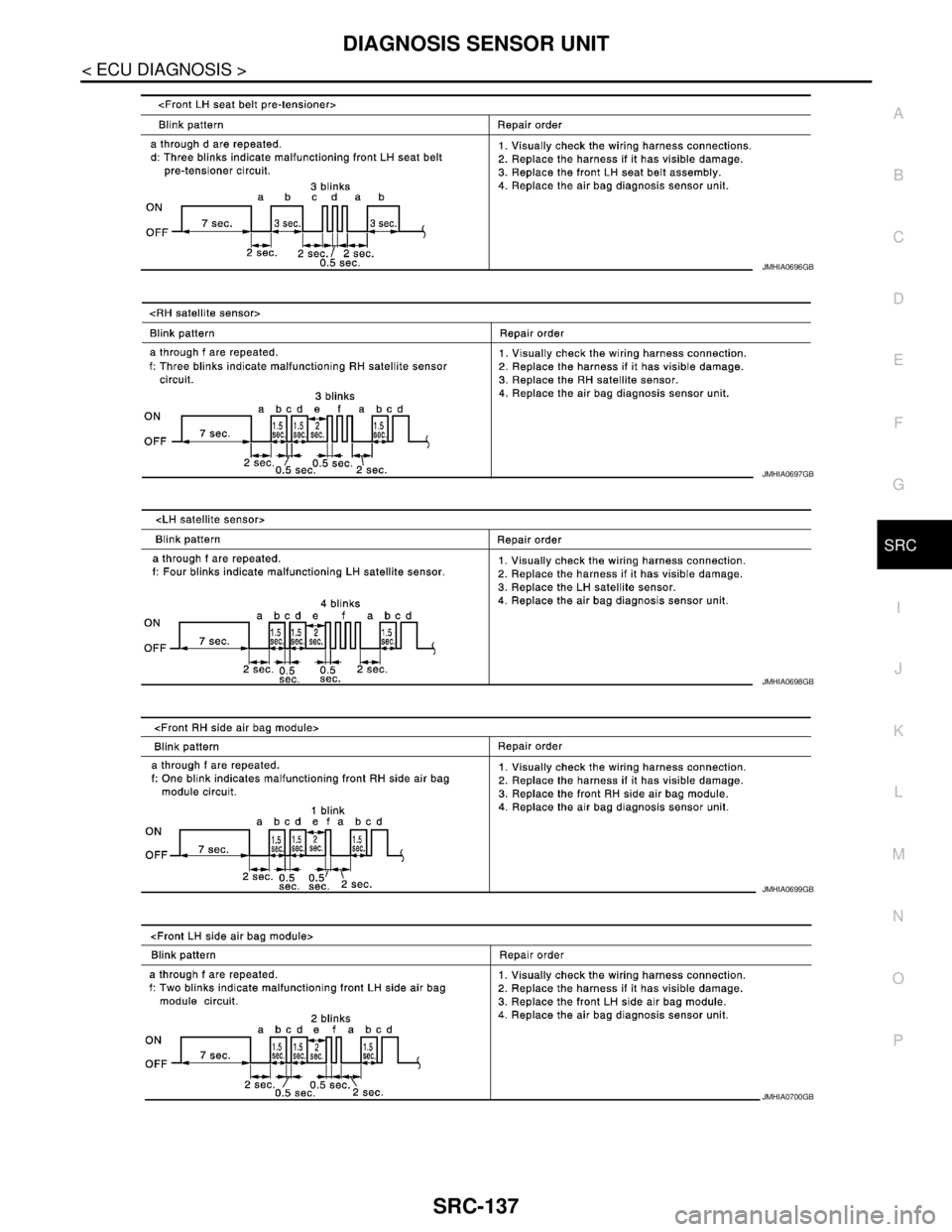

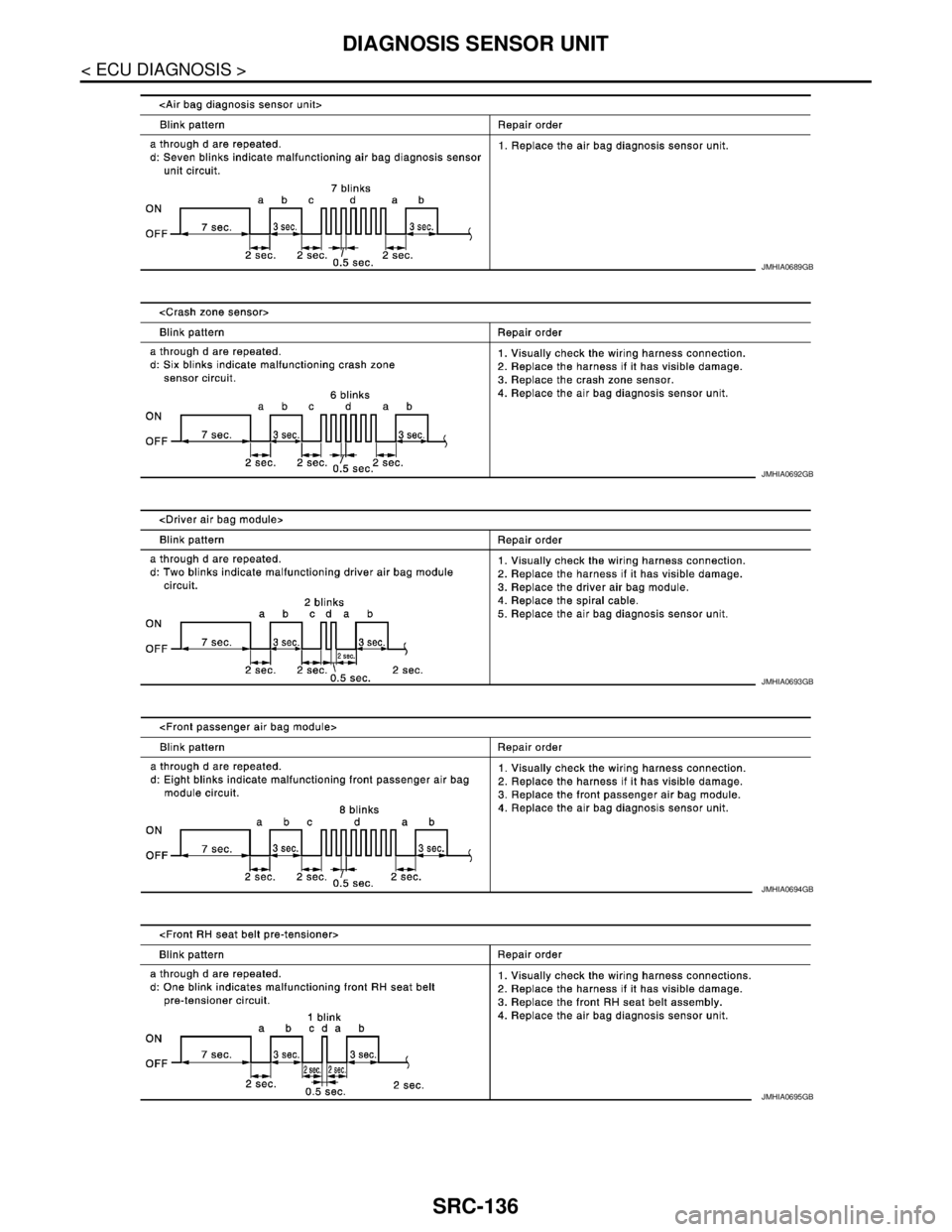

JMHIA0689GB
JMHIA0692GB
JMHIA0693GB
JMHIA0694GB
JMHIA0695GB

DIAGNOSIS SENSOR UNIT
SRC-137
< ECU DIAGNOSIS >
C
D
E
F
G
I
J
K
L
MA
B
SRC
N
O
P

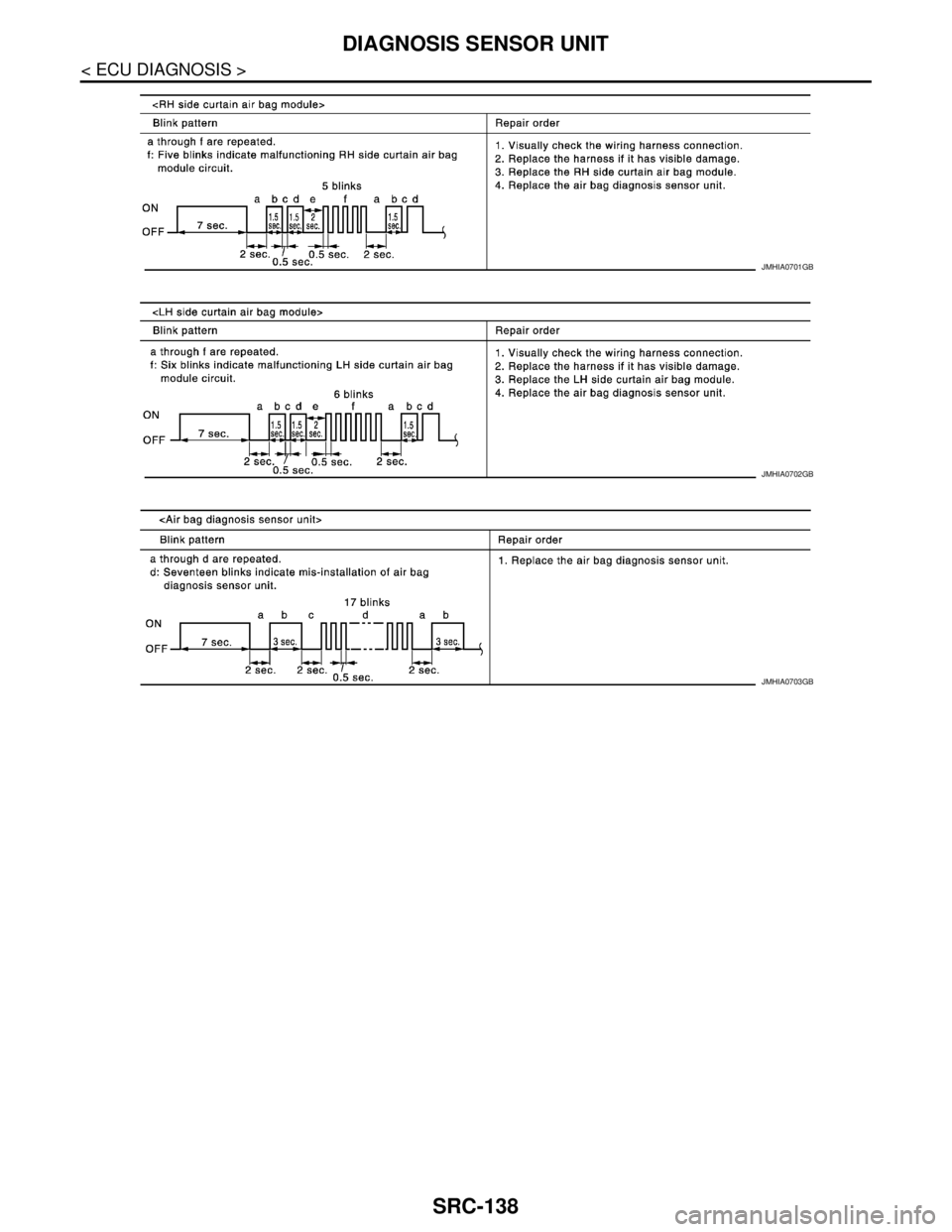

JMHIA0696GB
JMHIA0697GB
JMHIA0698GB
JMHIA0699GB
JMHIA0700GB

SRC-138
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT
JMHIA0701GB
JMHIA0702GB
JMHIA0703GB

DIAGNOSIS SENSOR UNIT
SRC-139
< ECU DIAGNOSIS >
C
D
E
F
G
I
J
K
L
MA
B
SRC
N
O
P

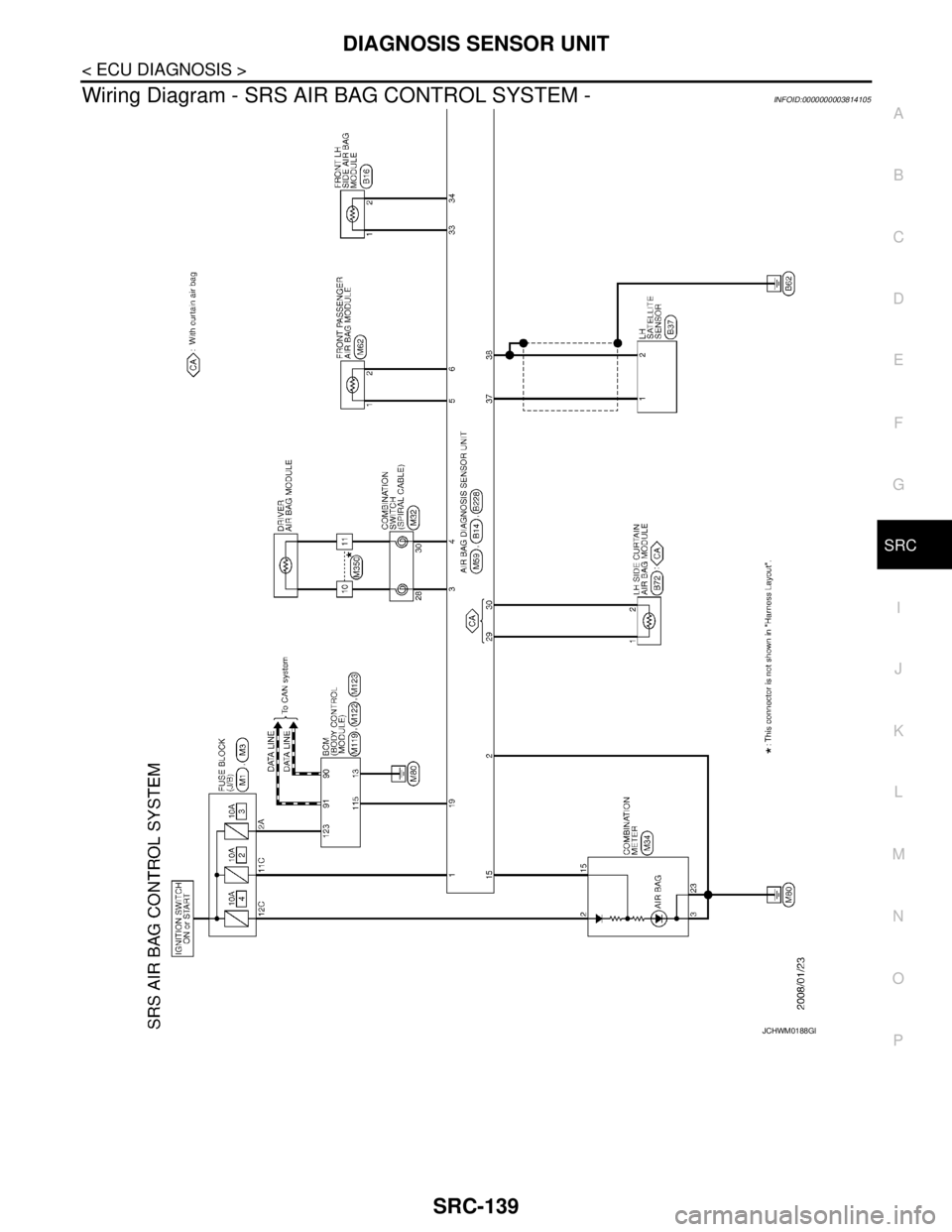

Wiring Diagram - SRS AIR BAG CONTROL SYSTEM -INFOID:0000000003814105
JCHWM0188GB

SRC-140
< ECU DIAGNOSIS >
DIAGNOSIS SENSOR UNIT
JCHWM0189GB
