2008 MERCEDES-BENZ SLK350 Owner's Manual

168 Controls in detail
Good visibility
For information on the windshield wipers,
see “Windshield wipers” (
page 56).
Headlamp cleaning system*
The headlamps will automatically be
cleaned with a high-pressure water jet
when you have

switched on the headlamps
and

operated the windshield wipers with
windshield washer fluid five times
When you switch off headlamps, the
counter resets.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 301).
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 46).
Interior rear view mirror, antiglare
position
Tilt the mirror to the antiglare night
position by moving the lever towards
the windshield.
The interior rear view mirror is dimmed.Auto-dimming rear view mirrors*
The reflection brightness of the exterior
rear view mirrors and the interior rear view
mirror will respond automatically to glare
when

ignition is switched on
and

incoming light from headlamps falls on
the sensor in the interior rear view
mirror
The rear view mirrors will not react if

reverse gearR is engaged

interior lighting is switched on

169 Controls in detail
Good visibility
Sun visors
The sun visors protect you from sun glare
while driving.
1Mirror lamp*
2Mounting
3Mirror cover
4Sun visor
Warning!G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the wind screen* is
installed.
Light hitting the mirror(s) at certain angles
(incident light) could blind you. As a result,
you may not be able to observe traffic
conditions and could cause an accident.
Warning!G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.

170 Controls in detail
Good visibility
Swing sun visors down when you
experience glare.
To use mirror and switch on mirror
lamp*, lift up mirror cover3.
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear.
The defroster is automatically deactivated
after approximately 6 to 17 minutes of
operation depending on the outside
temperature.Switching on
Press the rear window defroster
switchF in the control panel of
the climate control (
page 174) or
the automatic climate control*
(
page 184).
The indicator lamp on the rear window
defroster switchF comes on.
Warning!G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
iVehicles with interior lighting package*:
If sunlight enters through a side window, disen-
gage sun visor from mounting2 and pivot it to
the side. You then can slide the sun visor along
the pivot arm to a different position if so desired.
Mirror lamp*1 will switch off as soon as sun
visor is disengaged from mounting2.
!Vehicles with interior lighting package*:
Close mirror cover3 if open before you
disengage the sun visor4 from mounting2
and pivot it to the side.
Warning!G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.
!The rear window defroster cannot be
switched on when the retractable hardtop is
open. The indicator lamp starts flashing if the
hardtop is open.

Close the retractable hardtop first.
The rear window defroster can be switched on
again.

171 Controls in detail
Good visibility
Switching off
Press the rear window defroster
switchF again in the control panel
of the climate control or the automatic
climate control*.
The indicator lamp on the rear window
defroster switchF goes out.
!If the rear window defroster switches off too
soon and the indicator lamp starts flashing, this
means that too many electrical consumers are
operating simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating the rear
window defroster.
As soon as the battery has sufficient voltage, the
rear window defroster automatically turns itself
back on.

172 Controls in detail
Climate control

173 Controls in detail
Climate control

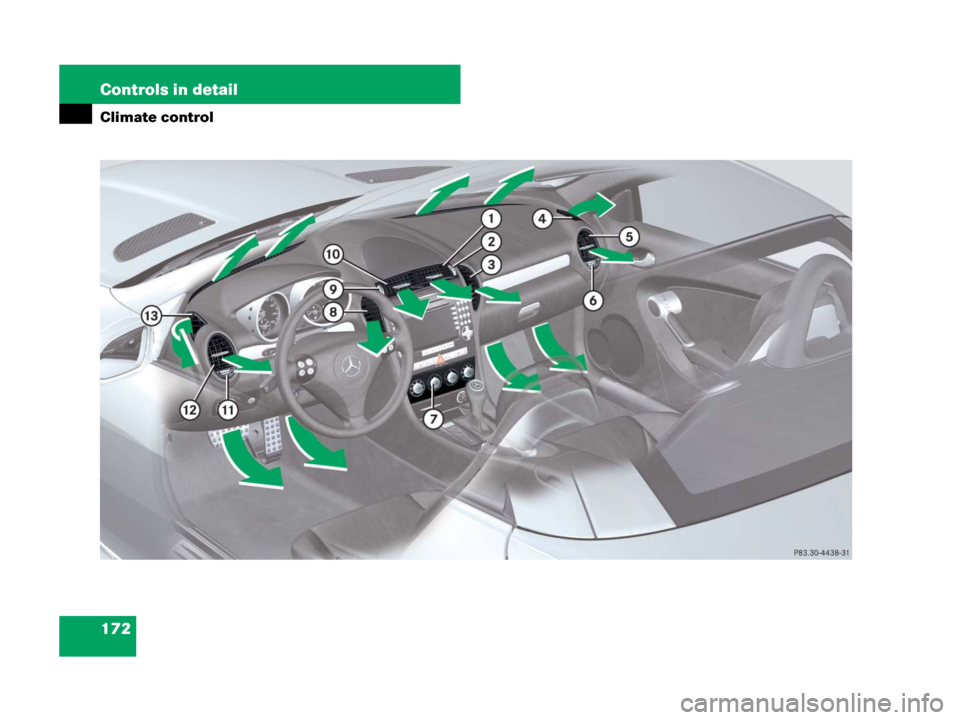

Item
1Right center air vent, adjustable
2Thumbwheel for air volume control
for fixed/adjustable right center air
vents
3Right center air vent, fixed
4Right side defroster air vent, fixed
5Right side air vent, adjustable
6Thumbwheel for air volume control
for adjustable right side air vent
7Climate control panel
Item
8Left center air vent, fixed
9Thumbwheel for air volume control
for fixed/adjustable left center air
vents
aLeft center air vent, adjustable
bThumbwheel for air volume control
for adjustable left side air vent
cLeft side air vent, adjustable
dLeft side defroster air vent, fixed
iFor draft-free ventilation, move the sliders
for center air vents and side air vents to the
middle position.

174 Controls in detail
Climate control

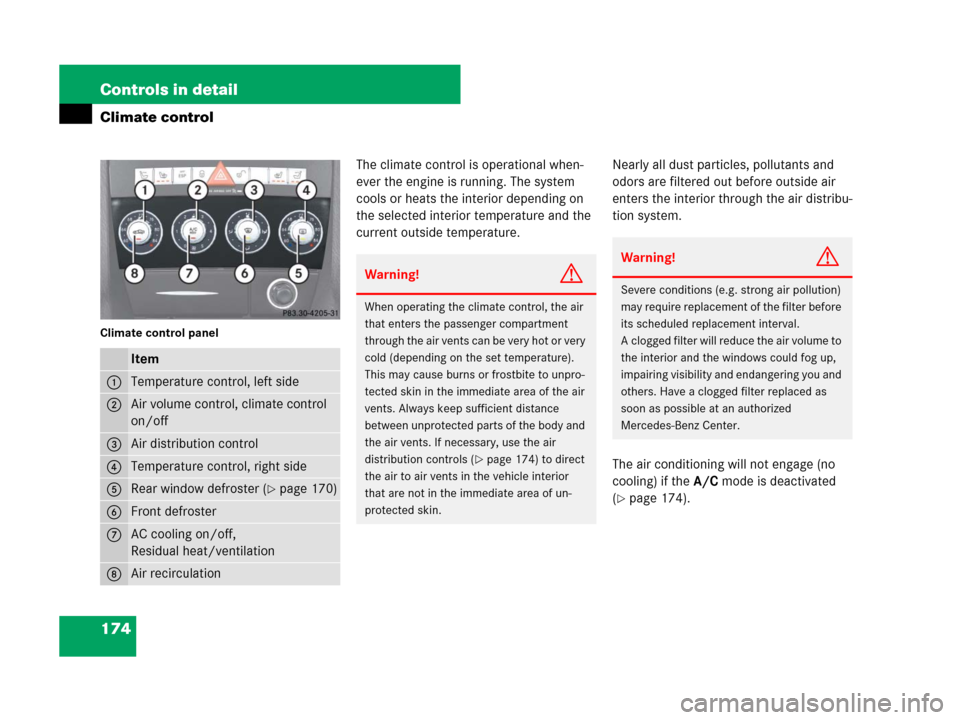

Climate control panel
The climate control is operational when-
ever the engine is running. The system
cools or heats the interior depending on
the selected interior temperature and the
current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air
enters the interior through the air distribu-
tion system.
The air conditioning will not engage (no
cooling) if the A/Cmode is deactivated
(
page 174).
Item
1Temperature control, left side
2Air volume control, climate control
on/off
3Air distribution control
4Temperature control, right side
5Rear window defroster (page 170)
6Front defroster
7AC cooling on/off,
Residual heat/ventilation
8Air recirculation
Warning!G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burns or frostbite to unpro-
tected skin in the immediate area of the air
vents. Always keep sufficient distance
between unprotected parts of the body and
the air vents. If necessary, use the air
distribution controls (
page 174) to direct
the air to air vents in the vehicle interior
that are not in the immediate area of un-
protected skin.
Warning!G
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before
its scheduled replacement interval.
A clogged filter will reduce the air volume to
the interior and the windows could fog up,
impairing visibility and endangering you and
others. Have a clogged filter replaced as
soon as possible at an authorized
Mercedes-Benz Center.

175 Controls in detail
Climate control
Switching climate control system
on/off
Switching off
Set air volume control2 (page 174)
to position0.
Switching on
Switch on the ignition (page 37).
Set air volume control2 to any speed
(
page 174).
The previous settings are once again in
effect.
Setting the temperature
Use temperature controls1 and4
(
page 174) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The climate control will adjust to the set
temperature as fast as possible.
Increasing
Turn temperature control 1
and/or4 (
page 174) slightly
clockwise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Warning!G
Follow the recommended settings for
heating and cooling given on the following
pages. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iIf the vehicle interior is hot, ventilate the in-
terior before driving off. The climate control will
then adjust the interior temperature to the set
value much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.
When the retractable hardtop is closed, do not
obstruct air flow by placing objects on the air
flow-through exhaust slots below the rear
window.
Warning!G
When the climate control is switched off, the
outside air supply and circulation are also
switched off. Only choose this setting for a
short time. Otherwise the windows could
fog up, impairing visibility and endangering
you and others.
