2008 MERCEDES-BENZ SLK350 Owner's Manual

456 Technical data
Fuels, coolants, lubricants, etc.
Coolants
The engine coolant is a mixture of water
and anticorrosion/antifreeze, which pro-
vides:

Corrosion protection

Freeze protection

Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -35°F (-37°C) and corro-
sion protection.
If the antifreeze mixture is effective to
-35°F (-37°C), the boiling point of the cool-
ant in the pressurized cooling system is
reached at approximately 266°F (130°C).The coolant solution must be used year
round to provide the necessary corrosion
protection and increase boil-over protec-
tion. Refer to Maintenance Booklet for
replacement interval.
Coolant system design and coolant used
determine the replacement interval. The
replacement interval published in the
Maintenance Booklet is only applicable if
MB 325.0 Anticorrosion/Antifreeze solu-
tion or other Mercedes-Benz approved
products of equal specification are used to
renew the coolant concentration or bring it
back up to the proper level.
For information on other Mercedes-Benz
approved products of equal specification,
refer to the Factory Approved Service
Products pamphlet (USA only) or contact
an authorized Mercedes-Benz Center.To provide important corrosion protection,
the solution must be at least
50% anticorrosion/antifreeze (equivalent
to freeze protection to approximately
-35°F [-37°C]). If you use a solution that is
more than 55% anticorrosion/antifreeze
(freeze protection to approximately
-49°F [-45°C]), the engine temperature
will increase due to the lower heat transfer
capability of the solution. Therefore, do not
use more than this amount of anticorro-
sion/antifreeze.
If the coolant level is low, water and
MB 325.0 Anticorrosion/Antifreeze
should be used to bring it up to the proper
level (have cooling system checked for
signs of leakage). Please make sure the
mixture is in accordance with label
instructions.
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water. If you
are not sure about the water quality, con-
tact an authorized Mercedes-Benz Center.
!Add premixed coolant solution only. Adding
water and MB 325.0 Anticorrosion/Antifreeze
separately from each other, could cause engine
damage not covered by the Mercedes-Benz
Limited Warranty.

457 Technical data
Fuels, coolants, lubricants, etc.
Anticorrosion/antifreeze
Your vehicle contains a number of
aluminum parts. The use of aluminum
components in motor vehicle engines
necessitates that anticorrosion/antifreeze
coolant used in such engines be
specifically formulated to protect the aluminum parts. Failure to use such anti-
corrosion/antifreeze coolant will result in
a significantly shortened service life.
Therefore, the following product is strongly
recommended for use in your vehicle:
MB 325.0 Anticorrosion/Antifreeze agent.Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion/antifreeze
concentration checked. The coolant is also
regularly checked each time you bring your
vehicle to an authorized Mercedes-Benz
Center for service.

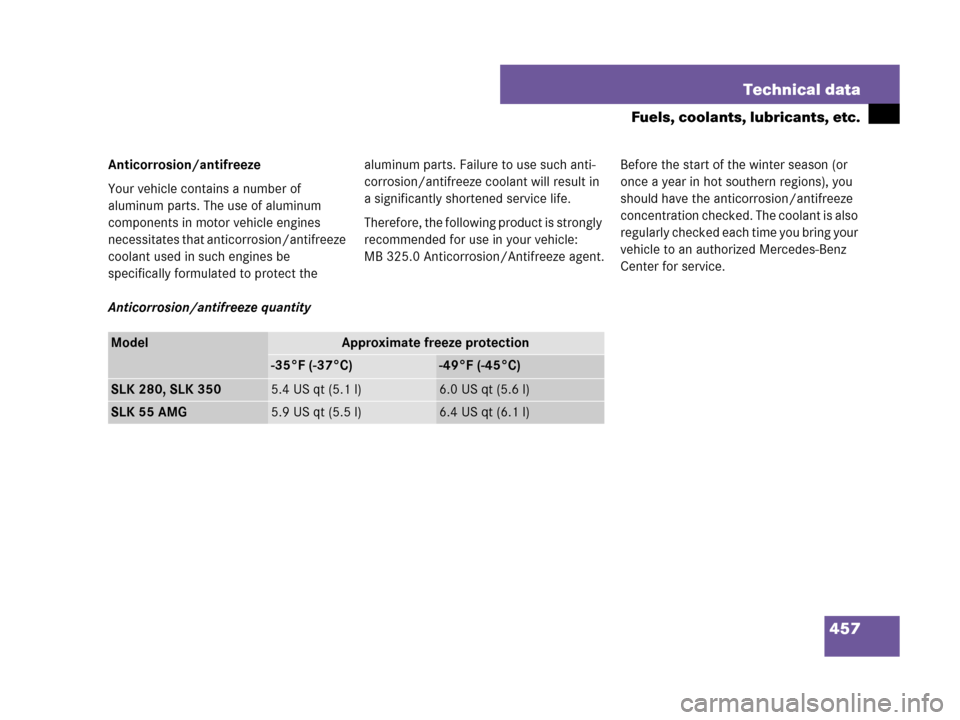

Anticorrosion/antifreeze quantity
ModelApproximate freeze protection
-35°F (-37°C)-49°F (-45°C)
SLK 280, SLK 3505.4 US qt (5.1 l)6.0 US qt (5.6 l)
SLK 55 AMG5.9 US qt (5.5 l)6.4 US qt (6.1 l)

458 Technical data
Fuels, coolants, lubricants, etc.
Windshield washer system and
headlamp cleaning system*
Both the windshield washer system and
headlamp cleaning system* are supplied
from the windshield washer reservoir.
The windshield washer reservoir has a
capacity of approximately 7.4 US qt (7.0 l).
Refill the reservoir with MB Windshield
Washer Concentrate “MB SummerFit”
and water (or concentrate and
commercially available premixed wind-
shield washer solvent/antifreeze, de-
pending on ambient temperatures).Windshield and headlamp washer fluid
mixing ratio
For temperatures above freezing point,
use MB Windshield Washer Concentrate
“MB SummerFit” and water:

1 part “MB SummerFit” to100 parts
water
(1.34 fl oz [40 ml] “MB SummerFit” to
1gal [4.0l] water)For temperatures below freezing point, use
MB Windshield Washer
Concentrate “MB SummerFit” and com-
mercially available premixed windshield
washer solvent/antifreeze:

1 part “MB SummerFit” to 100 parts
solvent
(1.34 fl oz [40 ml] “MB SummerFit” to
1 gal [4.0 l] solvent)
Warning!G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts because it may ignite
and burn. You could be seriously burned.

459 Index
A
ABS 84
Indicator lamp 348, 349
Messages in the multifunction
display 362
Accelerator position, automatic
transmission 159
Accessory weight 331
Accident 58
Air bags 66
Children in the vehicle 79
Front 69
Head-thorax 70
Knee bag 70
Occupant Classification System
(OCS) 71
Passenger 69
Passenger front air bag off indicator
lamp 74
Safety guidelines 68
Air conditioning
Automatic climate control* 191
Climate control 180
Air conditioning refrigerant 453
Air pressure see Tire inflation pressure
AIRSCARF neck level heating* 105Alarm system see Anti-theft systems
Alignment bolt
(Vehicle tool kit) 389, 416
Anticorrosion/antifreeze 457
Antilock Brake System see ABS
Anti-theft systems 90
Alarm system 90
Immobilizer 90
Tow-away alarm 91
Ashtray 32, 255
Aspect ratio 331
Audio search function 146
Audio system 193
Audio and telephone*, operation 193
CD changer* 212
CD operation 208
Introduction to satellite radio* 203
MP3 210
Operating and display elements 194
Auto-dimming*, Rear view mirrors 168
Automatic central locking 102
Control system 146
Automatic climate control* 182
Air conditioning refrigerant 452
Air conditioning, Cooling 191
Air recirculation mode 190Air vents 182, 188
Air volume 188
Automatic mode 186
Control panel 184
Deactivating 185
Defrosting 170, 189
Residual heat utilization 192
Sun sensor 25
Temperature 186
Automatic shift program 161
Automatic transmission*
Accelerator position 159
Automatic shift program 161
Automatic transmission fluid
(ATF) 300
Driving 53
Emergency operation
(limp-home mode) 167
Fluid level 300
Gear ranges 160
Gear selector lever 155
Gear selector lever
(Unlocking manually) 396
Gear selector lever control one-touch
gearshifting 162
Gear selector lever positions 157

460 Index
Gear shifting malfunctions 167
Gearshift pattern 52
Kickdown 159
Kickdown, manual shift
program* 167
Manual shift program* 165
Program mode selector switch 161
Shifting procedure 156
Steering wheel gearshift control
one-touch gearshifting* 163
B
Backup lamp
Messages in the multifunction
display 383
Replacing bulbs 402
Bar 331
BAS 86
Batteries (SmartKey)
Replacing 398
Battery (Vehicle) 302, 422
Charging 424
Jump starting 426
Messages in the multifunction
display 372
Bead 331
Bi-Xenon headlamps* 401Brake Assist System see BAS
Brakes 280
Brake fluid 292, 454
Messages in the multifunction
display 373
SLK 55 AMG 281
Warning lamp 350
Break-in period 278
Bulbs
Messages in the multifunction
display 381–386
Replacing 400
C
California retail buyers and lessees,
Important notice for 11
Call priority, Tele Aid* 268
Capacities and recommended
fuels/lubricants 451
Carpets, cleaning 345
Catalytic converter 288
CD
Changer* 208, 253
Player/Changer*,
operation 134, 208
CD changer* (Audio system) 212Center console
Lamp 358
Lower part 30
Upper part 29
Central locking
Automatic 102, 146
Locking/unlocking from inside 103
SmartKey 62
Certification label 438
CHECK ENGINE indicator lamp 351
Checking tire pressure electronically
Tire Pressure Monitoring System
(TPMS), (USA only) 317
Children in the vehicle
Air bags 79
Infant and child restraint systems 79
Occupant Classification System
(OCS) 71
Passenger front air bag off indicator
lamp 74, 358
Chrome-plated exhaust tip*
Cleaning 346
Cigarette lighter 32, 256

461 Index
Climate control 172
Air conditioning refrigerant 452
Air conditioning, Cooling 180
Air recirculation mode 178
Air vents 172
Air volume 177
Control panel 174
Defrosting 170, 177
Residual heat utilization 181
Switching on/off 175
Temperature 175
Clock 120
Cockpit 24
Cold tire inflation pressure 331
Collapsible tire (spare wheel) 447
Collapsible wheel chock 391
COMAND* system 29
Driving instructions 287
Navigation 135
Combination switch 113
High beam flasher 113
High beam headlamps 55, 113
Low beam headlamps 55
Turn signals 55
Windshield wipers 56
Control system 121Control system menus 124
AMG 128
AUDIO 133
NAV* 135
Settings 136
Standard display 127
TEL* 149
Trip computer 148
Vehicle status message memory 135
Control system submenus
Convenience* 147
Instrument cluster 139
Lighting 143
Time/Date 141
Vehicle 146
Convenience opening/closing*
Power windows 238
Retractable hardtop 244
Coolant 456
Adding water 293
Anticorrosion/antifreeze 457
Checking coolant level 300
Messages in the multifunction
display 374–376
Technical data 452
Temperature 289Temperature gauge (Multifunction
display) 127
Corner-illuminating front fog lamps* 114
Replacing bulbs 400
Cruise control 248
Messages in the multifunction
display 362
Cup holder 255
Curb weight 331
D
Date (Control system) 142
Daytime running lamp mode 111
Setting 143
Deep water see Standing water
Defrosting
Rear window 170
Windshield (Automatic climate
control*) 189
Windshield (Climate control) 177
Delayed shut-off
Exterior lamps 144
Interior lighting 145
Department of Transportation see DOT
Difficulties
Wile driving 58
With starting the engine 52

462 Index
Digital speedometer 128
Dimensions, Vehicle 449
Dipstick see Oil dipstick
Direction of rotation (Tires) 307
Display text see Messages in the multi-
function display
Displays
Digital speedometer 128
Maintenance service indicator 337
Multifunction display 121
Outside temperature 128
Symbol messages 371
Text messages 362
Vehicle status message memory 135
Vehicle status messages 360
Distance to empty (range), Trip
computer 149
Door
Control panel 34
Entry lamps 117
Locking in an emergency 395
Locking/unlocking, SmartKey 94
Opening from inside 98
Remote door unlock, Tele Aid* 269
Unlocking in an emergency 394
DOT 331Drink holder see Cup holder
Drinking and driving 279
Driver’s air bag see Air bags
Driving 53
Abroad 287
Accelerator position 159
Automatic transmission* 53
Driving off 282
Fuel saving 279
Hydroplaning 284
In winter 286
Instructions 48, 279
Kickdown 159
Manual transmission 53
Standing water 287
Tires 283
Driving safety systems 84
ABS 84
BAS 86
Electronic traction system 88
ESP
®86
Driving systems
Cruise control 248
Driving tips 159E
Easy-entry/exit feature* 44, 147
Electric air pump
Inflating collapsible tire 418
Sealing tires with TIREFIT 408
Vehicle tool kit 389
Electrical system (Technical data) 448
Electronic Stability Program see ESP
®
Emergency call (911) 233
Emergency call system 262
Tele Aid* 264
Emergency, In case of
Instrument cluster, Indicator
lamps 348–357
Emergency operations
Automatic transmission* (Limp-Home
Mode) 167
Remote door unlock, Tele Aid* 269
Retractable hardtop 397
Selector lever*, unlocking
manually 396
Trunk lid, Releasing from the
inside 102
Unlocking/locking the vehicle 394

463 Index
Emergency Tensioning Device see ETD
Emission control 289
Information label 439
System warranties 10
Engine
Cleaning 342
Compartment 294
Malfunction indicator lamp 27, 351
Number 439
Poly-V-belt layout 440
Starting 51
Tachometer 119
Technical data 441
Turning off 61
Engine oil 296, 453
Adding 299
Additives 453
Checking level (Control system) 296
Checking level (Dipstick) 298
Consumption 296
Messages in the multifunction
display 297, 377–379ESP®84, 86
Messages in the multifunction
display 362, 363
Warning lamp 352
ETD 79
Safety guidelines 68
Warning and indicator lamps 355
Exterior lamp switch 109
Exterior lighting
Lamps 400
Replacing bulbs 400
Exterior rear view mirrors see Mirrors
F
First aid kit 389
Flat tire 408
Inflating collapsible spare tire 418
Lifting vehicle 414
Lowering vehicle 420
Mounting spare wheel 414, 416
TIREFIT kit* 408
Floormat 258
Fog lamps 112, 401
Corner-illuminating front fog
lamps* 114
Footwell lighting* 117Fuel
Additives 455
Consumption statistics (Control
system) 148
Filler flap 291
Fuel tank capacity 452
MON 292, 455
Premium unleaded
gasoline 292, 454
Refueling 291
Requirements 292, 455
Reserve warning lamp 355
RON 292, 455
Technical data 451
Fuel filler flap 291
Fuel gauge (Instrument cluster) 27
Fuses 432
Replacing 432
