Removing ashtray insert
Secure vehicle from movement by
setting the parking brake.
Move the selector lever to positionN
(manual transmission: second gear).
Now you have more room to take out
the ashtray insert.
Open the ashtray.
Reach into both recesses on the left
and right side of the retainer and pull
out the ashtray insert.
Installing ashtray insert
Place the ashtray insert into the
retainer.
Push the ashtray insert down into the
retainer until it engages.
Cigarette lighter
Switch on the ignition (page 37).
Warning!G
Remove front ashtray only with vehicle
standing still. Set the parking brake to se-
cure vehicle from movement. Move gear
selector lever to positionN (manual trans-
mission: into second gear). With gear selec-
tor lever in positionN (manual transmission:
into second gear), turn off the engine.
Warning!G
Never touch the heating element or sides of
the cigarette lighter; they are extremely hot.
Hold the knob only.
Make sure that any children traveling with
you do not injure themselves or start a fire
with the hot cigarette lighter.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle.
A child’s unsupervised access to a vehicle
could result in an accident and/or serious
personal injury.

257 Controls in detail
Useful features
1Cigarette lighter
Push in cigarette lighter1.
Cigarette lighter1 will pop out auto-
matically when hot.
Reinsert cigarette lighter1 in its
socket after use.
Power outlet
A power outlet is located in the passenger
footwell on the side panel of the center
console.
1Power outlet
Switch on the ignition (page 37).
Flip up cover of power outlet1 and in-
sert electrical plug (cigarette lighter
type).
!The lighter socket can be used to
accommodate 12V DC electrical accessories
(up to a maximum of 85 W) designed for use with
the standard “cigarette lighter” plug type. Keep
in mind, however, that connecting accessories
to the lighter socket (for example extensive con-
necting and disconnecting, or using plugs that do
not fit properly) can damage the lighter socket.
With the socket damaged, the lighter may no
longer be able to be placed in the heating
(pushed-in) position, or the lighter may pop out
too early with the lighter not hot enough.
To help avoid damaging the cigarette lighter
socket, we recommend connecting 12V DC
electrical accessories designed for use with the
standard “cigarette lighter” plug type to the 12V
power outlets (
page 257) in your vehicle
whenever possible.
iThe power outlet can be used to accommo-
date 12V DC electrical accessories (e.g. air
pump, auxiliary lamps) up to a maximum of
180 W.

258 Controls in detail
Useful features
Floormat (driver’s side only) Removing
1Removing
2Retainer pin
Pull floormat off of retainer pin2 in
direction of arrow1.
Remove the floormat.Installing
3Installing
4Eyelet
5Retainer pin
Lay down the floormat.
Press the floormat eyelet4 onto
retainer pin5 in direction of
arrow3.
Warning!G
Whenever you are using floormats, make
sure there is enough clearance and the
floormats are securely fastened.
Floormats should always be securely fas-
tened using eyelets4 and retainer pins5.
Before driving off, check that the floormats
are securely in place and adjust them if
necessary. A loose floormat could slip and
hinder proper functioning of the pedals.
Do not place several floormats on top of
each other as this may impair pedal move-
ment.
iTo install or remove the floormat more
easily, move the driver’s seat as far to the rear
as possible (
page 39).

259 Controls in detail
Useful features
Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Center for informa-
tion on the installation of an approved
external antenna. Refer to the radio trans-
mitter operation instructions regarding use
of an external antenna.When the mobile phone is inserted in the
cradle, you can operate the telephone
using the following devices:

mobile phone keypad

COMAND* (see separate operating in-
structions)

buttonss andt on the multi-
function steering wheel (
page 149)

audio system (page 219)
Warning!G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or serious
personal injury.
Warning!G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
mobile telephone while driving a vehicle.
Only operate the audio system or
COMAND*
1 if road, weather and traffic con-
ditions permit.
Bear in mind that at a speed of just
30 mph (approximately 50 km/h), your
vehicle is covering a distance of
44 feet (approximately 14 m) every second.
1Observe all legal requirements.
iVarious mobile phone cradles can be in-
stalled in the center armrest, see separate in-
stallation instructions for the mobile phone
cradle. These mobile phone cradles can be
obtained from an authorized Mercedes-Benz
Center.
The functions and services available to you while
using the mobile phone depend on your service
provider and the type of mobile phone you are
using. See also separate operating manual for
instructions on how to use your mobile phone.

260 Controls in detail
Useful features
Please note that these functions are only
available with Mercedes-Benz approved
mobile phones. Please contact an autho-
rized Mercedes-Benz Center for informa-
tion on features available for your mobile
phone of choice.
The cradle is located in the front center
armrest storage/telephone*
compartment (
page 253).
Open the storage/telephone* com-
partment (
page 253).Inserting mobile phone in mobile phone
cradle
Once the mobile phone has been inserted
in the mobile phone cradle, you have to
use the hands-free device to respond
during phone calls.If applicable, remove the cover for the
external antenna connection from the
back of the mobile phone and store it in
a s a f e p l a c e . B e s u r e t o c o m p l y w i t h t h e
mobile phone’s operating instructions
as well.Example illustration
1Insert the mobile phone
2Connector contact
3Mobile phone cradle
Slide the lower end of the mobile phone
into connector contact 2 on mobile
phone cradle3.
Push the top of the mobile phone in di-
rection of arrow 1, until the lug on the
mobile phone release button engages.
The mobile phone is connected to the
network via the external antenna.
!Do not try to remove the mobile phone along
with the cradle. You could otherwise damage the
mobile phone cradle.

261 Controls in detail
Useful features
The mobile phone is linked to the
hands-free device and the multifunc-
tion steering wheel.
The battery is charged depending on its
charge status and the position of the
SmartKey in the starter switch. The
charge procedure will be indicated in
the mobile phone’s display.
You can place or receive phone calls. You
can control other functions of the mobile
phone via the control system
(
page 149), audio system (page 219),
or COMAND* (see separate operating in-
structions). Removing mobile phone from mobile

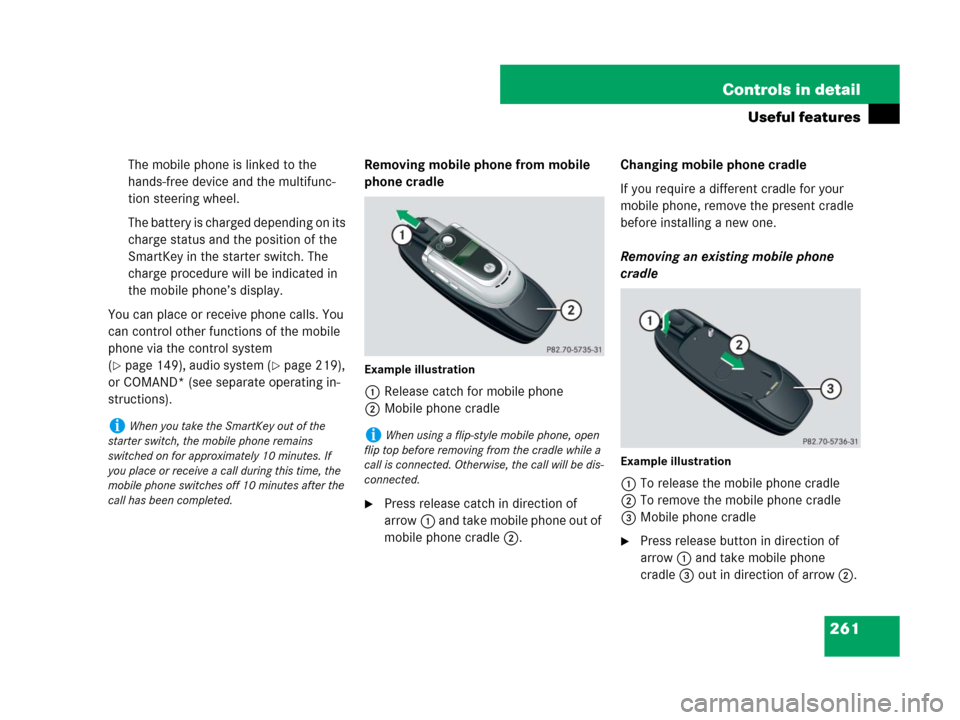

phone cradleExample illustration
1Release catch for mobile phone
2Mobile phone cradle
Press release catch in direction of
arrow1 and take mobile phone out of
mobile phone cradle2.Changing mobile phone cradle
If you require a different cradle for your
mobile phone, remove the present cradle
before installing a new one.
Removing an existing mobile phone
cradle
Example illustration
1To release the mobile phone cradle
2To remove the mobile phone cradle
3Mobile phone cradle
Press release button in direction of
arrow1 and take mobile phone
cradle3 out in direction of arrow2.
iWhen you take the SmartKey out of the
starter switch, the mobile phone remains
switched on for approximately 10 minutes. If
you place or receive a call during this time, the
mobile phone switches off 10 minutes after the
call has been completed.iWhen using a flip-style mobile phone, open
flip top before removing from the cradle while a
call is connected. Otherwise, the call will be dis-
connected.

262 Controls in detail
Useful features
Installing a different mobile phone
cradle
Example illustration
1Contact plate
2Recesses
3Mobile phone cradle
Insert mobile phone cradle3 into
recesses2 of contact plate1.
Push mobile phone cradle3 forward
until it engages.
Tele Aid*
Shortly after the completion of your Tele
Aid acquaintance call, you will receive a
user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.The Tele Aid system
(Tele
matic Alarm Identification on
D
emand)
The Tele Aid system consists of three
types of response:

Automatic and manual emergency

Roadside Assistance

Information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted when using the volume control
on the multifunction steering wheel. To
raise, press buttonæ and to lower,
press buttonç or use the volume knob
on your audio system or COMAND* head
unit.
!The initial activation of the Tele Aid system
may only be performed by completing the sub-
scriber agreement and placing an acquaintance
call using the ¡button. Failure to complete
either of these steps will result in a system that
is not activated.
If you have any questions regarding activation,
please call the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).

263 Controls in detail
Useful features
To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.System self-check
Initially, after switching on ignition, mal-
functions are detected and indicated (the
indicator lamps in the SOS button, the
Roadside Assistance button•, and the
Information button¡ stay on longer
than 10 seconds or do not come on). The
message
Tele Aid Inoperative appears
for approximately 10 seconds in the multi-
function display.
iThe SOS button is located in the overhead
control panel.
The Roadside Assistance button•
(
page 266) and the Information button¡
(
page 267) are located in the center armrest
storage/telephone* compartment.
!The Tele Aid system utilizes the cellular net-
work for communication and the GPS (Global
Positioning System) satellites for vehicle loca-
tion. If either of these signals are unavailable,
the Tele Aid system may not function and if this
occurs, assistance must be summoned by other
means.
iWhen a Tele Aid call has been initiated, the
audio system or COMAND* system audio is mut-
ed and the selected mode (radio, tape or CD)
pauses. The optional cellular phone* (if installed)
and inserted in cradle switches off. If you must
use this phone, we recommend that you use it
only with the vehicle at a standstill in a safe loca-
tion. Remove the phone from the cradle and
place the call. The COMAND* navigation system
(if engaged) will continue to run. The display in
the instrument cluster is available for use, and
spoken commands are only available by pressing
the RPT button on the COMAND* unit. A pop-up
window will appear in the COMAND* display to
indicate that a Tele Aid call is in progress. After
the Tele Aid call has ended, the optional cellular
phone switches on again. A PIN entry might be
necessary.
