2008 MERCEDES-BENZ SLK350 Owner's Manual

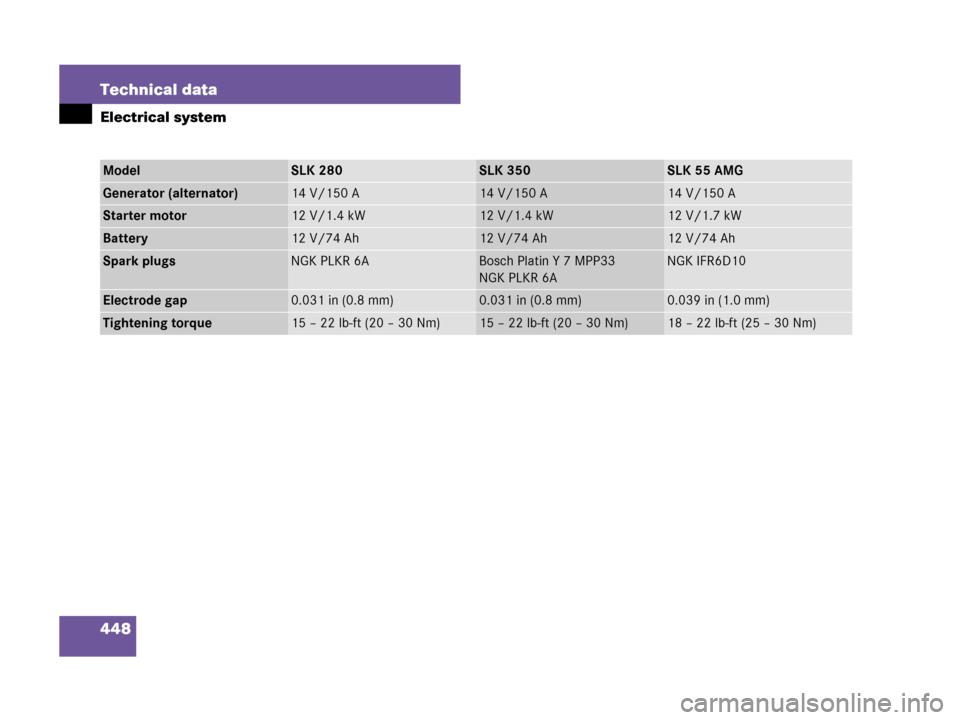

448 Technical data
Electrical system
ModelSLK 280SLK 350SLK 55 AMG
Generator (alternator)14 V/150 A14 V/150 A14 V/150 A
Starter motor12 V/1.4 kW12 V/1.4 kW12 V/1.7 kW
Battery12 V/74 Ah12 V/74 Ah12 V/74 Ah
Spark plugsNGK PLKR 6ABosch Platin Y 7 MPP33
NGK PLKR 6ANGK IFR6D10
Electrode gap0.031 in (0.8 mm)0.031 in (0.8 mm)0.039 in (1.0 mm)
Tightening torque15 – 22 lb-ft (20 – 30 Nm)15 – 22 lb-ft (20 – 30 Nm)18 – 22 lb-ft (25 – 30 Nm)

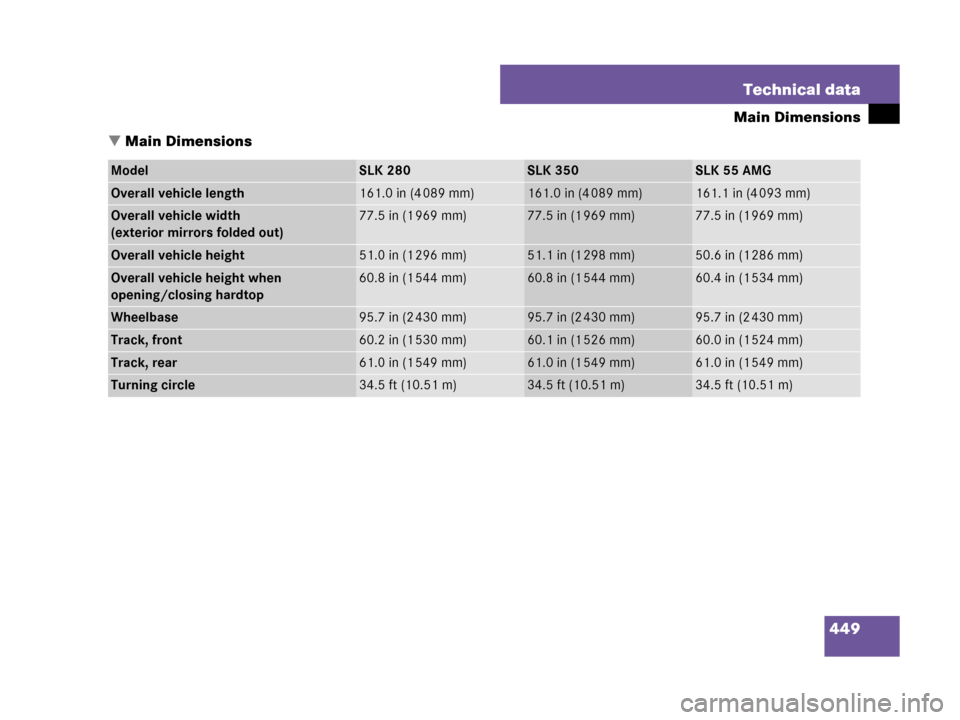

449 Technical data
Main Dimensions
Main Dimensions
ModelSLK 280SLK 350SLK 55 AMG
Overall vehicle length161.0 in (4 089 mm)161.0 in (4 089 mm)161.1 in (4 093 mm)
Overall vehicle width
(exterior mirrors folded out)77.5 in (1 969 mm)77.5 in (1 969 mm)77.5 in (1 969 mm)
Overall vehicle height51.0 in (1 296 mm)51.1 in (1 298 mm)50.6 in (1 286 mm)
Overall vehicle height when
opening/closing hardtop60.8 in (1 544 mm)60.8 in (1 544 mm)60.4 in (1 534 mm)
Wheelbase95.7 in (2 430 mm)95.7 in (2 430 mm)95.7 in (2 430 mm)
Track, front60.2 in (1 530 mm)60.1 in (1 526 mm)60.0 in (1 524 mm)
Track, rear61.0 in (1 549 mm)61.0 in (1 549 mm)61.0 in (1 549 mm)
Turning circle34.5 ft (10.51 m)34.5 ft (10.51 m)34.5 ft (10.51 m)

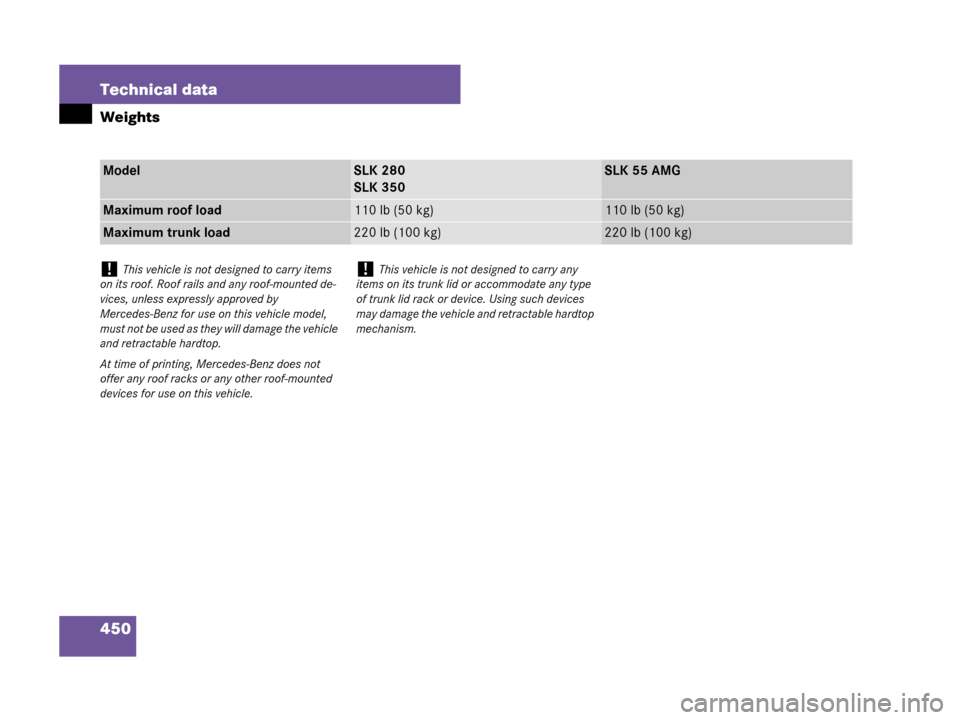

450 Technical data
Weights
ModelSLK 280
SLK 350SLK 55 AMG
Maximum roof load110 lb (50 kg)110lb (50kg)
Maximum trunk load220 lb (100 kg)220 lb (100 kg)
!This vehicle is not designed to carry items
on its roof. Roof rails and any roof-mounted de-
vices, unless expressly approved by
Mercedes-Benz for use on this vehicle model,
must not be used as they will damage the vehicle
and retractable hardtop.
At time of printing, Mercedes-Benz does not
offer any roof racks or any other roof-mounted
devices for use on this vehicle.!This vehicle is not designed to carry any
items on its trunk lid or accommodate any type
of trunk lid rack or device. Using such devices
may damage the vehicle and retractable hardtop
mechanism.

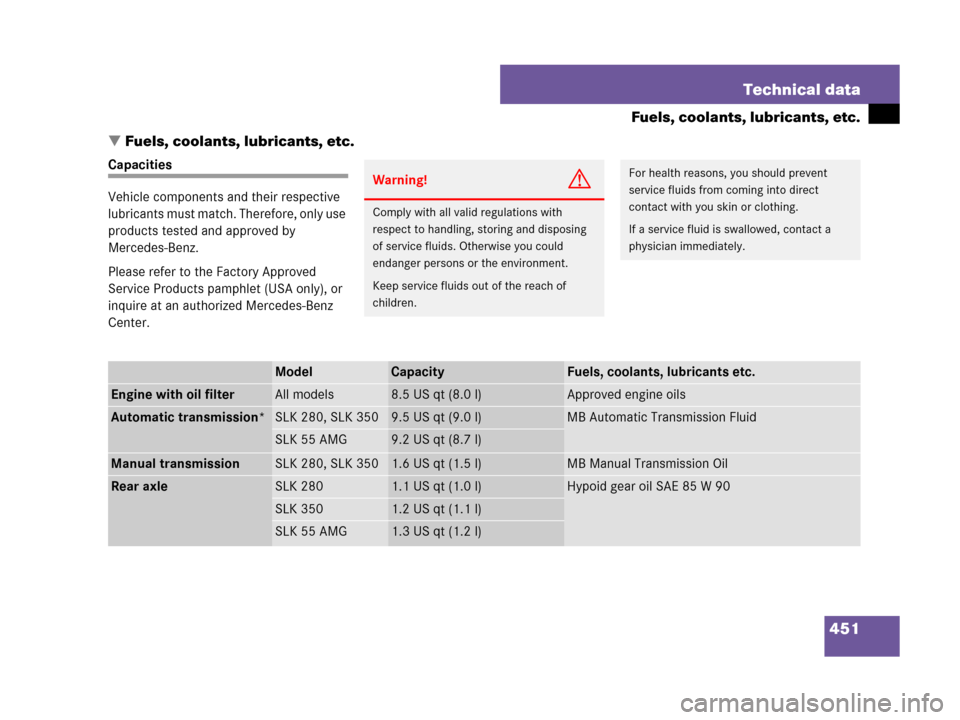

451 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore, only use
products tested and approved by
Mercedes-Benz.
Please refer to the Factory Approved
Service Products pamphlet (USA only), or
inquire at an authorized Mercedes-Benz
Center.
Warning!G
Comply with all valid regulations with
respect to handling, storing and disposing
of service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct
contact with you skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.
ModelCapacityFuels, coolants, lubricants etc.
Engine with oil filterAll models8.5 US qt (8.0 l)Approved engine oils
Automatic transmission*SLK 280, SLK 3509.5 US qt (9.0 l)MB Automatic Transmission Fluid
SLK 55 AMG9.2 US qt (8.7 l)
Manual transmissionSLK 280, SLK 3501.6 US qt (1.5 l)MB Manual Transmission Oil
Rear axleSLK 2801.1 US qt (1.0 l)Hypoid gear oil SAE 85 W 90
SLK 3501.2 US qt (1.1 l)
SLK 55 AMG1.3 US qt (1.2 l)

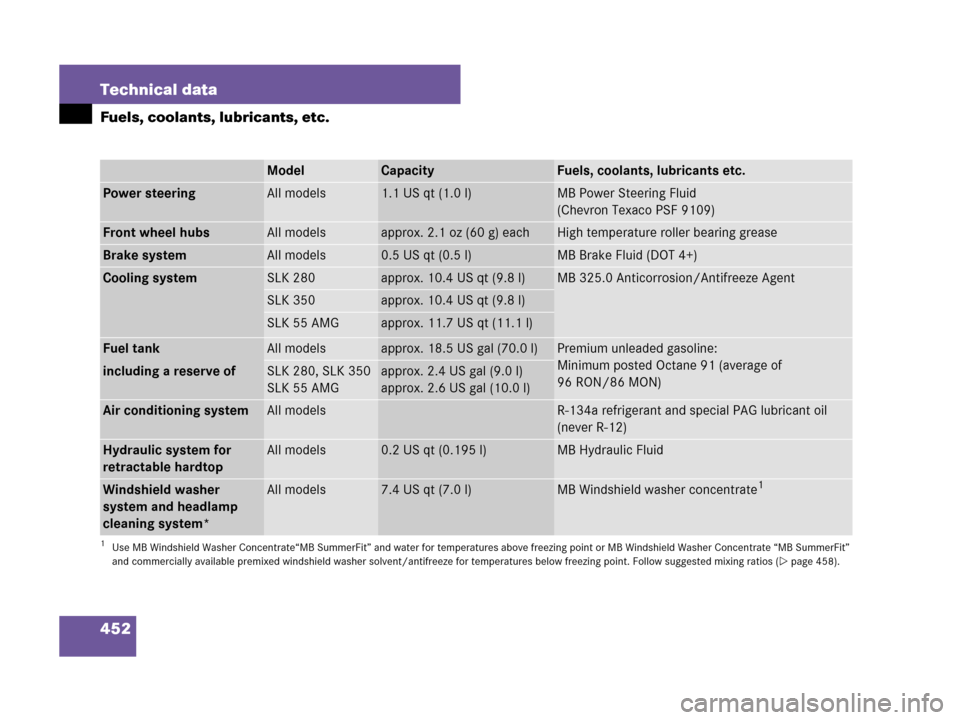

452 Technical data
Fuels, coolants, lubricants, etc.
ModelCapacityFuels, coolants, lubricants etc.
Power steeringAll models1.1 US qt (1.0 l)MB Power Steering Fluid
(Chevron Texaco PSF 9109)
Front wheel hubsAll modelsapprox. 2.1oz (60g) eachHigh temperature roller bearing grease
Brake systemAll models0.5 US qt (0.5 l)MB Brake Fluid (DOT 4+)
Cooling systemSLK 280approx. 10.4 US qt (9.8 l)MB 325.0 Anticorrosion/Antifreeze Agent
SLK 350approx. 10.4 US qt (9.8 l)
SLK 55 AMGapprox. 11.7 US qt (11.1 l)
Fuel tankAll modelsapprox. 18.5 US gal (70.0 l)Premium unleaded gasoline:
Minimum posted Octane 91 (average of
96 RON/86 MON)
including a reserve ofSLK 280, SLK 350
SLK 55 AMGapprox. 2.4 US gal (9.0 l)
approx. 2.6 US gal (10.0 l)
Air conditioning systemAll modelsR-134a refrigerant and special PAG lubricant oil
(never R-12)
Hydraulic system for
retractable hardtopAll models0.2 US qt (0.195 l)MB Hydraulic Fluid
Windshield washer
system and headlamp
cleaning system*All models7.4 US qt (7.0 l)MB Windshield washer concentrate1
1Use MB Windshield Washer Concentrate“MB SummerFit” and water for temperatures above freezing point or MB Windshield Washer Concentrate “MB SummerFit”
and commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 458).

453 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for
their suitability in our engines and durabil-
ity for our service intervals. Therefore, only
use approved engine oils and oil filters
required for vehicles with
Maintenance System. For a listing of ap-
proved engine oils and oil filters, refer to
the Factory Approved Service Products
pamphlet (USA only), or contact an
authorized Mercedes-Benz Center.Engine oil additivesAir conditioning refrigerant
R-134a (HFC) refrigerant and special
PAG lubricating oil are used in the air con-
ditioning system.
!Using engine oils and oil filters of specifica-
tion other than those expressly required for the
Maintenance System, or changing of oil and oil
filter at change intervals longer than those called
for by the Maintenance System will result in
engine or emission control system damage
not covered by the Mercedes-Benz Limited
Warranty.
Please follow Maintenance System recommen-
dations for scheduled oil changes. Failure to do
so will result in engine or emission control
system damage not covered by the
Mercedes-Benz Limited Warranty.
!Do not blend oil additives with engine oil.
They may damage the engine. Damage or mal-
functions resulting from blending oil additives
are not covered by the Mercedes-Benz Limited
Warranty.
!Never use R-12 (CFC) or mineral-based
lubricating oil, otherwise damage to the system
will occur.

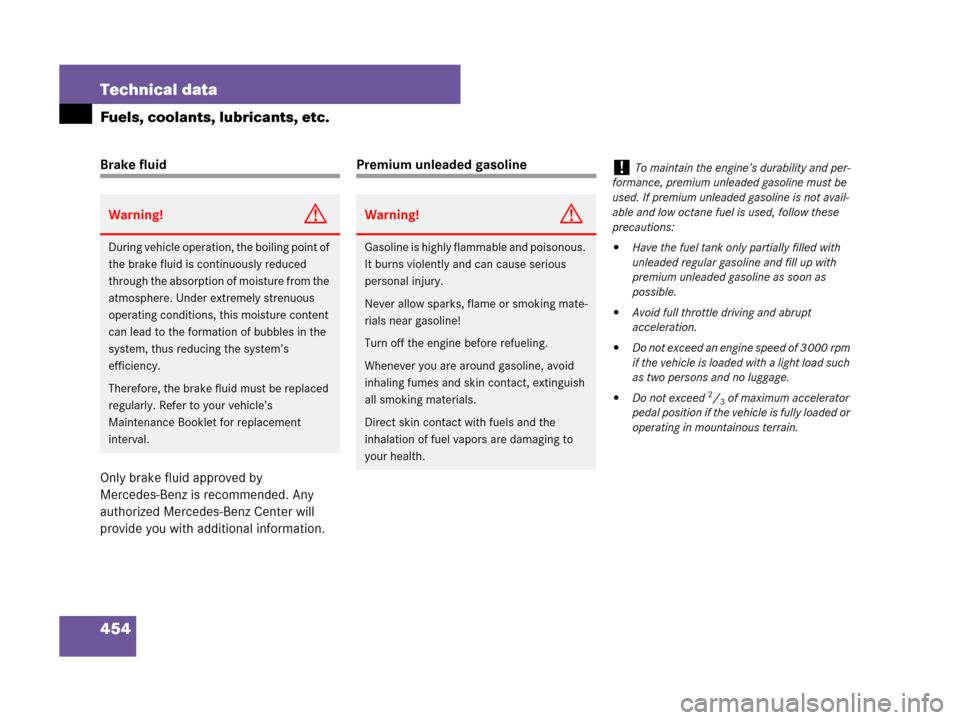

454 Technical data
Fuels, coolants, lubricants, etc.
Brake fluid
Only brake fluid approved by
Mercedes-Benz is recommended. Any
authorized Mercedes-Benz Center will
provide you with additional information.Premium unleaded gasoline
Warning!G
During vehicle operation, the boiling point of
the brake fluid is continuously reduced
through the absorption of moisture from the
atmosphere. Under extremely strenuous
operating conditions, this moisture content
can lead to the formation of bubbles in the
system, thus reducing the system’s
efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s
Maintenance Booklet for replacement
interval.
Warning!G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
personal injury.
Never allow sparks, flame or smoking mate-
rials near gasoline!
Turn off the engine before refueling.
Whenever you are around gasoline, avoid
inhaling fumes and skin contact, extinguish
all smoking materials.
Direct skin contact with fuels and the
inhalation of fuel vapors are damaging to
your health.
!To maintain the engine’s durability and per-
formance, premium unleaded gasoline must be
used. If premium unleaded gasoline is not avail-
able and low octane fuel is used, follow these
precautions:

Have the fuel tank only partially filled with
unleaded regular gasoline and fill up with
premium unleaded gasoline as soon as
possible.

Avoid full throttle driving and abrupt
acceleration.

Do not exceed an engine speed of 3 000 rpm
if the vehicle is loaded with a light load such
as two persons and no luggage.

Do not exceed 2/3of maximum accelerator
pedal position if the vehicle is fully loaded or
operating in mountainous terrain.

455 Technical data
Fuels, coolants, lubricants, etc.
Fuel requirements
Only use premium unleaded fuel:

The octane number (posted at the
pump) must be 91 min. It is an
average of both the Research Octane
Number (RON) and the Motor Octane
Number (MON): (RON+MON)/2. This is
also known as the ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA, and TBA can
be used provided the ratio of any one of
these oxygenates to gasoline does not
exceed 10%; MTBE not to exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains
10% ethanol and 90% unleaded gasoline,
can be used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
Gasoline additives
A major concern among engine manufac-
turers is carbon build-up caused by gaso-
line. Mercedes-Benz only recommends
only the use of quality gasoline containing
additives that prevent the build-up of
carbon deposits.
After an extended period of using fuels
without such additives, carbon deposits
can build up, especially on the intake
valves and in the combustion area, leading
to engine performance problems such as:

Warm-up hesitation

Unstable idle

Knocking/pinging

Misfire

Power lossIn areas where carbon deposits may be
encountered due to lack of availability of
gasolines which contain these additives,
Mercedes-Benz recommends the use of
additives approved by us for use on
Mercedes-Benz vehicles. Refer to Factory
Approved Service Products pamphlet
(USA only) or contact an authorized
Mercedes-Benz Center for a listing of
approved product(s). Follow directions on
product label.
Do not blend other fuel additives with fuel.
This only results in unnecessary costs and
may be harmful to engine operation.
!Damage or malfunction resulting from poor
fuel quality or from blending additional fuel
additives other than those tested and approved
by us for use on Mercedes-Benz vehicles are not
covered by the Mercedes-Benz Limited
Warranty.
