2008 MERCEDES-BENZ G55AMG Owner's Manual

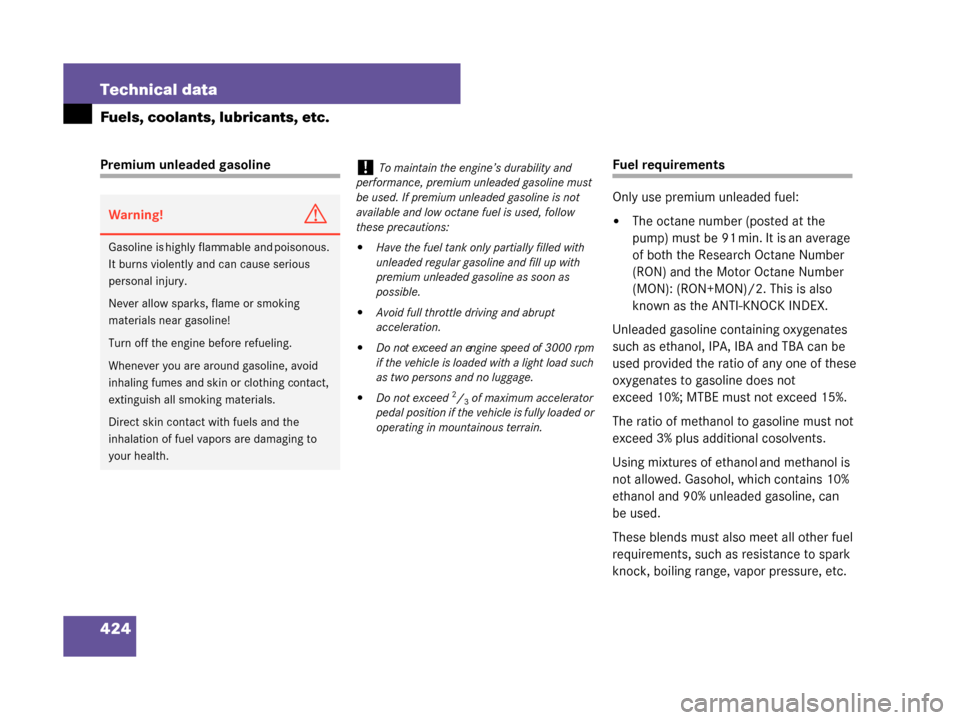

424 Technical data
Fuels, coolants, lubricants, etc.
Premium unleaded gasolineFuel requirements
Only use premium unleaded fuel:

The octane number (posted at the
pump) must be 91 min. It is an average
of both the Research Octane Number
(RON) and the Motor Octane Number
(MON): (RON+MON)/2. This is also
known as the ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not
exceed 10%; MTBE mu st not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can
be used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.Warning!G
Gasoline is highly flam mable and poisonous.
It burns violently and can cause serious
personal injury.
Never allow sparks, flame or smoking
materials near gasoline!
Turn off the engine before refueling.
Whenever you are around gasoline, avoid
inhaling fumes and skin or clothing contact,
extinguish all smoking materials.
Direct skin contact with fuels and the
inhalation of fuel vapors are damaging to
your health.
!To maintain the engi ne’s durability and
performance, premium unleaded gasoline must
be used. If premium unleaded gasoline is not
available and low octane fuel is used, follow
these precautions:

Have the fuel tank only partially filled with
unleaded regular gasoline and fill up with
premium unleaded gasoline as soon as
possible.

Avoid full throttle driving and abrupt
acceleration.

Do not exceed an engine speed of 3000 rpm
if the vehicle is loaded with a light load such
as two persons and no luggage.

Do not exceed 2/3 of maximum accelerator
pedal position if the vehicle is fully loaded or
operating in mountainous terrain.
W463.boo Seite 424 Montag, 19 . November 2007 8:41 08

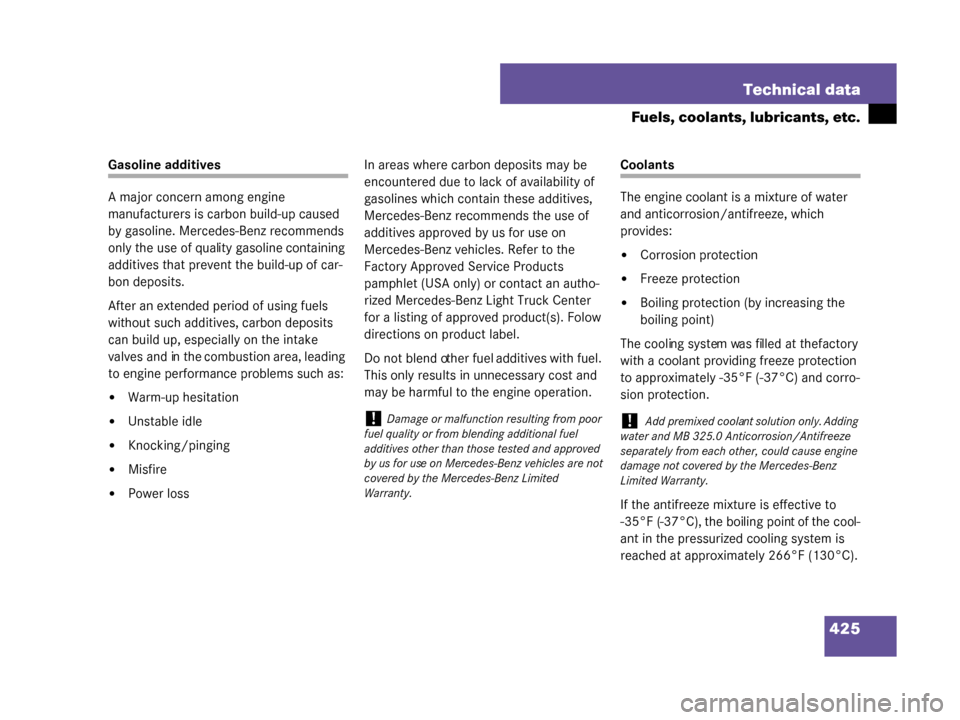

425
Technical data
Fuels, coolants, lubricants, etc.
Gasoline additives
A major concern among engine
manufacturers is ca
rbon build-up caused
by gasoline. Mercedes-Benz recommends
only the use of quality gasoline containing
additives that prevent the build-up of car-
bon deposits.
After an extended period of using fuels
without such additives, carbon deposits
can build up, especially on the intake
valves and in the combustion area, leading
to engine performance problems such as:

Warm-up hesitation

Unstable idle

Knocking/pinging

Misfire

Power loss In areas where carbon deposits may be
encountered due to lack of availability of
gasolines which contain these additives,
Mercedes-Benz recommends the use of
additives approved by us for use on
Mercedes-Benz vehicles. Refer to the
Factory Approved Service Products
pamphlet (USA only) or
contact an autho-
rized Mercedes-Benz Light Truck Center
for a listing of approved product(s). Follow
directions on product label.
Do not blend other fuel additives with fuel.
This only results in unnecessary cost and
may be harmful to the engine operation.
Coolants
The engine coolant is a mixture of water
and anticorrosion/antifreeze, which
provides:

Corrosion protection

Freeze protection

Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -35°F (-37°C) and corro-
sion protection.
If the antifreeze mixture is effective to
-35°F (-37°C), the boiling point of the cool-
ant in the pressurized cooling system is
reached at approxim ately 266°F (130°C).
!Damage or malfunction resulting from poor
fuel quality or from blending additional fuel
additives other than those tested and approved
by us for use on Mercedes-Benz vehicles are not
covered by the Mercedes-Benz Limited
Warranty.! Add premixed coolant solution only. Adding
water and MB 325.0 Anticorrosion/Antifreeze
separately from each other, could cause engine
damage not covered by the Mercedes-Benz
Limited Warranty.
W463.boo Seite 425 Montag, 19 . November 2007 8:41 08

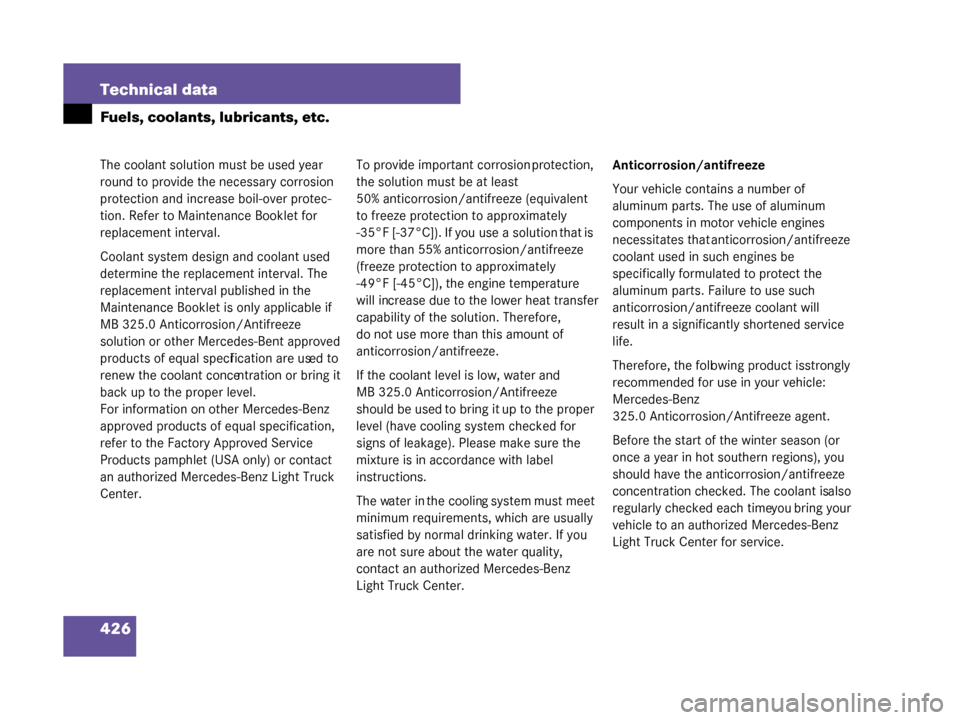

426 Technical data
Fuels, coolants, lubricants, etc.
The coolant solution must be used year
round to provide the necessary corrosion
protection and increase boil-over protec-
tion. Refer to Maintenance Booklet for
replacement interval.
Coolant system design and coolant used
determine the replacement interval. The
replacement interval published in the
Maintenance Booklet is only applicable if
MB 325.0 Anticorrosion/Antifreeze
solution or other Mercedes-Bent approved
products of equal specification are used to
renew the coolant concen tration or bring it
back up to the proper level.
For information on other Mercedes-Benz
approved products of equal specification,
refer to the Factory Approved Service
Products pamphlet (USA only) or contact
an authorized Mercedes-Benz Light Truck
Center. To provide important corrosion protection,
the solution must be at least
50% anticorrosion/antifreeze (equivalent
to freeze protection to approximately
-35°F [-37°C]). If you use a solution that is
more than 55% anticorrosion/antifreeze
(freeze protection to approximately
-49°F [-45°C]), the engine temperature
will increase due to the lower heat transfer
capability of the so
lution. Therefore,
do not use more than this amount of
anticorrosion/antifreeze.
If the coolant level is low, water and
MB 325.0 Anticorrosion/Antifreeze
should be used to bring it up to the proper
level (have cooling system checked for
signs of leakage). Please make sure the
mixture is in accordance with label
instructions.
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water. If you
are not sure about the water quality,
contact an authoriz ed Mercedes-Benz
Light Truck Center. Anticorrosion/antifreeze
Your vehicle contains a number of
aluminum parts. The use of aluminum
components in motor vehicle engines
necessitates that anticorrosion/antifreeze
coolant used in such engines be
specifically formulated to protect the
aluminum parts. Failure to use such
anticorrosion/antifreeze coolant will
result in a significantly shortened service
life.
Therefore, the followin
g product is strongly
recommended for use in your vehicle:
Mercedes-Benz
325.0 Anticorrosion/Antifreeze agent.
Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion/antifreeze
concentration checked. The coolant is also
regularly checked each time you bring your
vehicle to an authorized Mercedes-Benz
Light Truck Center for service.
W463.boo Seite 426 Montag, 19 . November 2007 8:41 08

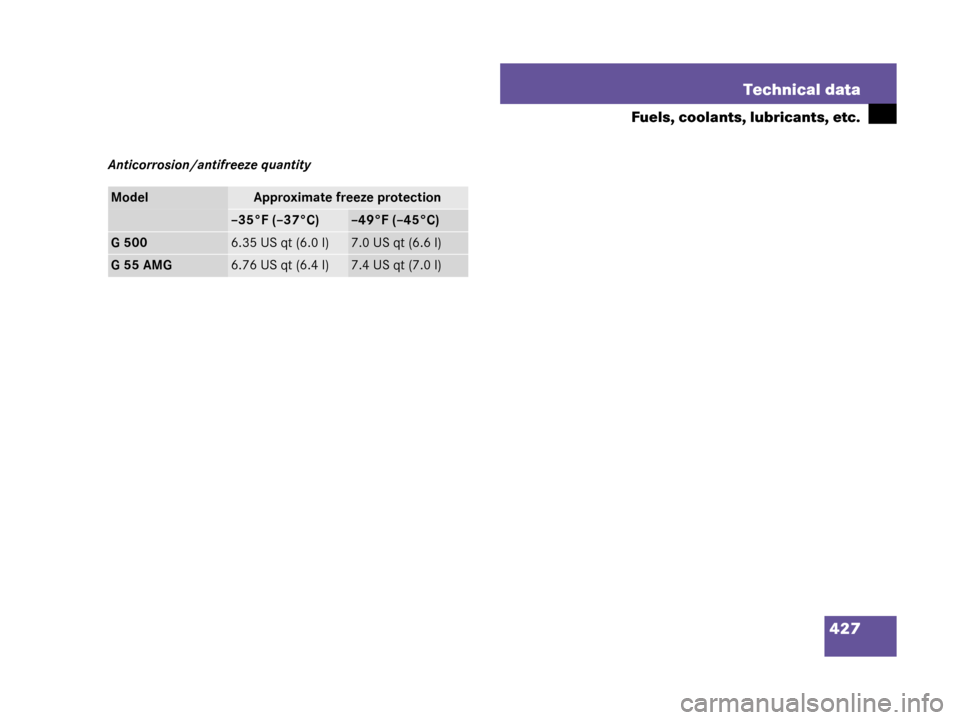

427
Technical data
Fuels, coolants, lubricants, etc.
Anticorrosion/antifreeze quantity
ModelApproximate freeze protection
–35°F (–37°C)–49°F (–45°C)
G 5006.35 US qt (6.0 l)7.0 US qt (6.6 l)
G55AMG6.76 US qt (6.4 l)7.4 US qt (7.0 l)
W463.boo Seite 427 Montag, 19
. November 2007 8:41 08

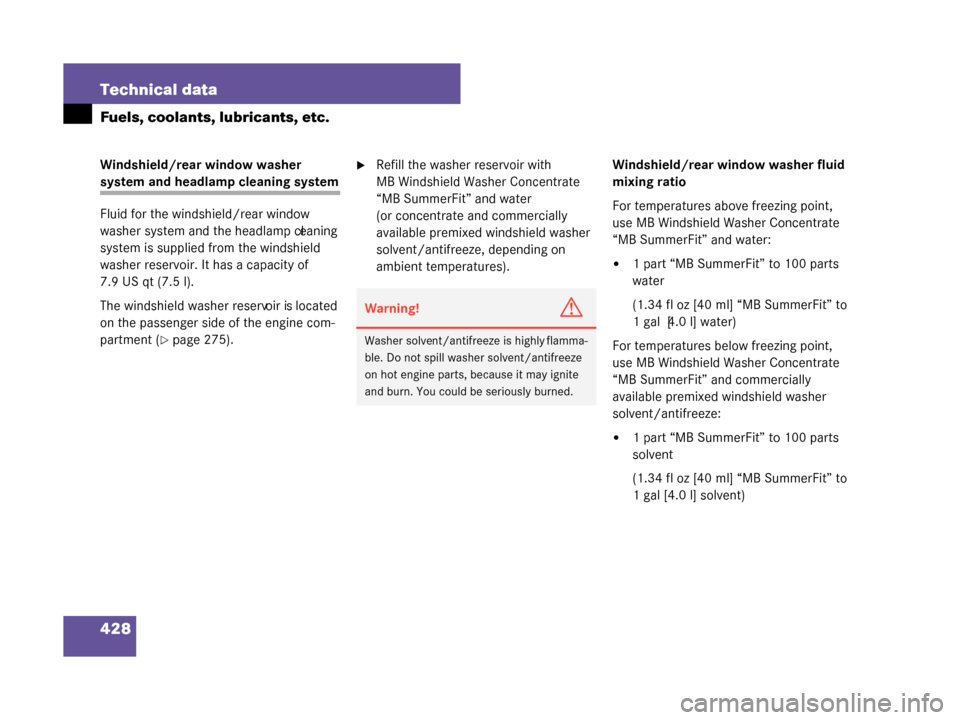

428 Technical data
Fuels, coolants, lubricants, etc.
Windshield/rear window washer
system and headlamp cleaning system
Fluid for the windshield/rear window
washer system and the headlamp cleaning
system is supplied from the windshield
washer reservoir. It has a capacity of
7.9 US qt (7.5 l).
The windshield washer reservoir is located
on the passenger side of the engine com-
partment (
page 275).
Refill the washer reservoir with
MB Windshield Washer Concentrate
“MB SummerFit” and water
(or concentrate and commercially
available premixed windshield washer
solvent/antifreeze, depending on
ambient temperatures). Windshield/rear wind
ow washer fluid
mixing ratio
For temperatures above freezing point,
use MB Windshield Washer Concentrate
“MB SummerFit” and water:

1 part “MB SummerFit” to 100 parts
water
(1.34 fl oz [40 ml] “MB SummerFit” to
1gal [4.0l] water)
For temperatures below freezing point,
use MB Windshield Washer Concentrate
“MB SummerFit” and commercially
available premixed windshield washer
solvent/antifreeze:

1 part “MB SummerFit” to 100 parts
solvent
(1.34 fl oz [40 ml] “MB SummerFit” to
1 gal [4.0 l] solvent)
Warning!G
Washer solvent/antifree ze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
W463.boo Seite 428 Montag, 19 . November 2007 8:41 08

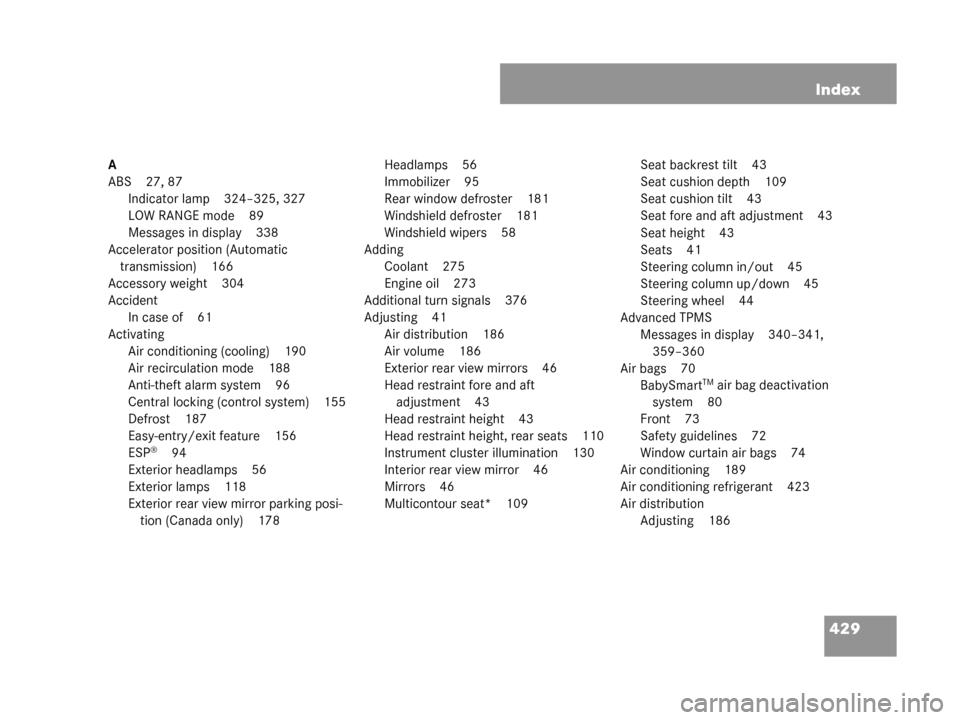

429
