2008 MERCEDES-BENZ G55AMG Owner's Manual

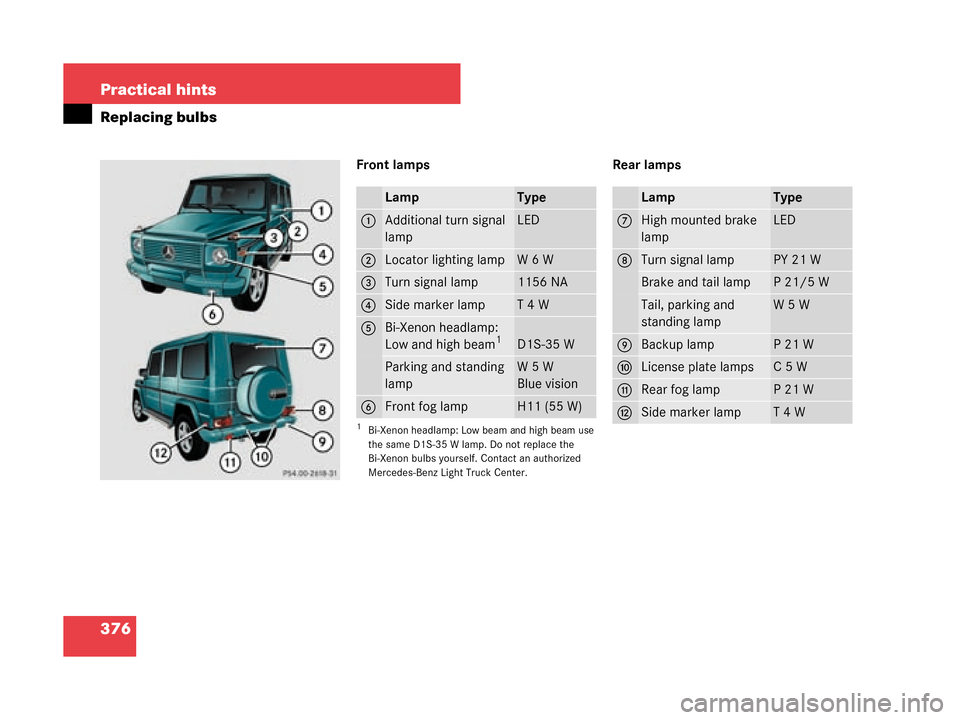

376 Practical hints
Replacing bulbs
Front lampsRear lamps
LampType
1Additional turn signal
lampLED
2Locator lighting lampW6W
3Turn signal lamp1156 NA
4Side marker lampT4W
5Bi-Xenon headlamp:
Low and high beam1
1Bi-Xenon headlamp: Low beam and high beam use
the same D1S-35 W lamp. Do not replace the
Bi-Xenon bulbs yourself. Contact an authorized
Mercedes-Benz Light Truck Center.
D1S-35 W
Parking and standing
lampW5W
Blue vision
6Front fog lampH11 (55 W)
LampType
7High mounted brake
lampLED
8Turn signal lampPY 21 W
Brake and tail lampP21/5W
Tail, parking and
standing lampW5W
9Backup lampP21W
aLicense plate lampsC5W
bRear fog lampP21W
cSide marker lampT4W
W463.boo Seite 376 Montag, 19 . November 2007 8:41 08

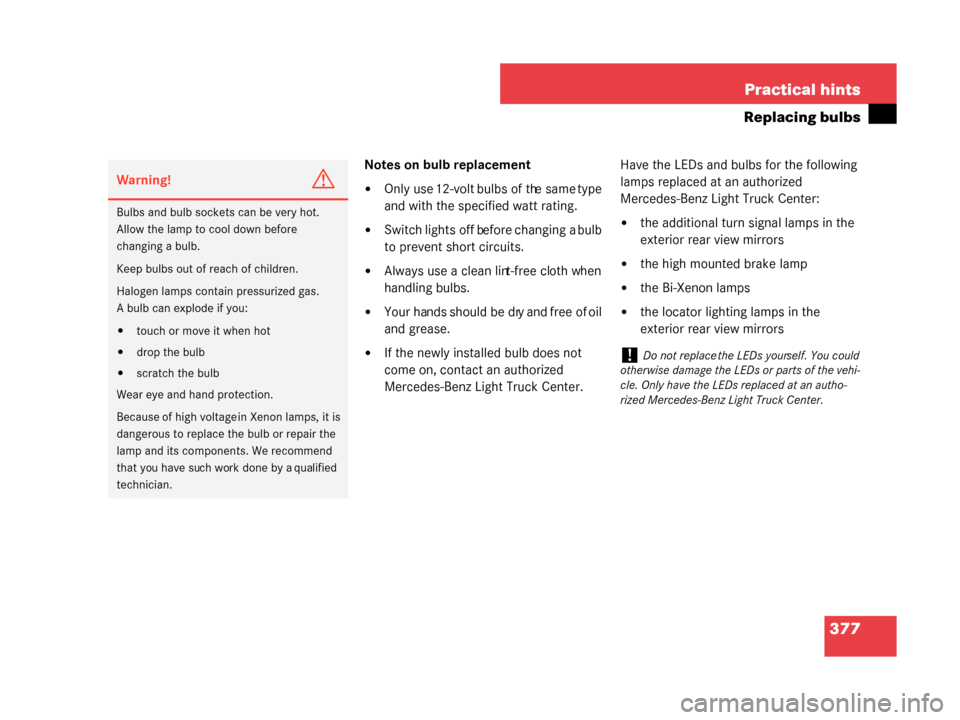

377
Practical hints
Replacing bulbs
Notes on bulb replacement

Only use 12-volt bulbs of the same type
and with the specified watt rating.

Switch lights off before changing a bulb
to prevent short circuits.

Always use a clean lint-free cloth when
handling bulbs.

Your hands should be dry and free of oil
and grease.

If the newly installed bulb does not
come on, contact an authorized
Mercedes-Benz Light Truck Center.
Have the LEDs and bulbs for the following
lamps replaced at an authorized
Mercedes-Benz Light Truck Center:

the additional turn signal lamps in the
exterior rear view mirrors

the high mounted brake lamp

the Bi-Xenon lamps

the locator lighting lamps in the
exterior rear view mirrors
Warning!G
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before
changing a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot

drop the bulb

scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
!Do not replace the LEDs yourself. You could
otherwise damage the LEDs or parts of the vehi-
cle. Only have the LEDs replaced at an autho-
rized Mercedes-Benz Light Truck Center.
W463.boo Seite 377 Montag, 19 . November 2007 8:41 08

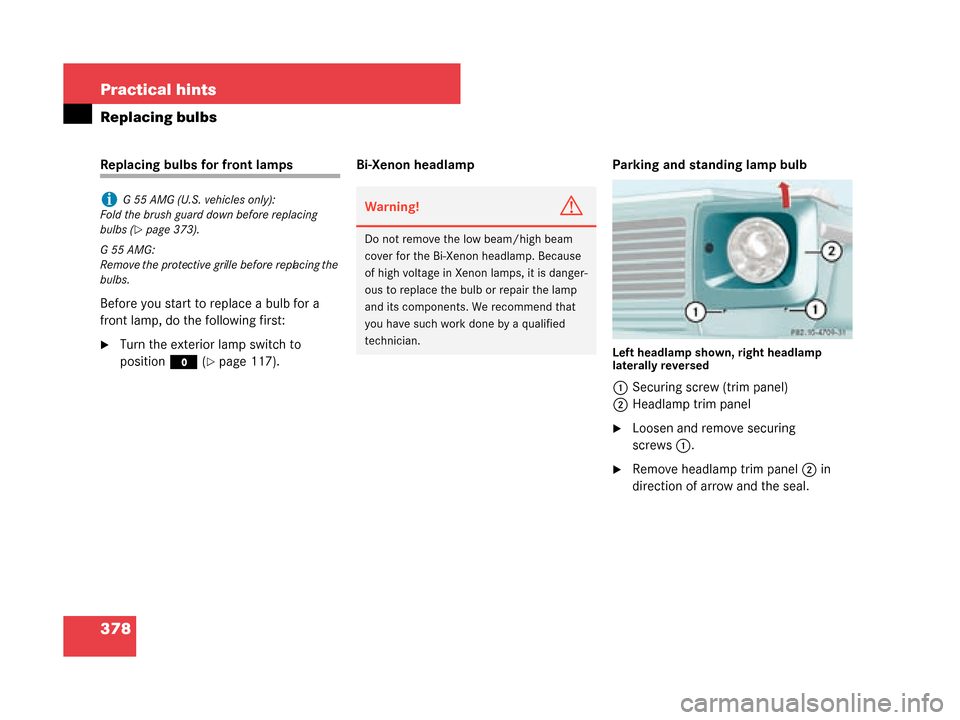

378 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
position M (
page 117). Bi-Xenon headlamp
Parking and standing lamp bulbLeft headlamp shown, right headlamp
laterally reversed
1Securing screw (trim panel)
2 Headlamp trim panel
Loosen and remove securing
screws 1.
Remove headlamp trim panel 2 in
direction of arrow and the seal.
iG 55 AMG (U.S. vehicles only):
Fold the brush guard down before replacing
bulbs (
page 373).
G55AMG:
Remove the protective grille before replacing the
bulbs.
Warning!G
Do not remove the low beam/high beam
cover for the Bi-Xenon headlamp. Because
of high voltage in Xeno n lamps, it is danger-
ous to replace the bulb or repair the lamp
and its components. We recommend that
you have such work done by a qualified
technician.
W463.boo Seite 378 Montag, 19 . November 2007 8:41 08

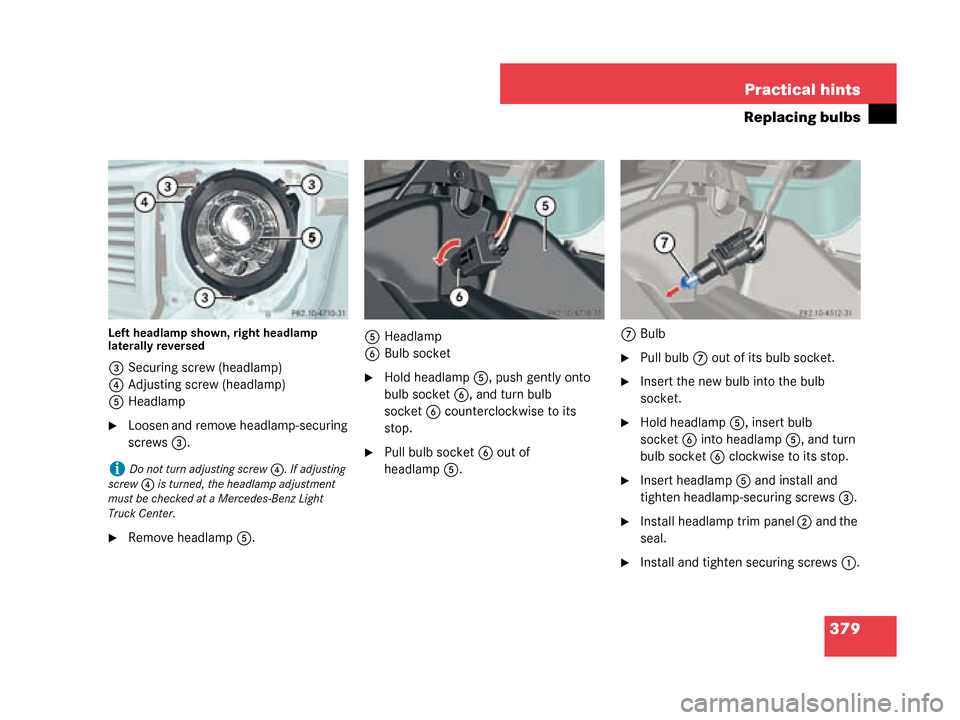

379
Practical hints
Replacing bulbs
Left headlamp shown, right headlamp
laterally reversed
3
Securing screw (headlamp)
4 Adjusting screw (headlamp)
5 Headlamp
Loosen and remove headlamp-securing
screws 3.
Remove headlamp 5. 5
Headlamp
6 Bulb socket
Hold headlamp 5, push gently onto
bulb socket 6, and turn bulb
socket 6 counterclockwise to its
stop.
Pull bulb socket 6 out of
headlamp 5. 7
Bulb
Pull bulb 7 out of its bulb socket.
Insert the new bulb into the bulb
socket.
Hold headlamp 5, insert bulb
socket 6 into headlamp 5, and turn
bulb socket 6 clockwise to its stop.
Insert headlamp 5 and install and
tighten headlamp-securing screws 3.
Install headlamp trim panel 2 and the
seal.
Install and tighten securing screws 1.
iDo not turn adjusting screw 4. If adjusting
screw 4 is turned, the headlamp adjustment
must be checked at a Mercedes-Benz Light
Truck Center.
W463.boo Seite 379 Montag, 19 . November 2007 8:41 08

380 Practical hints
Replacing bulbs
Front fog lamp bulb
Right front fog lamp shown, left front fog
lamp laterally reversed
1Securing screw (trim panel)
2 Front fog lamp trim panel
Loosen and remove securing
screws 1.
Remove front fog lamp trim panel 2 in
direction of arrow and the seal.
Right front fog lamp shown, left front fog
lamp laterally reversed
3 Securing screw (front fog lamp)
4 Adjusting screw (front fog lamp)
5 Front fog lamp
Loosen and remove front fog
lamp-securing screws 3.
Remove front fog lamp 5. 5
Front fog lamp
6 Bulb socket
Hold front fog lamp 5, push gently
onto bulb socket 6, and turn bulb
socket 6 counterclockwise to its
stop.
Pull bulb socket 6 out of front fog
lamp 5.
iDo not turn adjusting screw 4. If adjusting
screw 4 is turned, the front fog lamp adjust-
ment must be checked at a Mercedes-Benz Light
Truck Center.
W463.boo Seite 380 Montag, 19 . November 2007 8:41 08

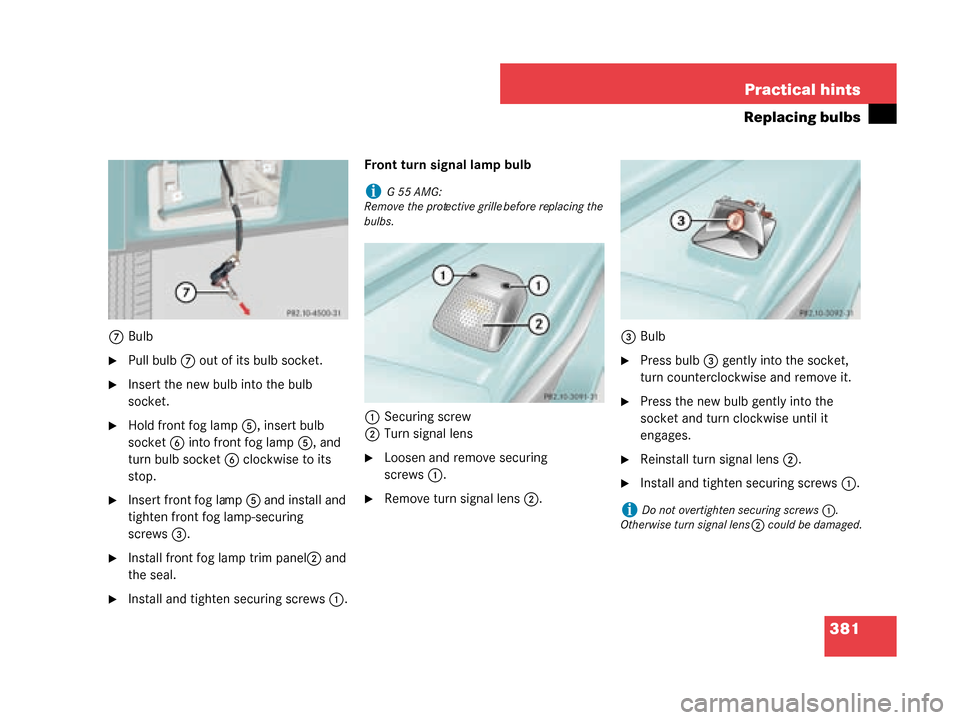

381
Practical hints
Replacing bulbs
7
Bulb
Pull bulb 7 out of its bulb socket.
Insert the new bulb into the bulb
socket.
Hold front fog lamp 5, insert bulb
socket 6 into front fog lamp 5, and
turn bulb socket 6 clockwise to its
stop.
Insert front fog lamp 5 and install and
tighten front fog lamp-securing
screws 3.
Install front fog lamp trim panel 2 and
the seal.
Install and tight en securing screws 1. Front turn signal lamp bulb
1 Securing screw
2 Turn signal lens
Loosen and remove securing
screws 1.
Remove turn signal lens 2. 3
Bulb
Press bulb 3 gently into the socket,
turn counterclockwise and remove it.
Press the new bulb gently into the
socket and turn clockwise until it
engages.
Reinstall turn signal lens 2.
Install and tighten securing screws 1.
iG55AMG:
Remove the protective grille before replacing the
bulbs.
iDo not overtighten securing screws 1.
Otherwise turn signal lens 2 could be damaged.
W463.boo Seite 381 Montag, 19 . November 2007 8:41 08

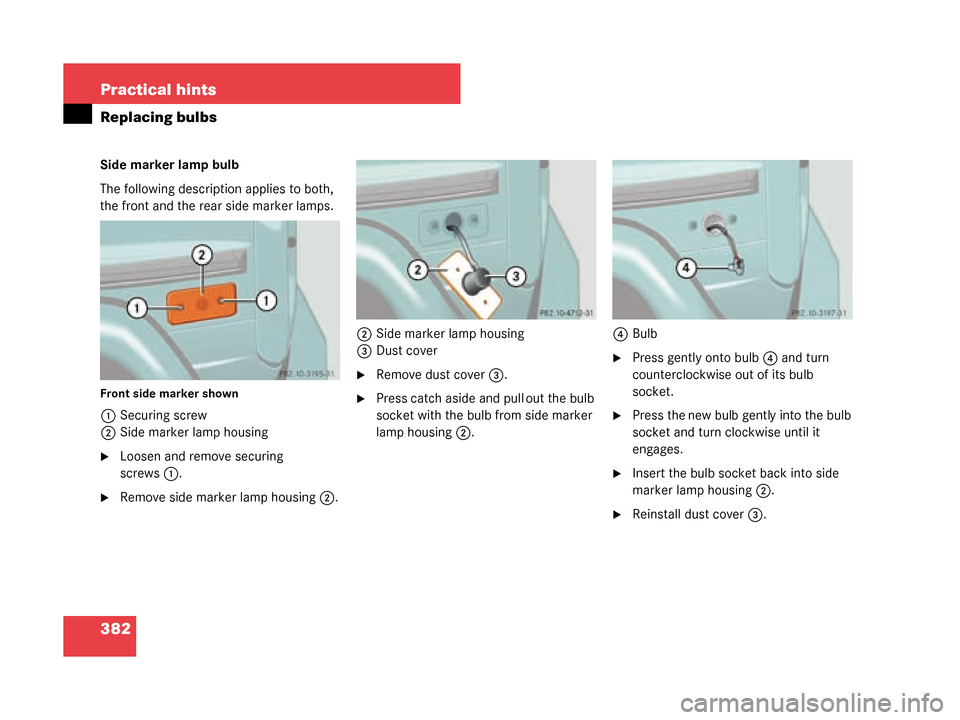

382 Practical hints
Replacing bulbs
Side marker lamp bulb
The following description applies to both,
the front and the rear side marker lamps.
Front side marker shown
1Securing screw
2 Side marker lamp housing
Loosen and remove securing
screws 1.
Remove side marker lamp housing 2. 2
Side marker lamp housing
3 Dust cover
Remove dust cover 3.
Press catch aside and pull out the bulb
socket with the bulb from side marker
lamp housing 2. 4
Bulb
Press gently onto bulb 4 and turn
counterclockwise out of its bulb
socket.
Press the new bulb gently into the bulb
socket and turn clockwise until it
engages.
Insert the bulb socket back into side
marker lamp housing 2.
Reinstall dust cover 3.
W463.boo Seite 382 Montag, 19 . November 2007 8:41 08

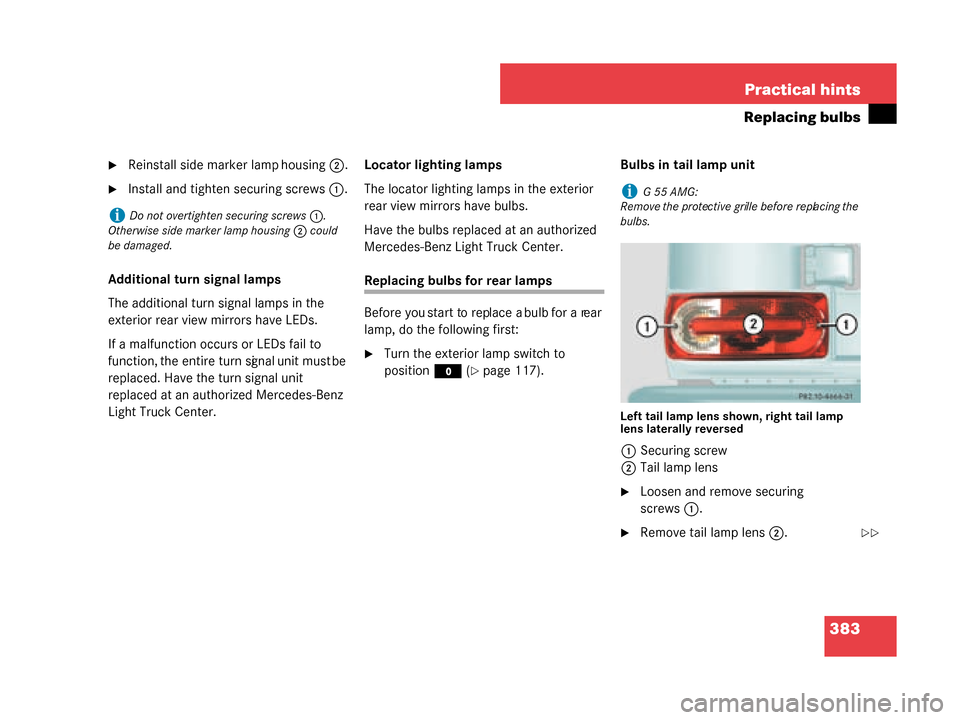

383
Practical hints
Replacing bulbs
Reinstall side marker lamp housing
2.
Install and tight en securing screws 1.
Additional turn signal lamps
The additional turn signal lamps in the
exterior rear view mirrors have LEDs.
If a malfunction occurs or LEDs fail to
function, the entire turn signal unit must be
replaced. Have the turn signal unit
replaced at an authorized Mercedes-Benz
Light Truck Center. Locator lighting lamps
The locator lighting lamps in the exterior
rear view mirrors have bulbs.
Have the bulbs replaced at an authorized
Mercedes-Benz Light Truck Center.
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
position
M (
page 117). Bulbs in tail lamp unit
Left tail lamp lens shown, right tail lamp
lens laterally reversed
1
Securing screw
2 Tail lamp lens
Loosen and remove securing
screws 1.
Remove tail lamp lens 2.
iDo not overtighten securing screws 1.
Otherwise side marker lamp housing 2 could
be damaged.
iG55AMG:
Remove the protective grille before replacing the
bulbs.

W463.boo Seite 383 Montag, 19 . November 2007 8:41 08
