2008 MERCEDES-BENZ G55AMG Owner's Manual

96 Safety and Security
Anti-theft systems

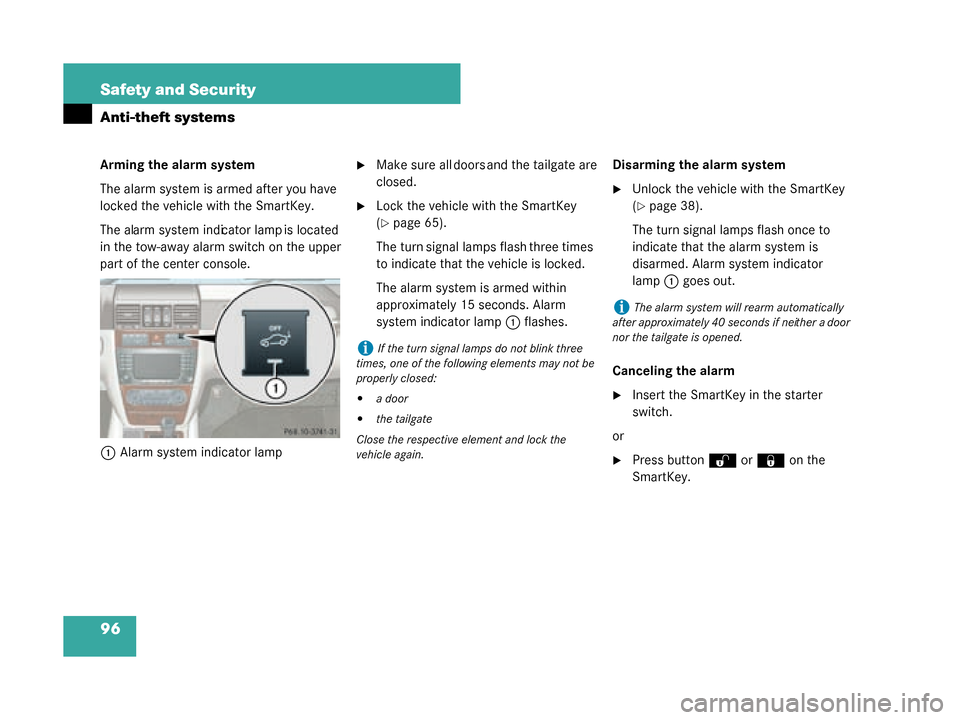

Arming the alarm system
The alarm system is armed after you have
locked the vehicle with the SmartKey.
The alarm system indicator lamp is located
in the tow-away alarm switch on the upper
part of the center console.
1 Alarm system indicator lampMake sure all doors and the tailgate are
closed.
Lock the vehicle with the SmartKey
(
page 65).
The turn signal lamps flash three times
to indicate that the vehicle is locked.
The alarm system is armed within
approximately 15 seconds. Alarm
system indicator lamp 1 flashes. Disarming the alarm system
Unlock the vehicle with the SmartKey
(
page 38).
The turn signal lamps flash once to
indicate that the alarm system is
disarmed. Alarm system indicator
lamp 1 goes out.
Canceling the alarm
Insert the SmartKey in the starter
switch.
or
Press button Œ or‹ on the
SmartKey.
iIf the turn signal lamps do not blink three
times, one of the followi ng elements may not be
properly closed:

a door

the tailgate
Close the respective element and lock the
vehicle again.
iThe alarm system will rearm automatically
after approximately 40 seconds if neither a door
nor the tailgate is opened.
W463.boo Seite 96 Montag, 19. November 2007 8:41 08

97
Safety and Security
Anti-theft systems
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
Arming tow-away alarm
Lock the vehicle with the SmartKey
(
page 65).
The tow-away alarm is automatically
armed after approximately
30 seconds. Disarming tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm
before towing the vehicle, or when parking
on a surface subject to movement, such as
a ferry or auto train.
The tow-away alarm off switch is located
on the upper part of the center console.
1 Tow-away alarm off switch
2 Indicator lamp
Switch off the ignition and remove the
SmartKey from the starter switch.
Press switch 1.
Indicator lamp 2 comes on briefly.
Exit and lock the vehicle with the
SmartKey (
page 65).
Canceling the tow-away alarm
Press the Œ or‹ button on the
SmartKey.
or
Insert the SmartKey in the starter
switch.
iYou cannot disarm the tow-away alarm
when the ignition is switched on.
iWhen you unlock the vehicle, the tow-away
protection disarms automatically.
The tow-away alarm remains disarmed until you
lock your vehicle again.
W463.boo Seite 97 Montag, 19. November 2007 8:41 08

98
W463.boo Seite 98 Montag, 19. November 2007 8:41 08

99

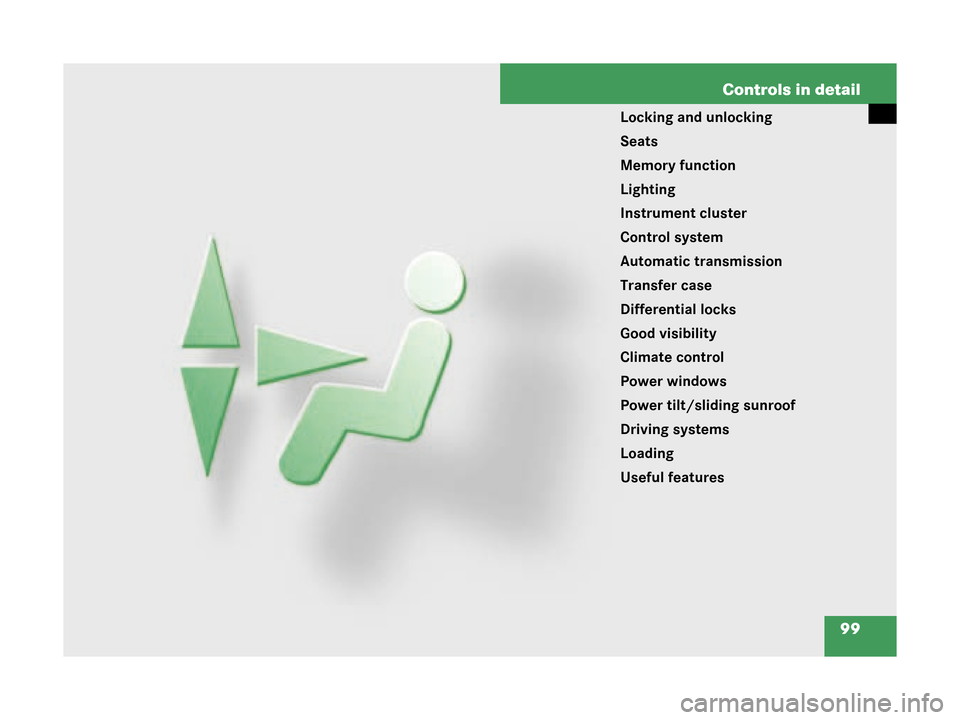

Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Transfer case
Differential locks
Good visibility
Climate control
Power windows
Power tilt/sliding sunroof
Driving systems
Loading
Useful features
W463.boo Seite 99 Montag, 19. November 2007 8:41 08

100 Controls in detail
In the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the
basic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.
For more information on locking and
unlocking, see the “Getting started”
section (
page 38) and (page 65).
Locking and unlocking
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a
different color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors

the tailgate

the fuel filler flap
SmartKey with remote control
1 ‹ Lock button
2 Locking tab for mechanical key
3 Mechanical key (
page 368)
4 ΠUnlock button
5 Battery check lamp
6 Â Panic button (
page 86)
W463.boo Seite 100 Montag, 19 . November 2007 8:41 08

101
Controls in detail
Locking and unlocking

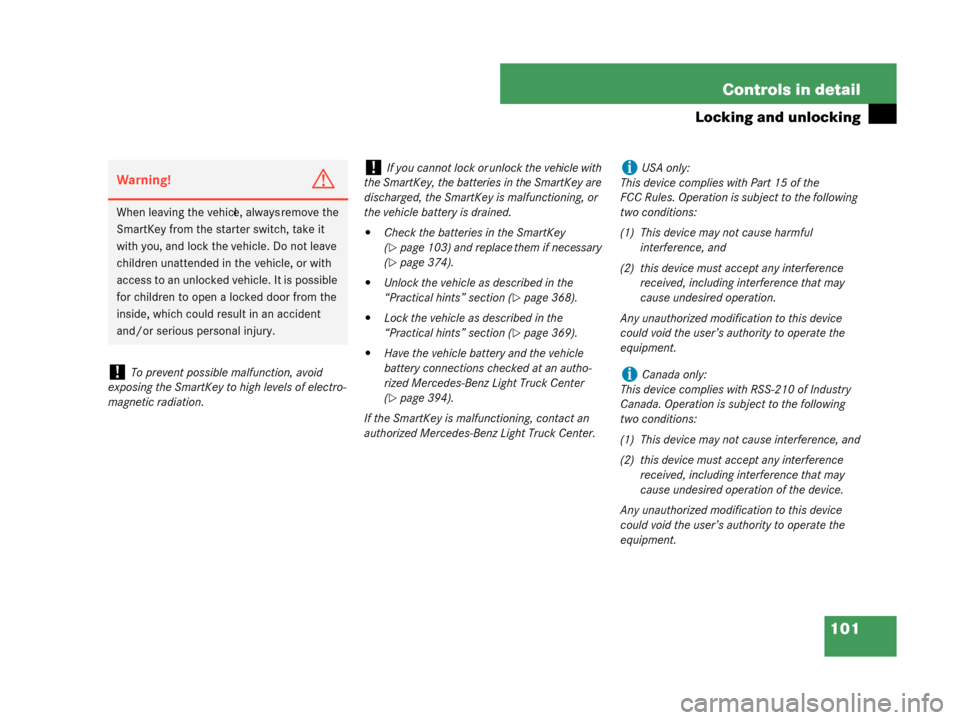

Warning!G
When leaving the vehicl
e, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious personal injury.
!To prevent possible malfunction, avoid
exposing the SmartKey to high levels of electro-
magnetic radiation.
!If you cannot lock or unlock the vehicle with
the SmartKey, the batteries in the SmartKey are
discharged, the SmartKey is malfunctioning, or
the vehicle battery is drained.

Check the batteries in the SmartKey
(
page 103) and replace them if necessary
(
page 374).

Unlock the vehicle as described in the
“Practical hints” section (
page 368).

Lock the vehicle as described in the
“Practical hints” section (
page 369).

Have the vehicle battery and the vehicle
battery connections checked at an autho-
rized Mercedes-Benz Light Truck Center
(
page 394).
If the SmartKey is malfunctioning, contact an
authorized Mercedes-Benz Light Truck Center.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
W463.boo Seite 101 Montag, 19 . November 2007 8:41 08

102 Controls in detail
Locking and unlocking

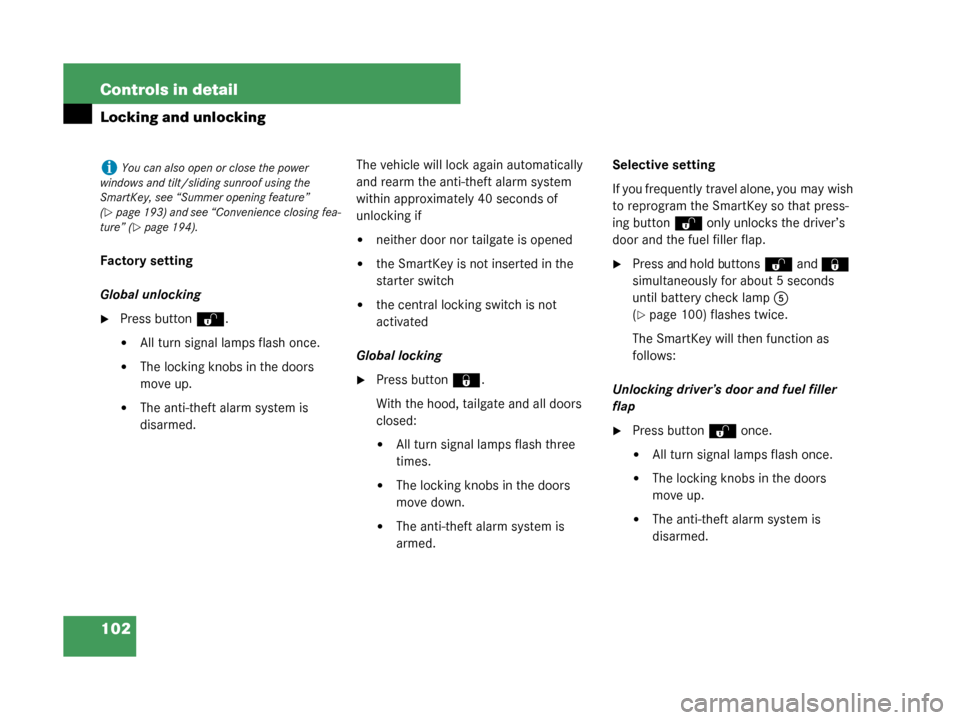

Factory setting
Global unlocking
Press buttonŒ.

All turn signal lamps flash once.

The locking knobs in the doors
move up.

The anti-theft alarm system is
disarmed. The vehicle will lock again automatically
and rearm the anti-theft alarm system
within approximately 40 seconds of
unlocking if

neither door nor tailgate is opened

the SmartKey is not inserted in the
starter switch

the central locking switch is not
activated
Global locking
Press button ‹.
With the hood, tailgate and all doors
closed:

All turn signal lamps flash three
times.

The locking knobs in the doors
move down.

The anti-theft alarm system is
armed. Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that press-
ing button
Œ only unlocks the driver’s
door and the fuel filler flap.
Press and hold buttons Œ and‹
simultaneously for about 5 seconds
until battery check lamp 5
(
page 100) flashes twice.
The SmartKey will then function as
follows:
Unlocking driver’s do or and fuel filler
flap
Press button Πonce.

All turn signal lamps flash once.

The locking knobs in the doors
move up.

The anti-theft alarm system is
disarmed.
iYou can also open or close the power
windows and tilt/slidin g sunroof using the
SmartKey, see “Summer opening feature”
(
page 193) and see “Convenience closing fea-
ture” (
page 194).
W463.boo Seite 102 Montag, 19 . November 2007 8:41 08

103
Controls in detail
Locking and unlocking
Global unlocking
Press button
Πtwice.

All turn signal lamps flash once.

The locking knobs in the doors
move up.

The anti-theft alarm system is
disarmed.
Global locking
Press button ‹.
With the hood, tailgate and all doors
closed:

All turn signal lamps flash three
times.

The locking knobs in the doors
move down.

The anti-theft alarm system is
armed. Restoring to factory setting
Press and hold buttons
Œ and‹
simultaneously for about 6 seconds
until battery check lamp 5
(
page 100) flashes twice.
Checking batteries in the SmartKey
Press button ‹ orŒ .
Battery check lamp 5 (
page 100)
comes on briefly to indicate that the
SmartKey batteries are in order.
Loss of the SmartKey
If you lose your SmartKey or mechanical
key, you should do the following:
Have the SmartKey deactivated at an
authorized Mercedes -Benz Light Truck
Center.
Report the loss of the SmartKey or the
mechanical key immediately to your
car insurance company.
If necessary, have the mechanical lock
replaced.
Any authorized Mercedes-Benz Light Truck
Center will be glad to supply you with a re-
placement.
iIf battery check lamp 5 does not come on
briefly during check, the SmartKey batteries are
discharged.
Replace the batteries (
page 374).
You can obtain the required batteries at any
authorized Mercedes-Benz Light Truck Center.
iIf the batteries are checked within signal
range of the vehicle, pressing button ‹
or Πwill lock or unlock the vehicle
accordingly.
W463.boo Seite 103 Montag, 19 . November 2007 8:41 08
