2008 MERCEDES-BENZ G55AMG Owner's Manual

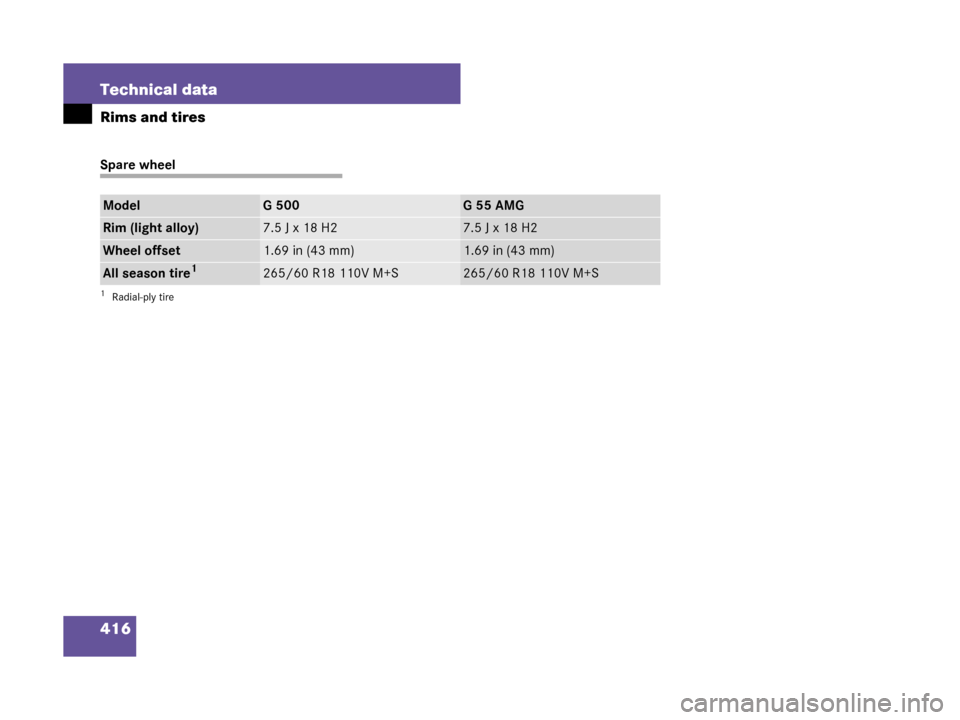

416 Technical data
Rims and tires
Spare wheel
ModelG 500G55AMG
Rim (light alloy)7.5Jx18H27.5Jx18H2
Wheel offset1.69 in (43 mm)1.69 in (43 mm)
All season tire1
1Radial-ply tire
265/60 R18 110V M+S265/60 R18 110V M+S
W463.boo Seite 416 Montag, 19. November 2007 8:41 08

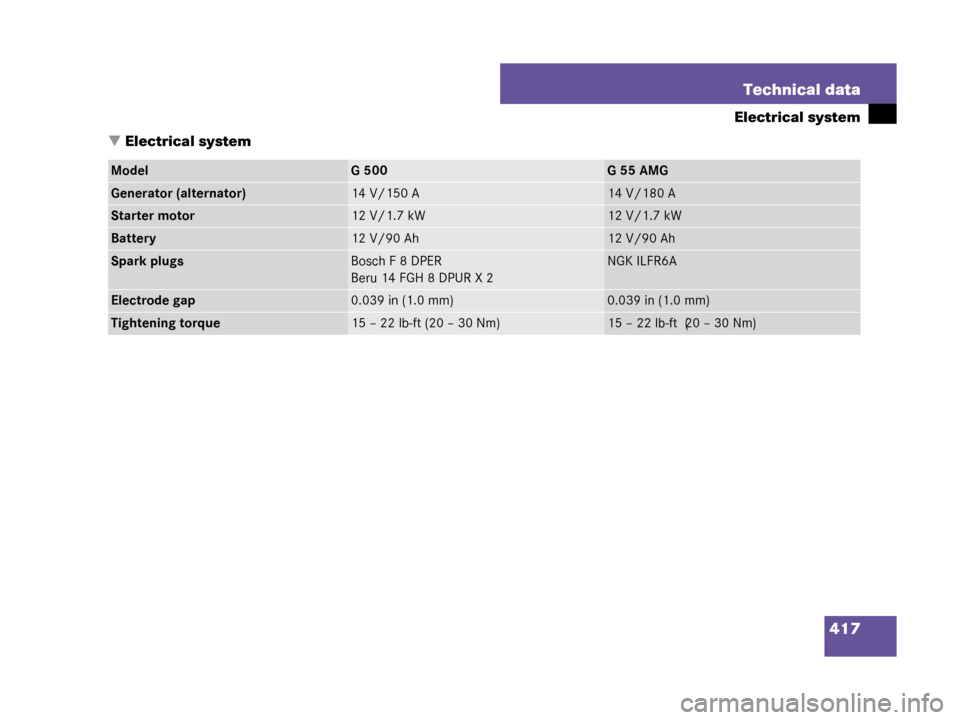

417
Technical data
Electrical system
 Electrical system
ModelG 500G55AMG
Generator (alternator)14 V/150 A14 V/180 A
Starter motor12 V/1.7 kW12 V/1.7 kW
Battery12 V/90 Ah12 V/90 Ah
Spark plugsBosch F 8 DPER
Beru 14 FGH 8 DPUR X 2NGK ILFR6A
Electrode gap0.039 in (1.0 mm)0.039 in (1.0 mm)
Tightening torque15 – 22 lb-ft (20 – 30 Nm)15–22lb-ft (20–30Nm)
W463.boo Seite 417 Montag, 19 . November 2007 8:41 08

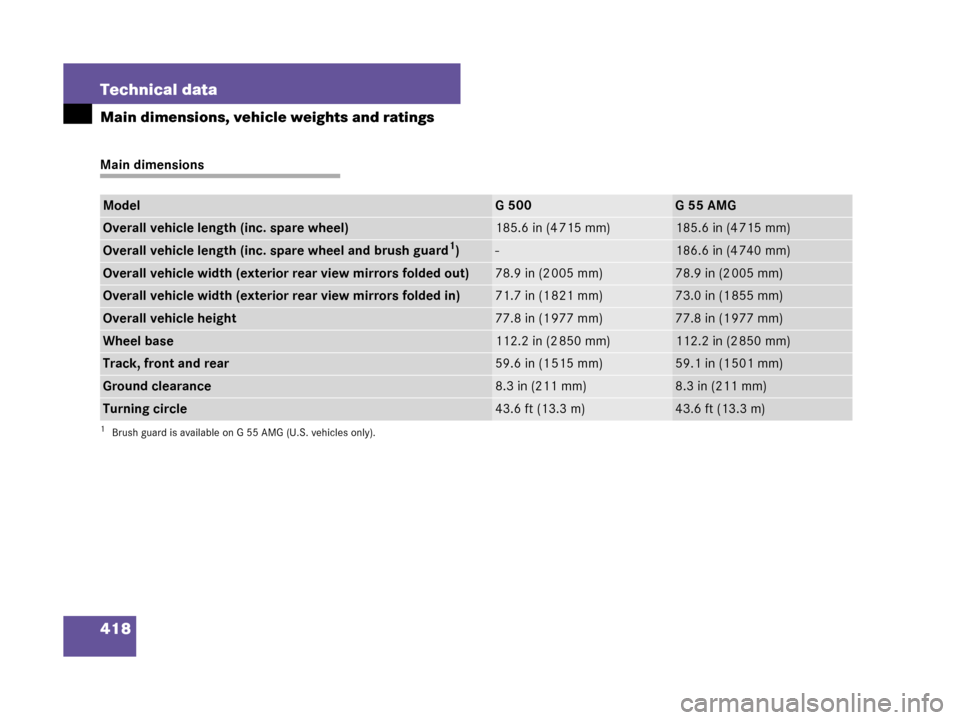

418 Technical data
Main dimensions, vehicle weights and ratings
Main dimensions
ModelG 500G55AMG
Overall vehicle length (inc. spare wheel)185.6 in (4 715 mm)185.6 in (4 715 mm)
Overall vehicle length (inc. spare wheel and brush guard1)
1Brush guard is available on G 55 AMG (U.S. vehicles only).
-186.6 in (4 740 mm)
Overall vehicle width (exterior rear view mirrors folded out)78.9 in (2 005 mm)78.9 in (2 005 mm)
Overall vehicle width (exterior rear view mirrors folded in)71.7 in (1 821 mm)73.0 in (1 855 mm)
Overall vehicle height77.8 in (1 977 mm)77.8 in (1 977 mm)
Wheel base112.2 in (2 850 mm)112.2 in (2 850 mm)
Track, front and rear59.6 in (1 515 mm)59.1 in (1 501 mm)
Ground clearance8.3 in (211 mm)8.3 in (211 mm)
Turning circle43.6 ft (13.3 m)43.6 ft (13.3 m)
W463.boo Seite 418 Montag, 19 . November 2007 8:41 08

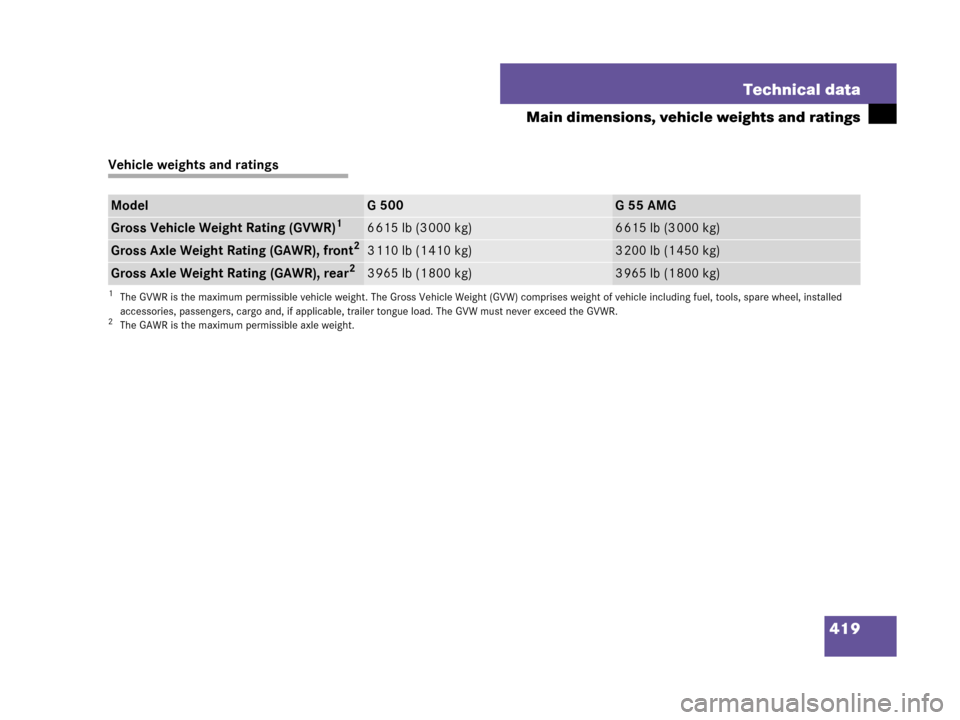

419
Technical data
Main dimensions, vehicle weights and ratings
Vehicle weights and ratings
ModelG 500G55AMG
Gross Vehicle Weight Rating (GVWR)1
1The GVWR is the maximum permissible vehicle weight. The Gross Ve
hicle Weight (GVW) comprises weight of vehicle including fuel, tools, spare wheel, installed
accessories, passengers, cargo and, if applicable, trai ler tongue load. The GVW must never exceed the GVWR.
6 615 lb (3 000 kg)6 615 lb (3 000 kg)
Gross Axle Weight Rating (GAWR), front2
2The GAWR is the maximum permissible axle weight.
3 110 lb (1 410 kg)3 200 lb (1 450 kg)
Gross Axle Weight Rating (GAWR), rear23 965 lb (1 800 kg)3 965 lb (1 800 kg)
W463.boo Seite 419 Montag, 19 . November 2007 8:41 08

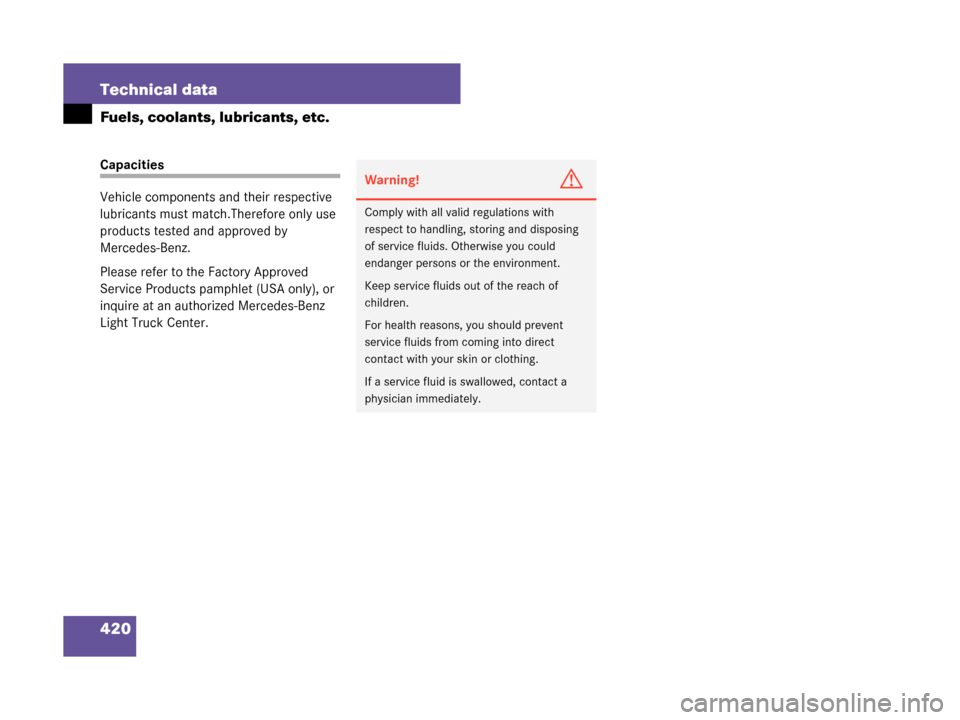

420 Technical data
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match.Therefore only use
products tested and approved by
Mercedes-Benz.
Please refer to the Factory Approved
Service Products pamphlet (USA only), or
inquire at an authorized Mercedes-Benz
Light Truck Center.
Warning!G
Comply with all valid regulations with
respect to handling, storing and disposing
of service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct
contact with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.
W463.boo Seite 420 Montag, 19. November 2007 8:41 08

421
Technical data
Fuels, coolants, lubricants, etc.
ModelCapacityFuels, coolants, lubricants, etc.
Engine with oil filterG500
G55AMG8.5 US qt (8.0 l)
9.0 US qt (8.5 l)Approved engine oils
Automatic transmission9.0 US qt (8.5 l)MB Automatic Transmission Fluid
Transfer case2.96 US qt (2.8 l)MB part no. A 001 989 28 03 10
Differential lock mechanism0.47-0.63USqt (0.45-0.6l)Brake fluid DOT 3+4, SAE J 1703
Front axleG500
G55AMG1.5 US qt (1.4 l)
1.5 US qt (1.4 l)Hypoid gear oil SAE 85W-90
Hypoid gear oil Castrol SAF-XJ
Rear axleG500
G55AMG1.9 US qt (1.8 l)
1.9 US qt (1.8 l)Hypoid gear oil SAE 85W-90
Hypoid gear oil Castrol SAF-XJ
Power steeringapprox. 1.06 US qt (1.0 l)MB Power Steering Fluid, or
approved Dexron III ATF
Front wheel hubsapprox. 1.5oz (43g) eachHigh temperature roller bearing grease
Brake system0.86 US qt (0.81 l)MB Brake Fluid (DOT 4+)
W463.boo Seite 421 Montag, 19
. November 2007 8:41 08

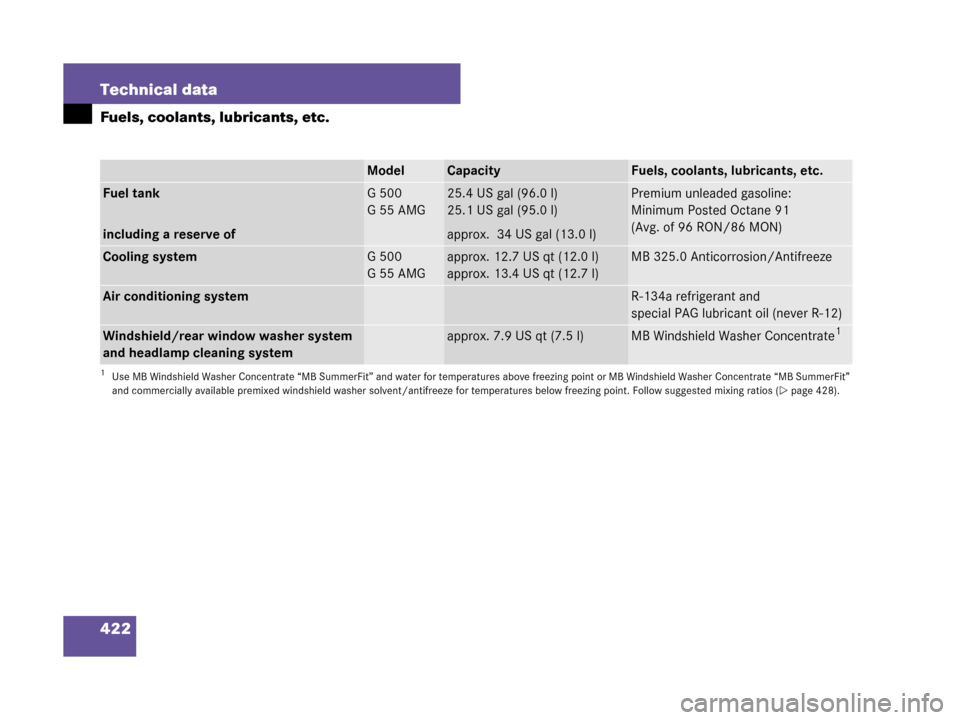

422 Technical data
Fuels, coolants, lubricants, etc.
ModelCapacityFuels, coolants, lubricants, etc.
Fuel tank
including a reserve ofG 500
G55AMG25.4 US gal (96.0 l)
25.1 US gal (95.0 l)
approx. 3.4USgal (13.0l)Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)
Cooling systemG 500
G55AMGapprox. 12.7 US qt (12.0 l)
approx. 13.4 US qt (12.7 l)MB 325.0 Anticorrosion/Antifreeze
Air conditioning systemR-134a refrigerant and
special PAG lubricant oil (never R-12)
Windshield/rear wi ndow washer system
and headlamp cleaning systemapprox. 7.9 US qt (7.5 l)MB Windshield Washer Concentrate1
1Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing point or MB Windshield Washer Concentrate “MB SummerFit”
and commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggeste d mixing ratios (page 428).
W463.boo Seite 422 Montag, 19 . November 2007 8:41 08

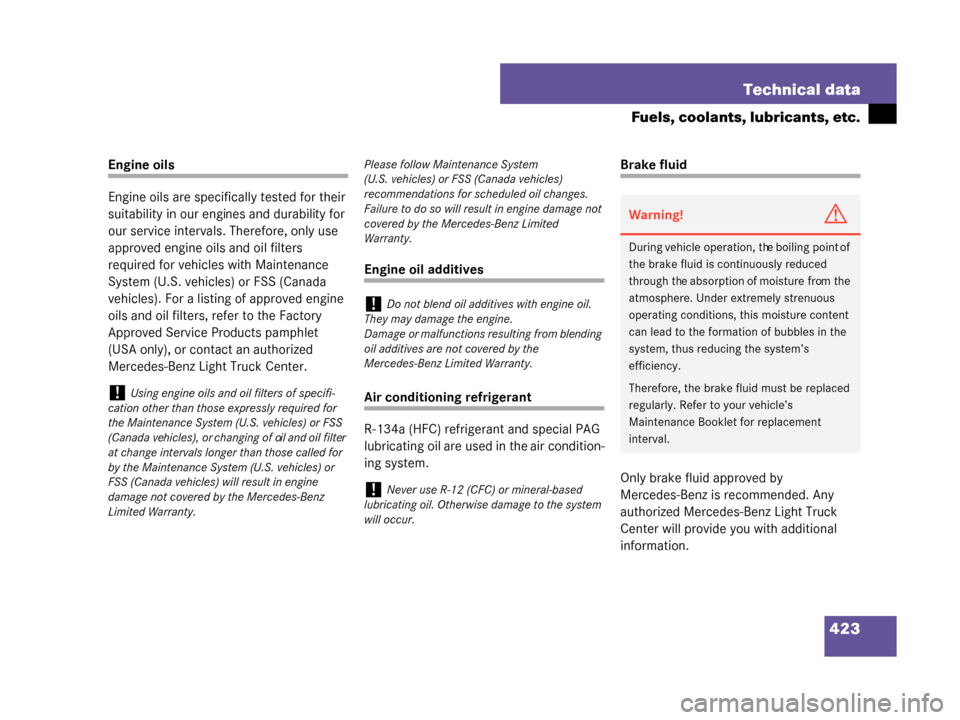

423
Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters
required for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory
Approved Service Pr
oducts pamphlet
(USA only), or contact an authorized
Mercedes-Benz Light Truck Center.
Engine oil additives
Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
ing system.
Brake fluid
Only brake fluid approved by
Mercedes-Benz is recommended. Any
authorized Mercedes-Benz Light Truck
Center will provide you with additional
information.
!Using engine oils and oil filters of specifi-
cation other than those expressly required for
the Maintenance System (U.S. vehicles) or FSS
(Canada vehicles), or changing of oil and oil filter
at change intervals longer than those called for
by the Maintenance System (U.S. vehicles) or
FSS (Canada vehicles) will result in engine
damage not covered by the Mercedes-Benz
Limited Warranty. Please follow Maintenance System
(U.S. vehicles) or FSS (Canada vehicles)
recommendations for scheduled oil changes.
Failure to do so will result in engine damage not
covered by the Mercedes-Benz Limited
Warranty.
!Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from blending
oil additives are not covered by the
Mercedes-Benz Limited Warranty.
!Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the system
will occur.
Warning!G
During vehicle operation, the boiling point of
the brake fluid is continuously reduced
through the absorption of moisture from the
atmosphere. Under extremely strenuous
operating conditions, this moisture content
can lead to the formation of bubbles in the
system, thus reducing the system’s
efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s
Maintenance Booklet for replacement
interval.
