2008 MERCEDES-BENZ G55AMG Owner's Manual

368 Practical hints

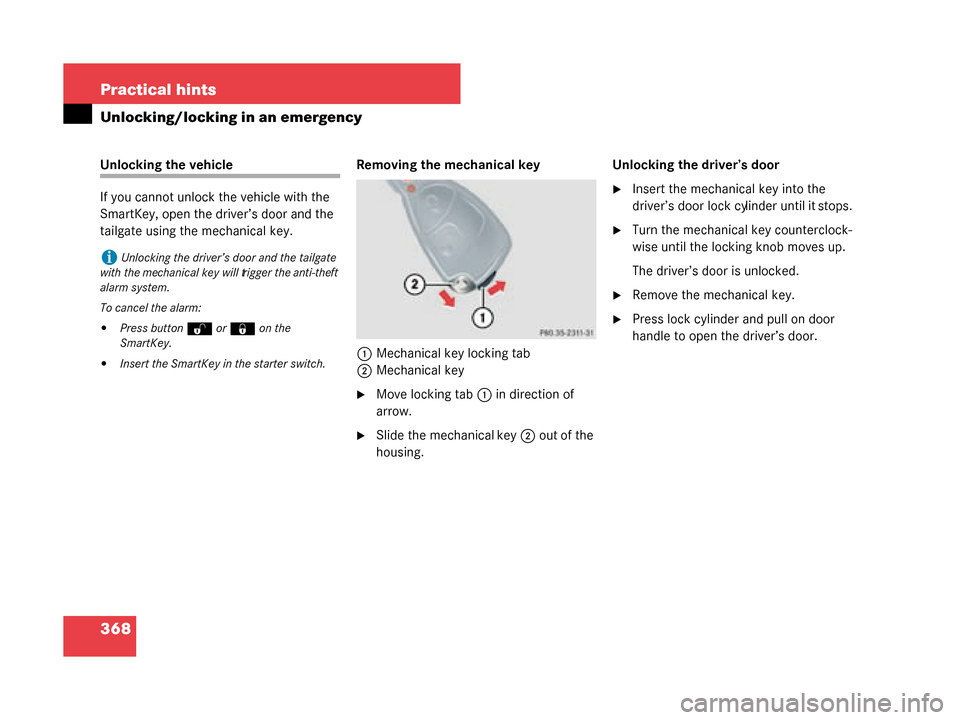

Unlocking/locking in an emergency
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey, open the driver’s door and the
tailgate using the mechanical key.Removing the mechanical key
1 Mechanical key locking tab
2 Mechanical key
Move locking tab 1 in direction of
arrow.
Slide the mechanical key 2 out of the
housing. Unlocking the driver’s door
Insert the mechanical key into the
driver’s door lock cy
linder until it stops.
Turn the mechanical key counterclock-
wise until the locking knob moves up.
The driver’s door is unlocked.
Remove the mechanical key.
Press lock cylinder and pull on door
handle to open the driver’s door.
iUnlocking the driver’s door and the tailgate
with the mechanical key will trigger the anti-theft
alarm system.
To cancel the alarm:

Press button Œ or‹ on the
SmartKey.

Insert the SmartKey in the starter switch.
W463.boo Seite 368 Montag, 19 . November 2007 8:41 08

369
Practical hints
Unlocking/locking in an emergency
Unlocking the tailgateInsert the mechanical key into lock
cylinder
2.
Turn the mechanical key counterclock-
wise to position 1 and release it.
Remove the mechanical key.
Press lock cylinder 2 and pull on door
handle 3 to open the tailgate.
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey, lock the vehicle with the
mechanical key carrying out the following
steps:
Close the front passenger door, the
rear doors and the tailgate.
Open the driver’s door.
Press the central locking switch in the
center console (
page 107).
The locking knobs on the front
passenger door, the rear doors and the
tailgate move down.
If the vehicle battery is disconnected or
drained:
Press down the locking knobs on
the front passenger door, the rear
doors and the tailgate manually.
Exit the vehicle.
1Unlocking in an emergency
2Lock cylinder
3Door handle
Warning!G
The tailgate swings open to one side. Always
make sure there is sufficient clearance for
tailgate.

W463.boo Seite 369 Montag, 19 . November 2007 8:41 08

370 Practical hints
Unlocking/locking in an emergency

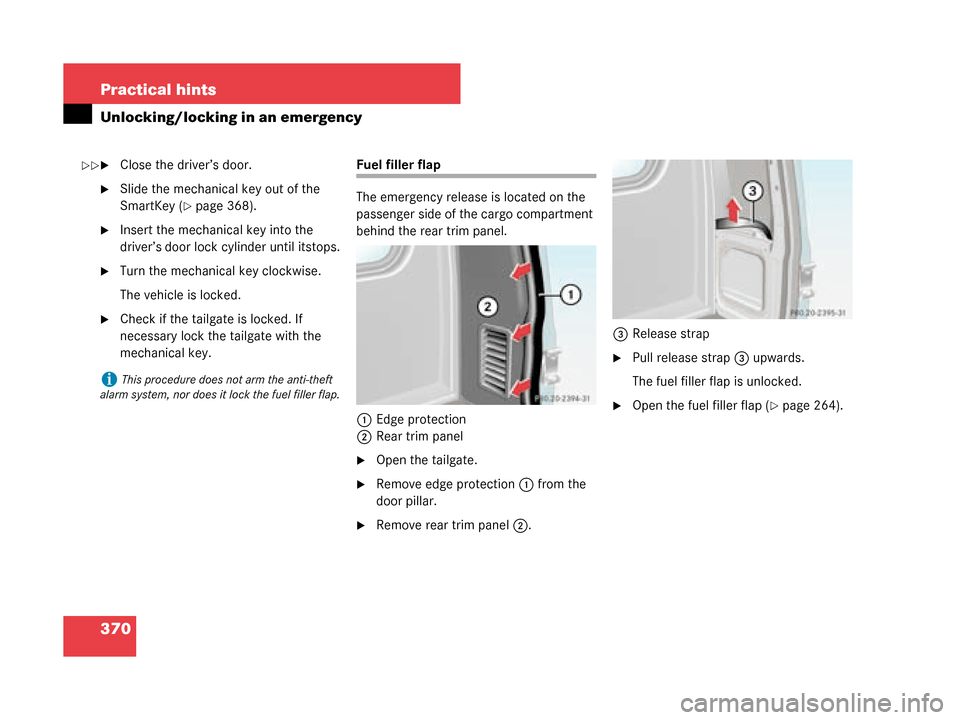

Close the driver’s door.
Slide the mechanical key out of the
SmartKey (
page 368).
Insert the mechanical key into the
driver’s door lock cylinder until it stops.
Turn the mechanical key clockwise.
The vehicle is locked.
Check if the tailgate is locked. If
necessary lock the tailgate with the
mechanical key.
Fuel filler flap
The emergency release is located on the
passenger side of the cargo compartment
behind the rear trim panel.1 Edge protection
2 Rear trim panel
Open the tailgate.
Remove edge protection 1 from the
door pillar.
Remove rear trim panel 2. 3
Release strap
Pull release strap 3 upwards.
The fuel filler flap is unlocked.
Open the fuel filler flap (page 264).
iThis procedure does not arm the anti-theft
alarm system, nor does it lock the fuel filler flap.

W463.boo Seite 370 Montag, 19 . November 2007 8:41 08

371
Practical hints
Unlocking/locking in an emergency

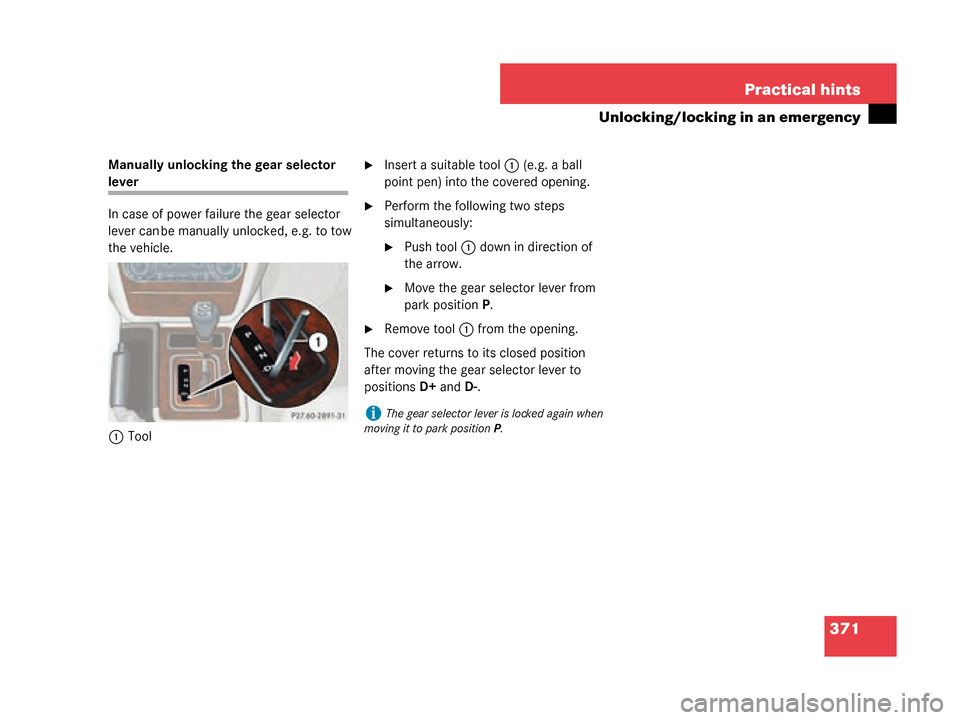

Manually unlocking the gear selector
lever
In case of power failure the gear selector
lever can be manually unlocked, e.g. to tow
the vehicle.
1 Tool
Insert a suitable tool 1 (e.g. a ball
point pen) into the covered opening.
Perform the following two steps
simultaneously:
Push tool 1 down in direction of
the arrow.
Move the gear selector lever from
park position P.
Remove tool 1 from the opening.
The cover returns to its closed position
after moving the gear selector lever to
positions D+ and D-.
iThe gear selector lever is locked again when
moving it to park position P.
W463.boo Seite 371 Montag, 19 . November 2007 8:41 08

372 Practical hints

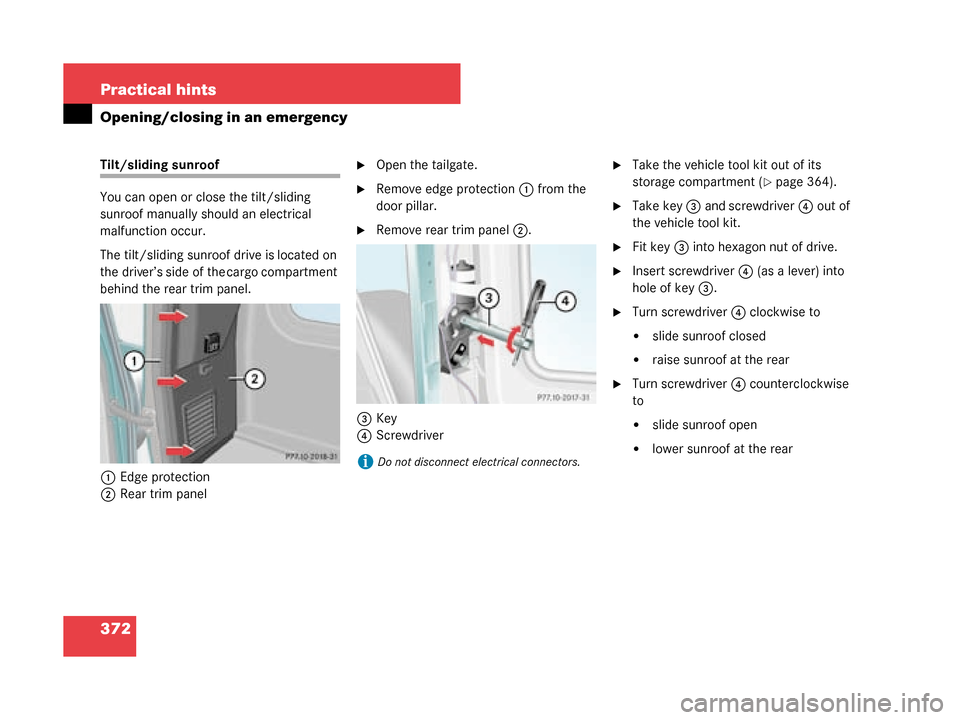

Opening/closing in an emergency
Tilt/sliding sunroof
You can open or close the tilt/sliding
sunroof manually should an electrical
malfunction occur.
The tilt/sliding sunroof drive is located on
the driver’s side of the cargo compartment
behind the rear trim panel.1 Edge protection
2 Rear trim panelOpen the tailgate.
Remove edge protection 1 from the
door pillar.
Remove rear trim panel 2.
3 Key
4 Screwdriver
Take the vehicle tool kit out of its
storage compartment (
page 364).
Take key 3 and screwdriver 4 out of
the vehicle tool kit.
Fit key 3 into hexagon nut of drive.
Insert screwdriver 4 (as a lever) into
hole of key 3.
Turn screwdriver 4 clockwise to

slide sunroof closed

raise sunroof at the rear
Turn screwdriver 4 counterclockwise
to

slide sunroof open

lower sunroof at the reariDo not disconnect electrical connectors.
W463.boo Seite 372 Montag, 19 . November 2007 8:41 08

373
Practical hints
Brush guard
 Brush guard
The brush guard is available on G 55 AMG
(U.S vehicles only).
Lowering and raising brush guard
1 Locking and unlocking handle
2 Quick lock
3 Lock
4 End stop joint Lowering
While holding brush guard firmly, open
quick lock
2 using locking and unlock-
ing handle 1.
Gently lower brush guard until it
reaches its fully lowered position.
Raising and securing
Flip up brush guard until it contacts end
stop joint 4.
Quick lock stop pin 2 must engage
the cross slot recess in lock 3.
Now turn quick lock 2 so that quick
lock makes contact with end stop
joint 4.
Lock quick lock 2 on both sides of
brush guard using locking and unlock-
ing handle 1.
Warning!G
The brush guard is designed solely to
enhance the appearance of the vehicle and
help protect grille and headlights from minor
mishaps, either on- or off-road. Since the
safety characteristics are limited in the
event of an accident, brush guards are not
intended to prevent inju ry or damage in the
event of an accident. Also check state and
local regulations on installation and use.
Raise and lower brush guard in an open
space with plenty of room.
To help prevent personal injury when open-
ing or closing the brush guard, use extreme
caution not to trap hands or feet.
The brush guard must be in raised and
locked position while driving.
iOnly lower brush guard to clean headlamps
or to replace bulbs.
!Make sure both quick stop pins 2 are
seated fully in lock 3.
W463.boo Seite 373 Montag, 19 . November 2007 8:41 08

374 Practical hints

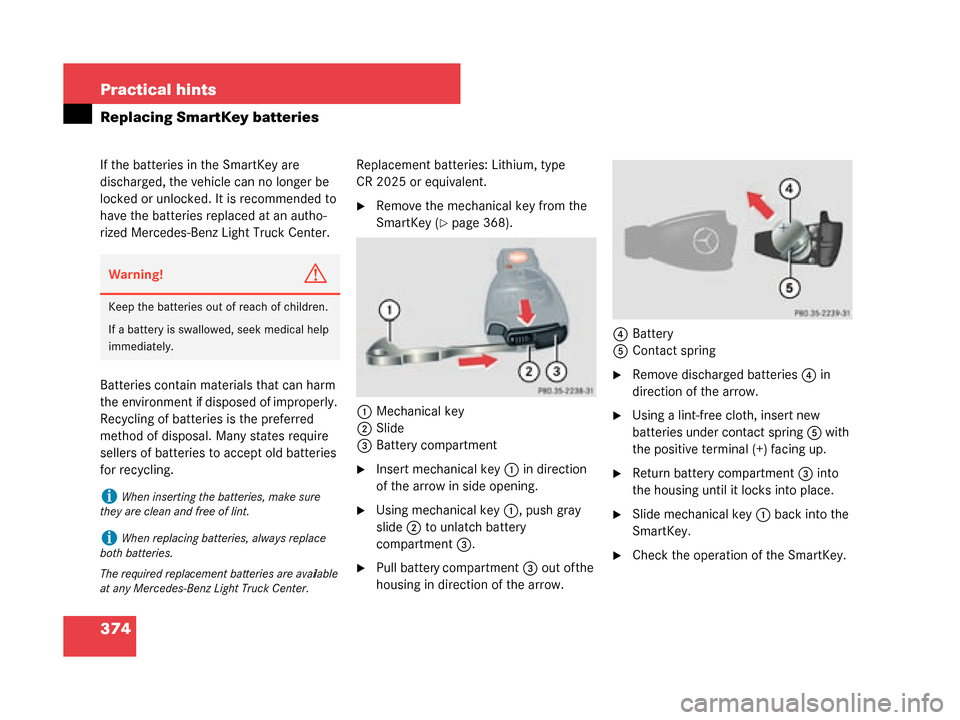

Replacing SmartKey batteries
If the batteries in the SmartKey are
discharged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Light Truck Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling. Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove the mechanical key from the
SmartKey (
page 368).
1 Mechanical key
2 Slide
3 Battery compartment
Insert mechanical key 1 in direction
of the arrow in side opening.
Using mechanical key 1, push gray
slide 2 to unlatch battery
compartment 3.
Pull battery compartment 3 out of the
housing in direction of the arrow. 4
Battery
5 Contact spring
Remove discharged batteries 4 in
direction of the arrow.
Using a lint-free cloth, insert new
batteries under contact spring 5 with
the positive terminal (+) facing up.
Return battery compartment 3 into
the housing until it locks into place.
Slide mechanical key 1 back into the
SmartKey.
Check the operation of the SmartKey.
Warning!G
Keep the batteries out of reach of children.
If a battery is swallowe d, seek medical help
immediately.
iWhen inserting the batteries, make sure
they are clean and free of lint.
iWhen replacing batteries, always replace
both batteries.
The required replacement batteries are available
at any Mercedes-Benz Light Truck Center.
W463.boo Seite 374 Montag, 19 . November 2007 8:41 08

375
Practical hints

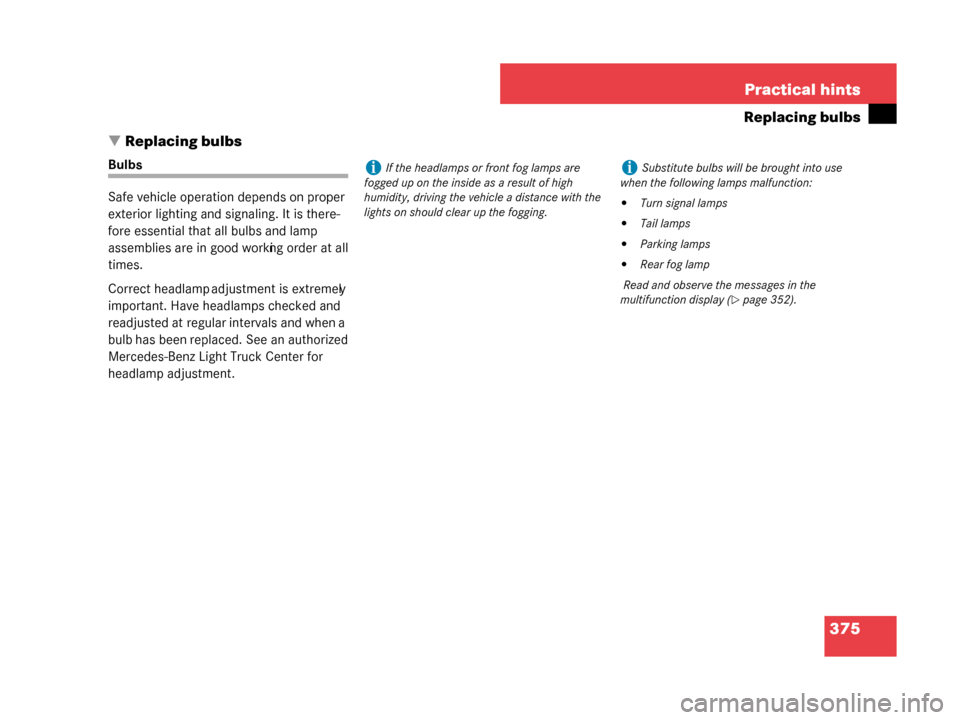

Replacing bulbs
 Replacing bulbs
Bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp
assemblies are in good working order at all
times.
Correct headlamp adju stment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Light Truck Center for
headlamp adjustment.iIf the headlamps or front fog lamps are
fogged up on the inside as a result of high
humidity, driving the vehicle a distance with the
lights on should clear up the fogging.iSubstitute bulbs will be brought into use
when the following lamps malfunction:

Turn signal lamps

Tail lamps

Parking lamps

Rear fog lamp
Read and observe the messages in the
multifunction display (
page 352).
W463.boo Seite 375 Montag, 19 . November 2007 8:41 08
