2008 MERCEDES-BENZ G55AMG Owner's Manual

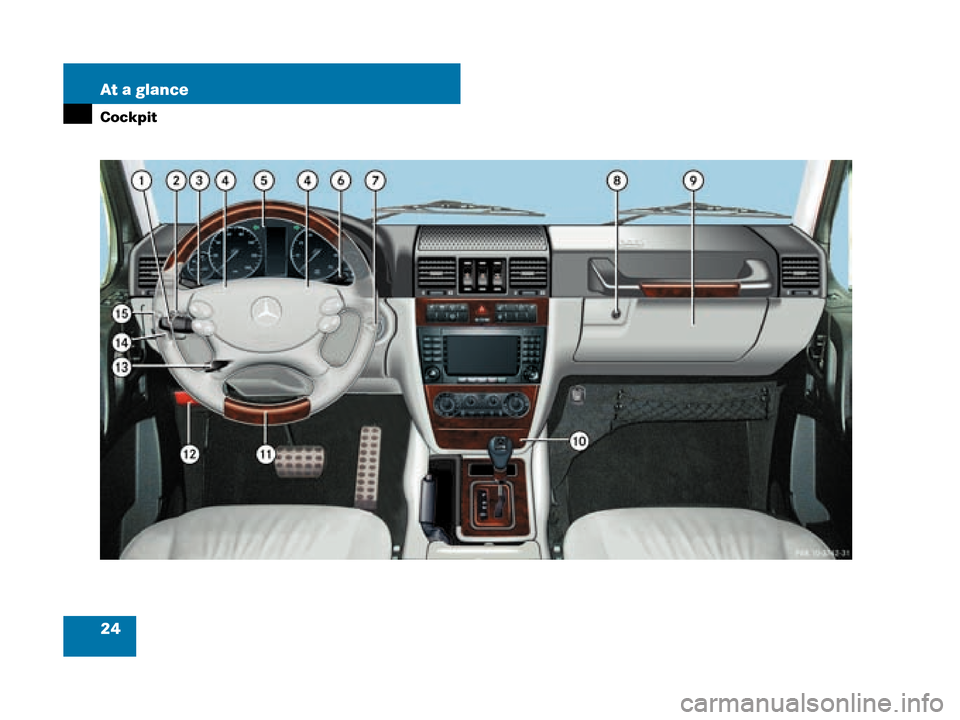

24 At a glance
Cockpit
W463.boo Seite 24 Montag, 19. November 2007 8:41 08

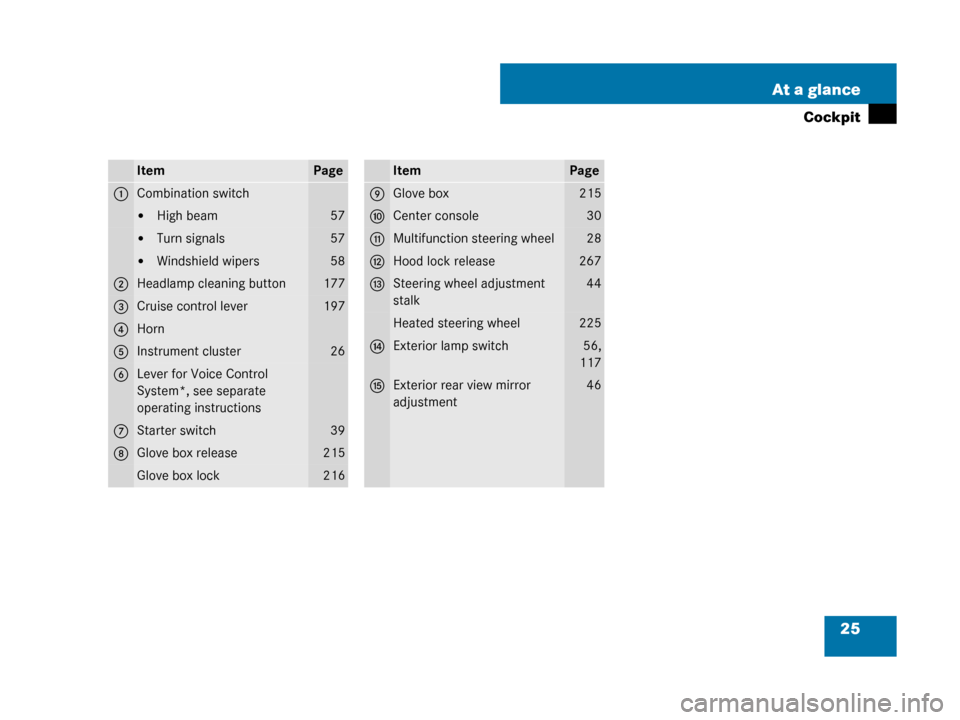

25
At a glance
Cockpit
ItemPage
1Combination switch

High beam57

Turn signals57

Windshield wipers58
2Headlamp cleaning button177
3Cruise control lever197
4Horn
5Instrument cluster26
6Lever for Voice Control
System*, see separate
operating instructions
7Starter switch39
8Glove box release215
Glove box lock216
ItemPage
9Glove box215
aCenter console30
bMultifunction steering wheel28
cHood lock release267
dSteering wheel adjustment
stalk44
Heated steering wheel225
eExterior lamp switch56,
117
fExterior rear view mirror
adjustment46
W463.boo Seite 25 Montag, 19. November 2007 8:41 08

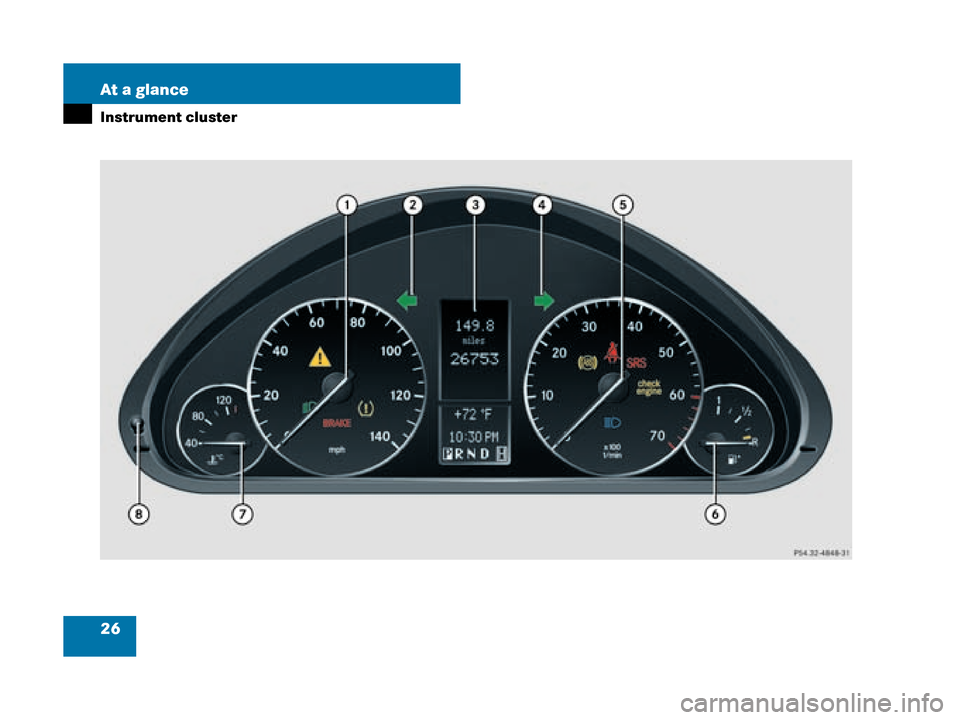

26 At a glance
Instrument cluster
W463.boo Seite 26 Montag, 19. November 2007 8:41 08

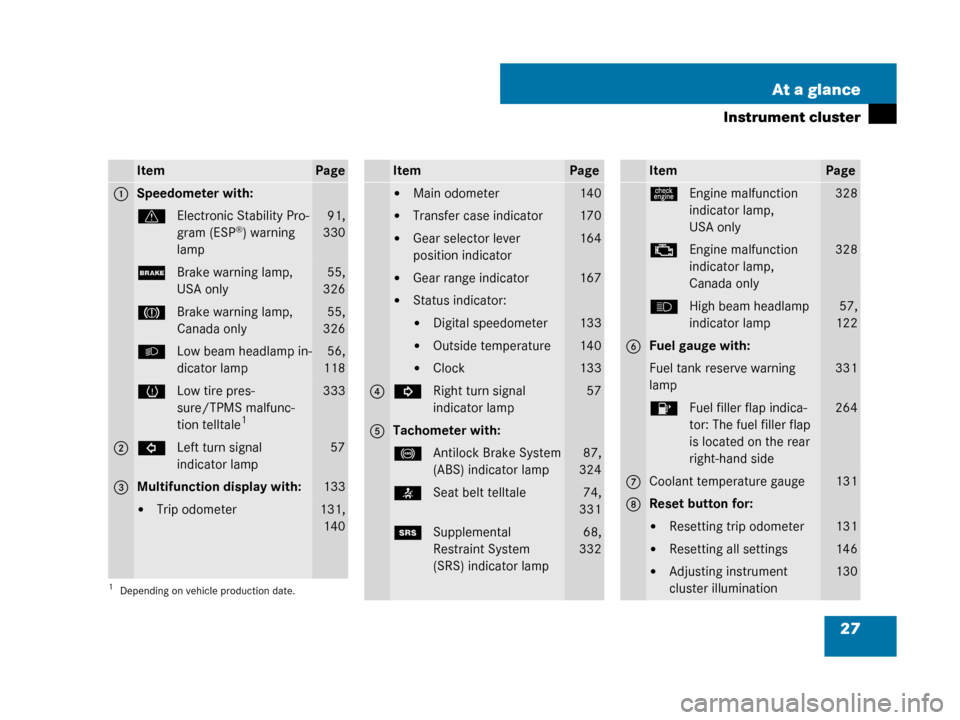

27
At a glance
Instrument cluster
ItemPage
1Speedometer with:
v
Electronic Stability Pro-
gram (ESP®) warning
lamp
91,
330
; Brake warning lamp,
USA only55,
326
3 Brake warning lamp,
Canada only55,
326
B Low beam headlamp in-
dicator lamp56,
118
H Low tire pres-
sure/TPMS malfunc-
tion telltale
1
1Depending on vehicle production date.
333
2LLeft turn signal
indicator lamp57
3Multifunction display with:133

Trip odometer131,
140
ItemPage

Main odometer140

Transfer case indicator170

Gear selector lever
position indicator164

Gear range indicator167

Status indicator:

Digital speedometer133

Outside temperature140

Clock133
4K Right turn signal
indicator lamp 57
5Tachometer with:
-Antilock Brake System
(ABS) indicator lamp87,
324
< Seat belt telltale74,
331
1 Supplemental
Restraint System
(SRS) indicator lamp68,
332
ItemPage
ú Engine malfunction
indicator lamp,
USA only328
±Engine malfunction
indicator lamp,
Canada only328
AHigh beam headlamp
indicator lamp57,
122
6Fuel gauge with:
Fuel tank reserve warning
lamp331
4 Fuel filler flap indica-
tor: The fuel filler flap
is located on the rear
right-hand side264
7Coolant temperature gauge131
8Reset button for:

Resetting trip odometer131

Resetting all settings146

Adjusting instrument
cluster illumination130
W463.boo Seite 27 Montag, 19. November 2007 8:41 08

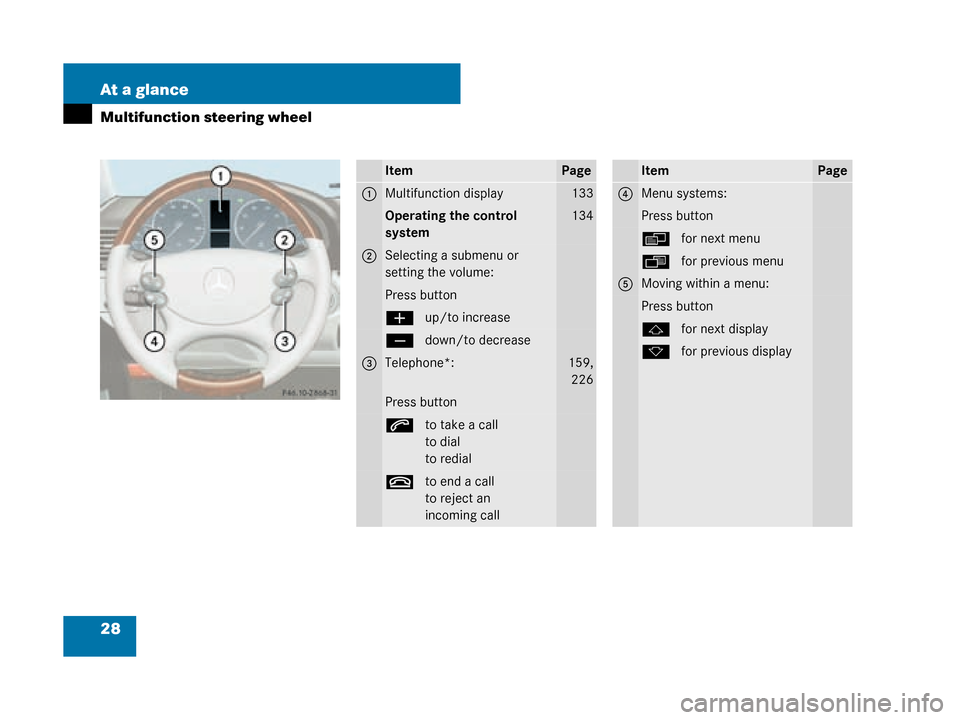

28 At a glance
Multifunction steering wheel
ItemPage
1Multifunction display133
Operating the control
system134
2Selecting a submenu or
setting the volume:
Press button
æup/to increase
çdown/to decrease
3Telephone*:159,
226
Press button
s to take a call
to dial
to redial
tto end a call
to reject an
incoming call
ItemPage
4Menu systems:
Press button
èfor next menu
ÿfor previous menu
5Moving within a menu:
Press button
jfor next display
kfor previous display
W463.boo Seite 28 Montag, 19. November 2007 8:41 08

29
At a glance
Multifunction steering wheel
iCanada vehicles:
The steering wheel in this vehicle may vary from
steering wheel shown. However, multifunction
steering wheel symbols and feature description
apply to Canada vehicles as well.
iG55AMG:
The steering wheel in this vehicle may vary from
steering wheel shown. However, multifunction
steering wheel symbols and feature description
apply to AMG vehicles as well.
W463.boo Seite 29 Montag, 19. November 2007 8:41 08

30 At a glance
Center console
Upper partItemPage
1Seat heating, driver’s side112
2Windshield defroster switch180
3Rear window wiper/washer
switch60
4Electronic Stability Program
(ESP®) switch
93
5Differential lock switches175
6Central unlocking switch107
Central locking switch107
7Alarm system indicator lamp96
Tow-away alarm off switch97
8Seat heating, front passenger
side112
ItemPage
9Hazard warning flasher switch124
aFront passenger front air bag
off indicator lamp80,
335
bCOMAND system, see
separate operating
instructions
cClimate control182
dAshtray220
Cigarette lighter222
W463.boo Seite 30 Montag, 19. November 2007 8:41 08

31
At a glance
Center console
Lower partItemPage
1Storage tray
2Gear selector lever for
automatic transmission54,
162
3Transfer case switch170
4Parking brake lever55, 62
W463.boo Seite 31 Montag, 19. November 2007 8:41 08
