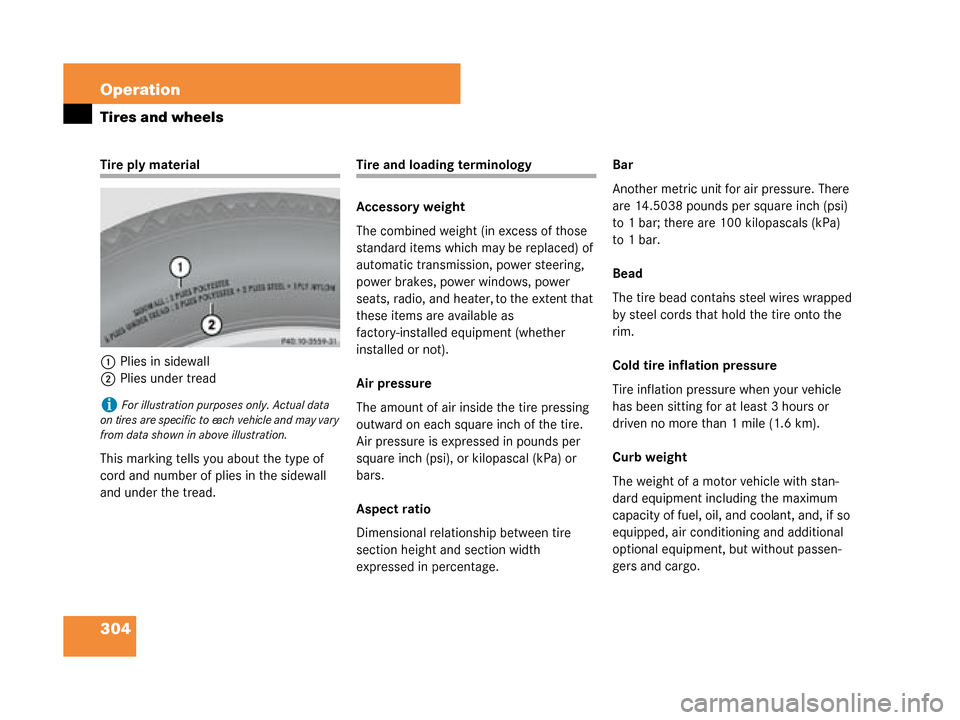

304 Operation
Tires and wheels
Tire ply material1 Plies in sidewall
2 Plies under tread
This marking tells you about the type of
cord and number of plies in the sidewall
and under the tread.Tire and loading terminology
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio, and heater, to the extent that
these items are available as
factory-installed equipment (whether
installed or not).
Air pressure
The amount of air inside the tire pressing
outward on each square inch of the tire.
Air pressure is expressed in pounds per
square inch (psi), or kilopascal (kPa) or
bars.
Aspect ratio
Dimensional relationship between tire
section height and section width
expressed in percentage. Bar
Another metric unit for air pressure. There
are 14.5038 pounds per square inch (psi)
to 1 bar; there are 100 kilopascals (kPa)
to 1 bar.
Bead
The tire bead contains steel wires wrapped
by steel cords that hold the tire onto the
rim.
Cold tire inflation pressure
Tire inflation pressure when your vehicle
has been sitting for
at least 3 hours or
driven no more than 1 mile (1.6 km).
Curb weight
The weight of a motor vehicle with stan-
dard equipment incl uding the maximum
capacity of fuel, oil, and coolant, and, if so
equipped, air conditioning and additional
optional equipment, but without passen-
gers and cargo.
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
W463.boo Seite 304 Montag, 19 . November 2007 8:41 08

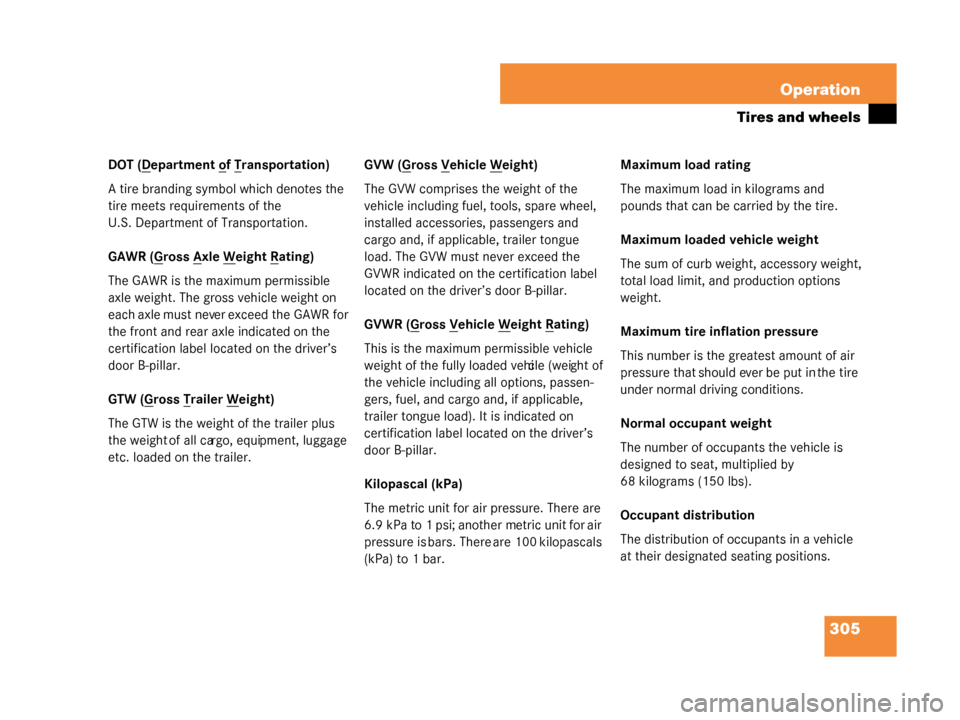

305
Operation
Tires and wheels
DOT (Department of Transportation)
A tire branding symbol which denotes the
tire meets requirements of the
U.S. Department of Transportation.
GAWR (G
ross Axle Weight Rating)
The GAWR is the maximum permissible
axle weight. The gross vehicle weight on
each axle must never exceed the GAWR for
the front and rear axle indicated on the
certification label located on the driver’s
door B-pillar.
GTW (G
ross Trailer Weight)
The GTW is the weight of the trailer plus
the weight of all ca rgo, equipment, luggage
etc. loaded on the trailer. GVW (G
ross Vehicle Weight)
The GVW comprises the weight of the
vehicle including fuel, tools, spare wheel,
installed accessories, passengers and
cargo and, if applic able, trailer tongue
load. The GVW must never exceed the
GVWR indicated on the certification label
located on the driver’s door B-pillar.
GVWR (G
ross Vehicle Weight Rating)
This is the maximum permissible vehicle
weight of the fully loaded vehicle (weight of
the vehicle including all options, passen-
gers, fuel, and cargo and, if applicable,
trailer tongue load). It is indicated on
certification label located on the driver’s
door B-pillar.
Kilopascal (kPa)
The metric unit for air pressure. There are
6.9 kPa to 1 psi; another metric unit for air
pressure is bars. There are 100 kilopascals
(kPa) to 1 bar. Maximum load rating
The maximum load in kilograms and
pounds that can be carried by the tire.
Maximum loaded vehicle weight
The sum of curb weight, accessory weight,
total load limit, and production options
weight.
Maximum tire inflation pressure
This number is the greatest amount of air
pressure that should ever be put in the tire
under normal driving conditions.
Normal occupant weight
The number of occupants the vehicle is
designed to seat, multiplied by
68 kilograms (150 lbs).
Occupant distribution
The distribution of occupants in a vehicle
at their designated seating positions.
W463.boo Seite 305 Montag, 19
. November 2007 8:41 08

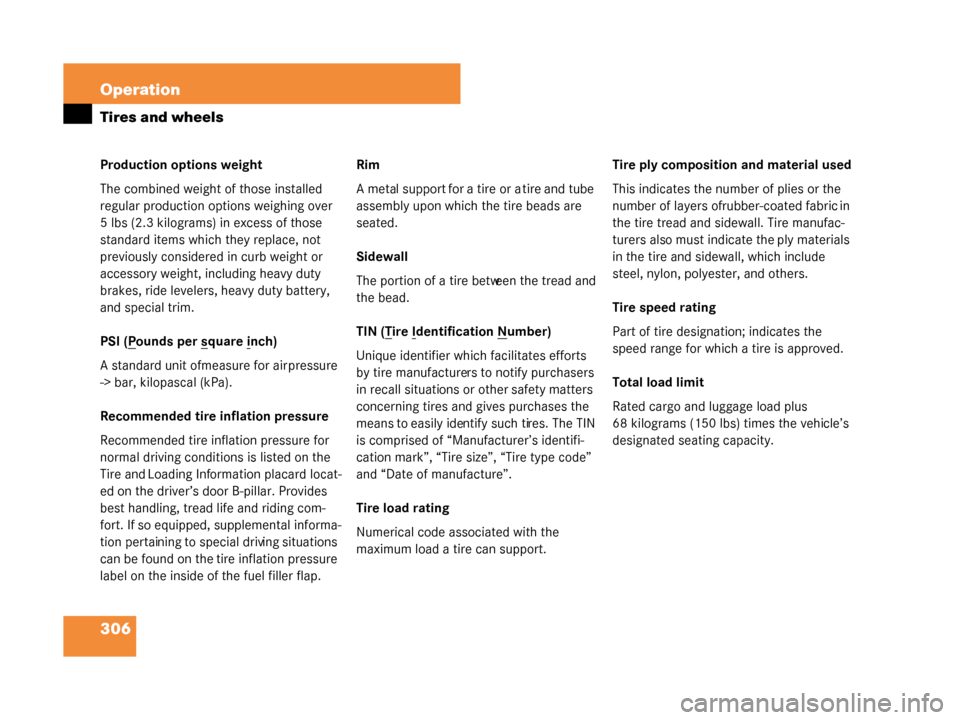

306 Operation
Tires and wheels
Production options weight
The combined weight of those installed
regular production options weighing over
5 lbs (2.3 kilograms) in excess of those
standard items which they replace, not
previously considered in curb weight or
accessory weight, including heavy duty
brakes, ride levelers, heavy duty battery,
and special trim.
PSI (P
ounds per square inch)
A standard unit of measure for air pressure
-> bar, kilopascal (kPa).
Recommended tire inflation pressure
Recommended tire inflation pressure for
normal driving conditions is listed on the
Tire and Loading Information placard locat-
ed on the driver’s door B-pillar. Provides
best handling, tread life and riding com-
fort. If so equipped, supplemental informa-
tion pertaining to special driving situations
can be found on the tire inflation pressure
label on the inside of the fuel filler flap. Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated.
Sidewall
The portion of a tire between the tread and
the bead.
TIN (Tire Identification Number)
Unique identifier which facilitates efforts
by tire manufacturers to notify purchasers
in recall situations or other safety matters
concerning tires and gives purchases the
means to easily identify such tires. The TIN
is comprised of “Manufacturer’s identifi-
cation mark”, “Tire size”, “Tire type code”
and “Date of manufacture”.
Tire load rating
Numerical code associated with the
maximum load a tire can support. Tire ply composition and material used
This indicates the number of plies or the
number of layers of ru
bber-coated fabric in
the tire tread and sidewall. Tire manufac-
turers also must indicate the ply materials
in the tire and sidewall, which include
steel, nylon, polyester, and others.
Tire speed rating
Part of tire designation; indicates the
speed range for which a tire is approved.
Total load limit
Rated cargo and luggage load plus
68 kilograms (150 lbs) times the vehicle’s
designated seating capacity.
W463.boo Seite 306 Montag, 19 . November 2007 8:41 08

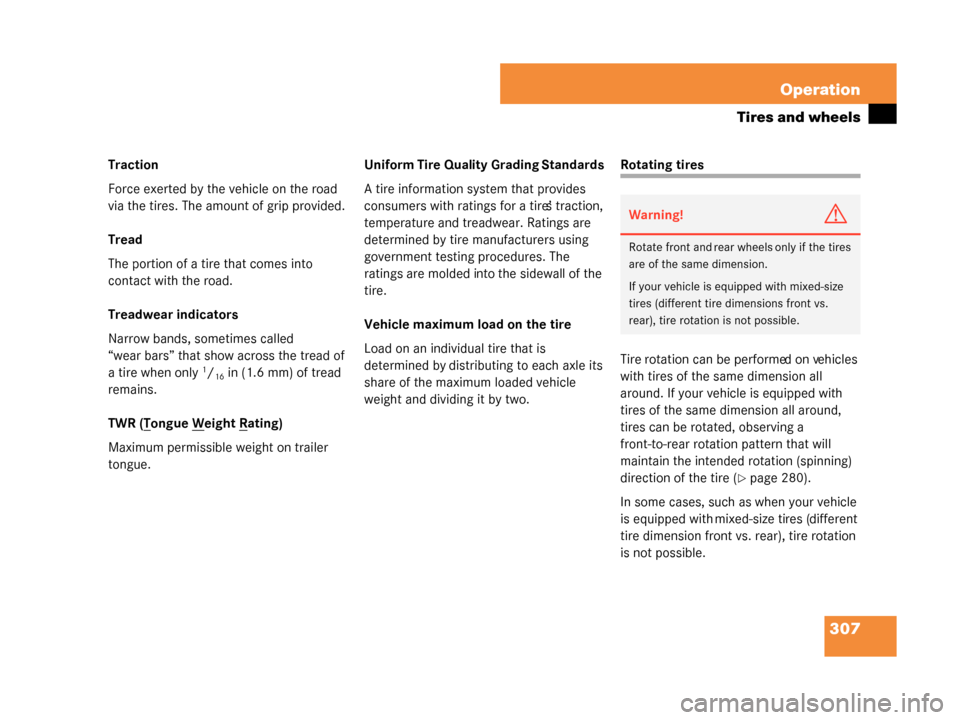

307
Operation
Tires and wheels
Traction
Force exerted by the vehicle on the road
via the tires. The amou
nt of grip provided.
Tread
The portion of a tire that comes into
contact with the road.
Treadwear indicators
Narrow bands, sometimes called
“wear bars” that show across the tread of
a tire when only
1/16in (1.6 mm) of tread
remains.
TWR (T
ongue Weight Rating)
Maximum permissible weight on trailer
tongue. Uniform Tire Quality Grading Standards
A tire information system that provides
consumers with ratings for a tire’s traction,
temperature and treadwear. Ratings are
determined by tire manufacturers using
government testing procedures. The
ratings are molded into the sidewall of the
tire.
Vehicle maximum load on the tire
Load on an individual tire that is
determined by distributing to each axle its
share of the maximum loaded vehicle
weight and dividing it by two.
Rotating tires
Tire rotation can be performed on vehicles
with tires of the same dimension all
around. If your vehicle is equipped with
tires of the same dimension all around,
tires can be rotated, observing a
front-to-rear rotation pattern that will
maintain the intended rotation (spinning)
direction of the tire (
page 280).
In some cases, such as when your vehicle
is equipped with mixed-size tires (different
tire dimension front vs. rear), tire rotation
is not possible.
Warning!G
Rotate front and rear wheels only if the tires
are of the same dimension.
If your vehicle is eq uipped with mixed-size
tires (different tire dimensions front vs.
rear), tire rotation is not possible.
W463.boo Seite 307 Montag, 19 . November 2007 8:41 08

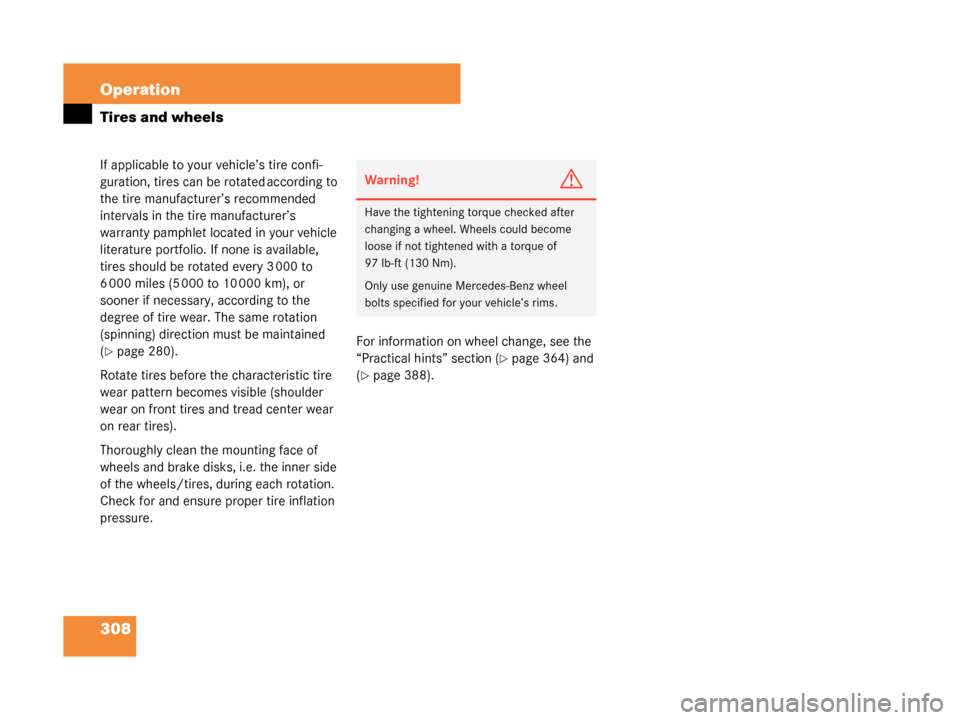

308 Operation
Tires and wheels
If applicable to your vehicle’s tire confi-
guration, tires can be rotated according to
the tire manufacturer’s recommended
intervals in the tire manufacturer’s
warranty pamphlet located in your vehicle
literature portfolio. If none is available,
tires should be rotated every 3 000 to
6 000 miles (5 000 to 10 000 km), or
sooner if necessary, according to the
degree of tire wear. The same rotation
(spinning) direction must be maintained
(
page 280).
Rotate tires before the characteristic tire
wear pattern becomes visible (shoulder
wear on front tires an d tread center wear
on rear tires).
Thoroughly clean the mounting face of
wheels and brake disks, i.e. the inner side
of the wheels/tires, during each rotation.
Check for and ensure proper tire inflation
pressure. For information on wheel change, see the
“Practical hints” section (page 364) and
(
page 388).
Warning!G
Have the tightening torque checked after
changing a wheel. Wheels could become
loose if not tightene d with a torque of
97 lb-ft (130 Nm).
Only use genuine Mercedes-Benz wheel
bolts specified for yo ur vehicle’s rims.
W463.boo Seite 308 Montag, 19 . November 2007 8:41 08

309
Operation
Winter driving
 Winter driving
Before the onset of winter, have your
vehicle winterized at an authorized
Mercedes-Benz Light Truck Center. This
service includes:

Check of anticorrosion and antifreeze
concentration.

Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“MB SummerFit” to a premixed wind-
shield washer so lvent/antifreeze
which is formulated for below freezing
temperatures (
page 428).

Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to make
sure that the engine can be started,
even at low ambient temperatures.

Tire change. Mercedes-Benz recom-
mends M+S rated radial-ply tires with a
minimum tread depth of approximately
1/6in (4 mm) on all four wheels for the
winter season.
Winter tires
Always use winter tires at temperatures
below 45°F (7°C) and whenever wintry
road conditions prevail. Not all M+S rated
tires provide special winter performance.
Make sure the tires you use show M+S and
the mountain/snowflake marking . on
the tire sidewall. These tires meet specific
snow traction performance requirements
of the Rubber Manufacturers Association
(RMA) and the Rubber Association of
Canada (RAC) and have been designed
specifically for use in snow conditions.
Using winter tires is the only way to
achieve the maximum effectiveness of the
ABS, ESP
® and 4-ETS in winter operation.
For safe handling, make sure all mounted
winter tires are of the same make and have
the same tread design. Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your
vehicle, you must place a notice to this
effect where it will be seen by the driver.
Such notices are available from your tire
dealer or from any authorized
Mercedes-Benz Light Truck Center.
Warning!G
Winter tires with a tread depth of less than 1/6in (4 mm) must be replaced. They are no
longer suitable fo r winter operation.
W463.boo Seite 309 Montag, 19 . November 2007 8:41 08

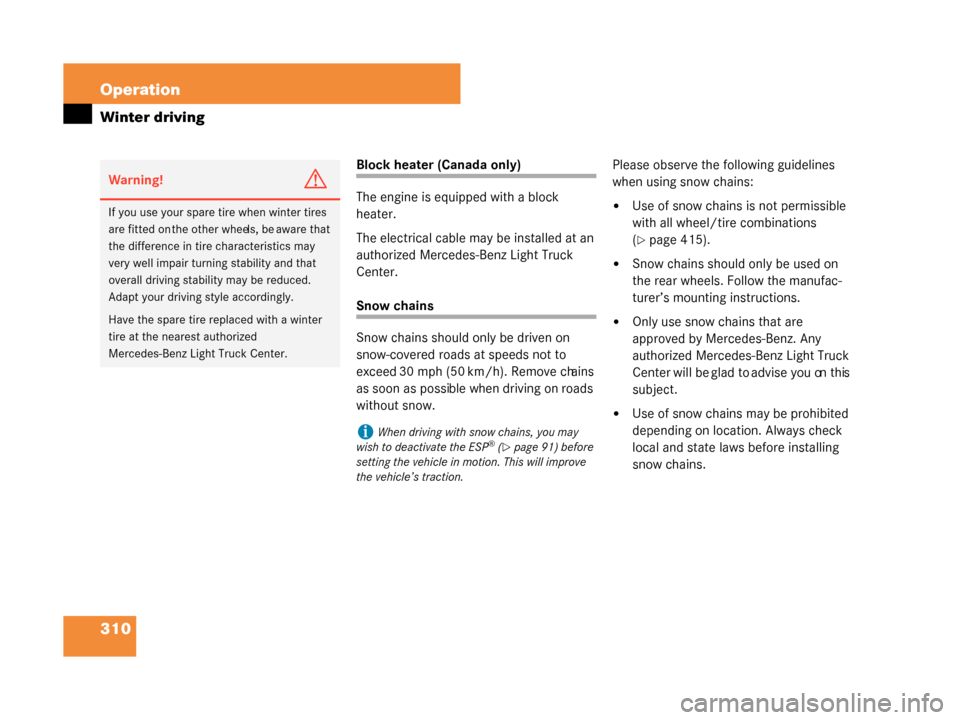

310 Operation
Winter driving
Block heater (Canada only)
The engine is equipped with a block
heater.
The electrical cable may be installed at an
authorized Mercedes-Benz Light Truck
Center.
Snow chains
Snow chains should only be driven on
snow-covered roads at speeds not to
exceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.Please observe the following guidelines
when using snow chains:

Use of snow chains is not permissible
with all wheel/tire combinations
(
page 415).

Snow chains should only be used on
the rear wheels. Follow the manufac-
turer’s mounting instructions.

Only use snow chains that are
approved by Mercedes-Benz. Any
authorized Mercedes
-Benz Light Truck
Center will be glad to advise you on this
subject.

Use of snow chains may be prohibited
depending on location. Always check
local and state laws before installing
snow chains.
Warning!G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turn ing stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Light Truck Center.
iWhen driving with snow chains, you may
wish to deactivate the ESP® (page 91) before
setting the vehicle in motion. This will improve
the vehicle’s traction.
W463.boo Seite 310 Montag, 19 . November 2007 8:41 08

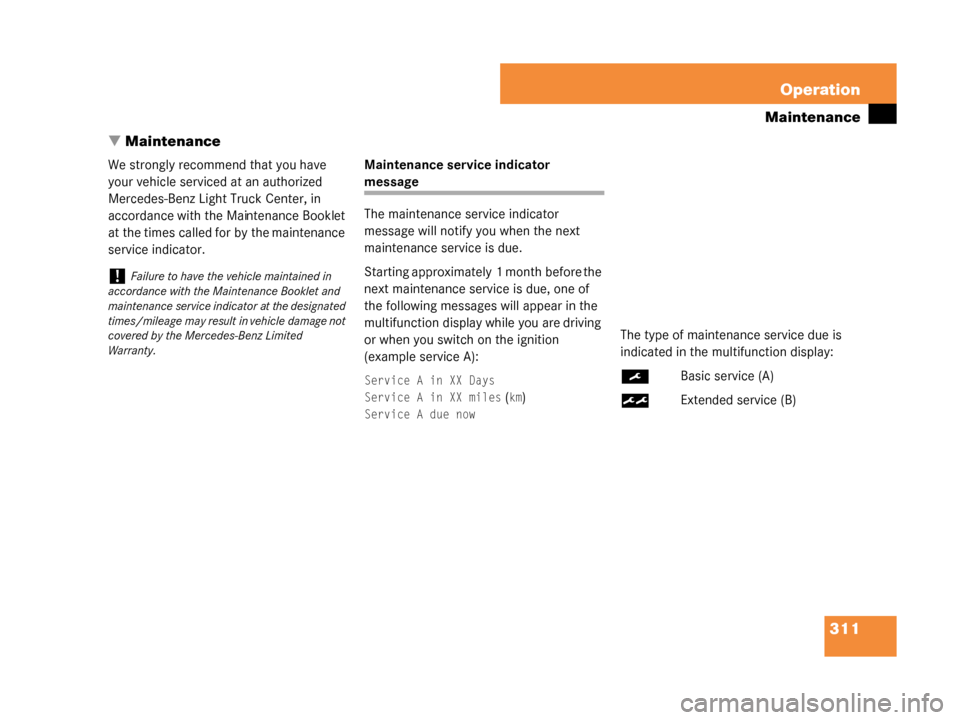

311
Operation
Maintenance
 Maintenance
We strongly recommend that you have
your vehicle serviced at an authorized
Mercedes-Benz Light Truck Center, in
accordance with the Maintenance Booklet
at the times called for by the maintenance
service indicator. Maintenance service indicator
message
The maintenance service indicator
message will notify you when the next
maintenance service is due.
Starting approximately 1 month before the
next maintenance service is due, one of
the following messages will appear in the
multifunction display while you are driving
or when you switch on the ignition
(example service A):
Service A in XX Days
Service A in XX miles
(km)
Service A due now
The type of maintenance service due is
indicated in the multifunction display:
9
Basic service (A)
½ Extended service (B)
!Failure to have the vehicle maintained in
accordance with the Maintenance Booklet and
maintenance service indicator at the designated
times/mileage may result in vehicle damage not
covered by the Mercedes-Benz Limited
Warranty.
W463.boo Seite 311 Montag, 19 . November 2007 8:41 08
