2007 TOYOTA SIENNA Owners Manual

07 SIENNA_U (L/O 0612)
513
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
For the U.S.A.—kg (lb.)
Wagon
Front −wheel drive models
LE grade8−passenger models550 (1210)
7−passenger models520 (1150)
XLE or Limited grade8−passenger models550 (1210)
7−passenger models510 (1120)
All −wheel drive modelsLE grade7−passenger models500 (1100)
XLE or Limited grade480 (1050)
Va n550 (1210)
For Canada— kg (lb.)
Wagon
Front −wheel drive models
LE or CE grade8−passenger models550 (1210)
7−passenger models520 (1150)
XLE or Limited grade8−passenger models550 (1210)
7−passenger models510 (1120)
All −wheel drive modelsLE or CE grade7−passenger models500 (1100)
XLE or Limited grade480 (1050)
Va n550 (1210)
Total load capacity

07 SIENNA_U (L/O 0612)
514
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Model:2GR −FE
Type: 6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 94.0 83.0 (3.70 3.27)
Displacement, cm
3 (cu. in.):
3456 (210.9) Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
Fuel tank capacity, L (gal., Imp. gal.): 79 (21, 17.5) ENGINE
Spark plug type:
DENSO FK20HR11
Spark plug gap, mm (in.): 1.1 (0.043)NOTICE
Use only above spark plugs. Do not
adjust gaps for engine performance or
smooth driveab ility.
ENGINE LUBRICATION
Oil capacity (drain and refill),
L (qt., Imp. qt.):
With filter 6.1 (6.4, 5.4)
Without filter 5.7 (6.0, 5.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: ILSAC multigrade engine oil
Engine FuelService specifications

07 SIENNA_U (L/O 0612)
515
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

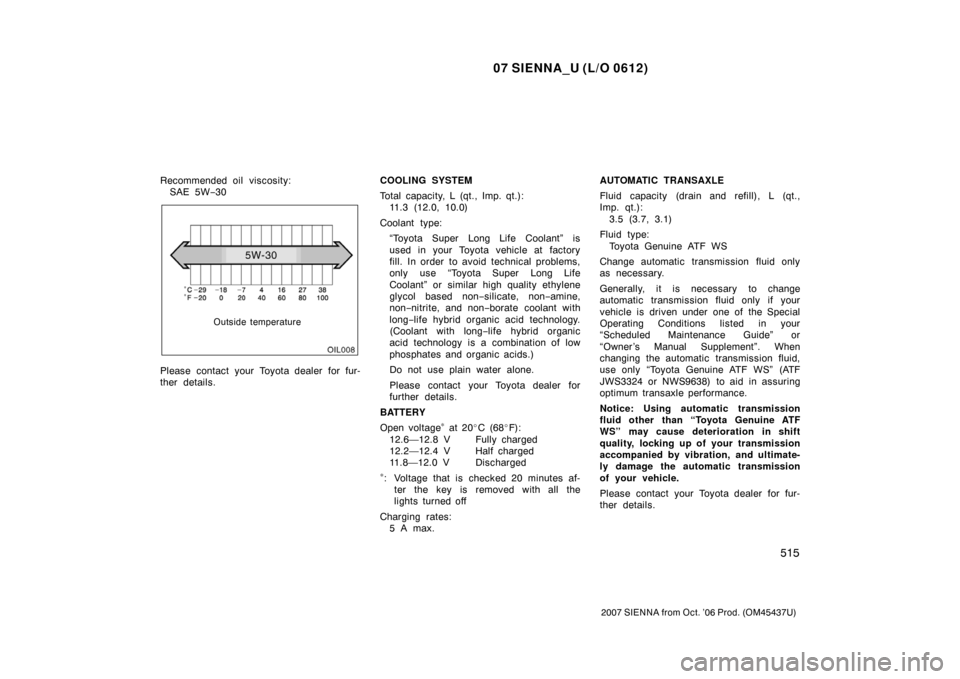

Recommended oil viscosity:SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
11.3 (12.0, 10.0)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af- ter the key is removed with all the
lights turned off
Charging rates: 5 A max. AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.):
3.5 (3.7, 3.1)
Fluid type: Toyota Genuine ATF WS
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF WS” (ATF
JWS3324 or NWS9638) to aid in assuring
optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle.
Please contact your Toyota dealer for fur-
ther details.

07 SIENNA_U (L/O 0612)
516
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
TRANSFER
(allwheel drive models)
Oil capacity, L (qt., Imp. qt.):0.9 (1.0, 0.8)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: Above −18 C (0 F)
SAE 90
Below −18 C (0 F)
SAE 80W or 80W −90
REAR DIFFERENTIAL
(allwheel drive models)
Oil capacity, L (qt., Imp. qt.): 0.9 (1.0, 0.8)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: Above −18 C (0 F)
SAE 90
Below −18 C (0 F)
SAE 80W or 80W −90 BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
52 (2.0)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when depressed
with the force of 294 N (30 kgf, 66 lbf): 3—5 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

07 SIENNA_U (L/O 0612)
517
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Tire size and cold tire inflation pressure:
Front and rearkPa (kgf/cm
2 or bar, psi)
Ti r e siz e
Ti r e inf lat ion pr es s ur eWheel sizeFrontRear
P215/65R16 96T240 (2.4, 35)240 (2.4, 35)16 61/2JJ
P225/60R17 98T240 (2.4, 35)240 (2.4, 35)17 61/2J
Spare kPa (kgf/cm2 or bar, psi)
Ti r e siz e
FrontRearWheel size
T155/80R17 101M420 (4.2, 60)420 (4.2, 60)17 4T
W h eel nu t to rq u e, N·m (kg f· m, ft· l b f ) :
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing ti res or replacing wheels), see “Checking tire inflation pres-
sure” through “Aluminum wheel precautions”, pages 487 through 497, in Section 7 −2.
Tires

07 SIENNA_U (L/O 0612)
518
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

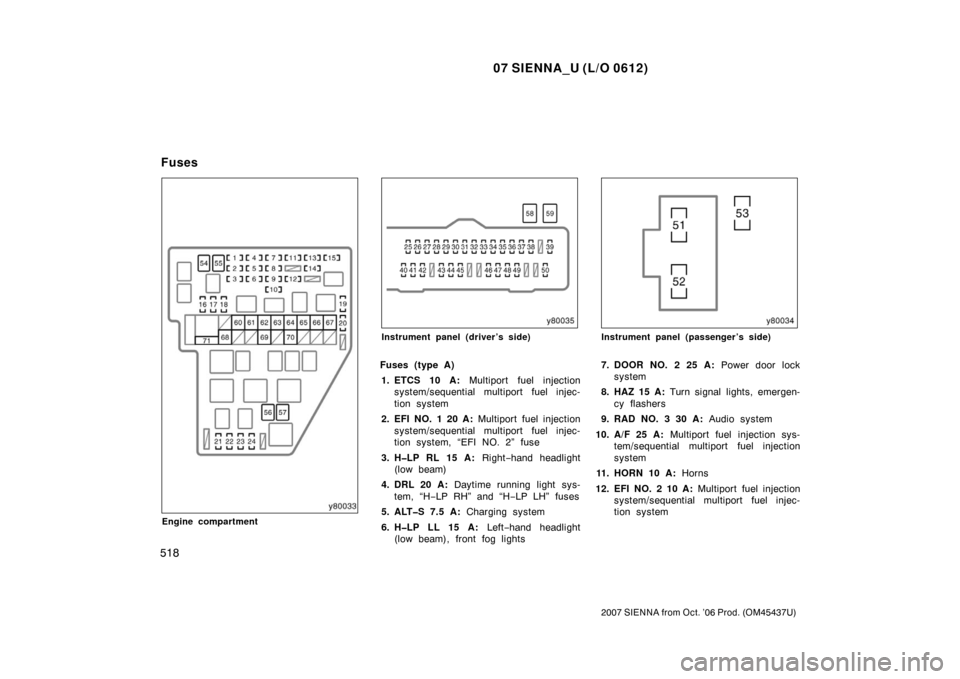

Engine compartment
Instrument panel (driver’s side)
Fuses (type A)1. ETCS 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
2. EFI NO. 1 20 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system, “EFI NO. 2” fuse
3. HLP RL 15 A: Right−hand headlight
(low beam)
4. DRL 20 A: Daytime running light sys-
tem, “H −LP RH” and “H −LP LH” fuses
5. ALTS 7.5 A: Charging system
6. HLP LL 15 A: Left−hand headlight
(low beam), front fog lights
Instrument panel (passenger’s side)
7. DOOR NO. 2 25 A: Power door lock
system
8. HAZ 15 A: Turn signal lights, emergen-
cy flashers
9. RAD NO. 3 30 A: Audio system
10. A/F 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
11. HORN 10 A: Horns
12. EFI NO. 2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
Fuses

07 SIENNA_U (L/O 0612)
519
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
13. DOME 10 A: Personal lights, vanity
lights, door courtesy lights, luggage
compartment light, ignition switch light,
multi −information display
14. ECUB 10 A: Power sliding door, air
conditioning system, power windows,
multiplex communication system, meter
and gauge, wireless remote control
system
15. RAD NO. 1 20 A: Audio system, rear
seat entertainment system
16. SPARE 15 A: Spare fuse
17. SPARE 20 A: Spare fuse
18. SPARE 30 A: Spare fuse
19. SPARE 30 A: Spare fuse
20. SPARE 7.5 A: Spare fuse
21. HLP RH 10 A: Right−hand headlight
22. HLP LH 10 A: Left−hand headlight
23. RSE 7.5 A: Rear seat entertainment
system
24. INJ 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
25. MIR HTR 10 A: Outside rear view mir-
ror heaters 26. RAD2 7.5 A:
Audio system, navigation
system, rear seat entertainment system
27. PWR OUTLET 15 A: Power outlets
28. CIG 15 A: Cigarette lighter
29. ECU ACC 7.5 A: Shift lock control
system, air c onditioning system, power
rear view mirror control
30. GAUGE2 7.5 A: Meter and gauge
31. IGN 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, multiplex
communication system
32. IG2 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
33. RR WIP 15 A: Rear window wiper
34. WIP 30 A: Windshield wiper and rear
window wiper
35. GAUGE1 10 A: Back−up lights, turn
signal lights, emergency flashers
36. SHTR 15 A: Seat heaters
37. WSH 20 A: Windshield washer and
rear window washer
38. HTR 10 A: Air conditioning system 39. ECUIG 10 A:
Toyota park assist sys-
tem, rear view monitor system, multi-
plex communication system, multiport
fuel injection system/sequential multi-
port fuel injection system, anti −lock
brake system, traction control system,
vehicle stability control system, shift
lock control system, dynamic laser
cruise control system, seat heaters,
power back door, electronic moon roof,
multi −information display, auto anti−
glare inside rear view mirror, power
windows, power outlets (115 V), power
third seat, driving position memory sys-
tem
40. PANEL 10 A: Air conditioning system,
seat heaters, audio system, navigation
syste

m, power sliding door, power back
door, multi −information display, rear
window defogger, emergency flashers,
instrument panel lights, steering switch
lights
41. TAIL 10 A: Stop/tail lights, license
plate lights, parking lights, side marker
lights
42. S/ROOF 25 A: Electronic moon roof
43. AC INV 15 A: Power outlets (115 V)
44. FR DEF 15 A: Windshield wiper de−
icer

07 SIENNA_U (L/O 0612)
520
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
45. AM1 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, starter system
46. STOP 10 A: Stop/tail lights, high
mounted stoplight, shift lock control
system, anti −lock brake system, trac-
tion control system, vehicle stability
control system, multiport fuel injection
system/s equential multiport fuel injec-
tion system, multiplex communication
system
47. P/W 25 A: Power windows, power rear
view mirror
48. OBD 7.5 A: On−board diagnosis sys-
tem
49. FOG 15 A: Front fog lights
50. P/VENT 15 A: Power quarter windows
51. ST 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
52. A/C 7.5 A: Manual air conditioning sys-
tem
53. SFT 5 A: Shift lock control system Fuses (type B)
54. MAIN 30 A: Headlights, daytime run-
ning light system, “H −LP RL” and “H −
LP LL” fuses
55. AM2 30 A: “INJ”, “IGN” and “GAUGE2”
fuses
56. LRR2 SEAT 30 A: Power third seat
57. RRR2 SEAT 30 A: Power third seat
58. P/SEAT 30 A: Power front seats
59. PWR 30 A: Power windows
Fuses (type C)
60. RR2 SEAT 50 A: Power third seat
61. HTR 50 A: Air conditioning system,
“A/C” fuse
62. FAN 50 A: Electric cooling fans
63. PBD 30 A: Power back door
64. RPSD 30 A: Right side power sliding
door
65. LPSD 30 A: Left side power sliding
door
66. RR A/C 40 A: Rear air conditioning
system 67. DEF 40 A:
Rear window defogger,
“MIR HTR” fuse
68. ABS1 50 A: Anti−lock brake system,
traction control system, vehicle stability
control system
69. ABS2 30 A: Anti−lock brake system,
traction control system, vehicle stability
control system
70. ST 30 A: Starting system
Fuse (type D)
71. ALT 140 A: Charging system, “RR
A/C”, “HTR”, “FAN”, “PBD”, “R− PSD”,
“L −PSD” and “DEF” fuses
