2007 TOYOTA SIENNA Owners Manual

07 SIENNA_U (L/O 0612)
433
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
To avoid serious personal injury and
damage to your vehicle which might re-
sult from battery explosion, acid burns,
electrical burns, or damaged electronic
components, these instructions must be
followed precisely.
If you are unsure about how to follow this
procedure, we strongly recommend that
you seek the help of a competent me-
chanic or towing service.
CAUTION
Batteries contain sulfuric acid
which is poisonous and corrosive.
Wear protective safety glasses when
jump starting, and avoid spilling
acid on your skin, clothing, or ve-
hicle.
If you should accidentally get acid
on yourself or in your eyes, remove
any contaminated clothing and flush
the affected area with water imme-
diately. Then get immediate medical
attention. If possible, continue to
apply water with a sponge or cloth
while en route to the medical office.
The gas normally produced by a
battery will explode if a flame or
spark is brought near. Use only
standardized jumper cables and do
not smoke or light a match while
jump starting.
NOTICE
The battery used for boosting must
be 12 V. Do not jump start unless you
are sure that the booster battery is
correct.
JUMP STARTING PROCEDURE1. If the booster battery is installed in another vehicle, make sure the vehicles
are not touching. Turn off all unneces-
sary lights and accessories.
When boosting, use the battery of
matching or higher quality. Any other
battery may be difficult to jump start
with.
If jump starting is difficult, charge the
battery for several minutes.
2. If required, remove all the vent plugs from the booster and discharged batter-
ies. Lay a cloth over the open vents
on the batteries. (This helps reduce the
explosion hazard, personal injuries and
burns.)
3. If the engine in the vehicle with the booster battery is not running, start it
and let it run for a few minutes. During
jump starting, run the engine at about
2000 rpm with the accelerator pedal
lightly depressed.
(c) Jump starting

07 SIENNA_U (L/O 0612)
434
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Discharged batteryBooster battery
Positive terminal
(“+” mark)
Jumper cable
Positive
terminal
(“+” mark)
4. Make the cable connections in the or-
der a, b, c, d.
a. Connect the clamp of the positive
(red) jumper cable to the positive (+)
terminal on the discharged battery.
b. Connect the clamp at the other end
of the positive (red) jumper cable to
the positive (+) terminal on the booster
battery.
Jumper cable
Booster
battery
Negative terminal
(“− ” mark)
Discharged battery
c. Connect the clamp of the negative
(black) jumper cable to the negative (
−)
terminal on the booster battery.
d. Connect the clamp at the other end
of the negative (black) jumper cable to
a solid, stationary, unpainted, metallic
point of the vehicle with the discharged
battery.
The recommended connecting point is
shown in the following illustration:Connecting point
Do not connect the cable to or near
any part that moves when the engine
is cranked.
CAUTION
When making the connections, to
avoid serious injury, do not lean over
the battery or accidentally let the
jumper cables or clamps touch any-
thing except the correct battery termi-
nals or the ground.

07 SIENNA_U (L/O 0612)
435
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
5. Start your engine in the normal way.After starting, run it at about 2000 rpm
for several minutes with the accelerator
pedal lightly depressed.
6. Carefully disconnect the cables in the exact reverse order: the negative cable
and then the positive cable.
7. Carefully dispose of the battery cover cloths—they may now contain sulfuric
acid.
8. If removed, replace all the battery vent plugs.
If the cause of your battery discharging is
not apparent (for example, lights left on),
you should have it checked at your Toyota
dealer.
If the first start attempt is not success-
ful...
Check that the clamp on the jumper
cables are tight. Recharge the discharged
battery with the jumper cables connected
for several minutes and restart your en-
gine in the normal way.
If the another attempt is not successful,
the battery may be depleted. Have it ch-
ecked at your Toyota dealer. If your engine stalls while driving...
1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Turn the ignition key to “ACC” or “LOCK”, and try starting the engine
again.
If the engine will not start, see “If your
vehicle will not start” on page 432 in this
Section.
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to “ACC” or
“LOCK” position.
CAUTION
Be especially careful to prevent erro-
neous pedal operation.
If your engine stalls while
driving If you cannot incr
ease engine
speed

07 SIENNA_U (L/O 0612)
436
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
If your engine coolant temperature
gauge indicates overheating, if you ex-
perience a loss of power, or if you hear
a loud knocking or pinging noise, the
engine has probably overheated. You
should follow this procedure...1. Pull safely off the road, stop the ve- hicle and turn on your emergency
flashers. Put the transmission in “P”
and apply the parking brake. Turn off
the air conditioning if it is being used.
2. If coolant or steam is boiling out of the radiator or reservoir, stop the engine.
Wait until the steam subsides before
opening the hood. If there is no coolant
boiling over or steam, leave the engine
running and make sure the electric
cooling fan is operating. If it is not,
turn the ignition off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
3. Look for obvious coolant leaks from theradiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the engine is running, keep
hands and clothing away from the
moving fan and engine drive belts.
4. If the coolant is leaking, stop the en-gine immediately. Call a Toyota dealer
for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the en-
gine is running. Fill it about half full.
CAUTION
Do not attempt to remove the radiator
cap when the engine and radiator are
hot. Serious injury could result from
scalding hot fluid and steam blown
out under pressure.
6. After the engine coolant temperaturehas cooled to normal, again check the
coolant level in the reservoir. If neces-
sary, bring it up to half full again. Seri-
ous coolant loss indicates a leak in the
system. You s hould have it checked as
soon as possible at your Toyota dealer.
If your vehicle overheats

07 SIENNA_U (L/O 0612)
437
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
1. Reduce your speed gradually,keeping a straight line. Move cau-
tiously off the road to a safe place
well away from the traffic. Avoid
stopping on the center divider of
a highway. Park on a level spot
with firm ground.
2. Stop the engine and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission in “P”.
4. Have everyone get out of the ve- hicle on the side away from traffic.
5. Read the following instructions thoroughly.
NOTICE
Do not continue driving with a
deflated tire. Driving even a
short distance can damage a
tire and wheel beyond repair.
COMPACT SPARE TIRE
The compact spare tire is designed
for temporary emergency use only.
The compact spare tire is identified
by the distinctive wording
“TEMPORARY USE ONLY” molded
into the side wall of the tire.
The compact spare tire saves space
in your luggage compartment, and its
lighter weight helps to improve fuel
economy and permits easier installa-
tion in case of a flat tire. The compact spare tire can be used
many times, if necessary. It has tread
life of up to 4800 km (3000 miles) de-
pending on road conditions and your
driving habits. When tread wear indi-
cators appear on the tire, replace the
tire.
See also the tire information on page
487 in Section 7−
2 for details on the
tread wear indicators and other ser-
vice information.CAUTION
 The compact spare tire was de-
signed especially for your To-
yota. Do not use it on any other
vehicle.
 Do not use more than one com-
pact spare tire at the same
time.
 The pressure for the compact
spare tire must be 420 kPa (4.2
kgf/cm
2 or bar, 60 psi).
 Do not exceed 80 km/h (50
mph) when driving with the
compact spare tire.
If you have a flat tire—
—Standard tires information

07 SIENNA_U (L/O 0612)
438
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Replace the compact spare tire
with the standard tire as soon
as possible.
 Avoid sudden a cceleration,
sudden d eceleration and sharp
turns with the compact spare
tire.
NOTICE
Your ground clearance is re-
duced when the compact spare
tire is installed so avoid driving
over obstacles and drive slowly
on rough, unpaved roads and
speed bumps. Also, do not at-
tempt to go through an auto-
matic car wash as the vehicle
may get caught, resulting in
damage.
Some vehicles are equipped with
runflat (RFT) tires. The runflat
tire allows you to continue driving
for up to 160 km (100 miles) at a
speed below 90 km/h (55 mph)
even if any tire goes flat. However,
in some conditions (such as high
temperatures), you could not con-
tinue driving for up to 160 km (100
miles).
A spare tire is not provided on ve-
hicles with runflat tires. When the tire goes flat or when the
tire pressure is below 100 kPa (1.0
kgf/cm
2 or bar, 15 psi), the tire
must be replaced. If you are not
sure, consult your Toyota dealer.
Do not use the repaired tire.

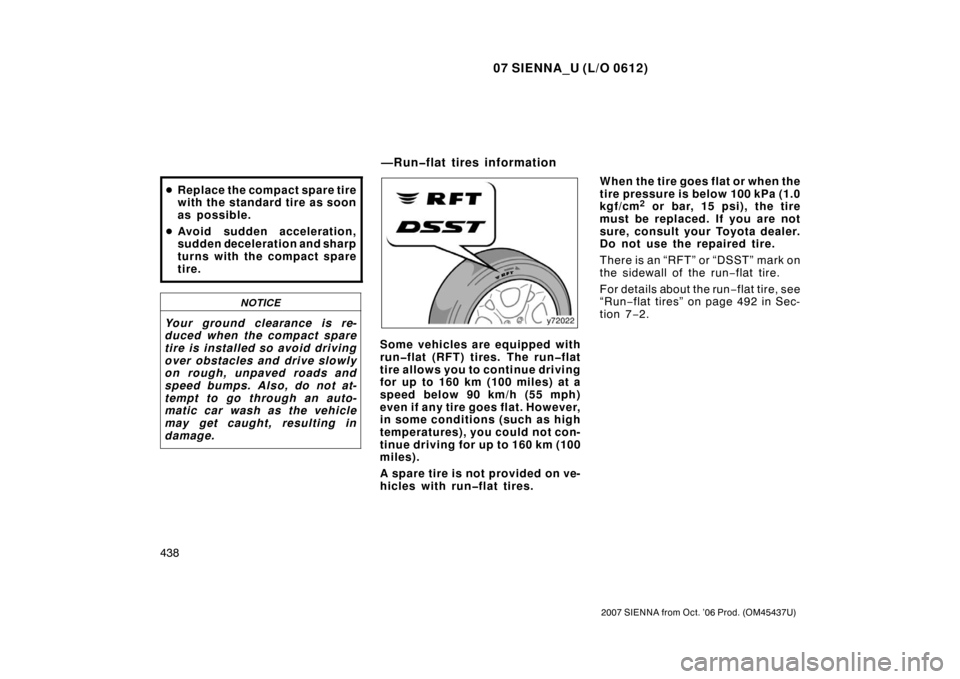

There is an “RFT” or “DSST” mark on
the sidewall of the run −flat tire.
For details about the run −flat tire, see
“Run −flat tires” on page 492 in Sec-
tion 7 −2.
—Runflat tires information

07 SIENNA_U (L/O 0612)
439
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
CAUTION
As the runflat tire allows you to
continue driving if any tire goes
flat, the tire performance is not
the same as normal condition. If
the runflat tire goes flat, take
your vehicle to the nearest Toyo-
ta dealer or authorized tire dealer
as soon as possible, observing
the following instructions:
Decelerate as soon as possible
to the lowest appropriate
speed that conditions permit.
Do not drive for longer than
160 km (100 miles) or over 90
km/h (55 mph).
 Avoid abrupt steering wheel
maneuvering and braking. If
t h e veh i cl e ti res det eri o rat e,
you could lose control of the
steering wheel or the brakes,
causing death or serious inju-
ry.
Do not replace or repair the tire
by yourself. When the tires
must be replaced or repaired,
consult your Toyota dealer or
authorized tire dealer.NOTICE
 Take due care not to go over
a curb stone and be careful
of holes in the road because
deflated tire pressure affects
tire cushion performance.
The wheels, tires, body, sus-
pension and other compo-
nents could be damaged.
 Your ground clearance is re-
duced if the runflat tire
goes flat, so avoid driving
over obstacles and drive
slowly on rough, unp aved
roads and speed bumps.
Also, do not attempt to go
through an automatic car
wash as the vehicle may get
caught, resulting in damage.

07 SIENNA_U (L/O 0612)
440
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

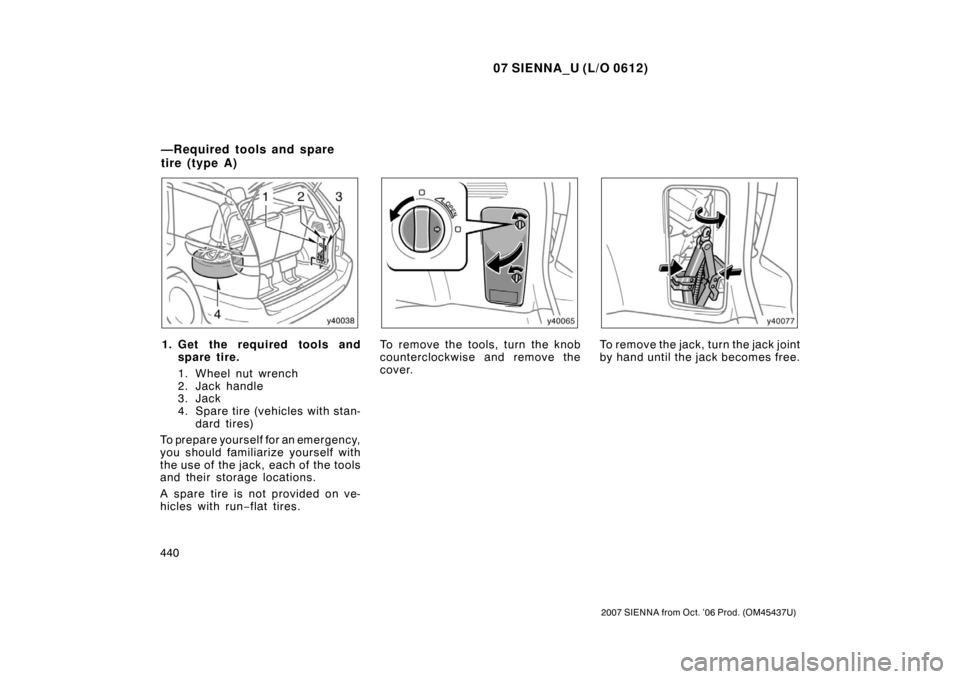

1. Get the required tools andspare tire.
1. Wheel nut wrench
2. Jack handle
3. Jack
4. Spare tire (vehicles with stan- dard tires)
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
A spare tire is not provided on ve-
hicles with run −flat tires.To remove the tools, turn the knob
counterclockwise and remove the
cover.To remove the jack, turn the jack joint
by hand until the jack becomes free.
—Required tools and spare
tire (type A)
