2007 TOYOTA SIENNA Owners Manual

07 SIENNA_U (L/O 0612)
1
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 7
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

07 SIENNA_U (L/O 0612)
2
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

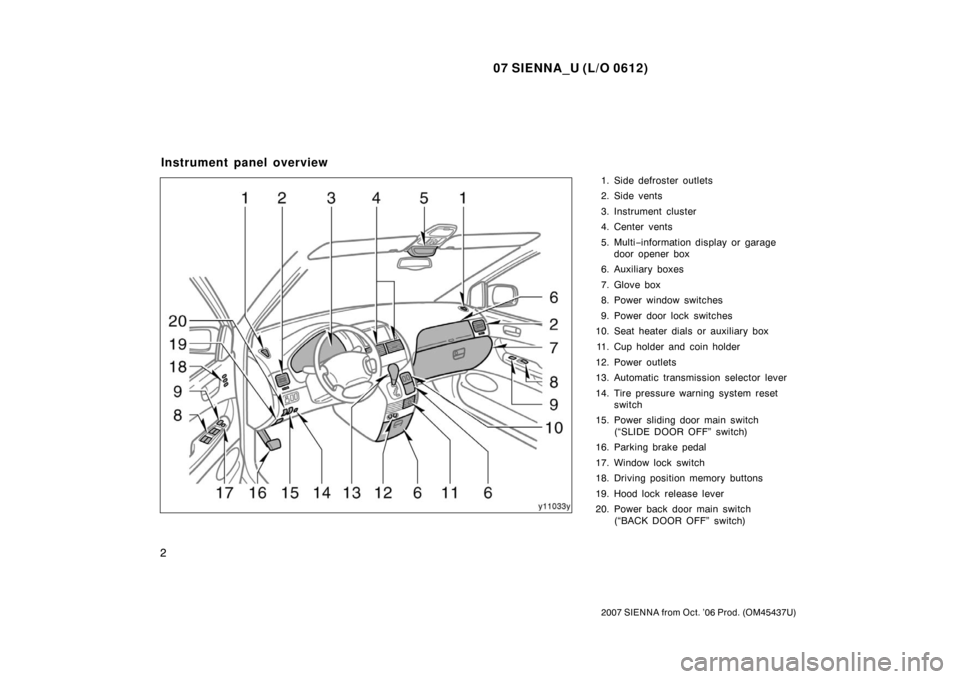

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Multi−information display or garage
door opener box
6. Auxiliary boxes
7. Glove box
8. Power window switches
9. Power door lock switches
10. Seat heater dials or auxiliary box
11. Cup holder and coin holder
12. Power outlets
13. Automatic transmission selector lever
14. Tire pressure warning system reset switch
15. Power sliding door main switch (“SLIDE DOOR OFF” switch)
16. Parking brake pedal
17. Window lock switch
18. Driving position memory buttons
19. Hood lock release lever
20. Power back door main switch (“BACK DOOR OFF” switch)
Instrument panel overview

07 SIENNA_U (L/O 0612)
3
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

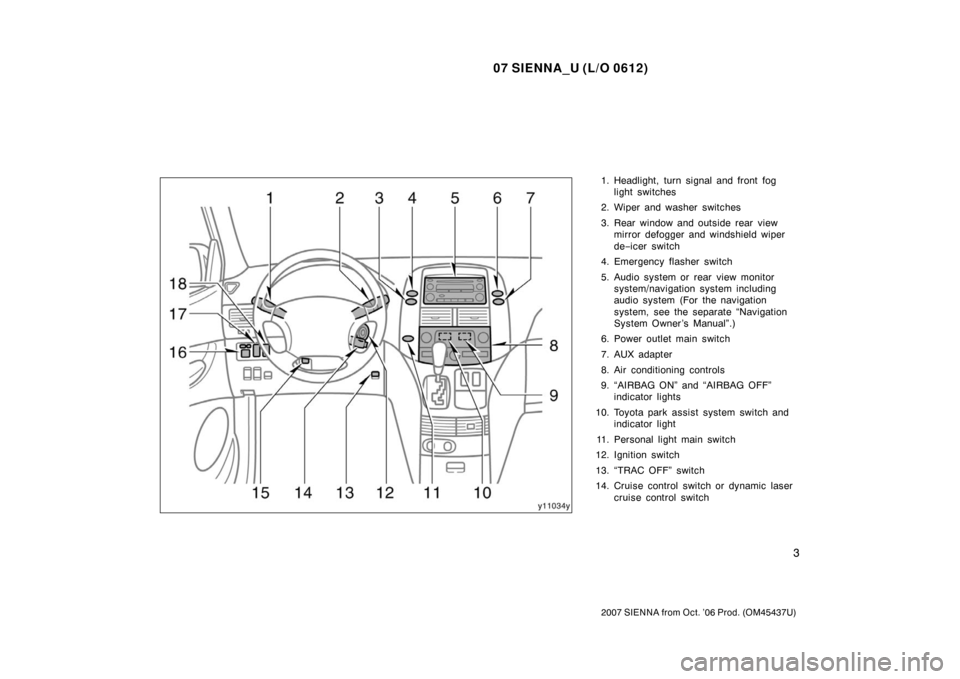

1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
4. Emergency flasher switch
5. Audio system or rear view monitor system/navigation system including
audio system (For the navigation
system, see the separate “Navigation
System Owner ’s Manual”.)
6. Power outlet main switch
7. AUX adapter
8. Air conditioning controls
9. “AIRBAG ON” and “AIRBAG OFF” indicator lights
10. Toyota park assist system switch and indicator light
11. Personal light main switch
12. Ignition switch
13. “TRAC OFF” switch
14. Cruise control switch or dynamic laser cruise control switch

07 SIENNA_U (L/O 0612)
4
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
15. Tilt and telescopic steering lock releaselever
16. Power rear view mirror control switches
17. “REAR VENT” switch
18. Headlight beam level control dial

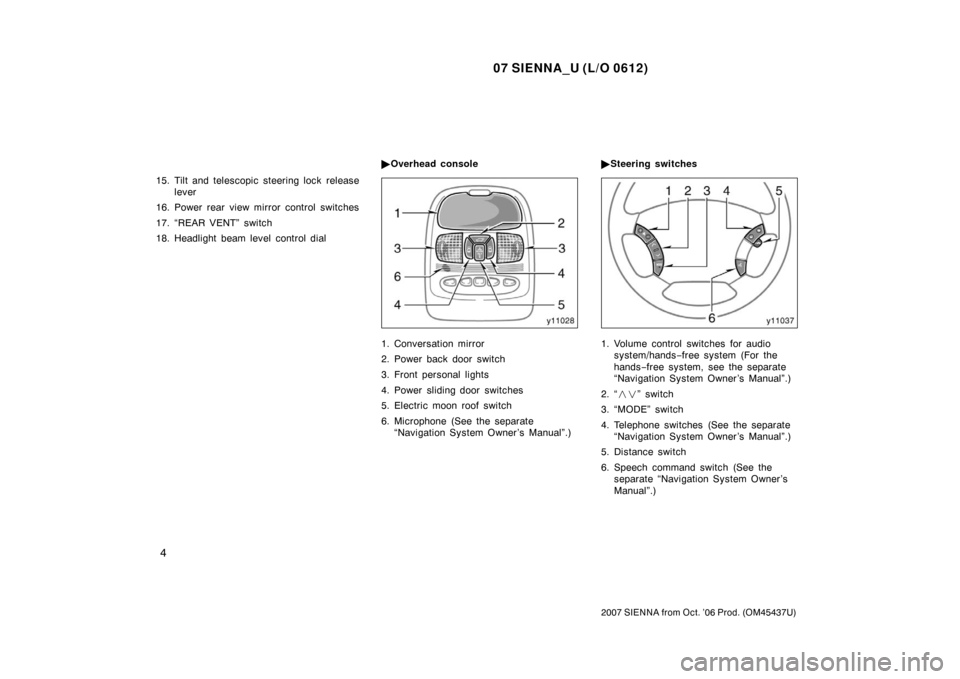

1. Conversation mirror
2. Power back door switch
3. Front personal lights
4. Power sliding door switches
5. Electric moon roof switch
6. Microphone (See the separate “Navigation System Owner ’s Manual”.)1. Volume control switches for audiosystem/hands −free system (For the
hands −free system, see the separate
“Navigation System Owner ’s Manual”.)
2. “ ” switch
3. “MODE” switch
4. Telephone switches (See the separate “Navigation System Owner ’s Manual”.)
5. Distance switch
6. Speech command switch (See the separate “Navigation System Owner ’s
Manual”.)

Overhead console Steering switches

07 SIENNA_U (L/O 0612)
5
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
1. Service reminder indicators andindicator lights
2. Speedometer
3. Engine coolant temperature gauge 4. Low fuel level warning light
5. Fuel gauge
6. Trip meter reset knob/instrument panel
light control knob 7. Odometer and two trip meters
8. Tachometer
Instrument cluster overview

Ty p e A

07 SIENNA_U (L/O 0612)
6
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
1. Service reminder indicators andindicator lights
2. Speedometer
3. Engine coolant temperature gauge
4. Low fuel level warning light 5. Fuel gauge
6. Dynamic laser cruise control master
warning light
7. Dynamic laser cruise control display 8. Trip meter reset knob/instrument panel
light control knob
9. Odometer and two trip meters
10. Tachometer

Ty p e B

07 SIENNA_U (L/O 0612)
7
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Brake system warning light∗1or
Driver ’s seat belt reminder light∗1
or Malfunction indicator lamp∗1
Charging system warning light∗1
Low engine oil pressure warning light∗1
or Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Low tire pressure warning light∗1
Front passenger ’s seat belt reminder light∗1
Vehicle stability control system/traction control
system warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
Indicator symbols on the instrument panel

07 SIENNA_U (L/O 0612)
8
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Cruise control indicator light∗2 or dynamic laser
cruise control indicator light∗ 3
Automatic transmission indicator lights Headlight high beam indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 191 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 221 in
Section 1 −7.
∗
3: If this light flashes, see “Dynamic laser cruise control” on
page 224 in Section 1 −7.
Slip indicator light
Traction control system off indicator light
(two
−wheel drive models)
Turn signal indicator lights
Dynamic laser cruise control ready mode
indicator light
Conventional cruise control mode indicator light
Engine immobilizer/theft deterrent system
indicator light
“AIRBAG ON” indicator light
“AIRBAG OFF” indicator light
Third seat warning light∗
1
Headlight indicator light
Tail light indicator light
