2007 TOYOTA SIENNA Owners Manual

07 SIENNA_U (L/O 0612)
249
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RAND (Random)
Compact disc player
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
With compact disc changer only—
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will
appear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again. MP3/WMA player
There are two random playback features—
you can either listen to all of the files on
the compact discs in random order. You
can also listen to the files in a single
folder in random order.
To randomly play the files in a folder:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display.
To randomly play all of the files on the
compact disc:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will
appear on the display and the player will
play all of the files on the disc in random
order. To turn off the random playback
feature, push this button again. RPT (Repeat)
Compact disc player
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.
With compact disc changer only—
Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.

07 SIENNA_U (L/O 0612)
250
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
MP3/WMA player
There are two repeat features—you can
repeat a signal file or an entire folder.
Repeating a file:
Quickly push and release “RPT” (preset
button 2) while the file is playing.
“
” will appear on the display. When
the file ends, it will repeat automatically.
This process will be continued until you
push the button again to turn off the re-
peat feature.
Repeating a folder:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all of the files in the folder. When the last
file in the folder ends, the folder will re-
peat from the beginning. To turn off the
repeat feature, push this button again. SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the “SCAN” button until
you hear a beep. The radio will tune in
the next preset station up or down the
band, stay there for 5 seconds, and then
move to the next preset station. To stop
scanning, push this button again.
To scan all the frequencies:
Quickly push and release the “SCAN” but-
ton. The radio will find the next station up
or down the station band, stay there for
5 seconds, and then scan again to the
next station. To stop scanning, push this
button again.
Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release the “SCAN” but-
ton. “SCAN” will appear on the display
and the player will scan up or down all
the tracks on the disc you are listening to.
To stop scanning, push this button again.
If the player scanned all the tracks on the
disc, it will stop scanning.
The discs in the compact disc changer
can be scanned up only.
With compact disc changer only—
Scanning the first tracks of all the discs
in the magazine:
Push and hold the “SCAN” button until
you hear a beep. “
SCAN” will appear
on the display and the player will scan up
the first track of the next disc. To stop
scanning, push this button again. If the
player has scanned all the di scs, it will
stop scanning.

07 SIENNA_U (L/O 0612)
251
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
MP3/WMA player
There are two scan features—you can ei-
ther scan the files in a folder on a specif-
ic disc or scan the first file of all the
folder.
Scanning the files on a folder:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan all the files in the folder you are
listening to. To select a file, push the
“SCAN” again. After all the tracks on the
disc have been scanned in one pass, nor-
mal play resumes.
Scanning the first file of all the folders:
Push “SCAN” until you hear a beep.
“
” will appear on the display and
the player will scan the first file of the
next folder. To select a folder, push the
“SCAN” again. After all the folders have
been scanned in one pass, normal play
resumes. SEEK/TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “
” or “ ” side of the
“SEEK/TRACK” button. Do this again to
find the station after that.
Compact disc player
Use this button to skip up or down to a
different track.
Push “ ” or “ ” side of the
“SEEK/TRACK” button until the number of
the track you want to listen to appears on
the display. If you want to return to the
beginning of the current track, quickly
push the down side of the button one
time.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the
“SEEK/TRACK” button. MP3/WMA player
To file up or down to a different file:
Push either side of the “SEEK/TRACK”
several times until the file you want to
listen to appears on the display. If you
want to return to the beginning of the
current file, push the “
” side of the but-
ton one time, quickly.
To fast forward or reverse the disc:
If you want to fast forward or reverse the
disc, push and hold it until you hear a
beep. When you release the button, the
player will resume playing.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the
“SEEK/TRACK” button.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.

07 SIENNA_U (L/O 0612)
252
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
TEXT
Compact disc player
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.MP3/WMA player
This button is used to change the display
for the MP3/WMA file that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the
MP3/WMA file is playing. The display
changes in the order from the elapsed
time to folder name to file name to album
title to track title to artist name, then back
to the elapsed time.
If this button is pushed while an
MP3/WMA file that does not contain text
data is playing, “NO TITLE” will appear on
the display.
If the entire text data is not displayed,
push and hold it until you hear a beep.
The rest of the text data will appear.
TUNE·FILE (Tuning and File up/down)
Radio
Turn the “TUNE·FILE” knob clockwise to
step up the frequency. Turn the knob
counterclockwise to step down the fre-
quency.
MP3/WMA player
Turn the knob clockwise to file up. Turn
the knob counterclockwise to file down.

07 SIENNA_U (L/O 0612)
253
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

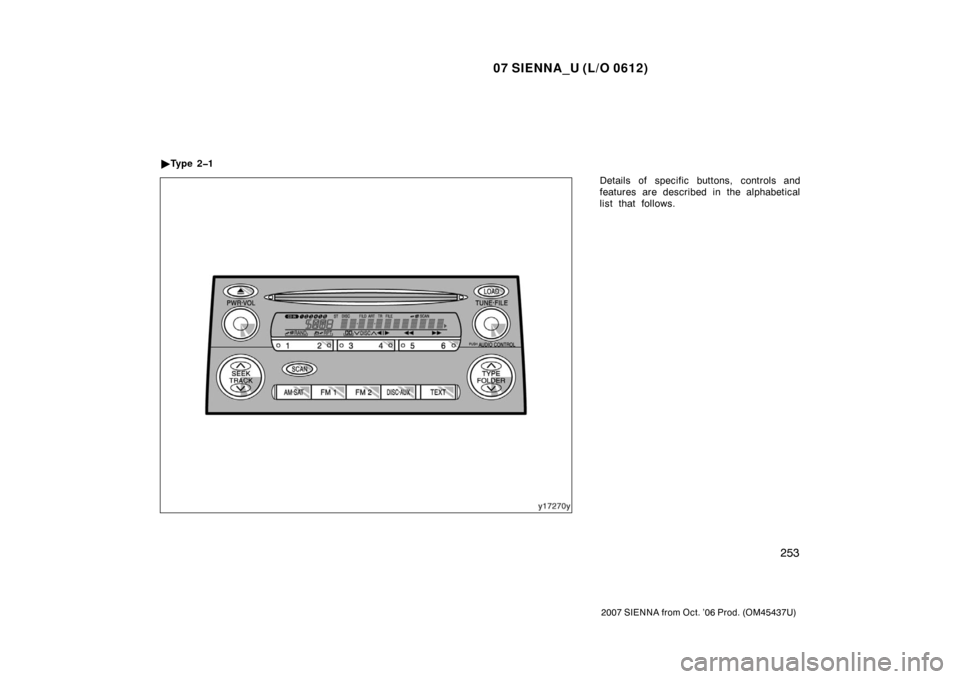

Details of specific buttons, controls and
features are described in the alphabetical
list that follows.

Ty p e 2 1

07 SIENNA_U (L/O 0612)
254
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Details of specific buttons, controls and
features are described in the alphabetical
list that follows.

Ty p e 2 2

07 SIENNA_U (L/O 0612)
255
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE·FILE” or
“SEEK/TRACK”.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The preset but-
ton number will appear on the display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
This radio can store one AM and two FM
stations for each button. (The display will
show “AM”, “FM1” or “FM2” when you
push “AM·SAT”, “FM1” or “FM2” button.)
XM satellite radio
∗—
These buttons are used to preset and
tune in radio channels.
To preset a channel to a button: Tune in
the desired channel. (See “TUNE·FILE” or
“SEEK/TRACK”.) Push and hold down the
button until you hear a beep—this will set
the channel to the button. The preset but-
ton number will appear on the display. To recall a preset channel: Push the but-
ton for the channel you want. The preset
button number and channel number will
appear on the display.
This radio can store three XM
 channels
for each button. (The display will show
“SAT1”, “SAT2” or “SAT3” when you push
“AM·SAT” button.)
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
(Eject button)
This button is used to eject one or all
compact discs.
To eject the current compact disc, push
and release the compact disc eject button.
To eject a specific disc, push “ ” (preset
button 3) or “ ” (preset button 4) until the
number of the disc you want to eject is
displayed. Push and release the eject but-
ton.
To eject all discs at a time, press and
hold the eject button until you hear a
beep. The last compact disc played before
pushing the button will be ejected first. If
the ejected disc is not removed for a long
time, the eject function will be canceled.
(Reverse/Fastforward button)
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM·SAT (AM band and XM  satellite ra-
dio
∗)
Push the “AM·SAT” button to turn on the
radio and select the AM or XM  band.
“AM”, “SAT1”, “SAT2” or “SAT3” will ap-
pear on the display.
Error messages
If the satellite radio tuner malfunctions,
your audio system will display the follow-
ing error messages.
“ANTENNA”:
The XM  antenna is not connected.
Check whether the XM  antenna cable
is attached securely.
A short −circuit occurs in the antenna or
the surrounding antenna cable. See a
Toyota certified dealer.

07 SIENNA_U (L/O 0612)
256
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
“UPDATING”:
You have not subscribed to the XM
satellite radio. The radio is being up-
dated with the latest encryption code.
Contact the XM  satellite radio for sub-
scription information. When a contact is
canceled, you can choose the “CH000”
and all free− to−air channels.
The premium channel you selected is
not authorized. Wait for about 2 sec-
onds until the radio returns to the pre-
vious channel or “CH001”. If it does
not change automatically, select anoth-
er channel. If you want to listen to the
premium channel, contact the XM  sat-
ellite radio.
“NO SIGNAL”: The XM signal is too
weak at the current location. Wait until
your vehicle reaches a location with a
stronger signal.
“LOADING”: The unit is acquiring audio
or program information. Wait until the unit
has received the information.
“OFF AIR”: The channel you selected is
not broadcasting any programming. Select
another channel. “”:
The channel you selected is no
longer available. Wait for about 2 seconds
until the radio returns to the previous
channel or “CH001”. If it does not change
automatically, select another channel.
The XM  Listener Care Center is also
available on the phone, please call (800)
967− 2346 during the following hours:
Monday—Saturday: 6 a.m.—2 a.m. East-
ern Time
Sunday: 8 a.m.—8 p.m. Eastern Time
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the “AUDIO
CONTROL” knob, the mode changes. To
adjust the tone and balance, turn the
knob.
Ty p e 2 −1—
BAS: Adjusts low −pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7. BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
ASL: The Automatic Sound Levelizer can
be turned on by turning the knob. The
ASL system automatically adjusts volume
and tone in accordance with ambient noise
levels. This helps ensure an optimal lis-
tening experience even when road, wind
or other ambient noise levels rise.
RSE: Vehicles with a rear seat entertain-
ment system—The system can be locked.
For details, see page 280 in this Section.
Ty p e 2
−2—
BAS: Adjusts low −pitched tones. The dis-
play ranges from −5 to 5.
MID: Adjusts mid −pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
