2007 TOYOTA SIENNA Owners Manual

07 SIENNA_U (L/O 0612)
209
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
The traction control system automatical-
ly helps prevent the spinning of front
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.

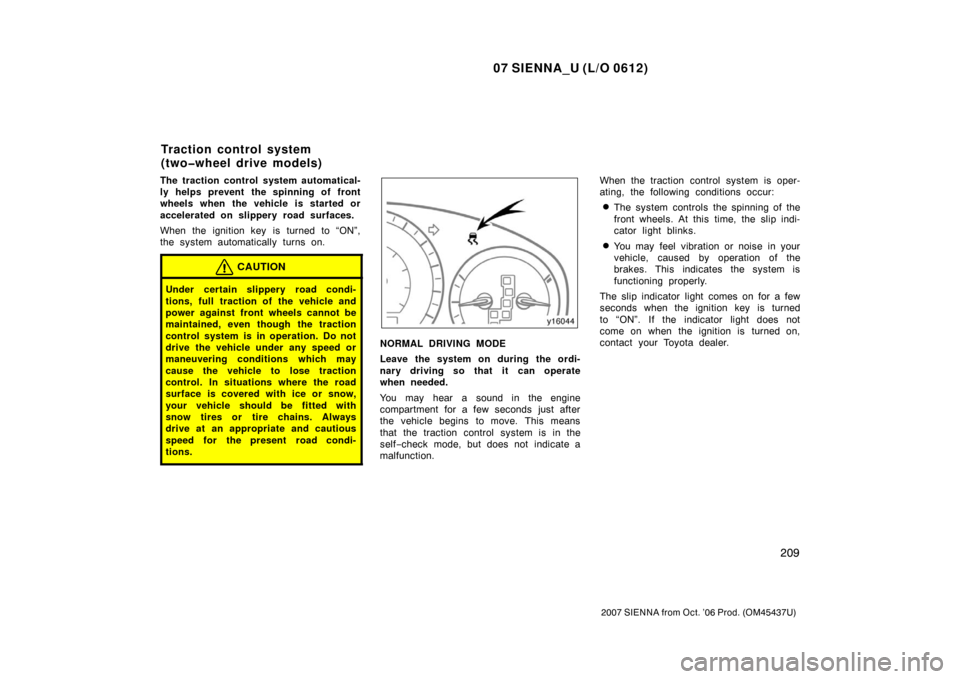

CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against front wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the traction control system is in the
self−check mode, but does not indicate a
malfunction. When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
front wheels. At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Traction control system
(twowheel drive models)

07 SIENNA_U (L/O 0612)
210
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
TRACTION CONTROL OFF MODE
If your wheels get stuck in a ditch
when you are driving on a severe off
road and sand, turn off the traction
control system. This system that con-
trols engine performance interferes with
the process of freeing your wheels.

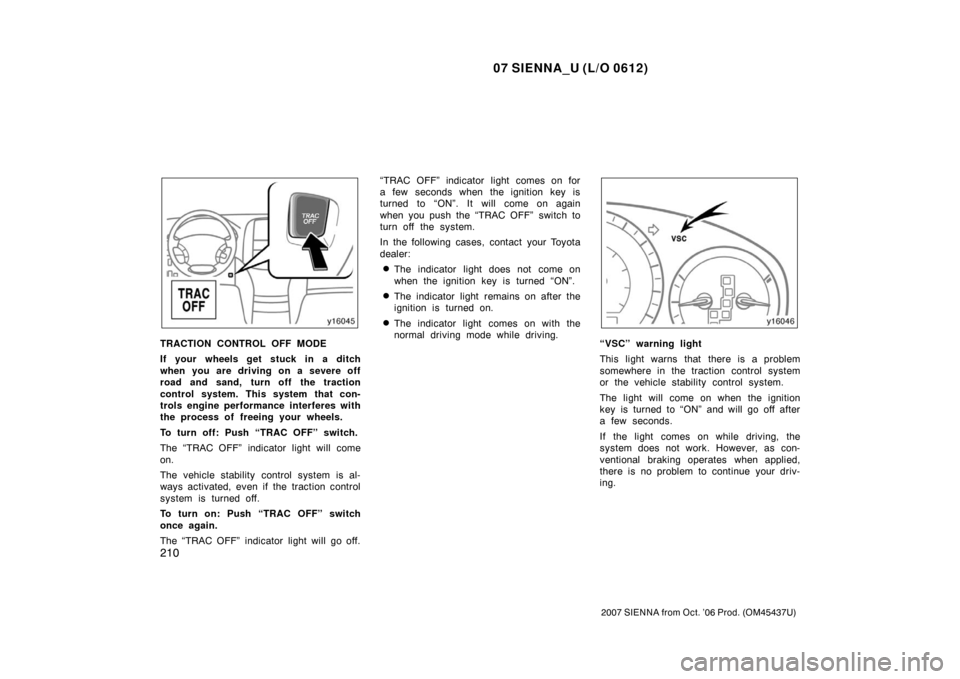

To turn off: Push “TRAC OFF” switch.
The “TRAC OFF” indicator light will come
on.
The vehicle stability control system is al-
ways activated, even if the traction control
system is turned off.
To turn on: Push “TRAC OFF” switch
once again.
The “TRAC OFF” indicator light will go off.“TRAC OFF” indicator light comes on for
a few seconds when the ignition key is
turned to “ON”. It will come on again
when you push the “TRAC OFF” switch to
turn off the system.
In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned “ON”.
The indicator light remains on after the
ignition is turned on.
The indicator light comes on with the
normal driving mode while driving.
“VSC” warning light
This light warns that there is a problem
somewhere in the traction control system
or the vehicle stability control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.

07 SIENNA_U (L/O 0612)
211
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “TRAC OFF” indicator light will come
on when the “VSC” warning light comes
on even if the “TRAC OFF” switch is not
pushed. The traction control system automatical-
ly helps prevent the spinning of 4
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,

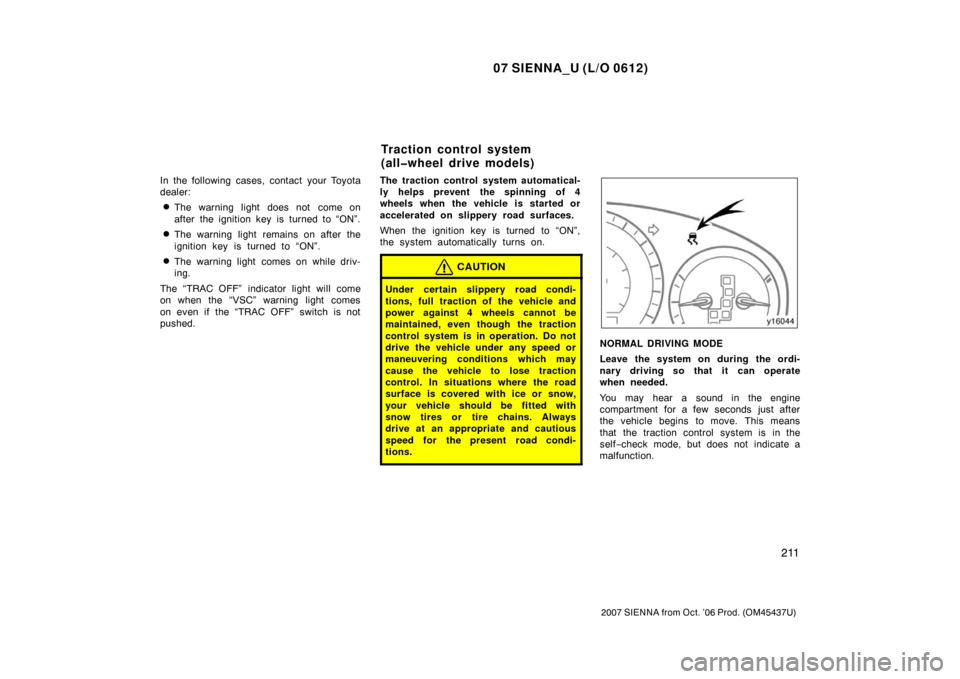

the system automatically turns on.CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against 4 wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the traction control system is in the
self
−check mode, but does not indicate a
malfunction.
Traction control system
(allwheel drive models)

07 SIENNA_U (L/O 0612)
212
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
4 wheels. At this time, the slip indica-
tor light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
“VSC” warning light
This light warns that there is a problem
somewhere in the traction control system
or the vehicle stability control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing. In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.

07 SIENNA_U (L/O 0612)
213
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
The vehicle stability control system
helps provide integrated control of the
systems such as an antilock brake
system, brake assist system, traction
control, engine control, etc. This sys-
tem automatically controls the brakes
and engine to help prevent the vehicle
from skidding when cornering on a slip-
pery road surface or operating steering
wheel abruptly.
The vehicle stability control system is acti-
vated when the vehicle speed is about
more than 15 km/h (9 mph).
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the system is in the self−check mode,

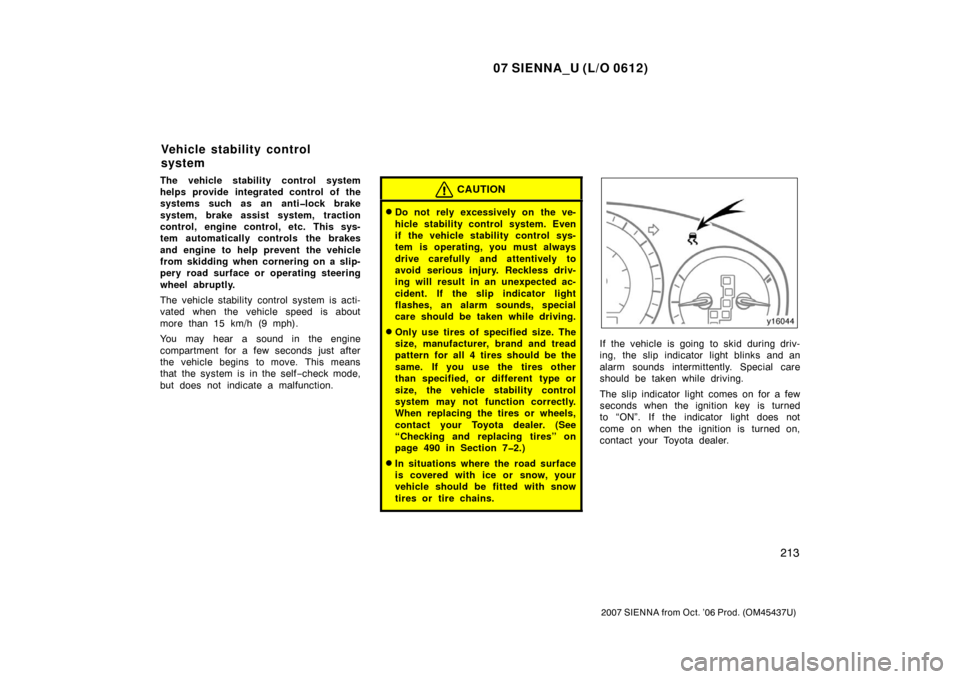

but does not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
flashes, an alarm sounds, special
care should be taken while driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 490 in Section 72.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Vehicle stability control
system

07 SIENNA_U (L/O 0612)
214
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

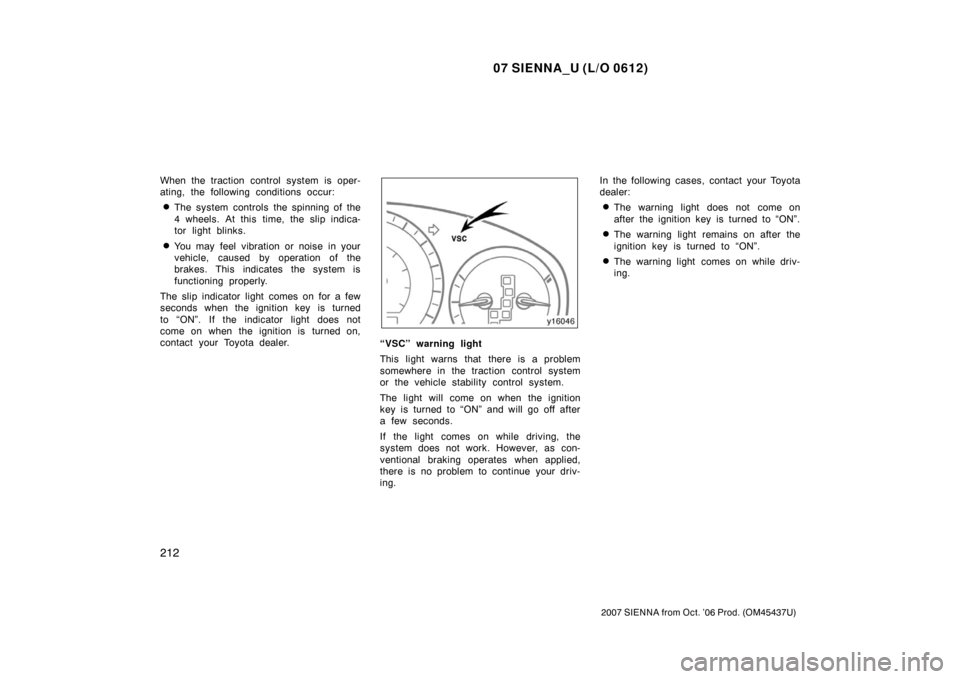

“VSC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system or the traction control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
Tw o −wheel drive models only—The “TRAC
OFF” indicator light will come on when the
“VSC” warning light comes on even if the

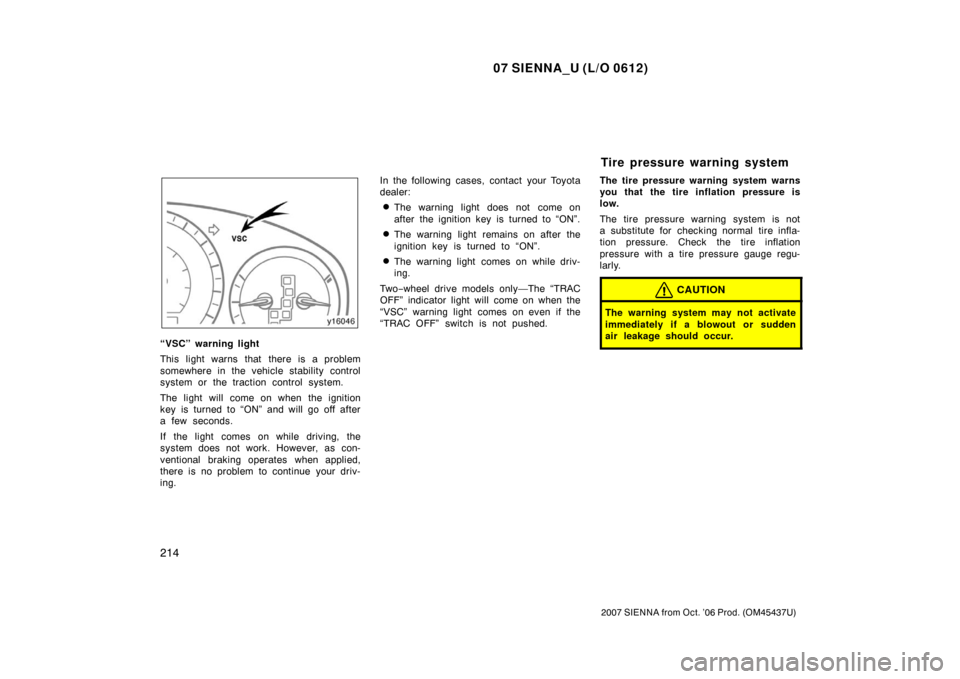

“TRAC OFF” switch is not pushed. The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if a blowout or sudden
air leakage should occur.
Tire pressure warning system

07 SIENNA_U (L/O 0612)
215
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

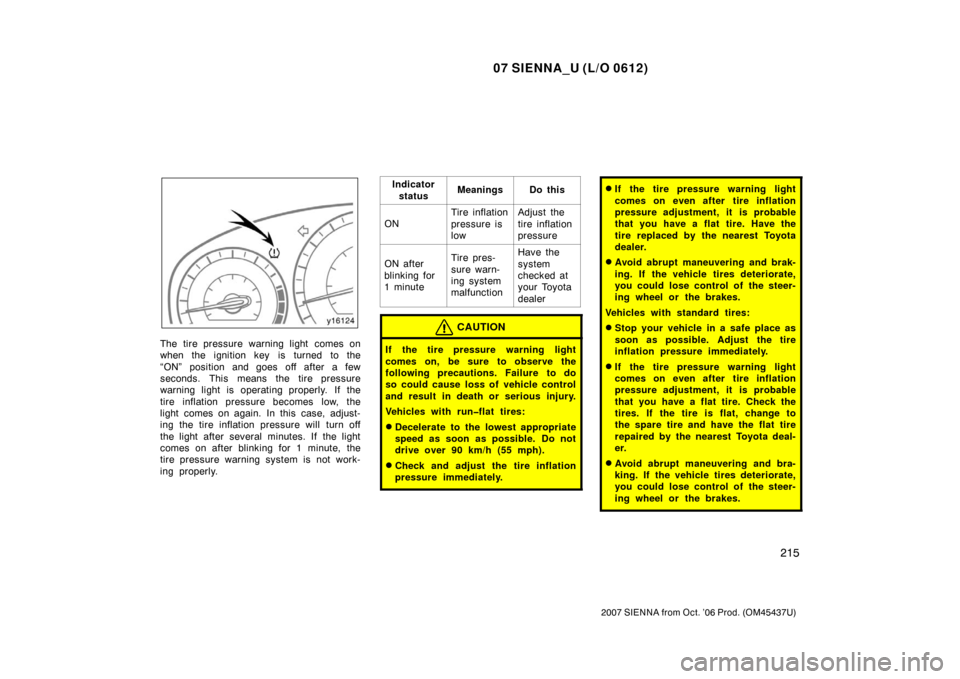

The tire pressure warning light comes on
when the ignition key is turned to the
“ON” position and goes off after a few
seconds. This means the tire pressure
warning light is operating properly. If the
tire inflation pressure becomes low, the
light comes on again. In this case, adjust-
ing the tire inflation pressure will turn off
the light after several minutes. If the light
comes on after blinking for 1 minute, the
tire pressure warning system is not work-
ing properly.Indicator
status
MeaningsDo this
ON
Tire inflation
pressure is
lowAdjust the
tire inflation
pressure
ON after
blinking for
1 minuteTire pres-
sure warn-
ing system
malfunctionHave the
system
checked at
your Toyota
dealer
CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Vehicles with runflat tires:
Decelerate to the lowest appropriate
speed as soon as possible. Do not
drive over 90 km/h (55 mph).
Check and adjust the tire inflation
pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Have the
tire replaced by the nearest Toyota
dealer.
Avoid abrupt maneuvering and brak-
ing. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
Vehicles with standard tires:
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Toyota deal-
er.
Avoid abrupt maneuvering and bra-
king. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.

07 SIENNA_U (L/O 0612)
216
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light after several minutes.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The compact spare tire is not equipped
with the tire pressure warning valve and
transmitter. If a tire goes flat, the warning
light will not turn off even though the flat
tire is replaced with the spare tire. Re-
place the spare tire with the repaired tire
and adjust the proper tire inflation pressur-
e. The tire pressure warning light will turn

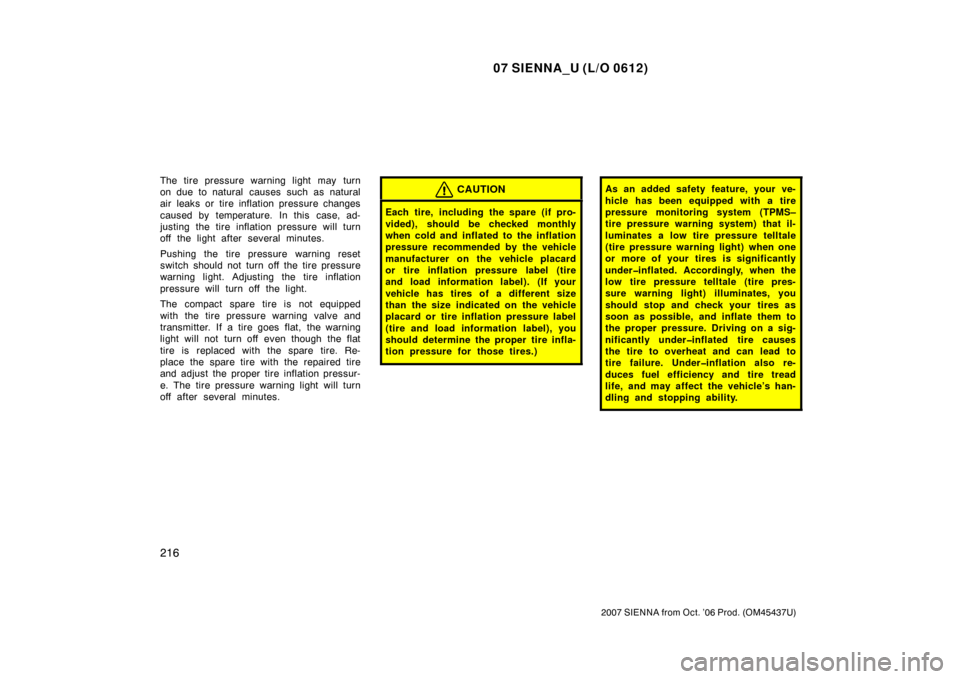

off after several minutes.CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS–
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
underinflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
