A: D2R discharge bulbs
B: HB4 halogen bulbs
C: HB3 halogen bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)
F: Single end bulbs
G: Double end bulbsTy p e
W
Bulb No.
35
51
Light bulbs
Headlights (low beam) With discharge headlights
Without discharge headlights
Headlights (high beam) —
9006 A
B
Front fog lights
Parking and front side marker lights Front turn signal lights
Rear turn signal lights
Stop/tail and rear side marker lights
Back −up lights
License plate lights
Luggage compartment light 60
9005 C
51
—B
5
—E 30
3457A E
21
—D
21/5
—D
18
921 D
5
—D
5
—G
Tail lights 3.8
194 D
Front personal lights 4.9
—F
Rear personal lights 4.9
—F
Vanity lights 3
—G
Door courtesy lights 3.8
—F

07 SIENNA_U (L/O 0612)
506
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

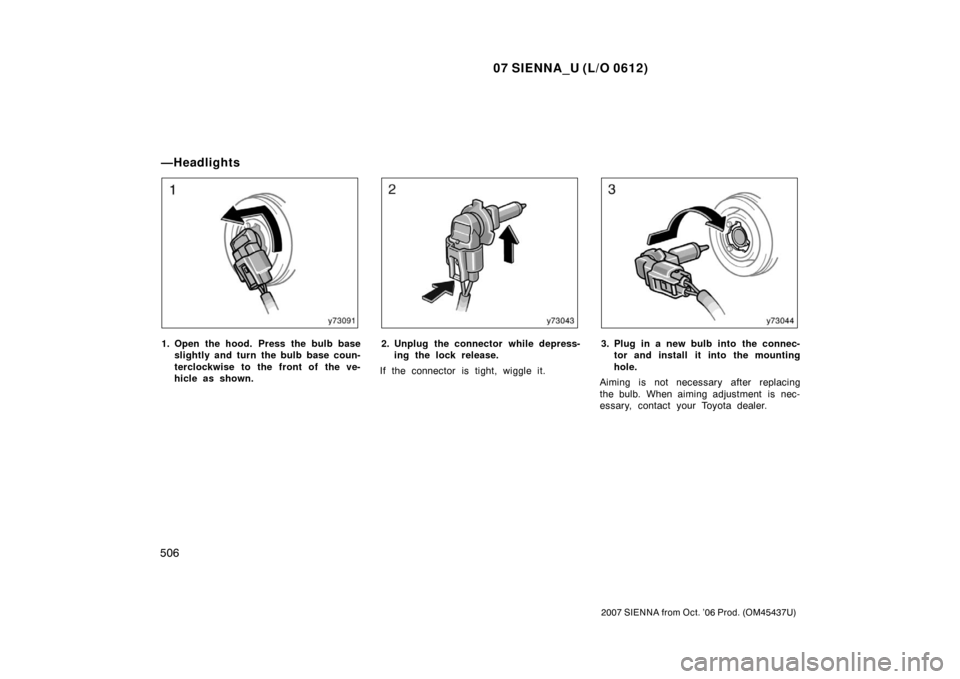

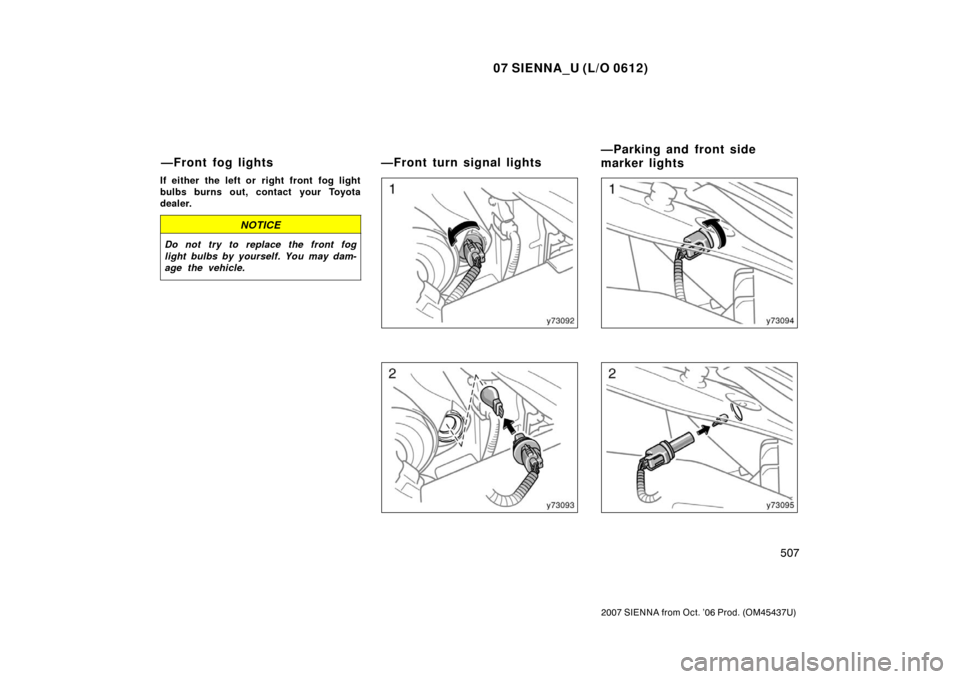

1. Open the hood. Press the bulb baseslightly and turn the bulb base coun-
terclockwise to the front of the ve-
hicle as shown.2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.3. Plug in a new bulb into the connec- tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

07 SIENNA_U (L/O 0612)
507
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
If either the left or right front fog light
bulbs burns out, contact your Toyota
dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
—Front fog lights—Front turn signal lights—Parking and front side
marker lights

07 SIENNA_U (L/O 0612)
508
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Remove the bolts. Remove the unit by using
the flathead screwdriver with cloth.

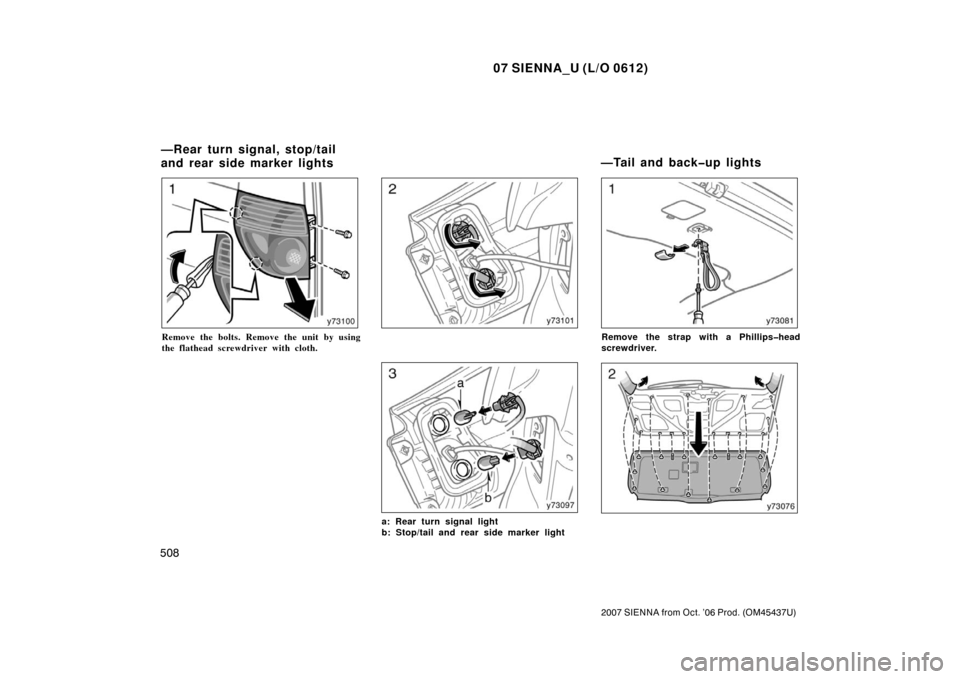

a: Rear turn signal light
b: Stop/tail and rear side marker light
Remove the strap with a Phillipshead
screwdriver.
—Rear turn signal, stop/tail
and rear side marker lights—Tail and backup lights

07 SIENNA_U (L/O 0612)
509
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
a: Tail light
b: Backup light
NOTICE
When installing the back door trim,
be careful not to jam any wire har-
ness and connector. Otherwise, they
may be damaged.

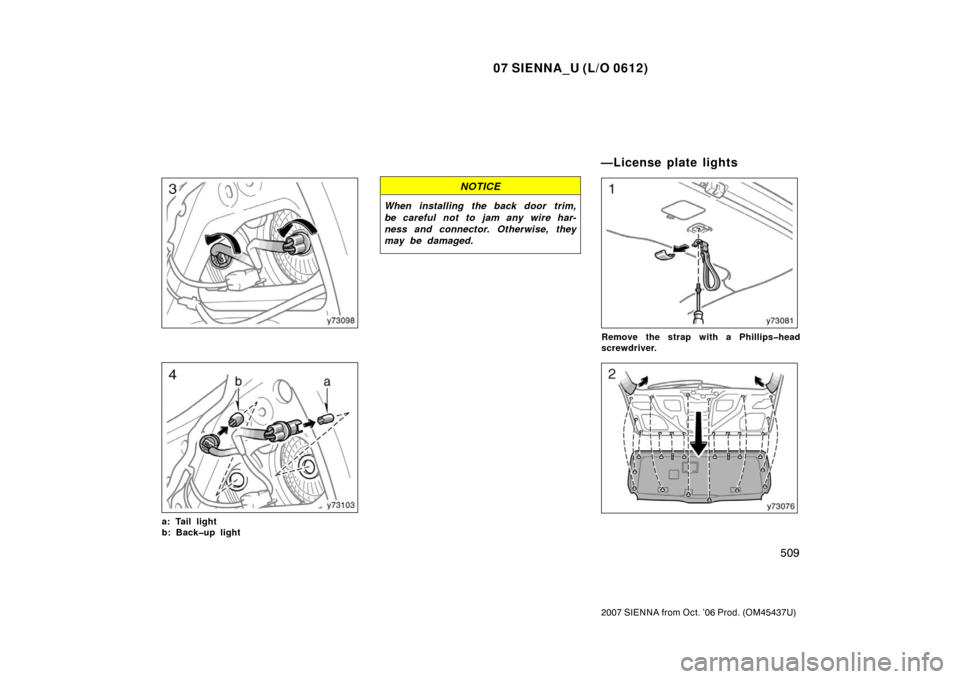

Remove the strap with a Phillipshead
screwdriver.

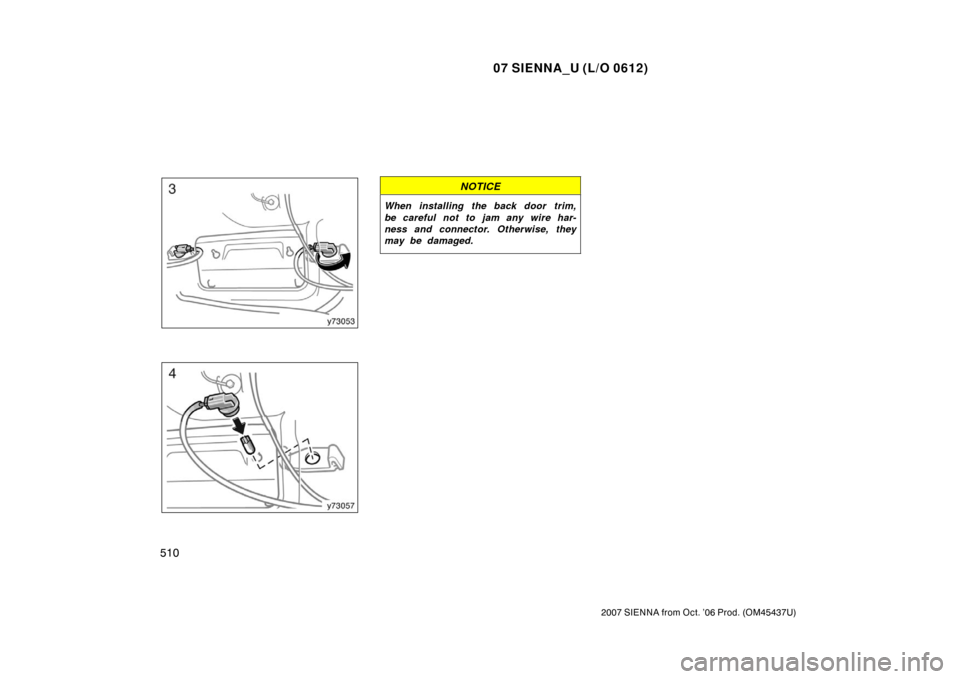

—License plate lights

07 SIENNA_U (L/O 0612)
510
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
NOTICE
When installing the back door trim,
be careful not to jam any wire har-
ness and connector. Otherwise, they
may be damaged.

07 SIENNA_U (L/O 0612)
511
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
SPECIFICATIONS
Specifications
Dimensions and weights512
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Total load capacity 513
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Engine 514
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 514
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 514
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 517
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 518
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

07 SIENNA_U (L/O 0612)
512
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Dimensions and weights
Overall widthmm (in.)
3030 (119.3)
Overall height
mm (in.)
1700 (66.9)
∗2
1710 (67.3)∗3
Wheelbase mm (in.)
Front tread mm (in.)1665 (65.6)
∗
2
1675 (65.9)∗3
Rear tread mm (in.)
∗
1: Unladen vehicle∗2: With P215/65R16 tires∗3: With P225/60R17 tires
Overall length mm (in.)
5105 (201.0)
1965 (77.4)
1750 (68.9)
∗
1
Towing capacity
(trailer weight + cargo weight) kg (lb.) 1587 (3500)
