2007 TOYOTA SIENNA Owners Manual

07 SIENNA_U (L/O 0612)
161
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Canada only
Ty p e B

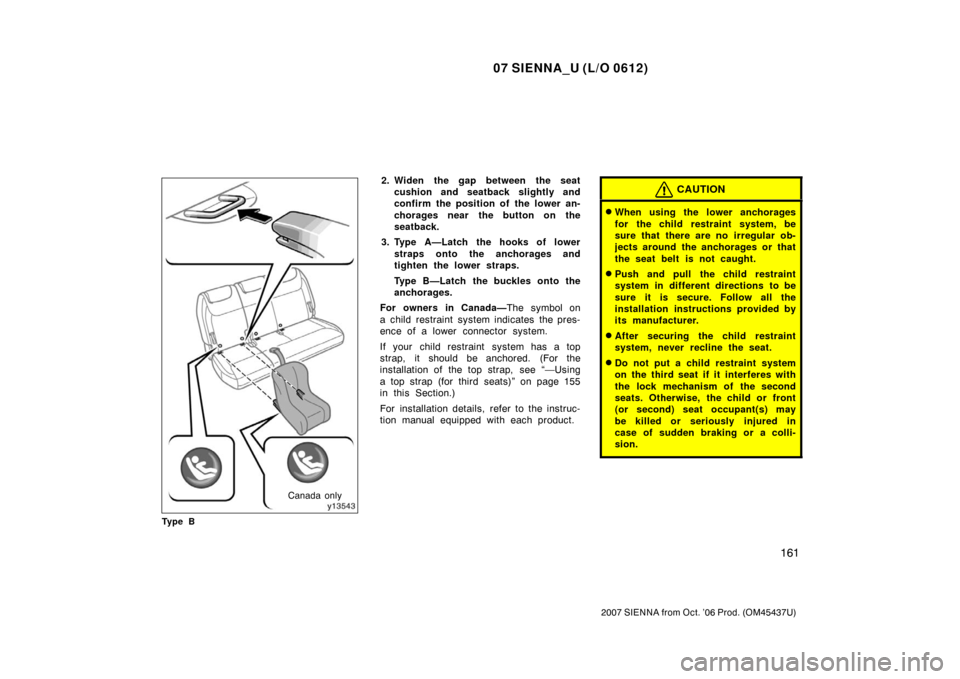

2. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap (for third seats)” on page 155
in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never recline the seat.
Do not put a child restraint system
on the third seat if it interferes with
the lock mechanism of the second
seats. Otherwise, the child or front
(or second) seat occupant(s) may
be killed or seriously injured in
case of sudden braking or a colli-
sion.

07 SIENNA_U (L/O 0612)
162
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

07 SIENNA_U (L/O 0612)
163
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt and telescopic steering wheel164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 167
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 167
. . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 4

07 SIENNA_U (L/O 0612)
164
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

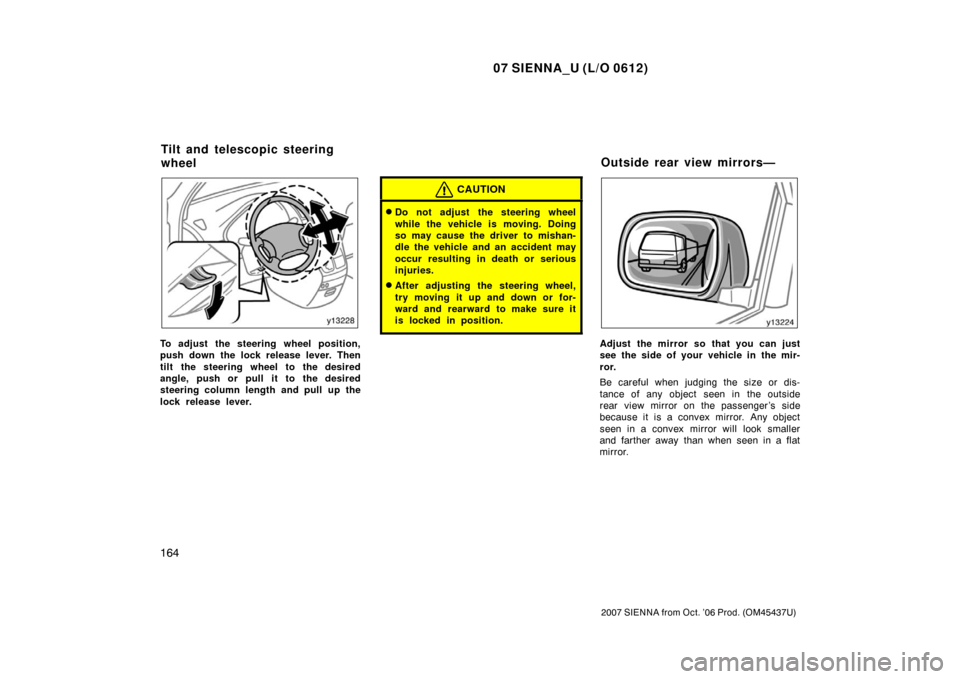

To adjust the steering wheel position,
push down the lock release lever. Then
tilt the steering wheel to the desired
angle, push or pull it to the desired
steering column length and pull up the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down or for-
ward and rearward to make sure it
is locked in position.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
Tilt and telescopic steering
wheelOutside rear view mirrors—

07 SIENNA_U (L/O 0612)
165
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Vehicles with the auto anti−glare inside
rear view mirror—On some models, when
the inside rear view mirror surface dark-
ens in “AUTO” mode, the outside rear
view mirror surface also darkens to re-
duce the reflection of the headlights of the
vehicle behind you. (For details, see “Auto
anti −glare inside rear view mirror” on page
167 in this Section.)
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface. (See “Rear
window and outside rear view mirror de-
foggers and windshield wiper de −icer” on
page 184 in Section 1 −5.)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is
on.
Ty p e A
Ty p e B

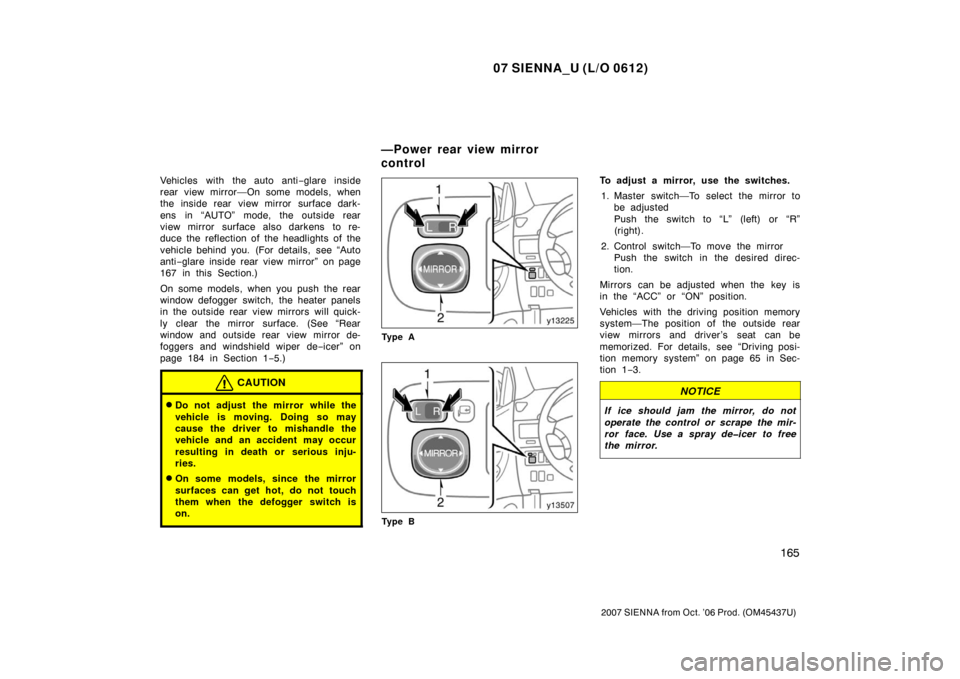

To adjust a mirror, use the switches.
1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
Vehicles with the driving position memory
system—The position of the outside rear
view mirrors and driver’s seat can be
memorized. For details, see “Driving posi-
tion memory system” on page 65 in Sec-
tion 1 −3.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

07 SIENNA_U (L/O 0612)
166
2007 SIENNA from Oct. ’06 Prod. (OM45437U)
Ty p e A
Ty p e B

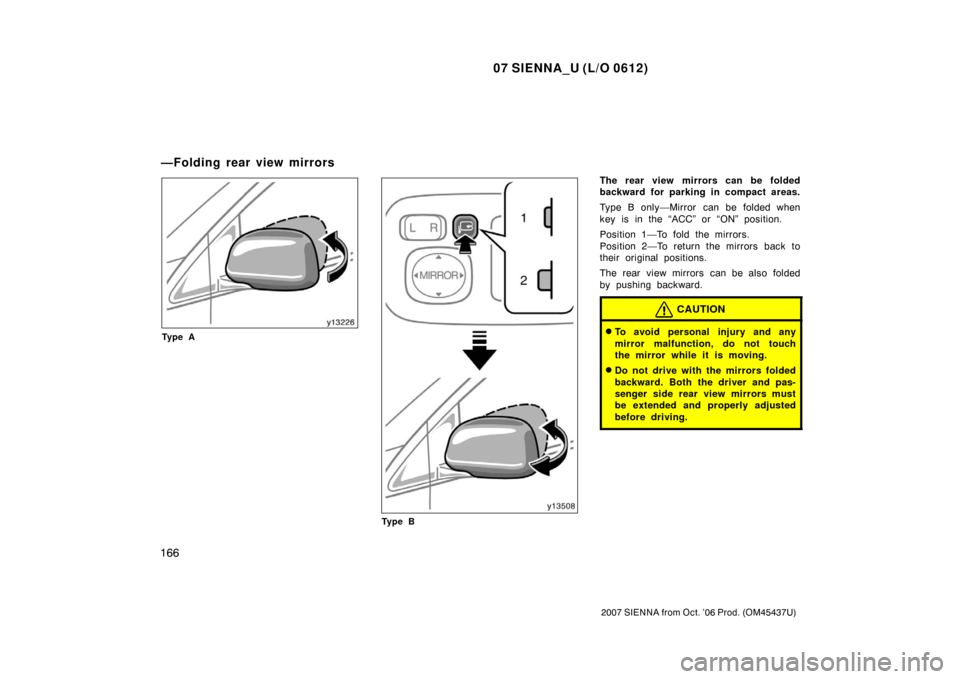

The rear view mirrors can be folded
backward for parking in compact areas.
Type B only—Mirror can be folded when
key is in the “ACC” or “ON” position.
Position 1—To fold the mirrors.
Position 2—To return the mirrors back to
their original positions.
The rear view mirrors can be also folded
by pushing backward.
CAUTION
To avoid personal injury and any
mirror malfunction, do not touch
the mirror while it is moving.
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
—Folding rear view mirrors

07 SIENNA_U (L/O 0612)
167
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

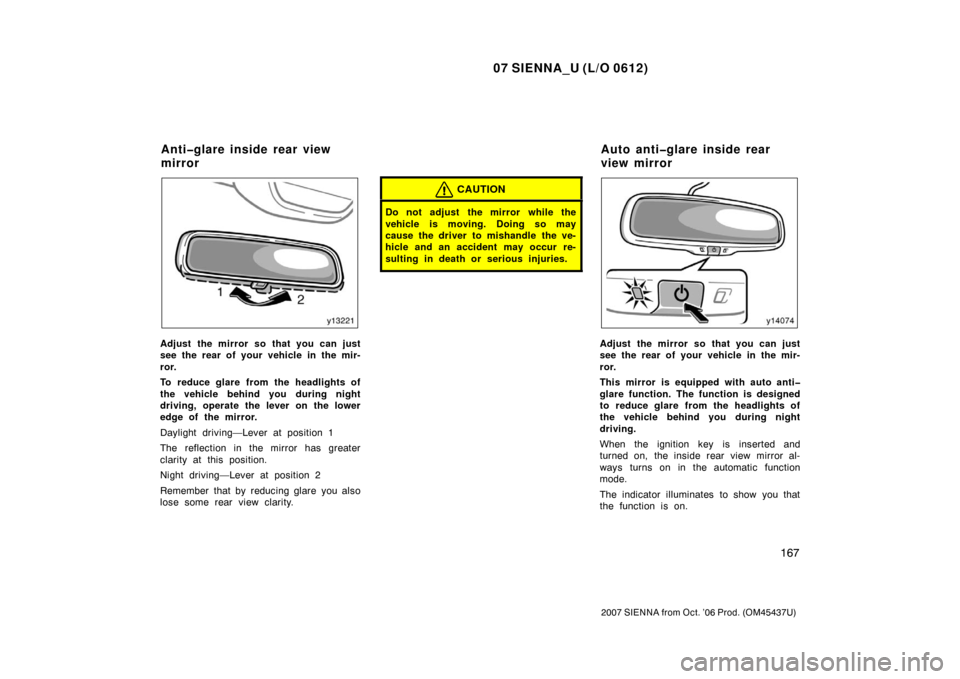

Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.
Antiglare inside rear view
mirrorAuto antiglare inside rear
view mirror

07 SIENNA_U (L/O 0612)
168
2007 SIENNA from Oct. ’06 Prod. (OM45437U)

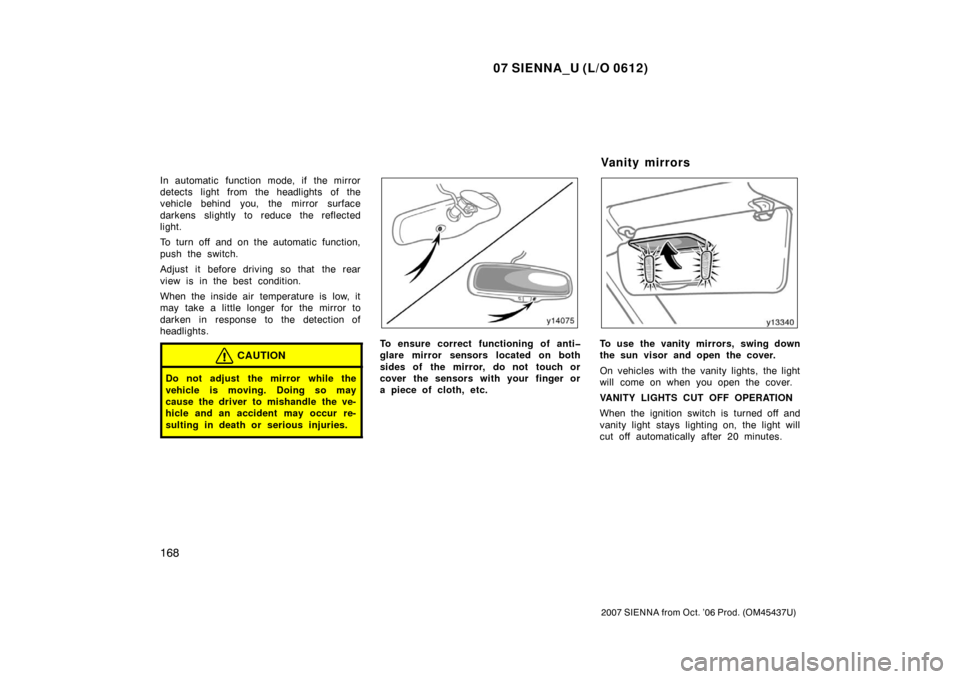

In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off and on the automatic function,
push the switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
To ensure correct functioning of anti
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.To use the vanity mirrors, swing down
the sun visor and open the cover.
On vehicles with the vanity lights, the light
will come on when you open the cover.
VANITY LIGHTS CUT OFF OPERATION
When the ignition switch is turned off and
vanity light stays lighting on, the light will
cut off automatically after 20 minutes.
Vanity mirrors
