2007 TOYOTA LAND CRUISER Owners Manual

43
4. Remove the seat hook covers fromthe back of the seat cushion, and
install them over the seat hooks.
CAUTION
Be sure to apply the covers on the
seat hooks, or you may get burned
when they become hot.
When returning the second seat to its
original position, remove the seat hook
covers from the floor and install them in
the back of the seat cushion.
WHEN RETURNING THE SECOND SEAT
If you cannot raise the seatback be-
cause of the locked seat belt, do not
try it hard. Release the lock of the seat
belt in the following way. Push in the
lower front edge of the seatback cush-
ion to slacken the seat belt (1) and let
the seat belt retract a little (2).
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback
and by trying to pull up the edge
of the bottom cushion. Failure to
do so will prevent seat belt from
operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.

44
—Adjusting third seats
SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever toward
you. Then lean back to the desired
angle and release the lever.
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
third seat passengers are sitting up
straight and well back in the seats.
If you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdo-
men or your neck may contact the
shoulder belt. In the event of a
frontal collision, the more the seat
is reclined, the greater the risk of
death or personal injury.
Do not adjust the seat while the
vehicle is moving.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
—Tumbling third seats
I13377b
BEFORE TUMBLING THIRD SEAT1. Stow the third seat belt and buckles as shown in the illustration.
This prevents the seat belt and buckles
from falling out when you tumble the third
seat.
NOTICE
The seat belt and buckles must be
stowed before you tumble the third
seat.

45
I13262c
2. Make sure the shoulder belt passes
through the hanger when folding the
third seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
TUMBLING THIRD SEAT 1. Lower the head restraint to the low- est position. Unlock the seatback
and fold it down.
Tumbling the third seats will enlarge the
luggage compartment. See “Cargo and
luggage” on page 257 for precautions
when loading luggage.2. Unlock the seat cushion and slide the whole seat to the rearmost
position while pulling up the handle.

4613c557a

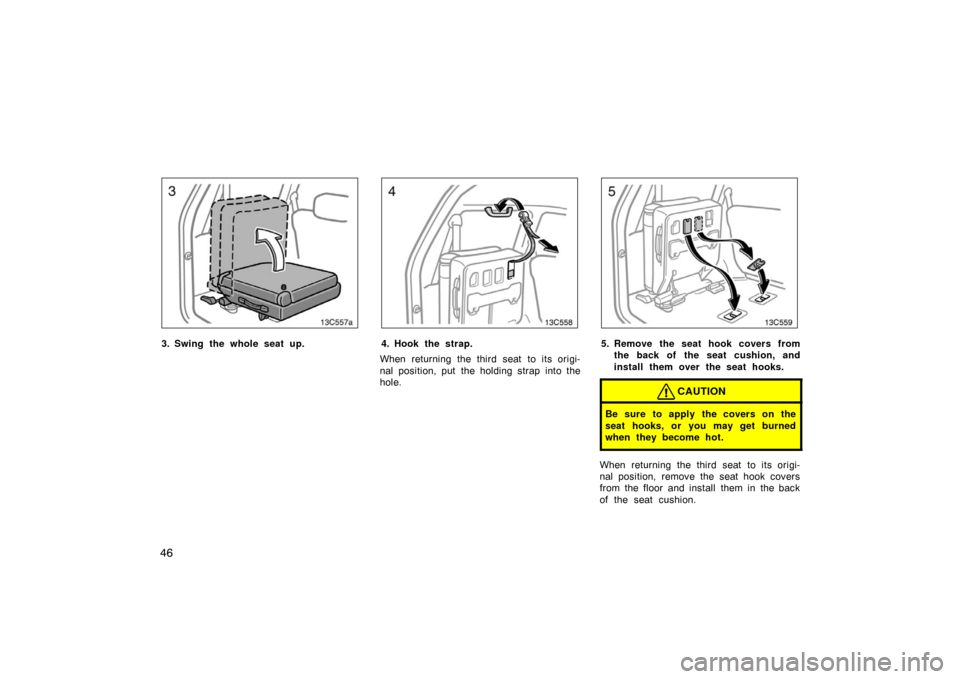

3. Swing the whole seat up.
13c558
4. Hook the strap.
When returning the third seat to its origi-
nal position, put the holding strap into the
hole.
13c559
5. Remove the seat hook covers from the back of the seat cushion, and
install them over the seat hooks.
CAUTION
Be sure to apply the covers on the
seat hooks, or you may get burned
when they become hot.
When returning the third seat to its origi-
nal position, remove the seat hook covers
from the floor and install them in the back
of the seat cushion.

47
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback
and by trying to pull up the edge
of the bottom cushion. Be certain
to replace head restraint. Failure to
do so will prevent seat belt from
operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
—Removing third seats

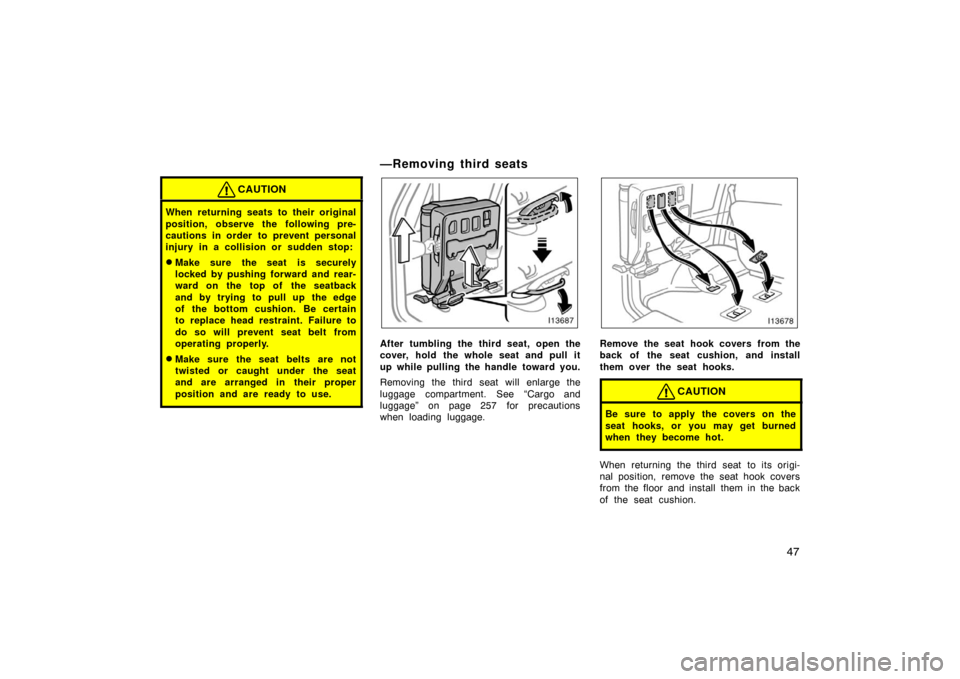

After tumbling the third seat, open the
cover, hold the whole seat and pull it
up while pulling the handle toward you.
Removing the third seat will enlarge the
luggage compartment. See “Cargo and
luggage” on page 257 for precautions
when loading luggage.Remove the seat hook covers from the
back of the seat cushion, and install
them over the seat hooks.
CAUTION
Be sure to apply the covers on the
seat hooks, or you may get burned
when they become hot.
When returning the third seat to its origi-
nal position, remove the seat hook covers
from the floor and install them in the back
of the seat cushion.

48
CAUTION
When removing or reinstalling the
seat, observe the following precau-
tions to prevent personal injury:
Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
After tumbling or installing the
seat, push it forward and backward
to make sure it is locked in posi-
tion.
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat
loose in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
When reinstalling the seat, be care-
ful not to hit the seat against you
or inside of the vehicle.
Install each seat in the same posi-
tion from which it was removed.
Failure to do so will prevent third
seat occupants from using seat
belts properly.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat legs may be damaged and the
seat cannot be reinstalled.

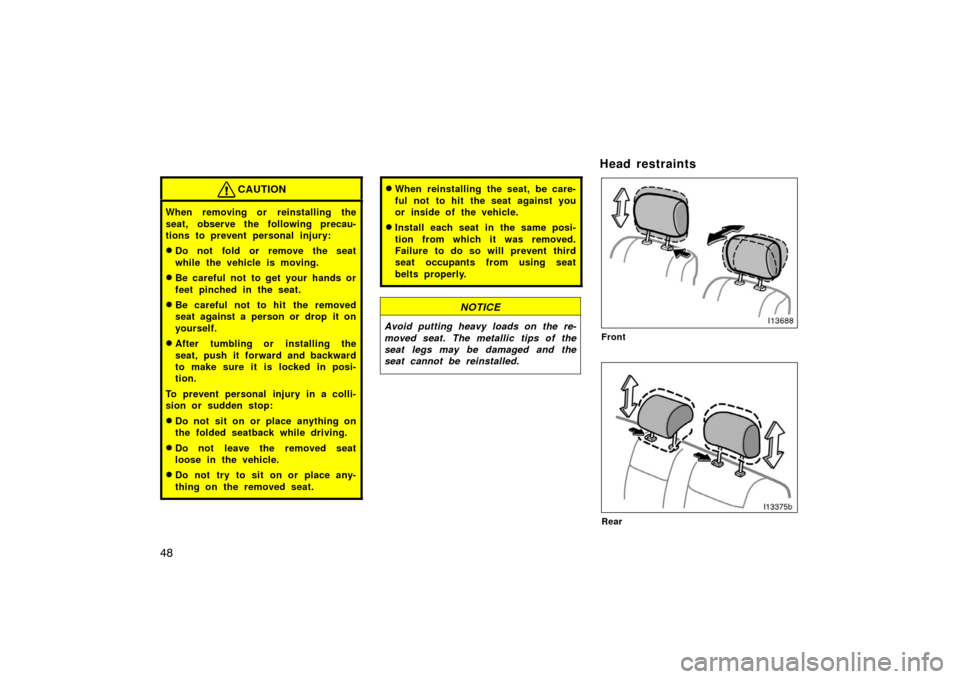

Head restraints
Front
I13375b
Rear

49
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraint only—You can also
move the head restraint forward or back-
ward. If such adjustment is desired, pull
or push the head restraint.
Rear center head restraint—When an oc-
cupant sits on the rear center seat, al-
ways pull up the rear center head re-
straint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.

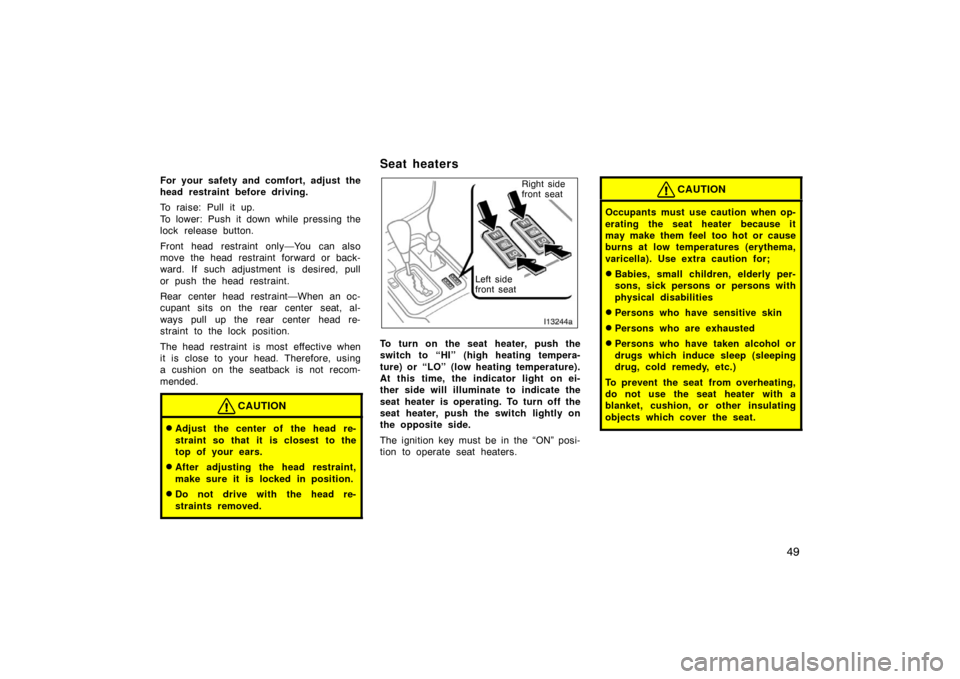

Seat heaters
Left side
front seatRight side
front seat
To turn on the seat heater, push the
switch to “HI” (high heating tempera-
ture) or “LO” (low heating temperature).
At this time, the indicator light on ei-
ther side will illuminate to indicate the
seat heater is operating. To turn off the
seat heater, push the switch lightly on
the opposite side.
The ignition key must be in the “ON” posi-
tion to operate seat heaters.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat from overheating,
do not use the seat heater with a
blanket, cushion, or other insulating
objects which cover the seat.

50
NOTICE
Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. (For details, see
“Child restraint” on page 83.)
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
Seat belts—
—Seat belt precautions
