2007 TOYOTA LAND CRUISER Owners Manual

19
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knob
are in the lock position.
Closing the side door with the lock knob
in the lock position will also lock the side
door. Be careful not to lock your keys in
the vehicle.
Front side doors cannot be locked when
either front side door is open and the key
is in the ignition.
l12093a
Driver’s side
l12046a
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
All the side doors and back door lock or
unlock simultaneously.
When the front doors are locked from the
outside or locked with the wireless remote
control key, the power door lock switch
will not work until the either front door is
unlocked with the key, lock knob, or wire-
less remote control key.

20

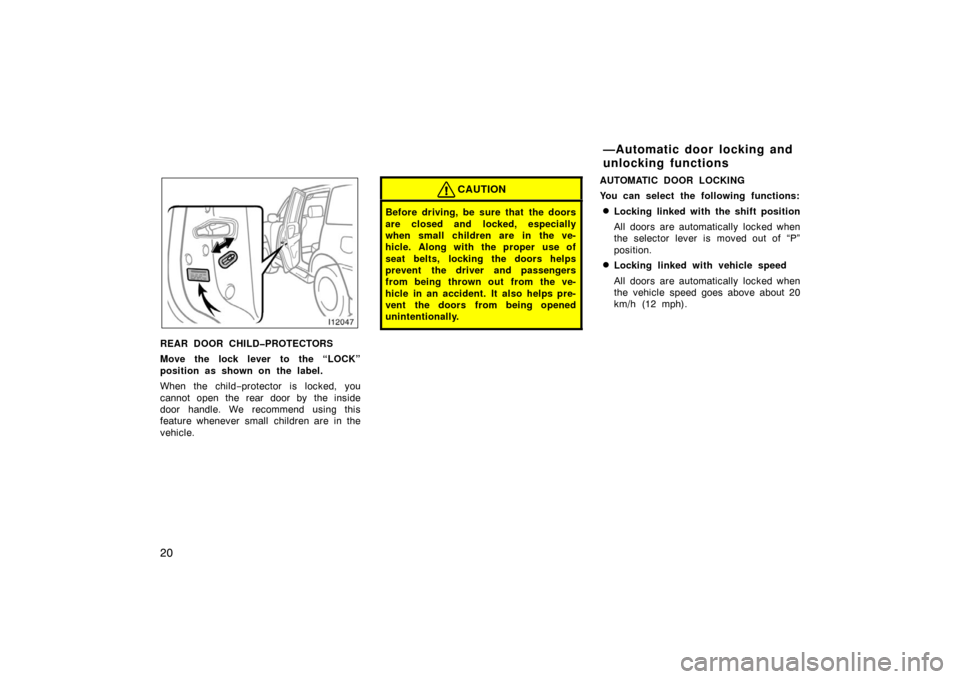

REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
AUTOMATIC DOOR LOCKING
You can select the following functions:
Locking linked with the shift position
All doors are automatically locked when
the selector lever is moved out of “P”
position.
Locking linked with vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
—Automatic door locking and
unlocking functions

21
You can set or cancel the automatic
door locking functions:
Be sure to apply the parking brake when
performing the following operations.
To select the locking linked with the
shift position:1. Close all doors and turn the ignition switch to the “ON” position.
2. Shift the selector lever to the “P” posi- tion.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the lock position for 5
seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. To select the locking linked with the
vehicle speed:
1. Close all doors and turn the ignition switch to the “ON” position.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the lock position for 5
seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. AUTOMATIC DOOR UNLOCKING
You can select the following functions:
Unlocking linked with the shift posi-
tion
All doors are automatically unlocked
when the selector lever is moved to
“P” position.
Unlocking linked with the ignition
switch
All doors are automatically unlocked
when the the driver ’s door is opened
within 10 seconds after the ignition
switch is turned to the “ACC” or
“LOCK” position, or the key is re-
moved.

22
You can set or cancel the automatic
unlocking functions:
Be sure to apply the parking brake when
performing the following operations.
To select the unlocking linked with the
shift position:1. Close all doors and turn the ignition switch to the “ON” position.
2. Shift the selector lever to the “P” posi- tion.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the unlock position for
5 seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. To select the unlocking linked with the
ignition switch:
1. Close all doors and turn the ignition switch to the “ON” position.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the unlock position for
5 seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
Power windows
12C010a
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.

23

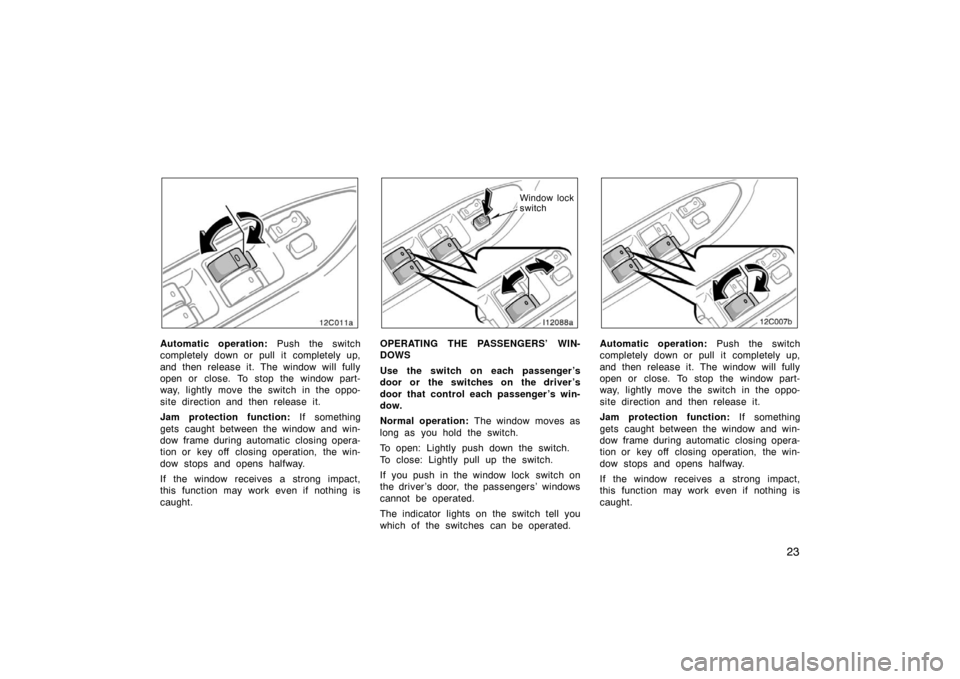

12C011a
Automatic operation:
Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: If something
gets caught between the window and win-
dow frame during automatic closing opera-
tion or key off closing operation, the win-
dow stops and opens halfway.
If the window receives a strong impact,
this function may work even if nothing is
caught.
l12088a
Window lock
switch
OPERATING THE PASSENGERS’ WIN-
DOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
The indicator lights on the switch tell you
which of the switches can be operated.
12C007b
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: If something
gets caught between the window and win-
dow frame during automatic closing opera-
tion or key off closing operation, the win-
dow stops and opens halfway.
If the window receives a strong impact,
this function may work even if nothing is
caught.

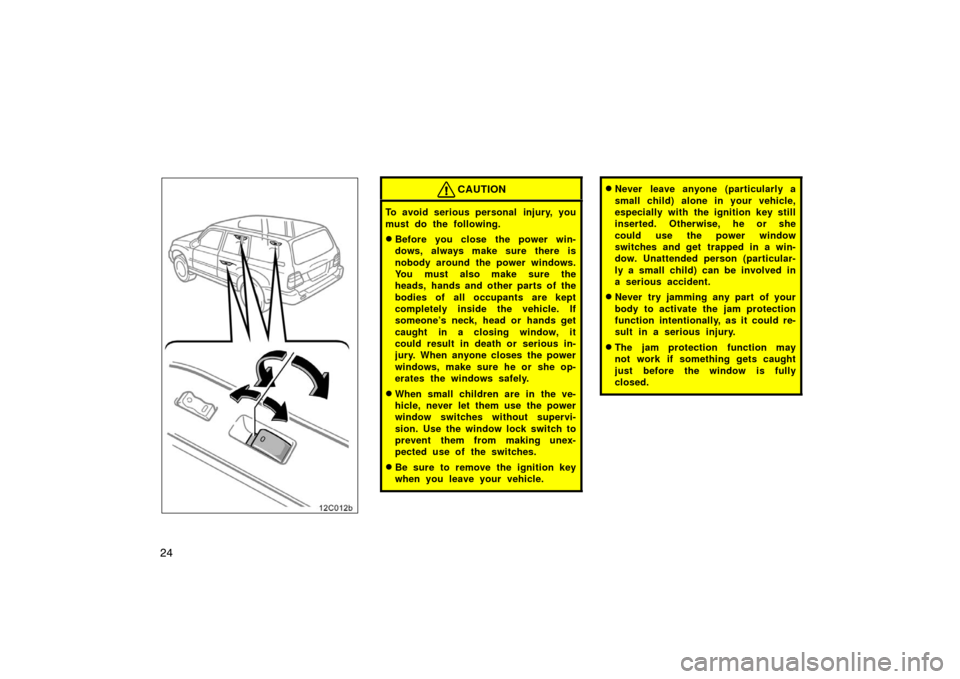

2412c012b
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he or she
could use the power window
switches and get trapped in a win-
dow. Unattended person (particular-
ly a small child) can be involved in
a serious accident.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

25

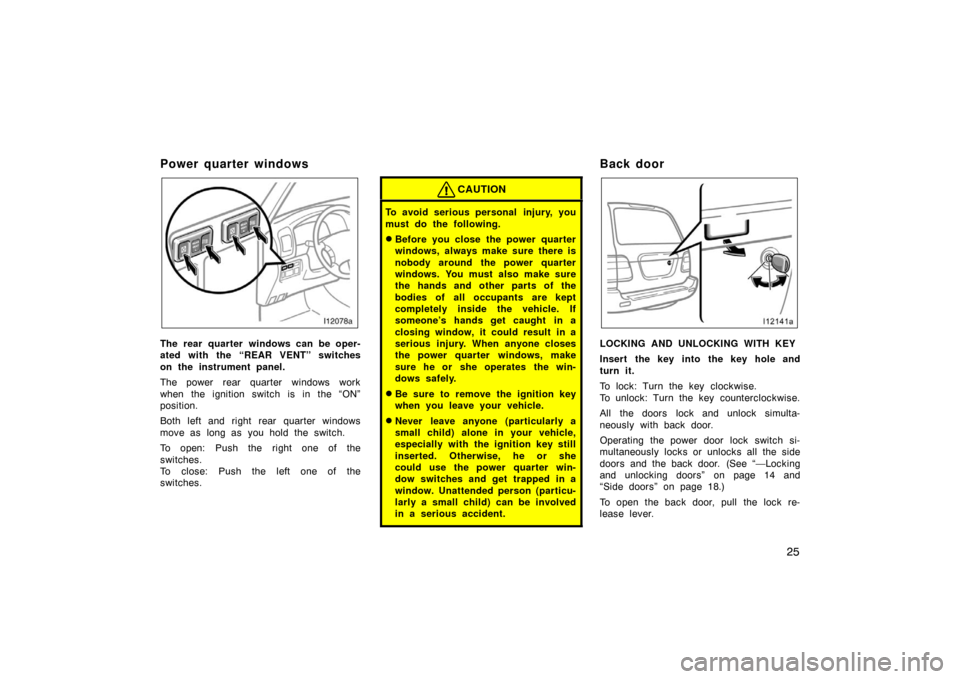

Power quarter windows
The rear quarter windows can be oper-
ated with the “REAR VENT” switches
on the instrument panel.
The power rear quarter windows work
when the ignition switch is in the “ON”
position.
Both left and right rear quarter windows
move as long as you hold the switch.
To open: Push the right one of the
switches.
To close: Push the left one of the
switches.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power quarter
windows, always make sure there is
nobody around the power quarter
windows. You must also make sure
the hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s hands get caught in a
closing window, it could result in a
serious injury. When anyone closes
the power quarter windows, make
sure he or she operates the win-
dows safely.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he or she
could use the power quarter win-
dow switches and get trapped in a
window. Unattended person (particu-
larly a small child) can be involved
in a serious accident.
Back door
LOCKING AND UNLOCKING WITH KEY
Insert the key into the key hole and
turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
All the doors lock and unlock simulta-
neously with back door.
Operating the power door lock switch si-
multaneously locks or unlocks all the side
doors and the back door. (See “—Locking
and unlocking doors” on page 14 and
“Side doors” on page 18.)

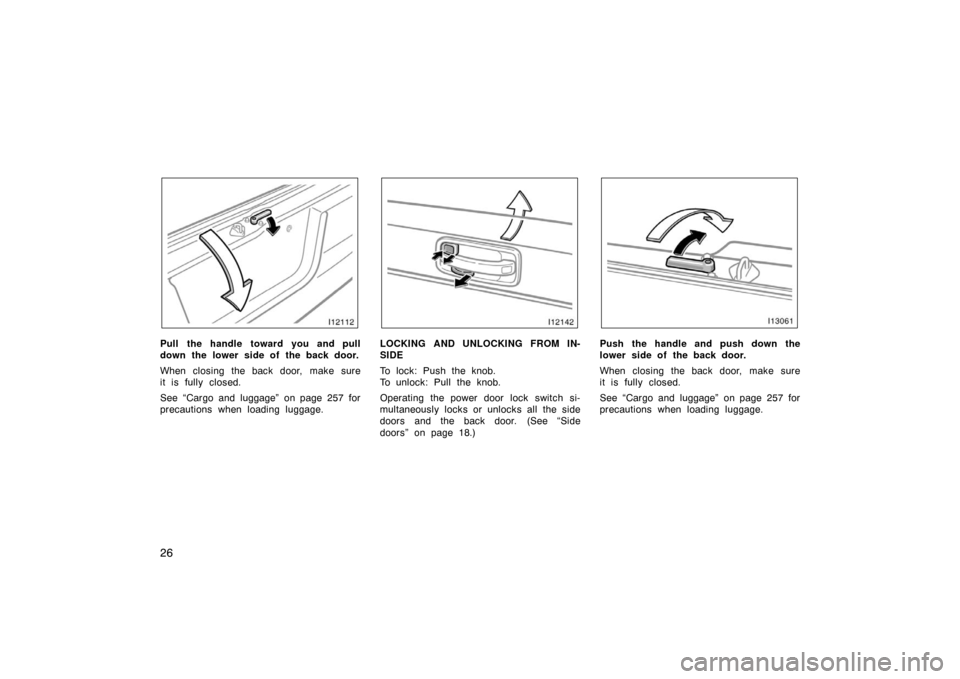

To open the back door, pull the lock re-
lease lever.

26
Pull the handle toward you and pull
down the lower side of the back door.
When closing the back door, make sure
it is fully closed.
See “Cargo and luggage” on page 257 for
precautions when loading luggage.LOCKING AND UNLOCKING FROM IN-
SIDE
To lock: Push the knob.
To unlock: Pull the knob.
Operating the power door lock switch si-
multaneously locks or unlocks all the side
doors and the back door. (See “Side
doors” on page 18.)Push the handle and push down the
lower side of the back door.
When closing the back door, make sure
it is fully closed.
See “Cargo and luggage” on page 257 for
precautions when loading luggage.
