2007 TOYOTA LAND CRUISER Owners Manual

227
For third seats (lefthand side)
Card holder
You can store a card in the slot as
shown in the illustration.
Tiedown hooks
To secure your luggage, use the tie
down hooks as shown above.
See “Cargo and luggage” on page 257 for
precautions when loading luggage.
NOTICE
Do not use the seat anchors instead
of the tiedown hooks.

228

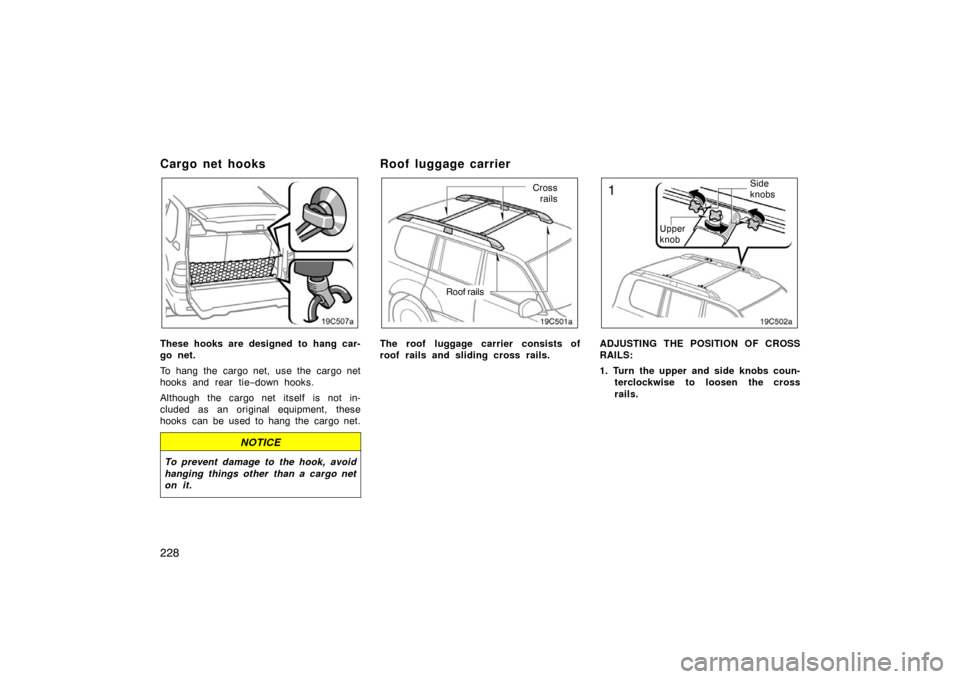

Cargo net hooks
These hooks are designed to hang car-
go net.
To hang the cargo net, use the cargo net
hooks and rear tie−down hooks.
Although the cargo net itself is not in-
cluded as an original equipment, these
hooks can be used to hang the cargo net.
NOTICE
To prevent damage to the hook, avoid
hanging things other than a cargo net
on it.
Roof luggage carrier
Roof rails
Cross rails
The roof luggage carrier consists of
roof rails and sliding cross rails.
Side
knobs
Upper
knob
ADJUSTING THE POSITION OF CROSS
RAILS:
1. Turn the upper and side knobs coun- terclockwise to loosen the cross
rails.

229
2. Slide the cross rails to the appropri-ate position for loading the luggages
and turn the side knobs clockwise to
tighten the cross rails securely.
There are cross rail stoppers on the roof
rails which help you prevent the cross
rails being touched with the tilted up moon
roof.
NOTICE
Do not remove the cross rail stop-
pers, or the moon roof may be dam-
aged when it is tilted.
3. In order to fix the cross rails to the appropriate length, turn the upper
knobs clockwise after tightening all
of the side knobs.
CAUTION
Make sure the cross rails are fixed
securely by pushing forward and rear-
ward them. Failure to do so may
cause an unexpected accident or se-
vere injury in the event of emergency
braking or a collision.
Follow the manufacturer ’s instructions and
precautions when installing the attach-
ments or their equivalent.
CAUTION
When you load cargo on the roof lug-
gage carrier, observe the following:
Place the cargo so that its weight
is distributed evenly between the
front and rear axles.
If loading long or wide cargo, never
exceed the vehicle overall length or
width. (See “Dimensions and
weights” on page 350 for informa-
tion on your vehicle overall length
and width.)
Before driving, make sure the cargo
is securely fastened on the roof
luggage carrier.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.

230
If driving for a long distance, on
rough roads, or at high speeds,
stop the vehicle now and then dur-
ing the trip to make sure the cargo
remains in its place.
Do not exceed 70 kg (154 lb.) cargo
weight on the roof luggage carrier.
NOTICE
When loading the luggages, be careful
not to scratch the surface of the
moon roof.

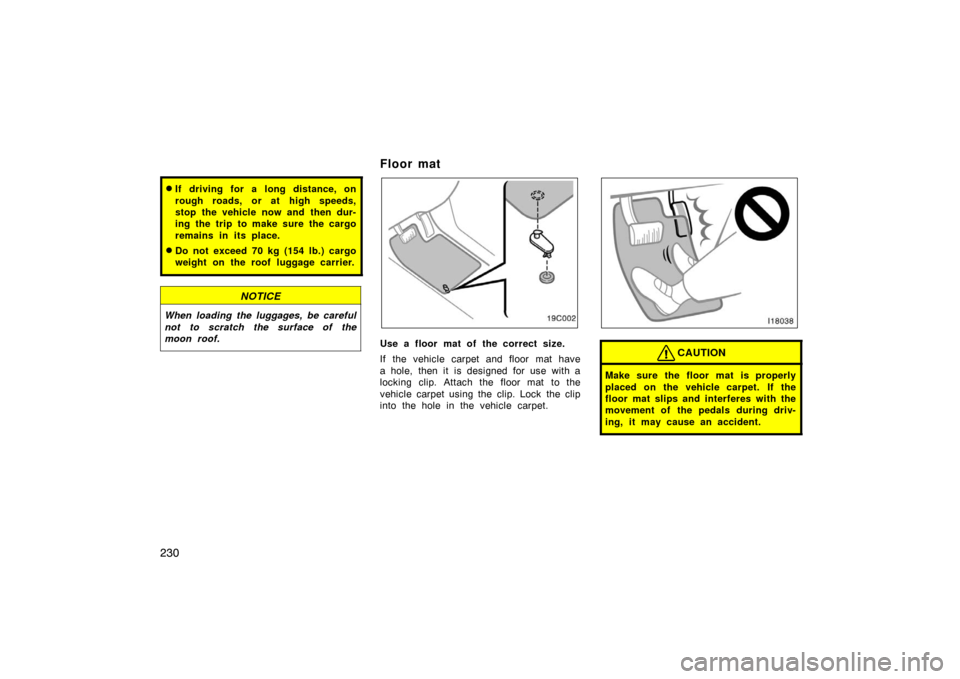

Floor mat
Use a floor mat of the correct size.
If the vehicle carpet and floor mat have
a hole, then it is designed for use with a
locking clip. Attach the floor mat to the
vehicle carpet using the clip. Lock the clip
into the hole in the vehicle carpet.CAUTION
Make sure the floor mat is properly
placed on the vehicle carpet. If the
floor mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.

231

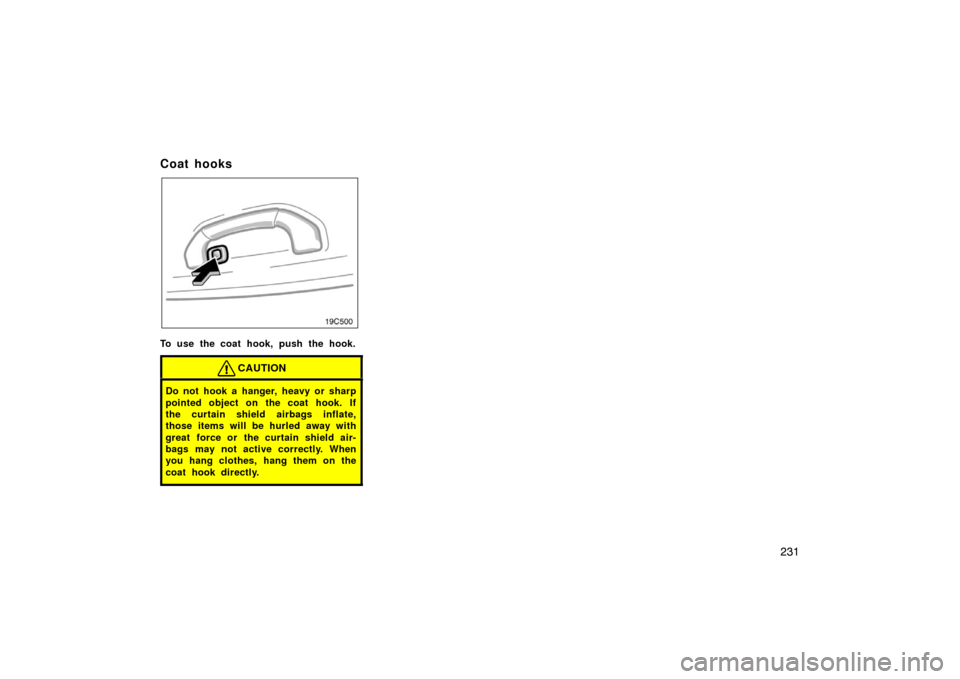

Coat hooks
To use the coat hook, push the hook.
CAUTION
Do not hook a hanger, heavy or sharp
pointed object on the coat hook. If
the curtain shield airbags inflate,
those items will be hurled away with
great force or the curtain shield air-
bags may not active correctly. When
you hang clothes, hang them on the
coat hook directly.

232

233
INFORMATION BEFORE DRIVING
YOUR TOYOTA
Information before driving your Toyota
Off−road vehicle precautionss 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Break −in period 235
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Fuel 235
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 237
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 237
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three −way catalytic converter 238
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 240
. . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium −tipped spark plugs 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 245
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear step bumper 245
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Limited −slip differential 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Your Toyota’s identification 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 247
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 247
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Tire information 248
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Vehicle load limits 256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Cargo and luggage 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Types of tires 260
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

234

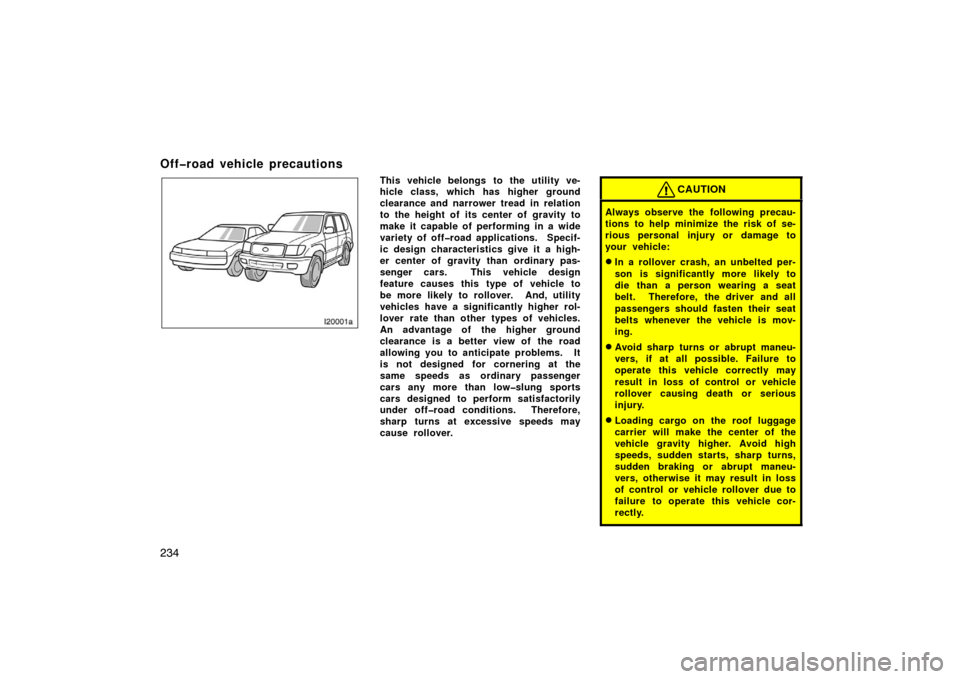

Offroad vehicle precautions
This vehicle belongs to the utility ve-
hicle class, which has higher ground
clearance and narrower tread in relation
to the height of its center of gravity to
make it capable of performing in a wide
variety of offroad applications. Specif-
ic design characteristics give it a high-
er center of gravity than ordinary pas-
senger cars. This vehicle design
feature causes this type of vehicle to
be more likely to rollover. And, utility
vehicles have a significantly higher rol-
lover rate than other types of vehicles.
An advantage of the higher ground
clearance is a better view of the road
allowing you to anticipate problems. It
is not designed for cornering at the
same speeds as ordinary passenger
cars any more than lowslung sports
cars designed to perform satisfactorily
under offroad conditions. Therefore,
sharp turns at excessive speeds may
cause rollover.CAUTION
Always observe the following precau-
tions to help minimize the risk of se-
rious personal injury or damage to
your vehicle:
In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mov-
ing.
Avoid sharp turns or abrupt maneu-
vers, if at all possible. Failure to
operate this vehicle correctly may
result in loss of control or vehicle
rollover causing death or serious
injury.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
