2007 TOYOTA LAND CRUISER Owners Manual

155
If the vehicle is going to skid during driv-
ing, the slip indicator light flashes and an
alarm sounds intermittently.
When you turn the ignition switch on, the
slip indicator light will come on. The slip
indicator light will go off after a few sec-
onds.Pushing the center differential lock button
automatically turns the vehicle stability
control system off. At this time, the “VSC
OFF” indicator comes on with the center
differential lock indicator light. (For details,
see “Four−wheel drive system—(a)Four −
wheel drive control” on page 149.)Vehicle stability control system failure
warning
These lights warn when there is a prob-
lem somewhere in the vehicle stability
control system or active traction control
system.
If the “VSC/TRAC” warning light and “VSC
OFF” indicator light come on, have your
vehicle checked by your Toyota dealer as
soon as possible. However, there is no
problem if the “VSC/TRAC” warning light
comes on when the brake actuator tem-
perature becomes high. (For details, see
“Active traction control system” on page
152.)

156
When the “ABS” warning light comes on,
the vehicle stability control system is not
operating.
The “VSC/TRAC” warning light and “VSC
OFF” indicator light will come on when the
ignition key is turned “ON”, and will go off
after a few seconds.
The “VSC/TRAC” warning light and “VSC
OFF” indicator light may stay on for 60
seconds after the ignition key is turned to
“ON” position. It is normal if they go off
after a few seconds.
Depressing the brake pedal repeatedly
may turn on the lights. It is normal if they
go off after a few seconds.
When the “VSC/TRAC” warning light and
“VSC OFF” indicator light come on, the
vehicle stability control system is not op-
erating, but there is no problem if you
continue to drive.
In the following cases, contact your Toyota
dealer:
The “VSC/TRAC” warning light, “VSC
OFF” indicator light and slip indicator
light do not come on after the ignition
key is turned “ON”.
The “VSC/TRAC” warning light and
“VSC OFF” indicator light remain on af-
ter the ignition key is turned “ON”.
The “VSC OFF” indicator light comes
on while driving without pushing the
center differential lock switch.The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if bursts or sudden air
leakage should occur.
16C521a
The tire pressure warning light comes on
when the ignition switch is turned to the
“ON” position and goes off after a few
seconds. This means the tire pressure
warning light is operating properly. If the
tire inflation pressure becomes low, the
light comes on again. In this case, adjust-
ing the tire inflation pressure will turn off
the light after a few minutes. If the light
blinks, the tire pressure warning system is
not working properly.
Tire pressure warning system

157
IndicatorstatusMeaningsDo this
ONTire inflation
pressure is
lowAdjust the
tire inflation
pressure
BlinkingTire pres-
sure warn-
ing system
malfunctionHave the
system
checked at
your Toyota
dealer

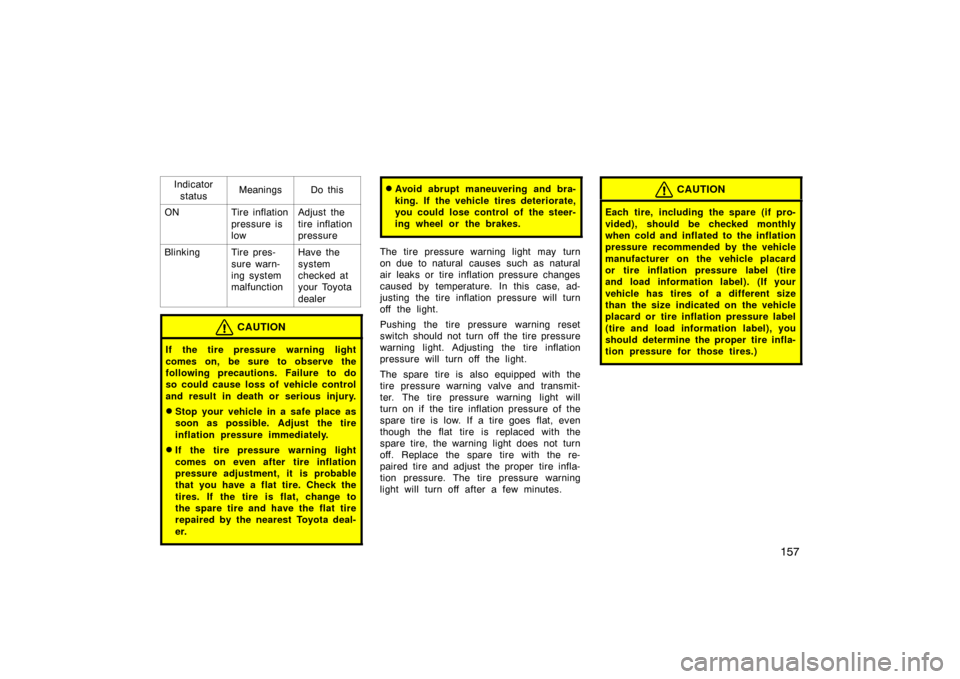

CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Toyota deal-
er.
Avoid abrupt maneuvering and bra-
king. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The spare tire is also equipped with the
tire pressure warning valve and transmit-
ter. The tire pressure warning light will
turn on if the tire inflation pressure of the
spare tire is low. If a tire goes flat, even
though the flat tire is replaced with the
spare tire, the warning light does not turn
off. Replace the spare tire with the re-
paired tire and adjust the proper tire infla-
tion pressure. The tire pressure warning
light will turn off after a few minutes.
CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)

158

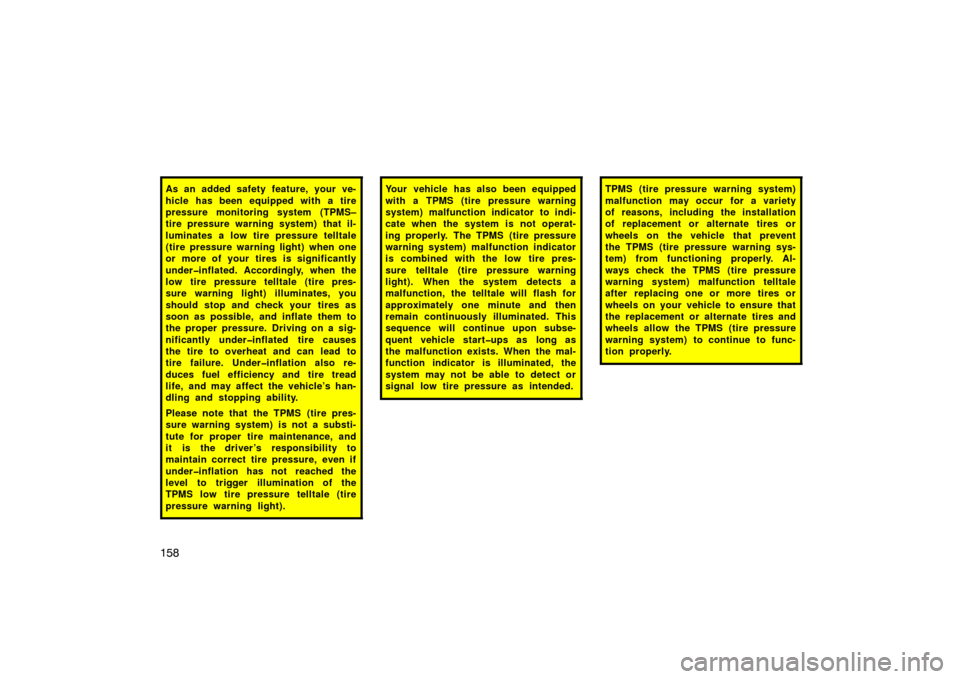

As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS–
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
underinflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (tire
pressure warning light).Your vehicle has also been equipped
with a TPMS (tire pressure warning
system) malfunction indicator to indi-
cate when the system is not operat-
ing properly. The TPMS (tire pressure
warning system) malfunction indicator
is combined with the low tire pres-
sure telltale (tire pressure warning
light). When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated. This
sequence will continue upon subse-
quent vehicle startups as long as
the malfunction exists. When the mal-
function indicator is illuminated, the
system may not be able to detect or
signal low tire pressure as intended.TPMS (tire pressure warning system)
malfunction may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS (tire pressure warning sys-
tem) from functioning properly. Al-
ways check the TPMS (tire pressure
warning system) malfunction telltale
after replacing one or more tires or
wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS (tire pressure
warning system) to continue to func-
tion properly.

159
NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.
16C522a
IF THE TIRE PRESSURE WARNING
LIGHT BLINKS...
If the tire pressure warning light blinks
when the ignition switch is turned to
the “ON” position, the tire pressure
warning system is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered.
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If the tire pressure warning select
switch is set to a different tire setting.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Toyota wheels are used.
If tire chains are used.
If the spare tire is in a location subject
to poor radio wave signal reception.
If the tire inflation pressure is 500 kpa
(5.1 kgf/cm2 or bar, 73 psi) or more
higher than the specified level.
If the tire pressure warning light blinks
frequently when the ignition switch is
turned to the “ON” position, have it
checked by your Toyota dealer.

160
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure

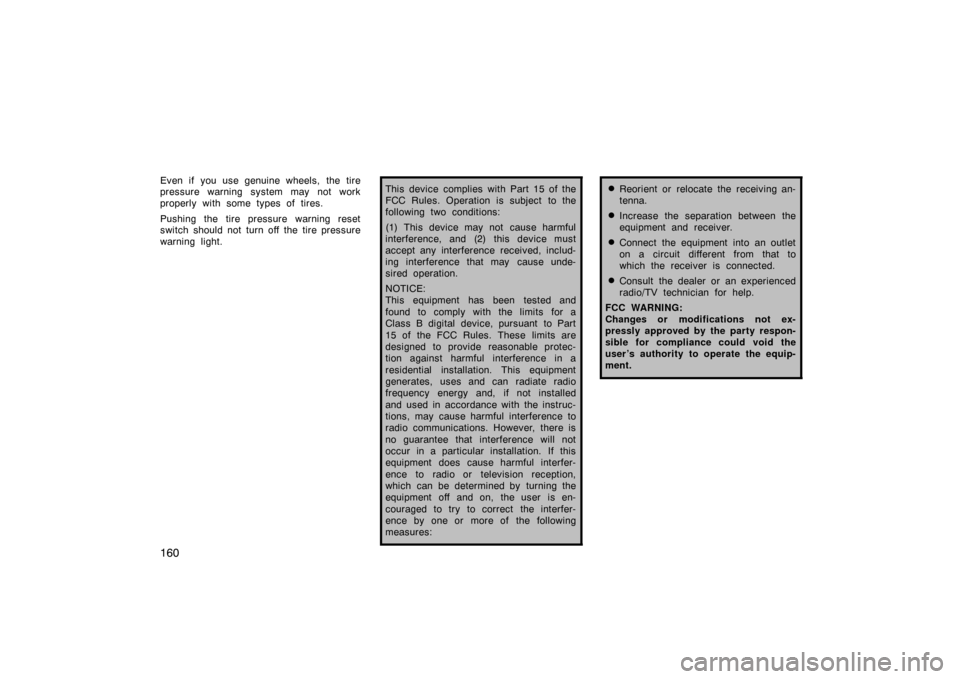

warning light.This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.

161
REPLACING TIRES AND WHEELS
When replacing the tires and wheels, be
sure to install tire pressure warning valves
and transmitters. ID codes on the tire
pressure warning valves and transmitters
are registered on the tire pressure warning
ECU. When replacing a tire pressure
warning valve and transmitter, it is neces-
sary to register the ID code of tire pres-
sure warning valve and transmitter. Have
the ID code registered by your Toyota
dealer.
If the ID code is not registered, the sys-
tem will not work properly. After about 1
hour, the tire pressure warning light blinks
to indicate a system malfunction.
NOTICE
When the tires or tire pressure warn-
ing valves and transmitters must be
replaced, have them replaced by your
Toyota dealer. The tire pressure warn-
ing valves and transmitters will be
affected by the installation or removal
of tires.
16c523
Tire pressure warning reset switch
When initializing the system, the present
tire inflation pressure is stored as stan-
dard. The tire pressure warning system
determines decreased air pressure by
comparing the present and the standard
tire inflation pressures. When you change
the set tire inflation pressure, it is neces-
sary to initialize the tire pressure warning
system.
When rotating the tires on vehicles dif-
fering with front and rear tire inflation
pressures.
When changing the tire inflation pres-
sure by changing traveling speed or
load weight, etc.
When changing the tire size.

162
To initialize the system, perform the fol-
lowing:1. Park the vehicle in a safe place and the engine is off.
2. Adjust the pressure of all the installed tires to the specified cold tire inflation
pressure level. (See “Tires” on page
354.)
3. Turn the ignition switch to the “ON” position.
4. Push and hold the tire pressure warn- ing reset switch until the tire pressure
warning light blinks slowly three times.
5. Wait for a few minutes with the ignition switch “ON”, and then turn the ignition
switch to the “OFF” position.
If you push the tire pressure reset switch
while the vehicle is moving, initialization is
not performed.
If you push the tire pressure reset switch
accidentally and initialization is performed,
adjust the tire inflation pressure to the
specified level and initialize the system
again.
16c522a
If the tire pressure warning light does not
blink slowly three times when you push
and hold the reset switch, initialization has
failed and the tire pressure warning sys-
tem may not work properly. In this case,
initialize the system again. If initialization
cannot be performed, have the system
checked at your Toyota dealer.
CAUTION
Do not push the reset switch without
first adjusting the tire inflation pres-
sure to the specified level. Other-
wise, the tire pressure warning light
may not come on even if the tire
inflation pressure is low, or it may
come on when the tire inflation pres-
sure is actually normal.
