2007 TOYOTA LAND CRUISER Owners Manual

219
Rear console box
To use the rear console box, open as
shown in the illustration.
1. For upper box
2. For lower box
Glove box
To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Garage door opener
Indicatorlight
Buttons
The garage door opener (
HomeLink
Universal Transceiver) is manufactured un-
der license from HomeLink and can be
programmed to operate garage doors,
gates, entry doors, door locks, home light-
ing systems, and security systems, etc.
(a) Programming the HomeLink

The HomeLink in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
, install a new battery in the
hand− held transmitter prior to program-
ming.

220
The battery side of the hand−held trans-
mitter must be pointed away from the
HomeLink
during the programming pro-
cess.
For Canadian users, follow the procedure
in “Programming an entrance gate/Pro-
gramming all devices in the Canadian
market”.
1. Decide which of 3 HomeLink
buttons
you want to program. Push and hold
down one of the buttons until the indi-
cator corresponding to the selected
channel begins to flash.
19C514
HomeLink
25 to 75 mm
(1 to 3 in.)
Hand −held
garage
transmitter
2. Place your hand −held garage transmit-
ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
.
Keep the indicator light on the
HomeLink
in view while programming.
19C515
3. Simultaneously press and hold the hand− held garage transmitter button
along with the selected HomeLink
but-
ton.
Do not release the buttons until step 4
has been completed.
4. When the indicator light on the HomeLink
changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.

221
19C516
5. Test the operation of the HomeLink by
pressing the newly programmed button.
If programming a garage door opener,
check to see if the garage door opens
and closes.
If the garage door does not operate,
identify if your garage transmitter is of
the “Rolling C ode” type. Press and hold
the programmed HomeLink
button.
The garage door has the rolling code
feature if the indicator light (on the
HomeLink
) flashes rapidly and then
remains lit after 2 seconds. If your
garage transmitter is the “Rolling Code”
type, proceed to the heading “Program-
ming a rolling code system”. 6. Repeat steps 2 through 5 for each re-
maining HomeLink
button to program
another device.
Programming a rolling code system
If your device is “Rolling Code”
equipped, it is necessary to follow
steps 1 through 4 under the heading
“Programming the HomeLink
” before
proceeding with the steps listed below. 1. Locate the “training” button on the ceil-
ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner ’s
guide supplied by the garage door
opener manufacturer for the location of
this “training” button.
2. Press the “training” button on the ceil- ing mounted garage door opener motor.
Following this step, you have 30 sec-
onds in which to initiate step 3 below.
3. Press and release the vehicle’s pro- grammed HomeLink
button twice.
The garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door.
The ceiling mounted garage door open-
er motor should now recognize the
HomeLink
unit and be able activate
the garage door up/down.
4. Repeat steps 1 through 3 for each re- maining HomeLink
button to program
another rolling code system.

222
Programming an entrance gate/Program-
ming all devices in the Canadian market1. Decide which of the 3 HomeLink
but-
tons you want to program.
2. Place your hand− held gate/device
transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
.
Keep the indicator light on the
HomeLink
in view while programming.
3. Press and hold the selected HomeLink
button.
4. Continuously press and release ( cycle)
the hand− held gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.
6. Test the operation of the HomeLink
by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re- maining HomeLink
button to program
another device. Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink

buttons cannot be
erased, however, to reprogram a single
button, follow the procedure “Programming
the HomeLink
”.
(b) Operating the HomeLink

To operate the HomeLink , press the ap-
propriate HomeLink button to activate the
programmed device. The HomeLink indi-
cator light should come on. The
HomeLink
continues to send the signal
for up to 20 seconds as long as the but-
ton is pressed.
19C517
(c) Erasing the entire HomeLink
memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink

memory.

223
For additional programming assistance
with your HomeLink Universal Trans-
ceiver call the:
Toyota Customer Experience Center at
1 −800− 331−4331 (U.S.A.)
Refer to HomeLink
on the internet at :
WWW.HOMELINK.COM

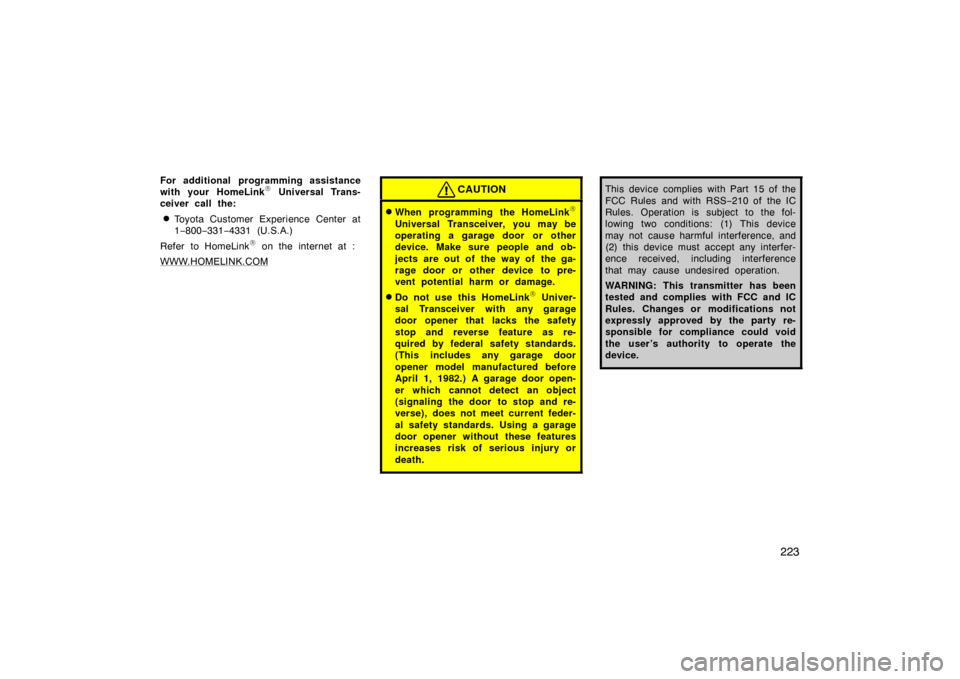

CAUTION
When programming the HomeLink
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.
This device complies with Part 15 of the
FCC Rules and with RSS −210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING: This transmitter has been
tested and complies with FCC and IC
Rules. Changes or modifications not
expressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
device.

224
Auxiliary boxes—
To use the auxiliary boxes, open as
shown in the following illustrations.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
Type A (luggage compartment)
Type B (luggage compartment)
Type C (rear console)

225
—Firstaid kit holder
An auxiliary box is equipped with a
band to hold the firstaid kit.
Although the first−aid kit itself is not in-
cluded as an original equipment, this aux-
iliary box can be used to store the first −
aid kit.
Hold the first −aid kit with a band.
Make sure the first −aid kit is securely
held.
—Warning reflector holder
An auxiliary box is equipped with a
band to hold the warning reflector.
Although the warning reflector itself is not
included as an original equipment, this
auxiliary box can be used to store the
warning reflector.
Hold the warning reflector kit with a band.
Make sure the warning reflector is secure-
ly held.
Cup holders
The cup holder is designed for holding
cups or drinkcans securely. To use
them, observe the following illustra-
tions.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during a sudden braking or
an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder closed when it is not in use.

226
For front seats
The cup holder can be adjusted to the
size of cups by changing the separator
position or moving the separator arms.
You can use it as an accessory box by
removing the separator inside.
19C008
For front seat
To use a cup holder in the console box.1. Open the console box lid. Pull down the knob so that the cup holder swings
down.
2. While holding the console box lid with your hand, push down the cup holder
to be secured.
NOTICE
When you use the cup holder in the
console box, make sure it is se-
curely locked.
 Do not rest your arm on the cup
holder in the console box.
 Wipe up spilt drink at once.
For second seats
For third seats (righthand side)
