2007 TOYOTA LAND CRUISER Owners Manual

91
13c565

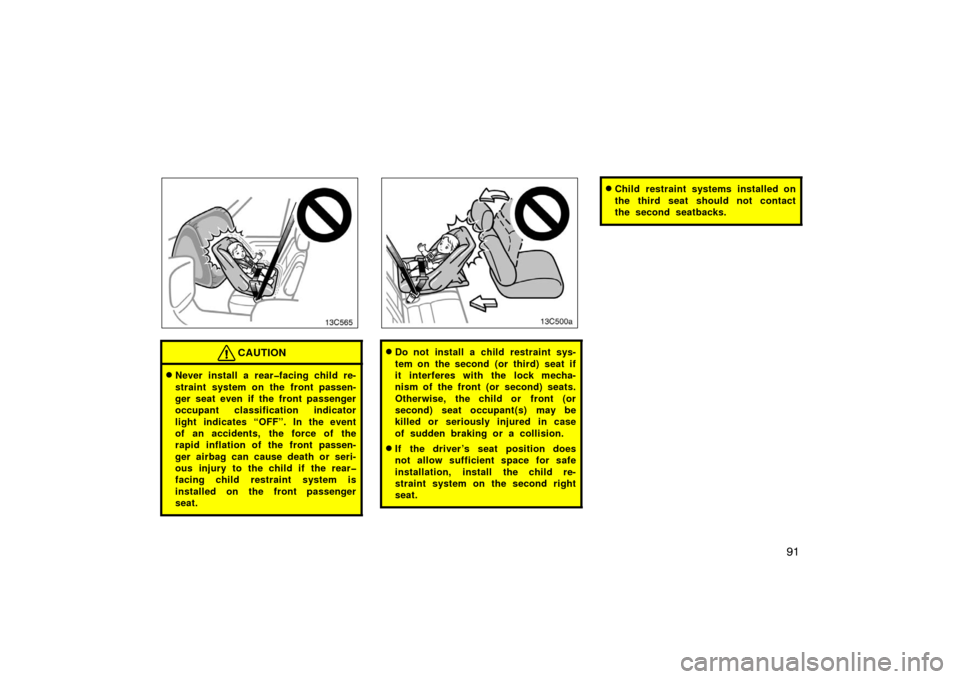

CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the front passenger
occupant classification indicator
light indicates “OFF”. In the event
of an accidents, the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child if the rear
facing child restraint system is
installed on the front passenger
seat.
Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mecha-
nism of the front (or second) seats.
Otherwise, the child or front (or
second) seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the second right
seat.
Child restraint systems installed on
the third seat should not contact
the second seatbacks.

92

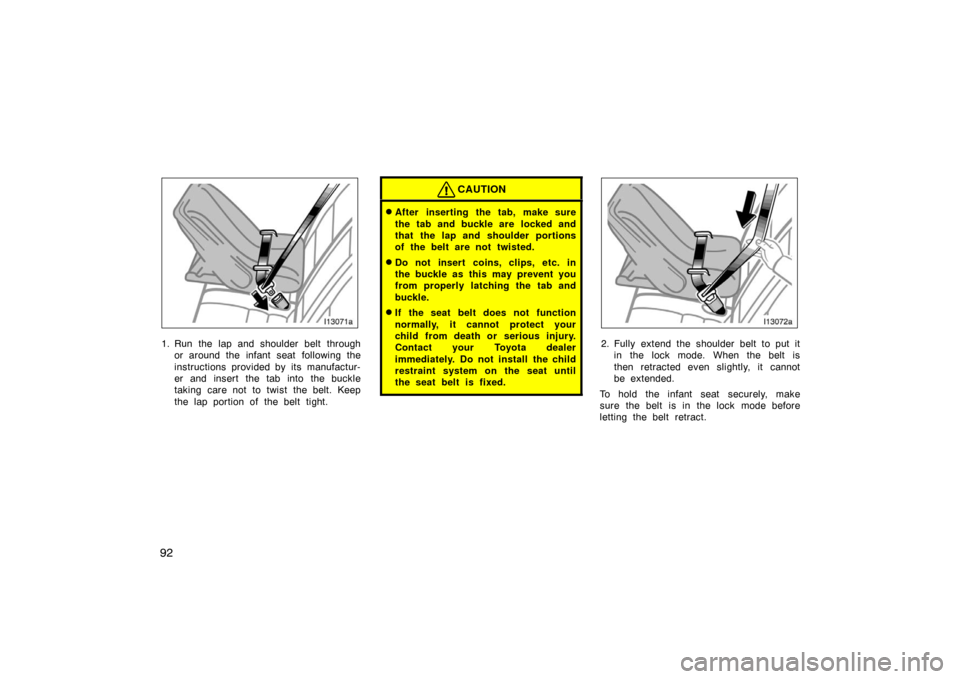

1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

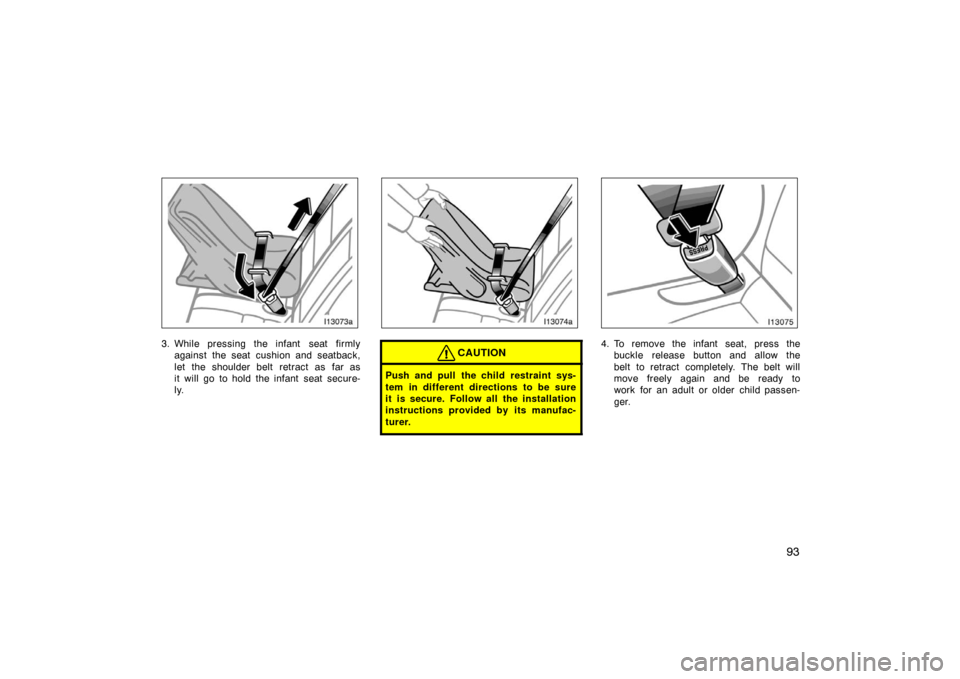

2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.

93
3. While pressing the infant seat firmlyagainst the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press thebuckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

9413c566
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instructions about the
appropriate age and size of the child as
well as directions for installing the
child restraint system. Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occu
pant
classification system correctly, install the
forward −facing child restraint system on
the front passenger seat in the following
order.
1. Turn the ignition key to the “ON” posi- tion.
2. Move the front passenger seat to the rearward position.
3. Put the child restraint system on the front passenger seat without putting
your weight on the front passenger
seat.
4. Insert the seat belt tab into the seat belt buckle.
5. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract. 6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer.

95
The occupant classification indicator light
should indicate “OFF” when the ignition
key is “ON” and the child is in the child
restraint system after following these pro-
cedures. The “OFF” indicator indicates the
SRS front passenger airbag and side air-
bag on the passenger side will not deploy.
If the indicator light indicates “ON”, re-
move the child restraint system and rein-
stall it with the ignition key in the “ACC”
or “LOCK” position. If the indicator light
still indicates “ON” when the ignition key
is turned to the “ON” position, then the
SRS front passenger airbag and side air-
bag on the passenger side may deploy in
an accident. Do not drive the vehicle in
this condition. Remove the child restraint
system and contact your Toyota dealer.CAUTION

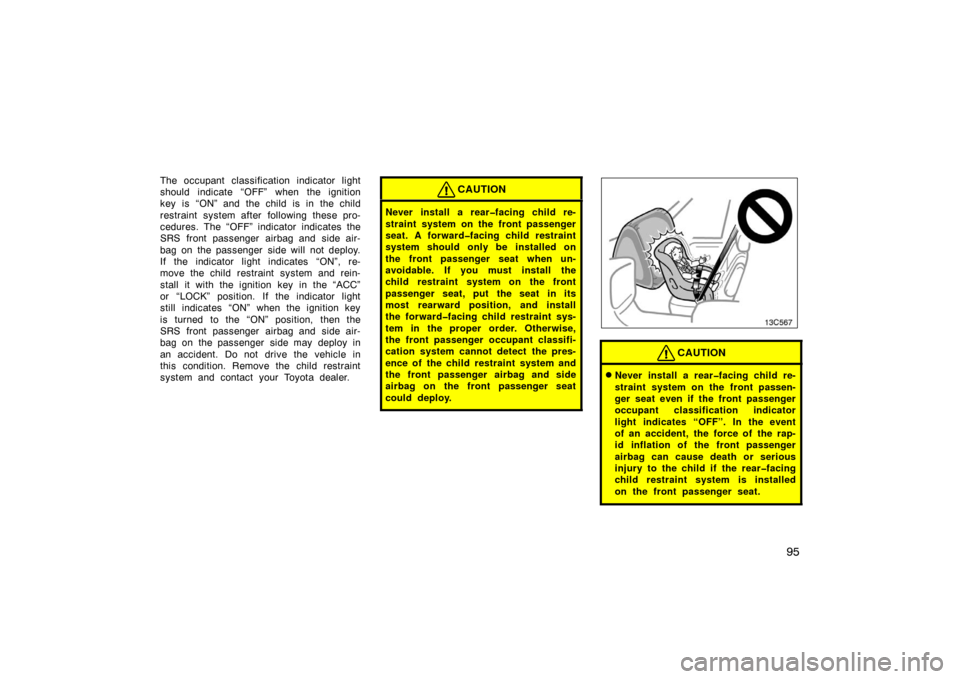

Never install a rearfacing child re-
straint system on the front passenger
seat. A forwardfacing child restraint
system should only be installed on
the front passenger seat when un-
avoidable. If you must install the
child restraint system on the front
passenger seat, put the seat in its
most rearward position, and install
the forwardfacing child restraint sys-
tem in the proper order. Otherwise,
the front passenger occupant classifi-
cation system cannot detect the pres-
ence of the child restraint system and
the front passenger airbag and side
airbag on the front passenger seat
could deploy.
13c567
CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the front passenger
occupant classification indicator
light indicates “OFF”. In the event
of an accident, the force of the rap-
id inflation of the front passenger
airbag can cause death or serious
injury to the child if the rearfacing
child restraint system is installed
on the front passenger seat.

9613c568

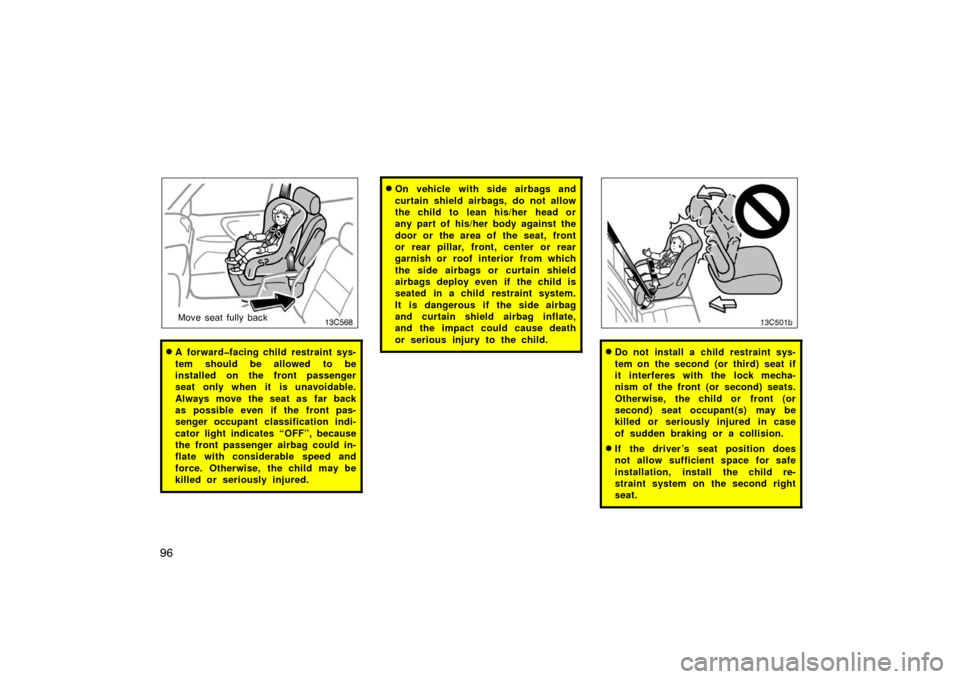

Move seat fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the front pas-
senger occupant classification indi-
cator light indicates “OFF”, because
the front passenger airbag could in-
flate with considerable speed and
force. Otherwise, the child may be
killed or seriously injured.
On vehicle with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar, front, center or rear
garnish or roof interior from which
the side airbags or curtain shield
airbags deploy even if the child is
seated in a child restraint system.
It is dangerous if the side airbag
and curtain shield airbag inflate,
and the impact could cause death
or serious injury to the child.
13c501b
Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mecha-
nism of the front (or second) seats.
Otherwise, the child or front (or
second) seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the second right
seat.

97

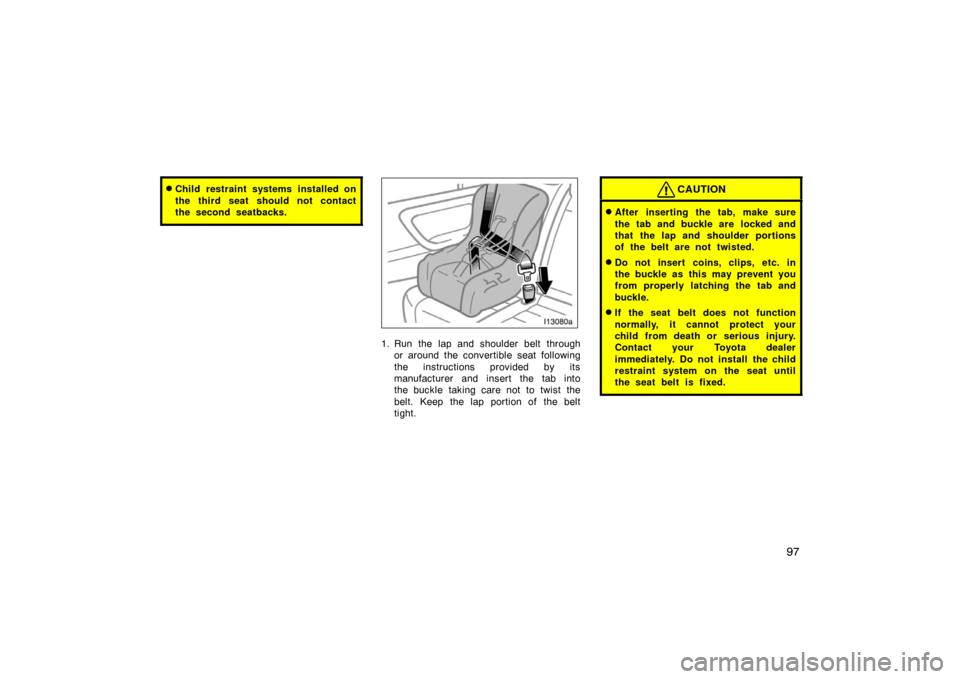

Child restraint systems installed on
the third seat should not contact
the second seatbacks.
1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

98

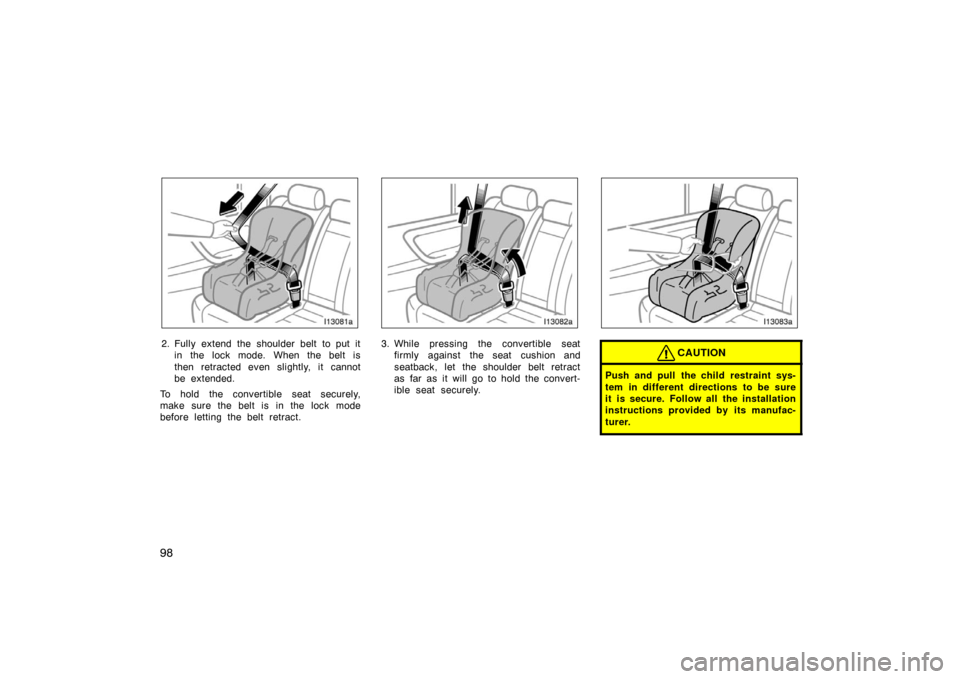

2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
