2007 TOYOTA LAND CRUISER Owners Manual

195
Low quality discs
Labeled discs
NOTICE
Do not use special shaped, trans-
parent/translucent, low quality or la-
beled discs such as those shown in
the illustrations. The use of such
discs may damage the player or
changer, or it may be impossible to
eject the disc.
 This system is not designed for use
of Dual Disc. Do not use Dual Disc
because it may cause damage to
the player or changer.
Correct
Wrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scratches, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.

196
To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device.
Rear seat audio system
17c529
In the rear seat, you can enjoy a differ-
ent mode from the one used on the
front audio system, using headphones.
(a) Turning the system on and off
“ON/SOURCE” button: Use this button to
turn system on when the system is off.
When the system is turned on, the mode
changes by pushing this button.
“OFF” button: Use this button to turn off
the system.
“Volume adjusting” knob: Use this knob
to adjust the volume. (b) When the radio mode is selected
“
CH ” button:
Push this button to
select a preset station on the preset but-
ton of the front audio system. Each push
of the button changes to the station with
higher numbered preset button.
“
TUNE ” button: Push this button
for manual tuning or seek tuning.
Push this button briefly. Each time you
push the button, the radio will step up
or down to another frequency.
Push this button and hold it until you
hear a beep. The radio will begin seek-
ing up or down for a station, and will
stop on reception. Each time you push
the button, the stations will be
searched automatically one after anoth-
er.

197
(c) When the “TAPE” mode is selected
“
PROG ” button: Push this button
to select the other side of a cassette
tape.
“
TRACK ” button: Push the left or
right side to skip forward or backward to
locate the song you want to hear. For
details, see “SEEK TRACK button” on
page 189.
(d) When the “CD” or “DVD” mode is selected
“
DISC ” button: Use this button to
search a desired disc.
“
TRACK ” button: Use this button
to search a desired track or push this
button and hold it to fast forward or rever-
se. (e) Some basics
This system cannot be used if the audio
system is not turned on.
You cannot select “AM” or “FM” mode in
the rear seat if the “FM” or “AM” mode
is used on the front seats side.
If you select the same mode as the front
seats side, operating the controller will
affect the mode on the front seats side.
Vehicles with navigation system only:
When the XM
\b satellite radio* is se-
lected in the front seat, the “CD” or
“DVD” mode cannot be selected in the
rear seat.
When the “CD” or “DVD” mode is se-
lected in the rear seat, selecting the
XM \b satellite radio* in the front seat
will automatically change the “CD” or
“DVD” to “AM” mode in the rear seat.
CAUTION
This system is not designed for a
driver. So, the driver should not use
this system while driving.
The switches are installed on the left side
of the steering wheel.
“MODE” switch: Use this switch to
change the mode. If a tape or compact
disc is not inserted, the “TAPE” or “CD”
mode is skipped. When you push the
switch with the audio system turned off,
the audio system turns on.
“
” switches: Use this switches to ad-
just the volume. Push “+” to increase the
volume and “–” to decrease the volume.
The volume continues to increase or de-
crease while the switch is being pressed.
Audio remote controls
(steering switches)

198
(a) When the radio mode is selected
“
” or “” switch: Push this switch for
seek tuning or to select a station.
To select a preset station, push the
switch briefly. Do this again to select
the next preset station.
To seek a station, push and hold the
switch until you hear a beep. Do this
again to find the next station. If you
push the switch on either side of the
“  ” or “ ” during the seek mode,
seeking will be canceled.
To step up or down the frequency,
push and hold the switch even after
you hear a beep. When you release
from the switch, the radio will begin
seeking up or down for a station. Do
this again to find the next station.
XM \b satellite radio*—
To select a preset channel, push the “ ”
or “ ” side of the switch. Repeat until a
desired channel is found.
*: Use of satellite radio r equires XM\b tuner
and service. Contact your Toyota dealer
for details. (b) When the “TAPE” mode is selected
“
” or “” switch:
Push this switch to
fast forward or rewind the tape or for
automatic program selection.
Push this switch until you hear a beep
to fast forward or rewind the tape. To
stop fast forwarding or rewinding, push
the same side on the switch until you
hear a beep.
Push this switch briefly for automatic
program selection. When automatically
selecting a program, you can skip up
to 9 programs at a time. For details,
see “SEEK TRACK button” on page
189. (c) When the “CD” or “DVD” mode is
selected
“
” or “” switch: Use this switch to
select a desired track or disc.
Push this switch briefly to select a de-
sired track.
To select a desired disc, push and hold
this switch until the desired number of
the disc appears and you hear a beep.
CAUTION
Operate the switches with due care
while you are driving to avoid acci-
dents.

199
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Front air conditioning system:Controls 200
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Air flow selector settings 204
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Operating tips 204
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Instrument panel vents 206
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Rear air conditioning system:
Controls 208
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Air flow selector settings 210
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
For vehicle equipped with Navigation system, please refer to the
separate “ Navigation System Owner’s Manual”.
SECTION 1 9

200

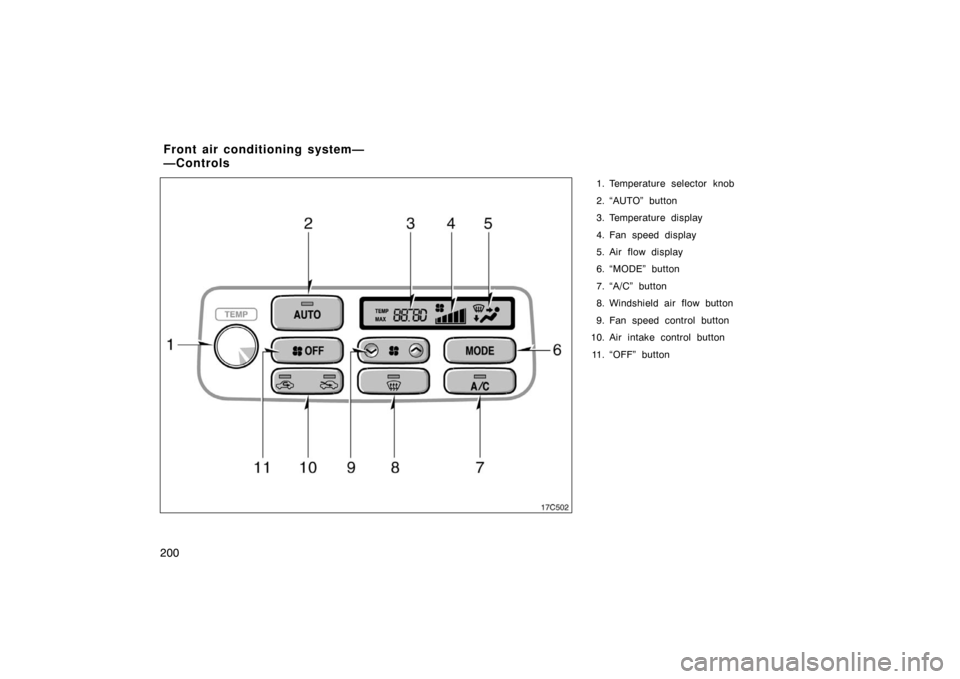

1. Temperature selector knob
2. “AUTO” button
3. Temperature display
4. Fan speed display
5. Air flow display
6. “MODE” button
7. “A/C” button
8. Windshield air flow button
9. Fan speed control button
10. Air intake control button
11. “OFF” button
Front air conditioning system—
—Controls

201
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. An indi-
cator light will illuminate to show that the
automatic operation mode has been se-
lected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed and air flow according to the tem-
perature.
You may use manual controls if you want
to select your own settings.
To turn off the automatic operation, press
the “MODE” or fan speed control button.
Fan speed control button
Push the “” (increase) or “ ” (decrease)
button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode.
Temperature selector knob
To increase the temperature, turn the knob
to right side, to decrease it, turn the knob
to left side. “MAX COLD” appears when you adjust to
maximum cooling, and “MAX HOT” ap-
pears when you adjust to maximum warm-
ing.
“OFF” button
Push the button to turn off the air condi-
tioning system.
“MODE” button
Push the button to select the vents used
for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.
1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” described be-
low.

202
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” described be-
low.
For details about air flow selector settings,
see “Air flow selector settings” described
below.

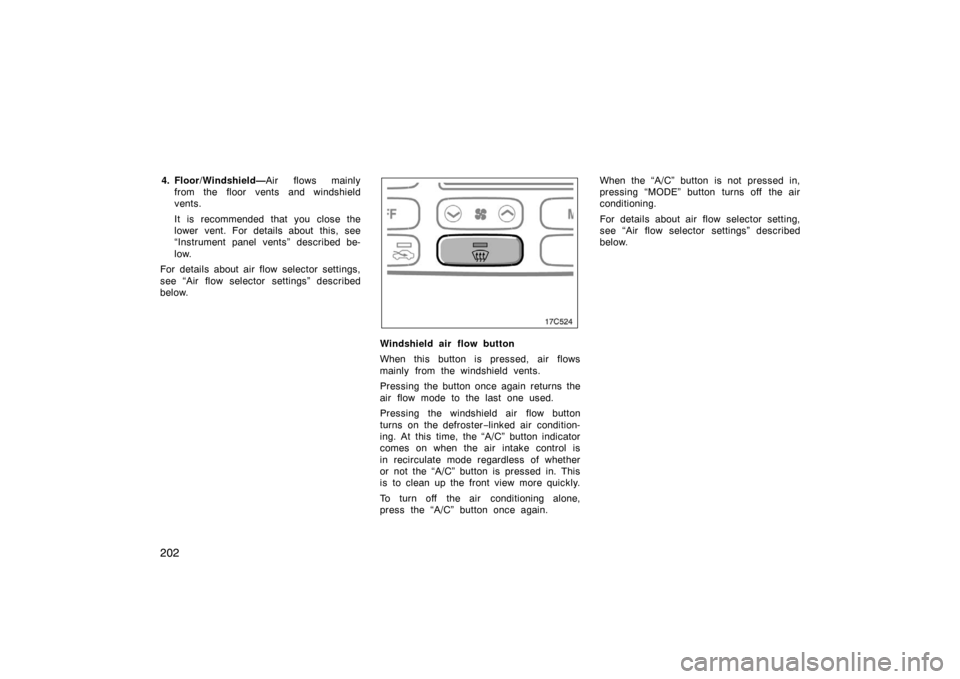

Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents.
Pressing the button once again returns the
air flow mode to the last one used.
Pressing the windshield air flow button
turns on the defroster −linked air condition-
ing. At this time, the “A/C” button indicator
comes on when the air intake control is
in recirculate mode regardless of whether
or not the “A/C” button is pressed in. This
is to clean up the front view more quickly.
To turn off the air conditioning alone,
press the “A/C” button once again. When the “A/C” button is not pressed in,
pressing “MODE” button turns off the air
conditioning.
For details about air flow selector setting,
see “Air flow selector settings” described
below.
