2007 TOYOTA HIGHLANDER HYBRID Owners Manual

’07 HIGHLANDER HV_U (L/O 0608)
293
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

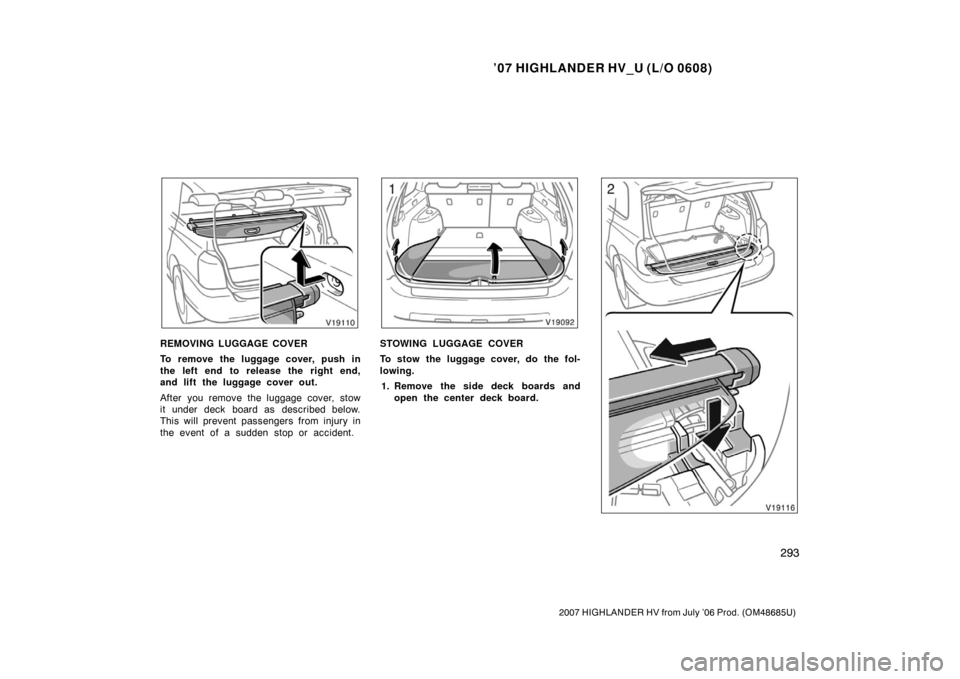

REMOVING LUGGAGE COVER
To remove the luggage cover, push in
the left end to release the right end,
and lift the luggage cover out.
After you remove the luggage cover, stow
it under deck board as described below.
This will prevent passengers from injury in
the event of a sudden stop or accident.STOWING LUGGAGE COVER
To stow the luggage cover, do the fol-
lowing.1. Remove the side deck boards and open the center deck board.

’07 HIGHLANDER HV_U (L/O 0608)
294
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
2. Push in the left end of the luggagecover and place the luggage cover in
the holder as shown.
CAUTION
Make sure the luggage cover is se-
curely stowed.
Cross rails
Roof rails
The roof luggage carrier consists of
roof rails and sliding cross rails.
Upper
knob Side knobs
ADJUSTING THE POSITION OF CROSS
RAILS:
1. Turn the upper and side knobs coun- terclockwise to loosen the cross
rails.
Roof luggage carrier

’07 HIGHLANDER HV_U (L/O 0608)
295
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
2. Slide the cross rails to the appropri-ate position for loading the luggages
and turn the side knobs clockwise to
tighten the cross rails securely.
Vehicles with the electric moonroof—There
are cross rail stoppers on the roof rails
which help you prevent the cross rails
being touched with the tilted up moonroof.
NOTICE
Vehicles with the electric moonroof
only—Do not remove the cross rail
stoppers, or the moonroof may be
damaged when it is tilted.
3. In order to fix the cross rails to the appropriate length, turn the upper
knobs clockwise after tightening all
of the side knobs.
CAUTION
Make sure the cross rails are fixed
securely by pushing forward and rear-
ward them. Failure to do so may
cause an unexpected accident or se-
vere injury in the event of emergency
braking or a collision.
Follow the manufacture’s instructions and
precautions when installing the attach-
ments or their equivalent.
CAUTION
When you load cargo on the roof lug-
gage carrier, observe the following:
Place the cargo so that its weight
is distributed evenly between the
front and rear axles.
If loading long or wide cargo, never
exceed the vehicle overall length or
width. (See “Dimensions and
weights” on page 410 in Section 8
for information on your vehicle
overall length and width.)
Before driving, make sure the cargo
is securely fastened on the roof
luggage carrier.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.

’07 HIGHLANDER HV_U (L/O 0608)
296
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

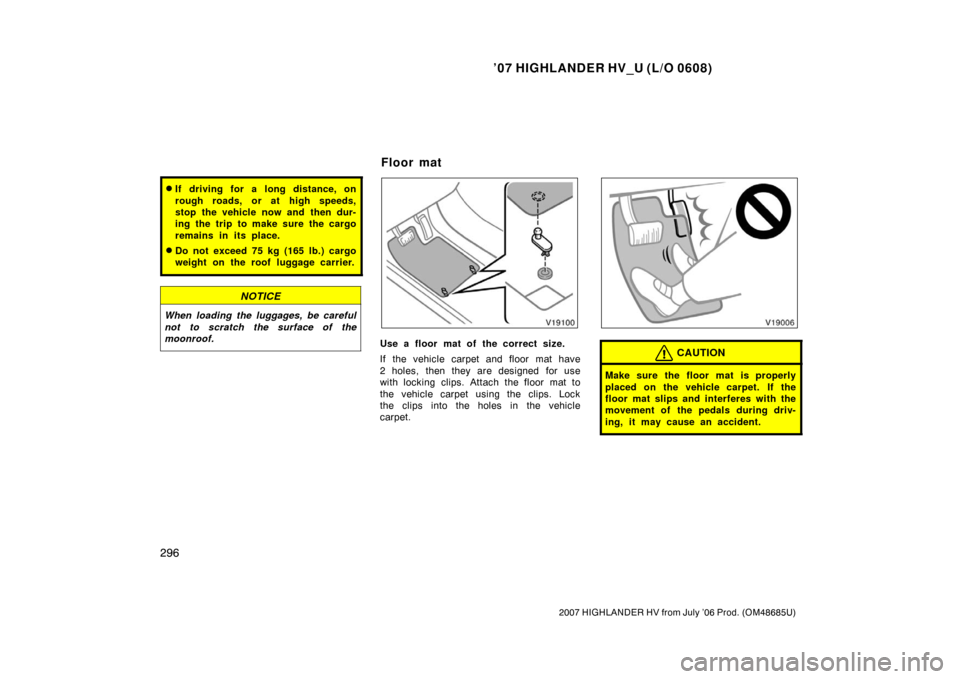

If driving for a long distance, on
rough roads, or at high speeds,
stop the vehicle now and then dur-
ing the trip to make sure the cargo
remains in its place.
Do not exceed 75 kg (165 lb.) cargo
weight on the roof luggage carrier.
NOTICE
When loading the luggages, be careful
not to scratch the surface of the
moonroof.
Use a floor mat of the correct size.
If the vehicle carpet and floor mat have
2 holes, then they are designed for use
with locking clips. Attach the floor mat to
the vehicle carpet using the clips. Lock
the clips into the holes in the vehicle
carpet.CAUTION
Make sure the floor mat is properly
placed on the vehicle carpet. If the
floor mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
Floor mat

’07 HIGHLANDER HV_U (L/O 0608)
297
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Information before driving your Toyota
Utility vehicle precautions298
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Break −in period 299
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Fuel 299
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Operation in foreign countries 301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three −way catalytic converters 302
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 303
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 303
. . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium −tipped spark plugs 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 305
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric power steering system 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota’s identification 307
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Tire information 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Vehicle load limits 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Cargo and luggage 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Types of tires 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

’07 HIGHLANDER HV_U (L/O 0608)
298
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

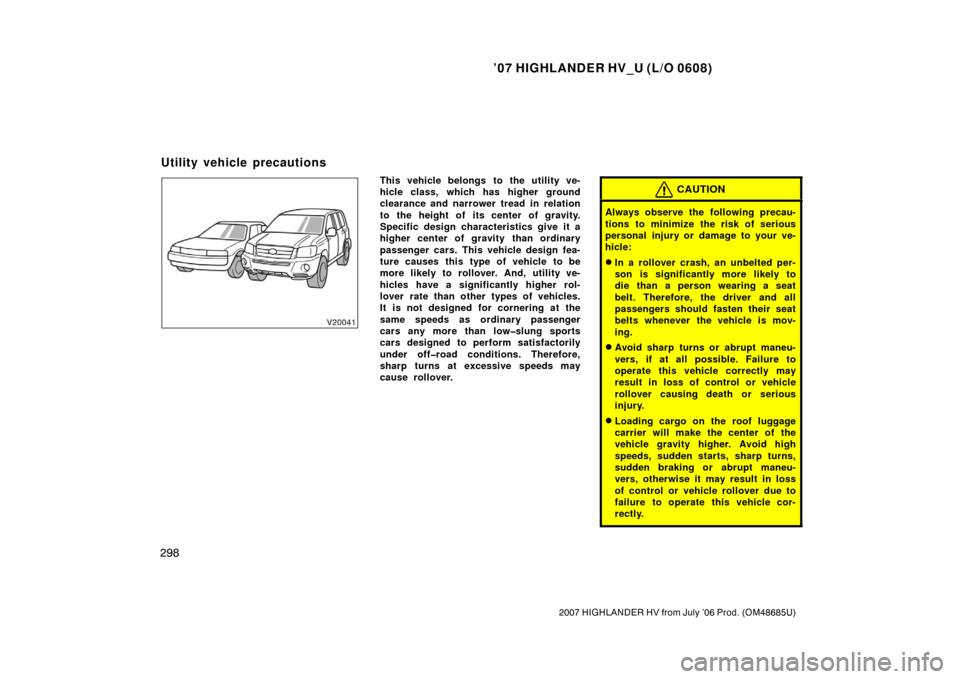

This vehicle belongs to the utility ve-
hicle class, which has higher ground
clearance and narrower tread in relation
to the height of its center of gravity.
Specific design characteristics give it a
higher center of gravity than ordinary
passenger cars. This vehicle design fea-
ture causes this type of vehicle to be
more likely to rollover. And, utility ve-
hicles have a significantly higher rol-
lover rate than other types of vehicles.
It is not designed for cornering at the
same speeds as ordinary passenger
cars any more than lowslung sports
cars designed to perform satisfactorily
under offroad conditions. Therefore,
sharp turns at excessive speeds may
cause rollover.CAUTION
Always observe the following precau-
tions to minimize the risk of serious
personal injury or damage to your ve-
hicle:
In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mov-
ing.
Avoid sharp turns or abrupt maneu-
vers, if at all possible. Failure to
operate this vehicle correctly may
result in loss of control or vehicle
rollover causing death or serious
injury.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
Utility vehicle precautions

’07 HIGHLANDER HV_U (L/O 0608)
299
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Always slow down in gusty cross-
winds. Because of its profile and
higher center of gravity, your ve-
hicle is more sensitive to side
winds than an ordinary passenger
car. Slowing down will allow you to
have better control.
When offroad driving cannot be
avoided, do not drive at excessive
speeds, jump, make sharp turns, or
strike objects, etc. These maneu-
vers may result in loss of control
or vehicle rollover causing death or
serious injury. You also risk expen-
sive damage to your vehicle’s sus-
pension and chassis.
Do not drive horizontally across
steep slopes. Driving straight up or
straight down is preferred. Your ve-
hicle (or any similar offroad ve-
hicle) can tip over sideways much
more easily than forward or back-
ward.
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break−in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Avoid full throttle acceleration when
starting and driving.
Avoid racing the hybrid system.
Try to avoid hard stops during the first
300 km (200 miles).
Do not tow a trailer during the first 800
km (500 miles). FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mix
−ups, your
Toyota has a smaller fuel tank opening.
The special nozzle on pumps with un-
leaded fuel will fit it, but the larger stan-
dard nozzle on pumps with leaded gas will
not.
At a minimum, the gasoline you use
should meet the specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5 −M93
in Canada.
NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
Breakin period Fuel

’07 HIGHLANDER HV_U (L/O 0608)
300
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
OCTANE RATING
Select octane rating 87 (Research Oc-
tane Number 91) or higher.
Use of unleaded gasoline with an octane
rating lower than 87 may result in engine
knocking. Persistent knocking can lead to
engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, occasionally, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is normal
and there is no need for concern.GASOLINE CONTAINING DETERGENT
ADDITIVES
Toyota recommends the use of gasoline
that contains detergent additives to
avoid buildup of engine deposits.
However, all gasoline sold in the U.S.
contains detergent additives to keep clean
and/or clean intake systems.
QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
WorldWide Fuel Charter (WWFC) that
is expected to be applied world wide.
The WWFC consists of four categories
that depend on required emission lev-
els. In the U.S., category 4 has been
adopted. The WWFC improves air quali-
ty by providing for better emissions in
vehicle fleets, and customer satisfaction
through better vehicle performance.CLEANER BURNING GASOLINE
Cleaner burning gasoline, including re-
formulated gasoline that contains oxy-
genates such as ethanol or MTBE is
available in many areas.
Toyota recommends the use of cleaner
burning gasoline and appropriately blended
reformulated gasoline. These types of gas-
oline provide excellent vehicle perfor-
mance, reduce vehicle emissions, and im-
prove air quality.
OXYGENATES IN GASOLINE
Toyota allows the use of oxygenate
blended gasoline where the oxygenate
content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your
Toyota, be sure that it has an octane
rating no lower than 87.
Toyota does not recommend the use of
gasoline containing methanol.
