2007 TOYOTA HIGHLANDER HYBRID fuse

’07 HIGHLANDER HV_U (L/O 0608)
280
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

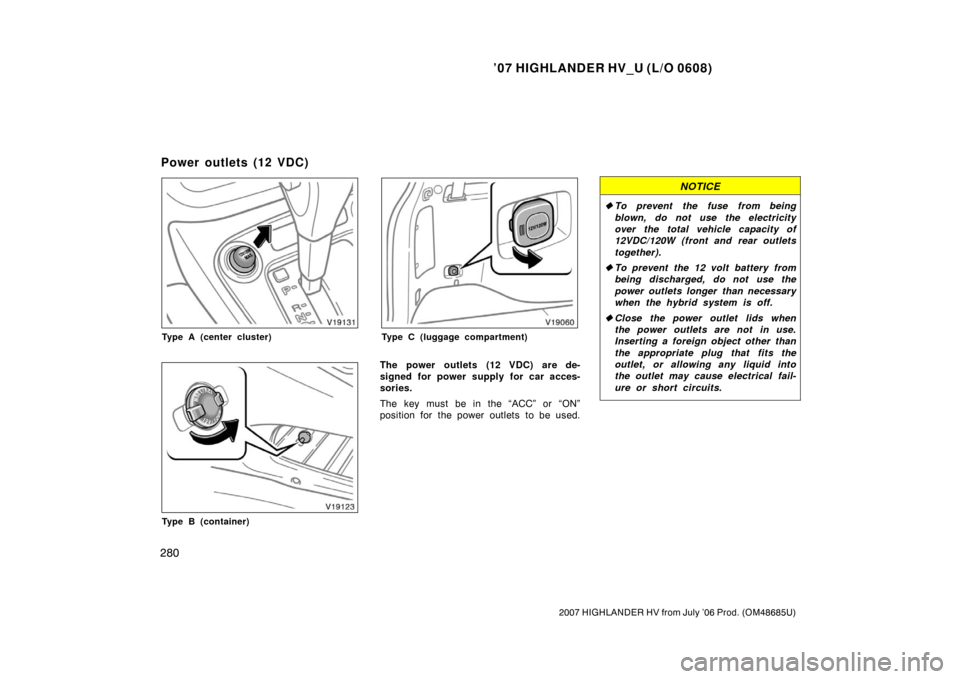

Type A (center cluster)
Type B (container)
Type C (luggage compartment)
The power outlets (12 VDC) are de-
signed for power supply for car acces-
sories.
The key must be in the “ACC” or “ON”
position for the power outlets to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12VDC/120W (front and rear outlets
together).
 To prevent the 12 volt battery from
being discharged, do not use the
power outlets longer than necessary
when the hybrid system is off.
 Close the power outlet lids when
the power outlets are not in use.
Inserting a foreign object other than
the appropriate plug that fits the
outlet, or allowing any liquid into
the outlet may cause electrical fail-
ure or short circuits.
Power outlets (12 VDC)

’07 HIGHLANDER HV_U (L/O 0608)
375
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview376
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the engine compartment covers 377
. . . . . . . . . . . . . . . . . . . .
Fuse locations 378
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 379
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack 381
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Parts and tools 382
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 7 1

’07 HIGHLANDER HV_U (L/O 0608)
376
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
1. Windshield and rear window washerfluid tank
2. Brake fluid reservoir
3. Engine oil level dipstick
4. Engine coolant reservoir
5. Engine oil filler cap
6. Inverter coolant reservoir
7. Fuse blocks
8. Engine coolant radiator
9. Condenser
10. Inverter coolant radiator
11. Electric cooling fans
12. 12 volt battery
Engine compartment overview

’07 HIGHLANDER HV_U (L/O 0608)
378
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Removing clip
Installing clip
Before checking the fuse or replacing
the left front light bulbs, etc. in the
engine compartment, remove the engine
compartment covers as shown in the
illustrations:1. Push the core of the clips and remove the clips.
2. Remove the cover.
Be careful not to lose the removed plastic
clips.
After checking the items, install the en-
gine compartment covers and insert the
plastic clips in their original positions.
NOTICE
After installing the engine compart-
ment covers, make sure the covers
are securely in their original posi-
tions.
Fuse locations

’07 HIGHLANDER HV_U (L/O 0608)
379
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Spare fuses
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do−it−yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This Section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do −
it −yourself maintenance, see “Parts and
tools” on page 382 in this Section.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:
Doityourself service
precautions

’07 HIGHLANDER HV_U (L/O 0608)
383
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Tools:
Funnel (only for adding coolant)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING 12 VOLT BATTERY
CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench
(for terminal clamp bolts)
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as
original ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze
(for winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in
“Replacing light bulbs” on page 404 in
Section 7 −3.)
Tools:
Screwdriver

’07 HIGHLANDER HV_U (L/O 0608)
399
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking 12 volt battery condition400
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 volt battery recharging precautions 401
. . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 402
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 403
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 404
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

’07 HIGHLANDER HV_U (L/O 0608)
402
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 378 in Sec-
tion 7 −1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 416 in Section 8 for the functions
controlled by each circuit.
Checking and replacing fuses
