2007 TOYOTA HIGHLANDER HYBRID Owners Manual

’07 HIGHLANDER HV_U (L/O 0608)
11 7
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

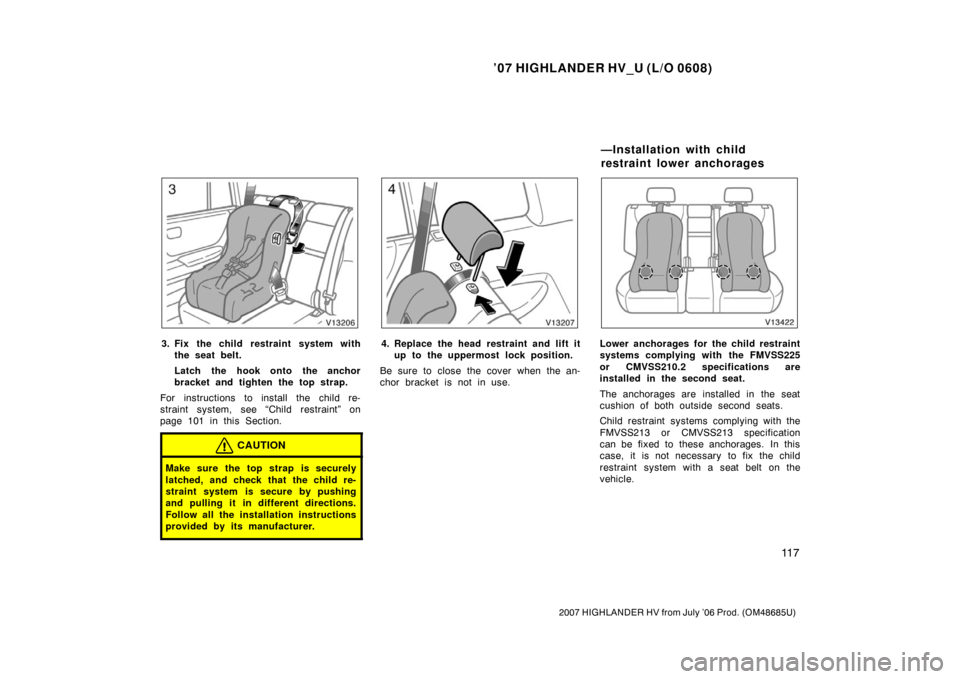

3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 101 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Replace the head restraint and lift it up to the uppermost lock position.
Be sure to close the cover when the an-
chor bracket is not in use.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the second seat.
The anchorages are installed in the seat
cushion of both outside second seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages

’07 HIGHLANDER HV_U (L/O 0608)
11 8
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
3rd lock
position1st lock
position
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback and back to the 1st lock position (most upright
position) until it locks into place.
Adjust the seatback to the 3rd lock
position.
Make sure the seatback is locked secure-
ly.
Canada only
Ty p e ACanada only
Ty p e B

’07 HIGHLANDER HV_U (L/O 0608)
11 9
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
2. Widen the gap between the seatcushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 115 in this Section.)
For installation details, refer to the instruc-

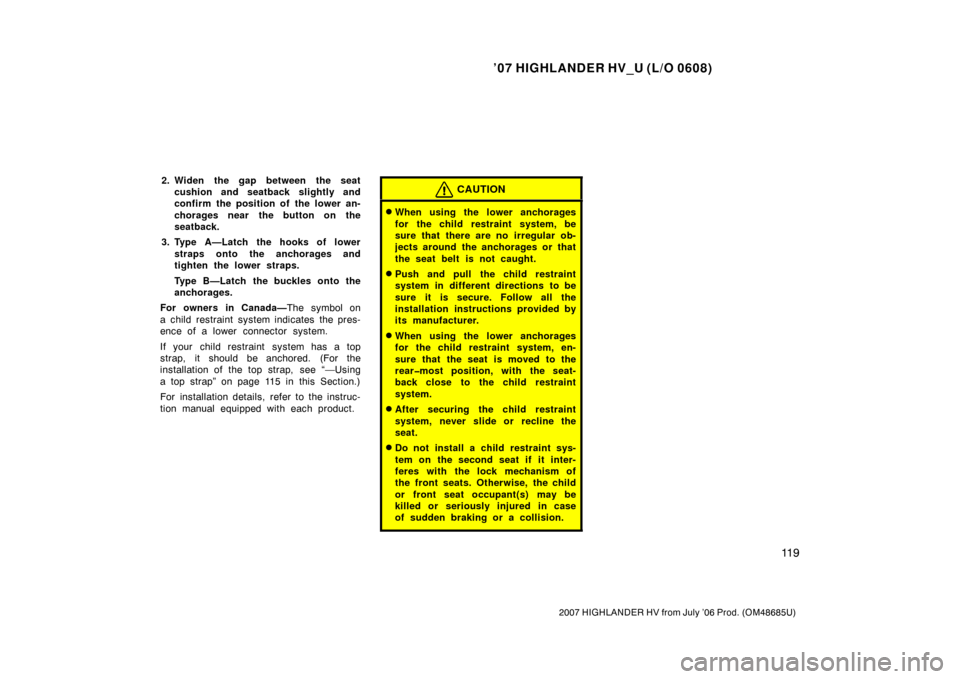

tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using the lower anchorages
for the child restraint system, en-
sure that the seat is moved to the
rearmost position, with the seat-
back close to the child restraint
system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the second seat if it inter-
feres with the lock mechanism of
the front seats. Otherwise, the child
or front seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.

’07 HIGHLANDER HV_U (L/O 0608)
120
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

’07 HIGHLANDER HV_U (L/O 0608)
121
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Outside rear view mirrors 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 125
. . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1 4

’07 HIGHLANDER HV_U (L/O 0608)
122
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

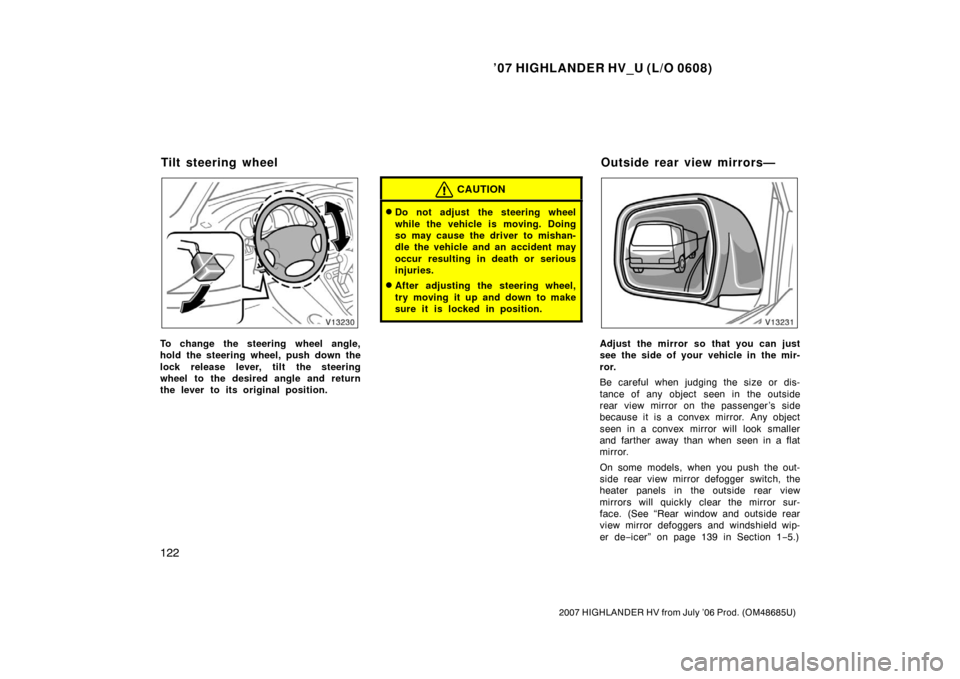

To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
On some models, when you push the out-
side rear view mirror defogger switch, the
heater panels in the outside rear view
mirrors will quickly clear the mirror sur-
face. (See “Rear window and outside rear
view mirror defoggers and windshield wip-
er de−icer” on page 139 in Section 1 −5.)
Tilt steering wheel Outside rear view mirrors—

’07 HIGHLANDER HV_U (L/O 0608)
123
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
Since the mirror surfaces can get
hot, do not touch them when the
defogger switch is on.
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

’07 HIGHLANDER HV_U (L/O 0608)
124
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
—Folding rear view mirrorsAntiglare inside rear view
mirror
