2007 TOYOTA HIGHLANDER HYBRID Owners Manual

’07 HIGHLANDER HV_U (L/O 0608)
189
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the “SCAN” button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To stop scanning,
push this button again.
To scan all the frequencies:
Quickly push and release the “SCAN” but-
ton. The radio will find the next station up
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again. Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release the “SCAN” but-
ton. “SCAN” will appear on the display
and the player will scan all the tracks on
the disc you are listening to. To stop
scanning, push this button again. If the
player has scanned all the tracks on the
disc, it will stop scanning.
Scanning the first tracks of all the discs
in the magazine:
Push the “SCAN” button until you hear a
beep. “
·SCAN” will appear on the dis-
play and the player will scan the first
track of the next disc. To stop scanning,
push this button again. If the player has
scanned all the di scs, it will stop scan-
ning. SEEK/TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “
” or “ ” side of the “SEEK/
TRACK” button. Do this again to find the
station after that.
Cassette player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When the beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings.

’07 HIGHLANDER HV_U (L/O 0608)
190
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Compact disc player
Use this button to skip up or down to a
different track.
Push “” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the “SEEK/
TRACK” button.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push the “TAPE” button to play a cassette
tape. TEXT
Radio
This button is operational only in RDS
mode.
When an RDS station transmits a text
message, “MSG” will appear on the dis-
played.
To display the text message, first push
the “TEXT” button to change the radio
station display. Then push the “TEXT” but-
ton once more to display, and the mes-
sage will appear on the display.
If the entire the message is not displayed,
“
” will appear on the display. To display
the rest of the message, push and hold
the “TEXT” button until you hear a beep.
After the entire message has been dis-
played, the message will disappear.
The message display will be canceled if
any button that affects the display is
pushed.
If no messages are received, “NO
MESSAGE” will appear on the display, and
the display returns to the previous mode.
The message display will be canceled if
you activate any function that affects the
display. Compact disc player
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.
TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off. This button is
operational only in FM mode.
By pushing the “TRAF” button, “TRAF
SEEK” will flash on the display and the
radio will seek a traffic program station.
After the traffic announcement program is
over, the display returns to the previous
mode.

’07 HIGHLANDER HV_U (L/O 0608)
191
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
If no traffic program station is found, “NO
TRAFINFO” appears on the display, and
the display returns to the previous mode
and a beep sounds.
To cancel the traffic announcement, push
this button again.
TUNE (Tuning)
Turn the “TUNE” knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.
TYPE (Program Types)
When you push “” or “” of the “TYPE”
button while receiving an RDS station, the
current program type will appear on the
display. If the system is receiving a sta-
tion that is not RDS, “NO PTY” will ap-
pear.
Repeat this operation within 6 seconds to
display the program types in the following
order:
ROCK
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGION
MISC (Miscellaneous)
ALERT (Emergency message)
To seek or scan for the same type of
program, push the “SEEK/TRACK” or
“SCAN” button while the program type is
displayed.
If no program is found, “NOTHING” will
appear on the display. The previous pro-
gram information will resume.
When the system is left untouched for 6
seconds, the program type display will
change to the frequency display.
Some parts of the audio system can be
adjusted using the switches on the steer-
ing wheel.
Details of the specific switches, controls,
and features are described below.
1. “+
− ” switch
2. “ ” switch
3. “MODE” switch
Audio remote controls
(steering switches)

’07 HIGHLANDER HV_U (L/O 0608)
192
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
1. “+” swi t ch
Push “+” to increase the volume. The vol-
ume continues to increase while the
switch is being pushed.
Push “ −” to decrease the volume. The
volume continues to decrease while the
switch is being pushed.
2. “ ” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “ ” or “ ”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “ ” or “” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
To step up or down the frequency, push
and hold the switch even after you hear
a beep. When you release from the
switch, the radio will begin seeking up or
down for a station. Do this again to find
the next station. Cassette player
This switch has the following features—
To skip to a different track in either direc-
tion:
Quickly push and release the “
” or “ ”
side of the switch. “FF 1” or “REW 1” will
appear on the display.
Next, push either side of the track switch
until the track you want to listen to is set.
If you push the switch ten times, the skip
function will turn off. (You can skip up to
nine tracks at a time.)
When counting the number of the tracks
you want to rewind, remember to count
the current track as well. For example, if
you want to rewind to a song that is two
tracks before the song you are listening
to, push the “ ” side of the switch three
times.
If you push the track switch further than
you wanted to, push the other side of the
switch. The track number will be in-
creased or reduced.
The track number you select is not valid
if it is higher than the number of the
tracks remaining on the current side of
the cassette.When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track switch
to work correctly. In addition, the feature
may not work well with some spoken, live,
or classical recordings.
To fast forward or reverse:
Push and hold the “ ” side of the switch
to fast forward a cassette tape. “FF” will
appear on the display. Push and hold the
“  ” side of the switch to rewind a tape.
“REW” will appear on the display.
To stop the tape while it is fast forward-
ing, push the “ ” side of the switch. To
stop the tape while it is rewinding, push
the “ ” side of the switch.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.

’07 HIGHLANDER HV_U (L/O 0608)
193
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release the “” or “ ”
side of the switch until the track you want
to listen to is set. If you want to return
to the beginning of the current track, push
the “ ” side of the switch once, quickly.
With compact disc changer only—
Push and hold the “ ” or “” side of the
switch until the disc you want to listen to
is set.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the switch.
3. “MODE” switch
Push “MODE” switch to select an audio
mode. Each push changes the mode se-
quentially if the desired mode is ready to
use. The DVD player will be selectable if
a rear seat entertainment system is
installed in your vehicle.
To turn the audio system on, push the
“MODE” switch. To turn the audio system off, push and
hold the “MODE” switch until the system
turns off.

’07 HIGHLANDER HV_U (L/O 0608)
194
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

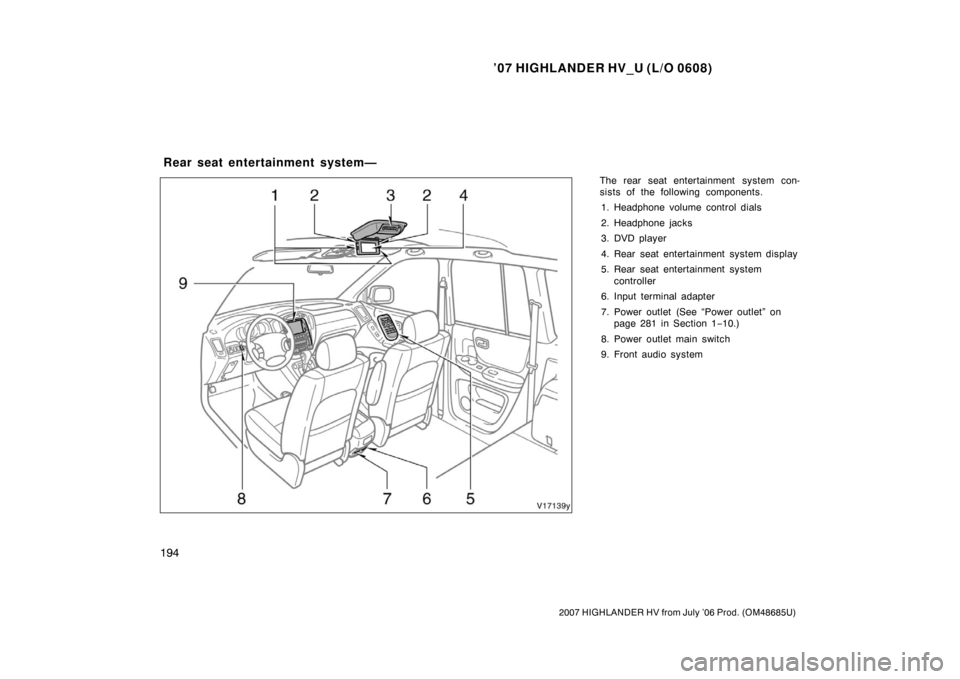

The rear seat entertainment system con-
sists of the following components.1. Headphone volume control dials
2. Headphone jacks
3. DVD player
4. Rear seat entertainment system display
5. Rear seat entertainment system controller
6. Input terminal adapter
7. Power outlet (See “Power outlet” on page 281 in Section 1 −10.)
8. Power outlet main switch
9. Front audio system
Rear seat entertainment system—

’07 HIGHLANDER HV_U (L/O 0608)
195
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the
front audio system.
The rear seat entertainment system can
be operated when the ignition key is in
the “ACC” or “ON” position.
The rear passengers can enjoy all modes
(AM and FM radio, cassette tape player,
compact disc player with changer and
DVD player) on the rear seat entertain-
ment system only if a cassette tape and
a compact disc are loaded in the front
audio system.
The rear seat entertainment system can
play DVD video, audio CD, video CD, CD
text, dts−CD or DVD audio only when a
disc is loaded in the DVD player.
You can enjoy videos and sound when
your personal audio system is connected
to the input terminal adapter on the rear
console box. For details, refer to the
manufacturer ’s instructions. You can enjoy the rear seat entertainment
system with commercial hea
dphone. See
“—Headphone ja cks” on page 243 in this
Section for details.
You can also enjoy the rear seat enter-
tainment system with a wireless head-
phone. The wireless headphone can be
used within rear seat. If the signal be-
comes weak, the headphone will mute.
For details, refer to the manufacturer’s
instructions.
With some wireless headphone generally
available in the market, it may be difficult
to catch sound properly. Toyota recom-
mends the use of Toyota genuine wireless
headphone.
You can purchase a wireless headphone

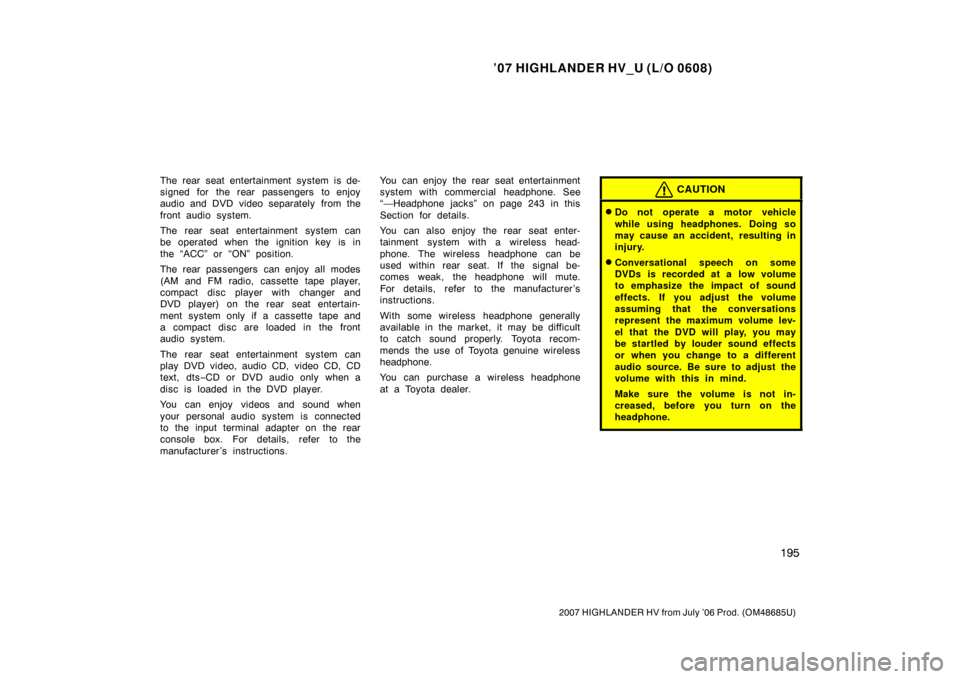

at a Toyota dealer.CAUTION
Do not operate a motor vehicle
while using headphones. Doing so
may cause an accident, resulting in
injury.
Conversational speech on some
DVDs is recorded at a low volume
to emphasize the impact of sound
effects. If you adjust the volume
assuming that the conversations
represent the maximum volume lev-
el that the DVD will play, you may
be startled by louder sound effects
or when you change to a different
audio source. Be sure to adjust the
volume with this in mind.
Make sure the volume is not in-
creased, before you turn on the
headphone.

’07 HIGHLANDER HV_U (L/O 0608)
196
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

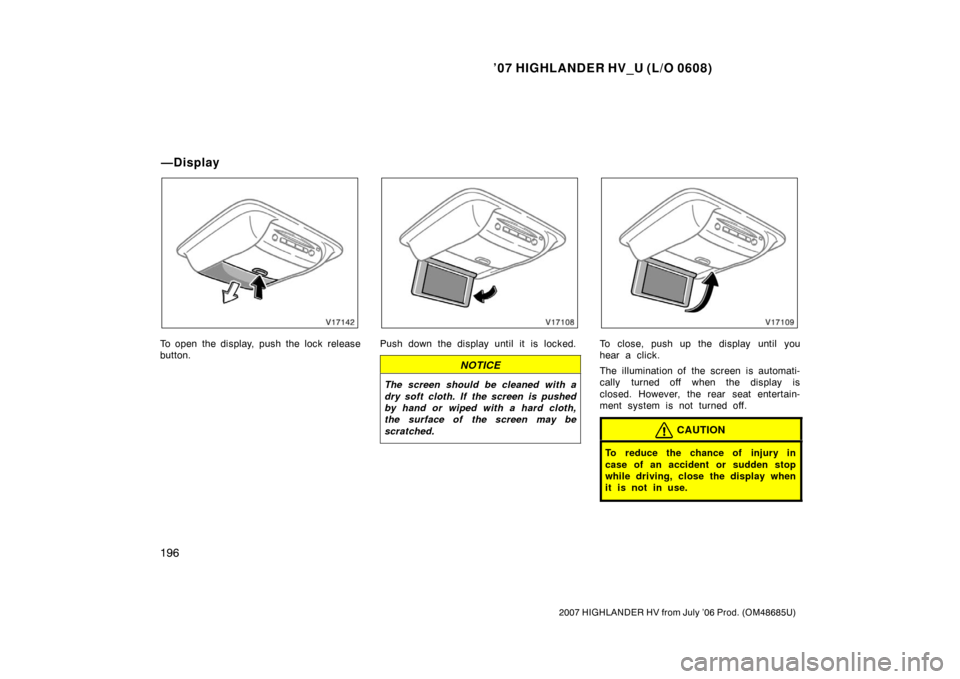

To open the display, push the lock release
button.Push down the display until it is locked.
NOTICE
The screen should be cleaned with a
dry soft cloth. If the screen is pushed
by hand or wiped with a hard cloth,
the surface of the screen may be
scratched.
To close, push up the display until you
hear a click.
The illumination of the screen is automati-
cally turned off when the display is
closed. However, the rear seat entertain-
ment system is not turned off.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, close the display when
it is not in use.
—Display
