2007 TOYOTA HIGHLANDER HYBRID Owners Manual

’07 HIGHLANDER HV_U (L/O 0608)
213
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The DVD player can be operated with the
controller buttons directly.1. “DVD” button
2. “RETURN” button
3. “MENU” button
4. “AUDIO” button
5. “SUB TITLE” button
6. “ANGLE” button
7. “SET UP” button
8. “SEARCH” button
9. “TOP MENU” button
10. “
”, “ ”, “  ” and “ ” buttons
Controller
DVD player unit
The player can also be operated with the
switches on the screen.
To operate the switches on the screen,
select the switch by the joystick and push
the “ENT” button. You cannot select the
switches on the screen by touching them
directly.
When the switch is selected by the joys-
tick, the outline of the switch changes to
blue. Push the “ENT” button, and the
switch will be highlighted in green.
—DVD player operation
switches

’07 HIGHLANDER HV_U (L/O 0608)
214
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Controller
DVD player unit
TURNING THE OPERATION SWITCHES
ON AND OFF
To turn on the operation switches, push
the “CURSOR” button on the controller.

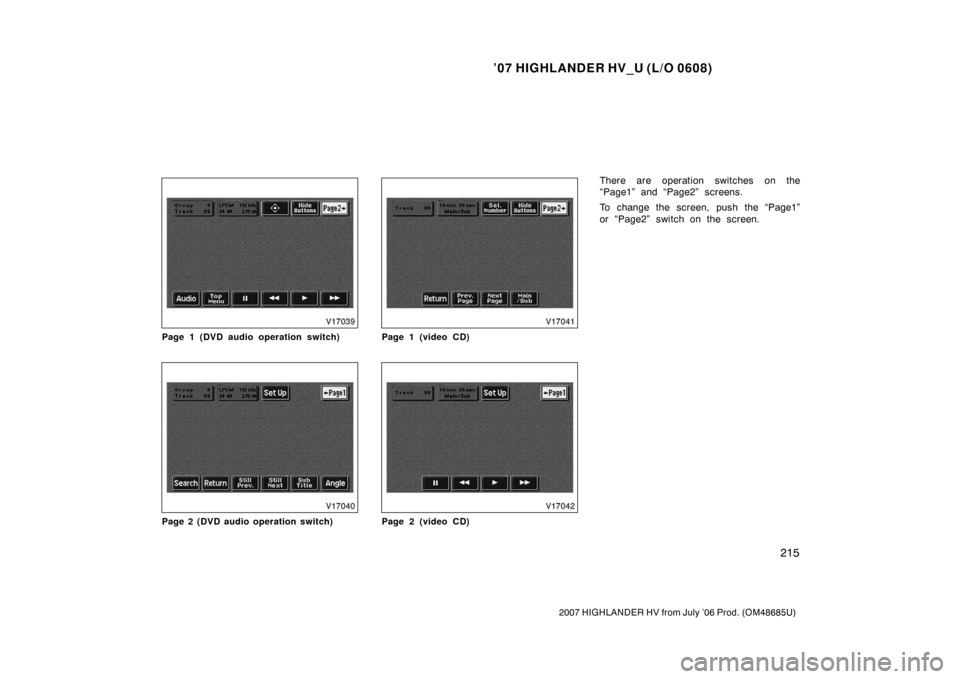

Page 1 (DVD video operation switch)
Page 2 (DVD video operation switch)

’07 HIGHLANDER HV_U (L/O 0608)
215
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Page 1 (DVD audio operation switch)
Page 2 (DVD audio operation switch)
Page 1 (video CD)
Page 2 (video CD)
There are operation switches on the
“Page1” and “Page2” screens.
To change the screen, push the “Page1”
or “Page2” switch on the screen.

’07 HIGHLANDER HV_U (L/O 0608)
216
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
If “” appears on the screen when
you select a switch, it indicates that
the switch cannot work.On the screen
Controller
DVD player unit

’07 HIGHLANDER HV_U (L/O 0608)
217
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
To turn off the switches on the screen,
push the “CURSOR” button on the control-
ler once again or push the “Hide Buttons”
on the screen.NOTE:
The playback condition of some
DVD video discs may be determined by
the DVD video software producer. This
DVD player plays discs as the software
producer intended. Therefore, some
functions may not work properly. Be
sure to read the instruction manual for
the DVD video disc separately provided.
For detailed information about DVD vid-
eo discs, see “—DVD video disc infor-
mation” on page 241 in this Section.
Precautions for DVD video discs
When recording on a DVD video, DVD
audio, video CD or audio tracks may not
record in some cases while the menu is
displayed. As audio will not play in this
case, verify that the video tracks are play-
ing and then activate playback.
The title/chapter number and playback
time display may not appear while playing
back certain DVD video discs.CAUTION
Conversational speech on some DVDs
is recorded at a low volume to em-
phasize the impact of sound effects.
If you adjust the volume assuming
that the conversations represent the
maximum volume level available for
the DVD, you may be startled by
louder sound effects or when you
change to a different audio source.
Loud sounds may have a significant
impact on the human body or pose a
driving hazard. Keep this in mind
when you adjust the volume.
—DVD player operation
(DVD video/DVD audio)

’07 HIGHLANDER HV_U (L/O 0608)
218
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

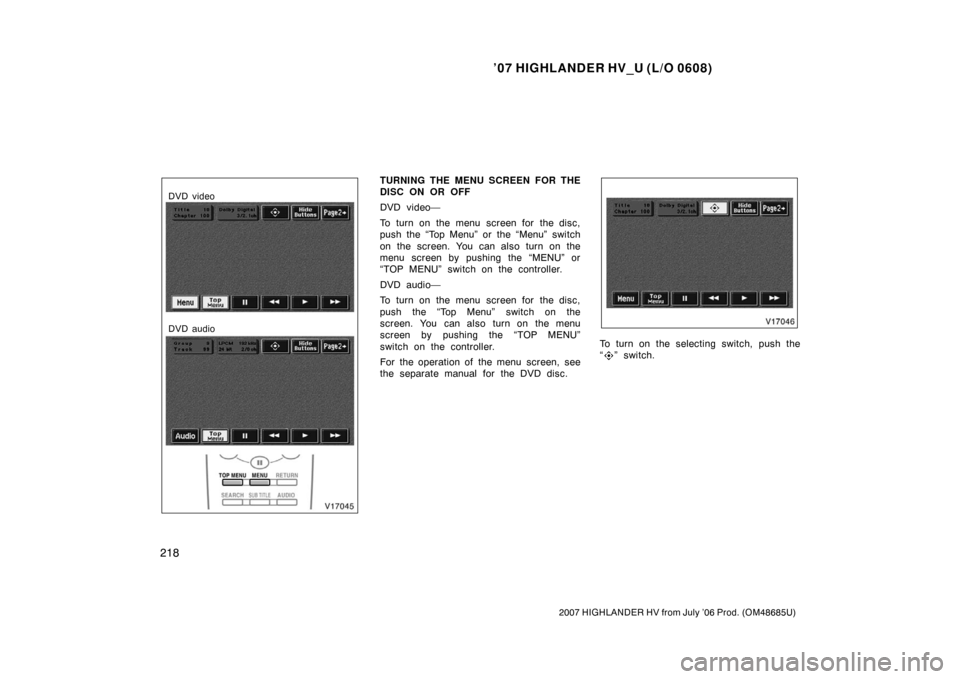

DVD video
DVD audio
TURNING THE MENU SCREEN FOR THE
DISC ON OR OFF
DVD video—
To turn on the menu screen for the disc,
push the “Top Menu” or the “Menu” switch
on the screen. You can also turn on the
menu screen by pushing the “MENU” or
“TOP MENU” switch on the controller.
DVD audio—
To turn on the menu screen for the disc,
push the “Top Menu” switch on the
screen. You can also turn on the menu
screen by pushing the “TOP MENU”
switch on the controller.
For the operation of the menu screen, see
the separate manual for the DVD disc.
To turn on the selecting switch, push the
“
” switch.

’07 HIGHLANDER HV_U (L/O 0608)
219
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
To select the menu for the disc, push the
“
”, “”, “” or “” switches on the
screen. Push the “Enter” switch to select
the menu for the disc.
You can also select the menu for the disc
by the joystick and the “ENT” button on
the controller when the control switches
are not indicated on the screen.
Push the “Move Buttons” on the screen,
and the switches (“
”, “”, “”, “”,
“Enter” and “Move Buttons” switches) will
move up and down.
To turn off the switch, push the “OFF”
switch on the screen. To turn on the
switch again, push the “ON” switch on the
screen.
To return to the previous screen, push the
“Back” switch on the screen.
DVD video
DVD audio

’07 HIGHLANDER HV_U (L/O 0608)
220
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
OPERATING THE “”, “”, “  ” AND
“  ” SWITCHES/BUTTONS
“
” switch/button: Push this switch/button
to pause the disc.
“  ” switch/button: Push this switch/button
to cancel the pause and return to normal
playing.
“  ” and “ ” switches/buttons: Push
and hold the “ ” or “ ” switch/button
to fast forward or reverse. When you re-
lease the switch/button, the DVD player
will resume playing.
DVD video only—
Push the “ ” or “” switch/button
while pausing, the DVD video plays the
slow −motion video replay or the slow −mo-
tion video replay in reverse.
DVD video
DVD audio
SKIPPING TO THE PREDETERMINED
SCREEN
To skip to the predetermined screen, push
the “Return” switch. The DVD player starts
playing from the beginning of the predeter-
mined screen. You can also display the
screen by pushing the “RETURN” button
on the controller.
For further details of the predetermined
screen, see the separate manual for the
DVD disc.
