2007 TOYOTA HIGHLANDER HYBRID Owners Manual

’07 HIGHLANDER HV_U (L/O 0608)
301
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
GASOLINE CONTAINING MMT
Some gasoline contain an octane en-
hancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of
gasoline that contains MMT. If fuel con-
taining MMT is used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
GASOLINE QUALITY
In a very few cases, you may experience
driveability problems caused by the partic-
ular gasoline that you are using. If you
continue to have unacceptable driveability,
try changing gasoline brands. If this does
not rectify your problem, then consult your
Toyota dealer.NOTICE
Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
 If driveab ility problems occur (poor
hot starting, vaporizing, engine
knock, etc.), discontinue the use.
 Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
65 L (17.2 gal., 14.3 Imp. gal.) If you plan to drive your Toyota in
another country...
First,
comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
Operation in foreign countries

’07 HIGHLANDER HV_U (L/O 0608)
302
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The threeway catalytic converters are
emission control devices installed in
the exhaust system.
The purpose is to reduce pollutants in the
exhaust gas.
CAUTION
Keep people and combustible mate-
rials away from the exhaust pipe
while the engine is running. The
exhaust gas is very hot.
Do not idle or park your vehicle
over anything that might burn easi-
ly such as grass, leaves, paper or
rags.
NOTICE
A large amount of unburned gases
flowing into the threeway catalytic
converter may cause it to overheat
and create a fire hazard. To prevent
this and other damage, observe the
following precautions:
Use only unleaded gasoline.
 Do not drive with an extremely low
fuel level; running out of fuel could
cause the engine to misfire, creat-
ing an excessive load on the three
way catalytic converter.
 Do not turn off the ignition while
the vehicle is moving.
 Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel systems could cause an ex-
tremely high threeway catalytic
converter temperature.
If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a checkup as soon
as possible. Remember, your Toyota
dealer knows your vehicle and its
threeway catalytic converter sys-
tem best.
 To ensure that the threeway cata-
lytic converter and the entire emis-
sion control system operate proper-
ly, your vehicle must receive the
periodic inspections required by the
Toyota Maintenance Schedule. For
scheduled maintenance information,
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supple-
ment”.
 Do not apply a coating agent such
as an antirust undercoating to the
exhaust pipe.
Threeway catalytic converters

’07 HIGHLANDER HV_U (L/O 0608)
303
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

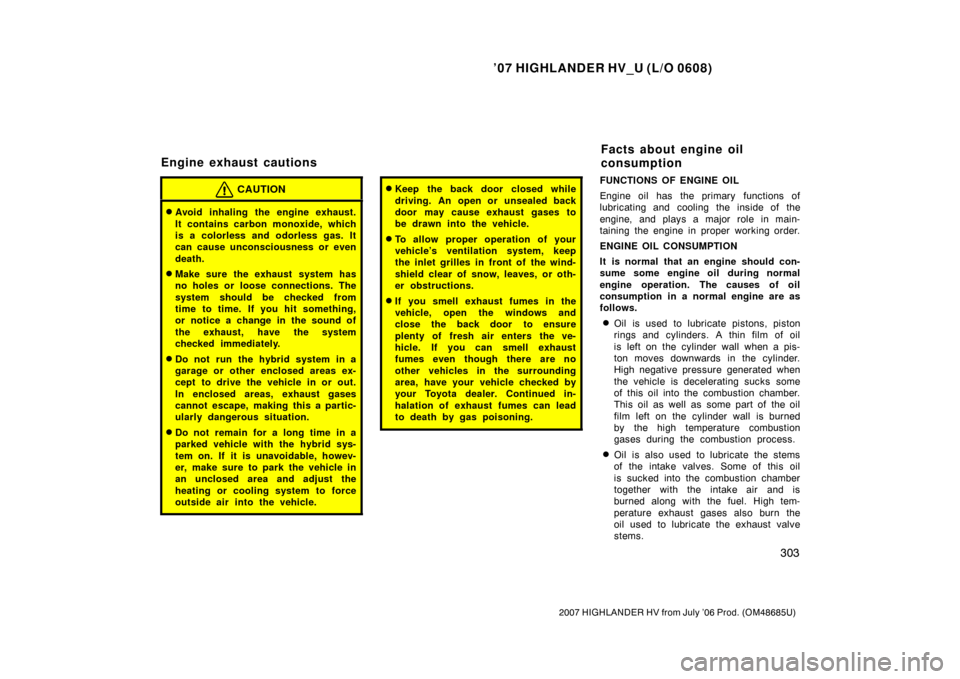

CAUTION
Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the hybrid system in a
garage or other enclosed areas ex-
cept to drive the vehicle in or out.
In enclosed areas, exhaust gases
cannot escape, making this a partic-
ularly dangerous situation.
Do not remain for a long time in a
parked vehicle with the hybrid sys-
tem on. If it is unavoidable, howev-
er, make sure to park the vehicle in
an unclosed area and adjust the
heating or cooling system to force
outside air into the vehicle.
Keep the back door closed while
driving. An open or unsealed back
door may cause exhaust gases to
be drawn into the vehicle.
To allow proper operation of your
vehicle’s ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If you smell exhaust fumes in the
vehicle, open the windows and
close the back door to ensure
plenty of fresh air enters the ve-
hicle. If you can smell exhaust
fumes even though there are no
other vehicles in the surrounding
area, have your vehicle checked by
your Toyota dealer. Continued in-
halation of exhaust fumes can lead
to death by gas poisoning.
FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of
lubricating and cooling the inside of the
engine, and plays a major role in main-
taining the engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are as
follows.
Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil
is left on the cylinder wall when a pis-
ton moves downwards in the cylinder.
High negative pressure generated when
the vehicle is decelerating sucks some
of this oil into the combustion chamber.
This oil as well as some part of the oil
film left on the cylinder wall is burned
by the high temperature combustion
gases during the combustion process.
Oil is also used to lubricate the stems
of the intake valves. Some of this oil
is sucked into the combustion chamber
together with the intake air and is
burned along with the fuel. High tem-
perature exhaust gases also burn the
oil used to lubricate the exhaust valve
stems.
Engine exhaust cautionsFacts about engine oil
consumption

’07 HIGHLANDER HV_U (L/O 0608)
304
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The amount of engine oil consumed de-
pends on the viscosity of the oil, the
quality of the oil and the conditions the
vehicle is driven under.
More oil is consumed by high−speed driv-
ing and frequent acceleration and decel-
eration.
A new engine consumes more oil, since
its pistons, piston rings and cylinder walls
have not become conditioned.
Oil consumption: Max. 1.0 L per 1000
km (1.1 qt./600 miles, 0.9 Imp. qt./600
miles)
When judging the amount of oil con-
sumption, note that the oil may become
diluted and make it difficult to judge
the true level accurately.
As an example, if a vehicle is used for
repeated short trips, and consumes a nor-
mal amount of oil, the dipstick may not
show any drop in the oil level at all, even
after 1000 km (600 miles) or more. This
is because the oil is gradually becoming
diluted with fuel or moisture, making it
appear that the oil level has not changed.
The diluting ingredients evaporate out
when the vehicle is then driven at high
speeds, as on an expressway, making it
appear that oil is excessively consumed
after driving at high speeds. IMPORTANCE OF ENGINE OIL LEVEL
CHECK
One of the most important points in prop-
er vehicle maintenance is to keep the en-
gine oil at the optimum level so that oil
function will not be impaired. Therefore, it
is essential that the oil level be checked
regularly. Toyota recommends that the oil
level be checked every time you refuel
the vehicle.
NOTICE
Failure to check the oil level regularly
could lead to serious engine trouble
due to insufficient oil.
For detailed information on oil level check,
see “Checking the engine oil level” on
page 386 in Section 7
−2.

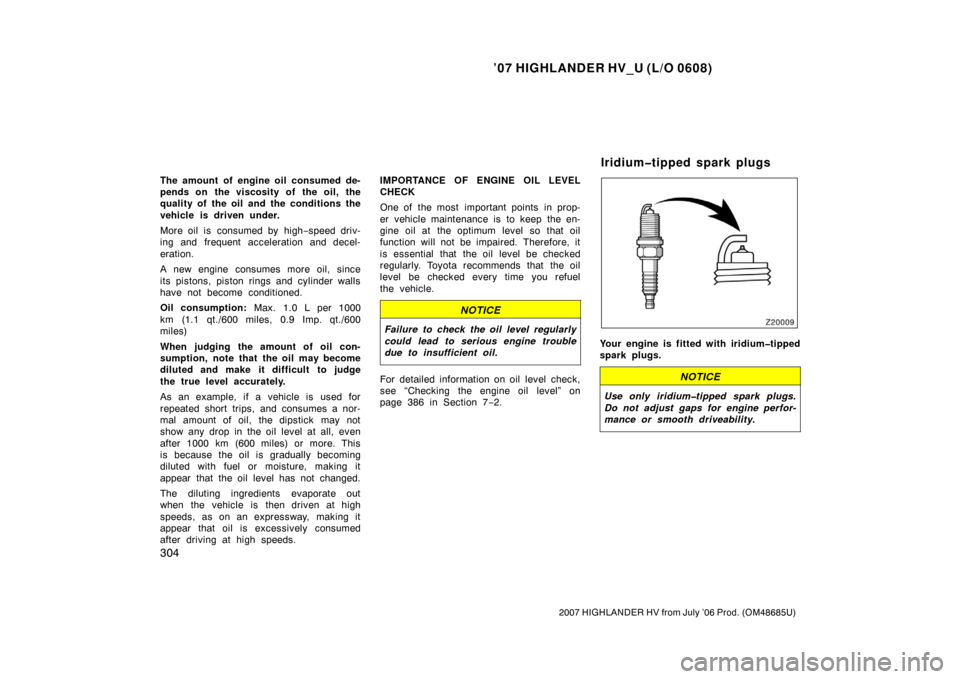

Your engine is fitted with iridiumtipped
spark plugs.
NOTICE
Use only iridiumtipped spark plugs.
Do not adjust gaps for engine perfor-
mance or smooth driveability.
Iridiumtipped spark plugs

’07 HIGHLANDER HV_U (L/O 0608)
305
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
REGENERATIVE BRAKE
When the brake is applied, the motor gen-
erator converts kinetic energy into electric
energy.
The regenerative brake works in the fol-
lowing operations.1. When the accelerator pedal is released, the reduced speed equal to engine
braking in a gasoline −fueled vehicle is
obtained in accordance with the running
mode position of the selector lever.
2. When the brake pedal is depressed with the selector lever in “D” or “B”,
the regenerative brake works.
HYDRAULIC BRAKE
This brake system has 3 independent hy-
draulic circuits. If any circuit should fail,
the other will still work. However, the ped-
al will be harder to press, and your stop-
ping distance will increase. Also, the
brake system warning light may come on.
CAUTION
Do not drive your vehicle if any hy-
draulic circuit has failed. Have your
brakes fixed immediately.
BRAKE ACTUATOR
The brake actuator uses brake fluid pres-
surized by the pump to power −assist the
brakes. If the brake actuator fails during
driving, the brake system warning light
comes on and the buzzer sounds continu-
ously. In this case, the brakes may not
work properly. If they do not work well,
depress the brake pedal firmly. If the
brake system warning light comes on, im-
mediately stop your vehicle and contact
your Toyota dealer.
The red and yellow brake system warning
lights may stay on for about 60 seconds
after the ignition is turned on. It is normal
if the light turns off after a while.
Depressing the brake pedal repeatedly
may turn on the red warning light. It is
normal if the light turns off after a few
seconds.
You may hear a sound in the engine
compartment after the hybrid system is
started or the brake pedal is depressed
repeatedly. This is a pump pulsating
sound of the brake system, and it is not
a malfunction. In the following conditions, you may hear
a motor sound in the engine compartment.
The brake pedal is depressed when the
hybrid system is turned off.
The driver ’s door is opened.
For a few seconds after the hybrid sys-
tem is off and about 90 seconds have
passed.
The brake pedal stroke may be short
when you turn the ignition on with the
brake pedal depressed.
CAUTION
Do not pump the brake pedal if the
hybrid system is not operating.
Each push on the pedal uses up
your reserved brake fluid pressure.
Even if the power assist is com-
pletely lost, the brakes will still
work. But you will have to push the
pedal hard, much harder than nor-
mal. And your braking distance will
increase.
Brake system

’07 HIGHLANDER HV_U (L/O 0608)
306
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
DRUMINDISC TYPE PARKING BRAKE
SYSTEM
Your vehicle has a drum−in −disc type
parking brake system. This type of brake
system n eeds bedding −down of the brake
shoes periodically or whenever the parking
brake shoes and/or drums are replaced.
Have your Toyota dealer perform the bed-
ding− down.
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary. Driving conditions where the steering
wheel must be turned frequently may
cause an overload to the electric power
steering system. The system will reduce
assistance for sometime to prevent the
power steering from overheating. In this
case, you may feel some resistance when
turning the steering wheel though it is not
a malfunction.
CAUTION
If the “P/S” warning light comes on,
take your vehicle to the Toyota dealer
as soon as possible. In this case, you
may feel the heavy steering wheel
maneuvering. Drive your vehicle while
gripping the steering wheel firmly.
Brake pad wear limit
indicators
Electric power steering system

’07 HIGHLANDER HV_U (L/O 0608)
307
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

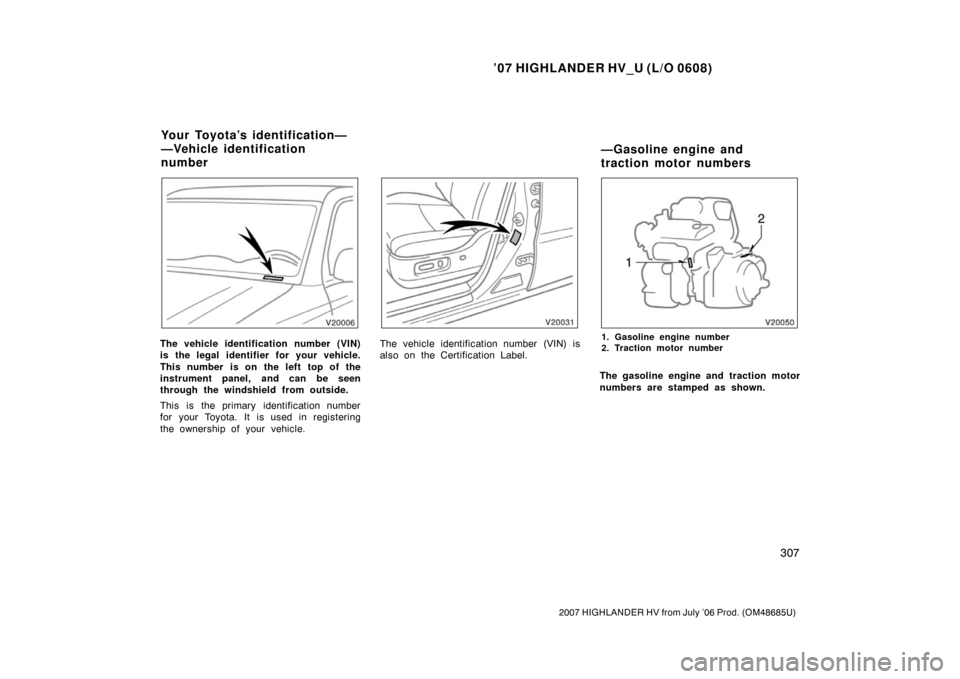

The vehicle identification number (VIN)
is the legal identifier for your vehicle.
This number is on the left top of the
instrument panel, and can be seen
through the windshield from outside.
This is the primary identification number
for your Toyota. It is used in registering
the ownership of your vehicle.The vehicle identification number (VIN) is
also on the Certification Label.1. Gasoline engine number
2. Traction motor number
The gasoline engine and traction motor
numbers are stamped as shown.
Your Toyota’s identification—
—Vehicle identification
number—Gasoline engine and
traction motor numbers

’07 HIGHLANDER HV_U (L/O 0608)
308
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Your new vehicle carries theft preven-
tion labels which are approximately 47
mm (1.85 in.) by 12 mm (0.47 in.).
The purpose of these labels is to reduce
the incidence of vehicle thefts by facilitat-
ing the tracing and recovery of parts from
stolen vehicles. The label is designed so
that once it is applied to a surface, any
attempt to remove it will result in destroy-
ing the integrity of the label. Transferring
these labels intact from one part to anoth-
er, will be impossible.
NOTICE
You should not attempt to remove the
theft prevention labels as it may vio-
late certain state or federal laws.
CAUTION
Do not modify the suspension/chassis
with lift kits, spacers, springs, etc. It
can cause dangerous handling charac-
teristics, resulting in loss of control.
Theft prevention labels
(except for Canada)Suspension and chassis
