2007 TOYOTA HIGHLANDER HYBRID Owners Manual

’07 HIGHLANDER HV_U (L/O 0608)
141
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 142
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Power meter 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Service reminder indicators and warning buzzers 144
. . . . . . . . . . . . . .
Multi −information display 152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
SECTION 1 6

’07 HIGHLANDER HV_U (L/O 0608)
142
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

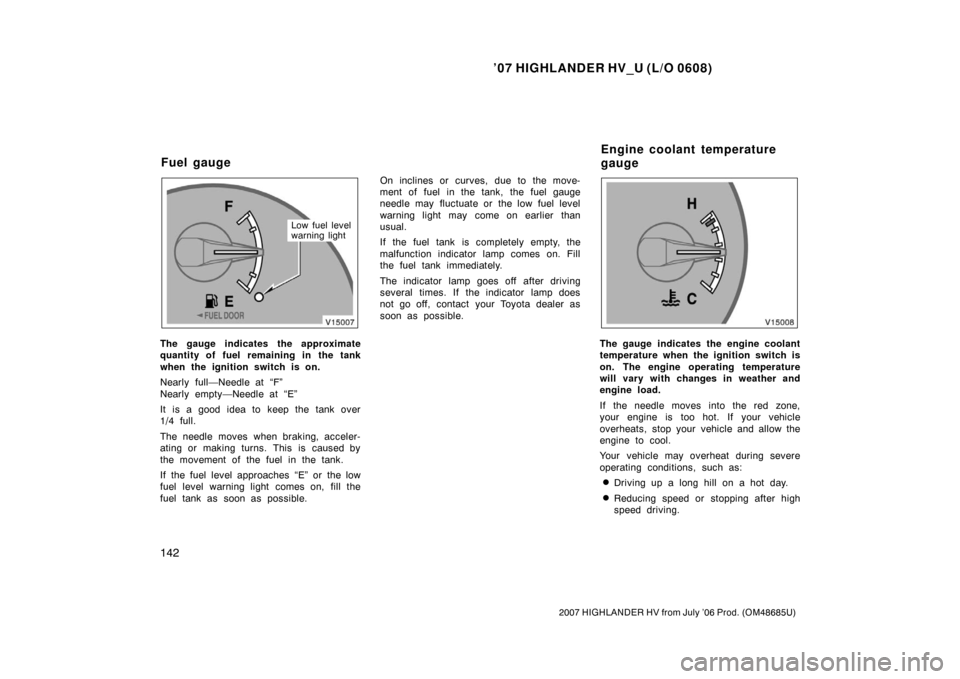

Low fuel level
warning light
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Fuel gauge
Engine coolant temperature
gauge

’07 HIGHLANDER HV_U (L/O 0608)
143
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” on page 341 in
Section 4.
The power meter indicates the instanta-
neous output from the hybrid system in
approximate kilowatts.
While the hybrid system is regenerating
energy, the meter indicates negative.
Power meter

’07 HIGHLANDER HV_U (L/O 0608)
144
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
If the indicator or buzzer comes on...Do this.
(a)
or
(red indicator)If parking brake is off, stop immediately and contact Toyota dealer.
(yellow indicator)
Take vehicle to Toyota dealer. If red brake system warning light is also on, stop
immediately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)
(indicator and buzzer)
Fasten front passenger ’s seat belt.
(d)Stop immediately and contact Toyota dealer.
(e)Take vehicle to Toyota dealer.
(f)orTake vehicle to Toyota dealer.
Service reminder indicators and warning buzzers

’07 HIGHLANDER HV_U (L/O 0608)
145
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
If the indicator or buzzer comes on...Do this.
(g)Low fuel level warning lightFill up tank.
(h)orTake vehicle to Toyota dealer.
If red brake system warning light is also on, stop immediately and contact Toyota
dealer.
(i)Close all side doors and back door.
(j)Take vehicle to Toyota dealer.
(k)Take vehicle to Toyota dealer immediately.
(l)Read a warning message on multi−information display.
(m)Key reminder buzzerRemove key.

’07 HIGHLANDER HV_U (L/O 0608)
146
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
(a) Brake System Warning Lights
These lights come on in the following
cases when the ignition key is in the “ON”
position.
RED WARNING LIGHT
When the parking brake is applied...
This light comes on when the ignition is
turned on, even after the parking brake is
released. When the vehicle speed exceeds
5 km/h (3 mph), a message “PARK
BRAKE” appears on the multi −information
display, the master warning light flashes
and a warning tone sounds.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
YELLOW WARNING LIGHT
When the regenerative brake system
or electronically controlled brake
system fails...
When the yellow warning light comes on,
the regenerative brake system and/or elec-
tronically controlled brake system is mal-
functioning. Take your vehicle to your
Toyota dealer.
RED AND YELLOW WARNING LIGHT
When the hydraulic brake system
fails...
If the red and yellow warning lights come
on, it indicates a serious problem and you
can continue driving no longer.
Have your vehicle checked at your
Toyota dealer in the following cases:
The lights do not come on even if the
parking brake is applied when the hy-
brid system is on.
The lights do not come on when the
ignition is turned on with the parking
brake released.
A red or yellow warning light turning on
briefly during operation does not indicate
a problem.
CAUTION
If any of the following conditions oc-
curs, immediately stop your vehicle at
a safe place and contact your Toyota
dealer.
The red warning light does not turn
off even after the parking brake is
released with the hybrid system
turned on.
The red warning light stays on.
In either case, this can indicate that
the brakes may not work properly and
your stopping distance will become
longer. Depress the brake pedal firmly
and bring the vehicle to an immediate
stop.
The red brake system warning light
remains on together with the “ABS”
warning light and “CHECK VSC
SYSTEM” warning message.
In this case, not only the antilock
brake system and vehicle stability
control system will fail but also the
vehicle will become extremely unsta-
ble during braking.

’07 HIGHLANDER HV_U (L/O 0608)
147
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
In the following case, drive directly to
the nearest Toyota dealer.
The yellow warning light comes on
while driving.
Any of the following conditions may oc-
cur, but do not indicate the malfunc-
tion:
The red and yellow warning lights may
stay on for about 60 seconds after the
hybrid system is started. It is normal
if it turns off after a while.
Depressing the brake pedal repeatedly
may turn on the red and yellow warn-
ing lights. It is normal if the light turns
off after a few seconds.
You may hear a small sound in the
engine compartment after the hybrid
system is started or the brake pedal is
depressed repeatedly. This is a pump
pulsating sound of the brake system,
and it is not a malfunction.
You may hear a motor sound in the
engine compartment when the brake
pedal is depressed with the hybrid sys-
tem turned off.
The brake pedal stroke may be short
when you turn the ignition key to the
“START” position with the brake pedal
depressed.
(b) Driver’s Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition key is turned to the
“ON” position, the buzzer sounds for about
6 seconds and the reminder light flashes
if the driver ’s seat belt is not fastened.
Unless the driver fastens the belt, the
light continues flashing.
If the vehicle speed rises above 15 km/h
(9 mph) with the seat belt unfastened, the
buzzer will sound for about 10 seconds.
Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone
for 20 more seconds. Even if the vehicle
speed drops below 15 km/h (9 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. (c) Front Passenger ’s Seat Belt
Reminder Light and Buzzer
The light and buzzer act as a reminder to
have the front passenger buckle up the
seat belt.
Once the ignition key is turned to the
“ON” position, the reminder light flashes if
a passenger sits in the front passenger
seat and does not fasten the seat belt.
Unless the front passenger fastens the
belt, the light continues flashing.
If the vehicle speed rises above 15 km/h
(9 mph) with the seat belt unfastened, the
buzzer will sound for about 10 seconds.
Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone
for 20 more seconds. Even if the vehicle
speed drops below 15 km/h (9 mph), the
buzzer will continue to sound. To stop
the buzzer, fasten the seat belt.
If luggage or other load is placed on the
front passenger seat, depending on its
weight and how it is placed on the seat,
built −in sensors in the seat cushion may
detect the pressure, causing the reminder
light to flash and buzzer to sound.

’07 HIGHLANDER HV_U (L/O 0608)
148
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
(d) Charging System Warning Light
When there are problems in the charging
system while the hybrid system is running,
the warning light comes on.
NOTICE
When the charging system warning
light comes on while the hybrid sys-
tem is running, malfunctions may
have occurred. If the warning light
comes on, immediately stop the ve-
hicle in a safe place and contact your
Toyota dealer.
(e) Hybrid Battery Warning Light
This light comes on in the following
cases:
a. The hybrid battery voltage drops be- cause the transmission is left in the
“N” position.
If you put the transmission in the “P”
position and the light goes off, the system
is working properly. b. The hybrid battery is discharged.
If the hybrid battery is discharged and the
warning light comes on along with the
“READY” light, stop your vehicle in a safe
place and contact your Toyota dealer. (f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the hybrid system starts.
This means that the warning light sys-
tem is operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
hybrid system or warning light system
itself.
Contact your Toyota dealer as soon as
possible to service the vehicle. Emissions Inspection and Maintenance
(I/M) programs
Your vehicle may not pass a state
emission inspection if the malfunction
indicator lamp remains on. Contact your
Toyota dealer to check your vehicle’s
emission control system and OBD
(On
−Board Diagnostics) system before
taking your vehicle for the inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” on page 374
in Section 6.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
