2007 TOYOTA HIGHLANDER HYBRID Owners Manual

’07 HIGHLANDER HV_U (L/O 0608)
53
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.

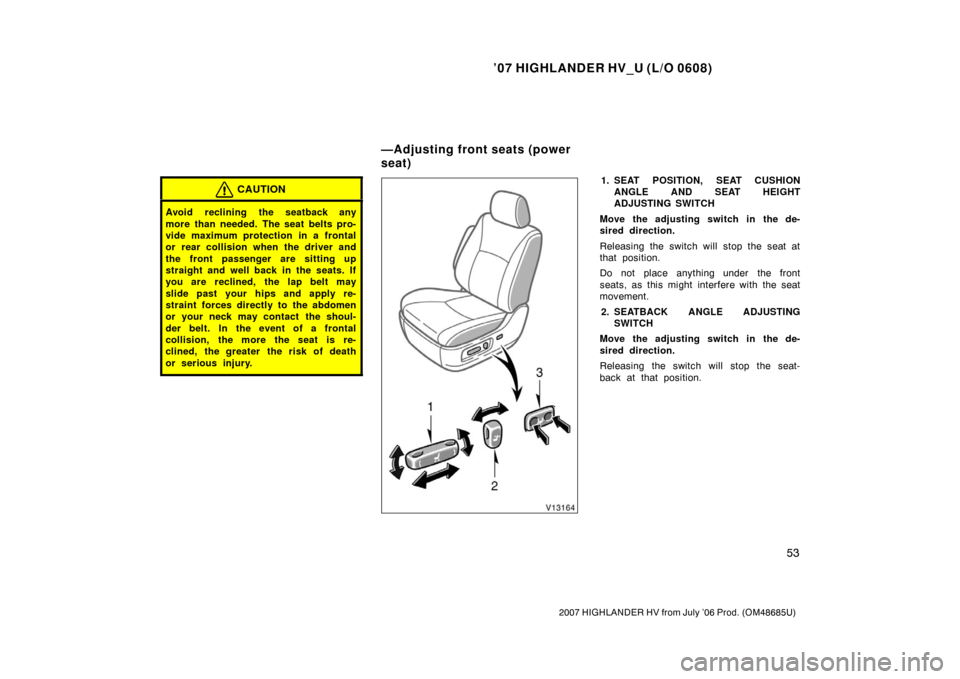

1. SEAT POSITION, SEAT CUSHIONANGLE AND SEAT HEIGHT
ADJUSTING SWITCH
Move the adjusting switch in the de-
sired direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the adjusting switch in the de-
sired direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seat)

’07 HIGHLANDER HV_U (L/O 0608)
54
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH
Press either side of the switch.
The amount of lumbar support will change
while the switch is pressed.

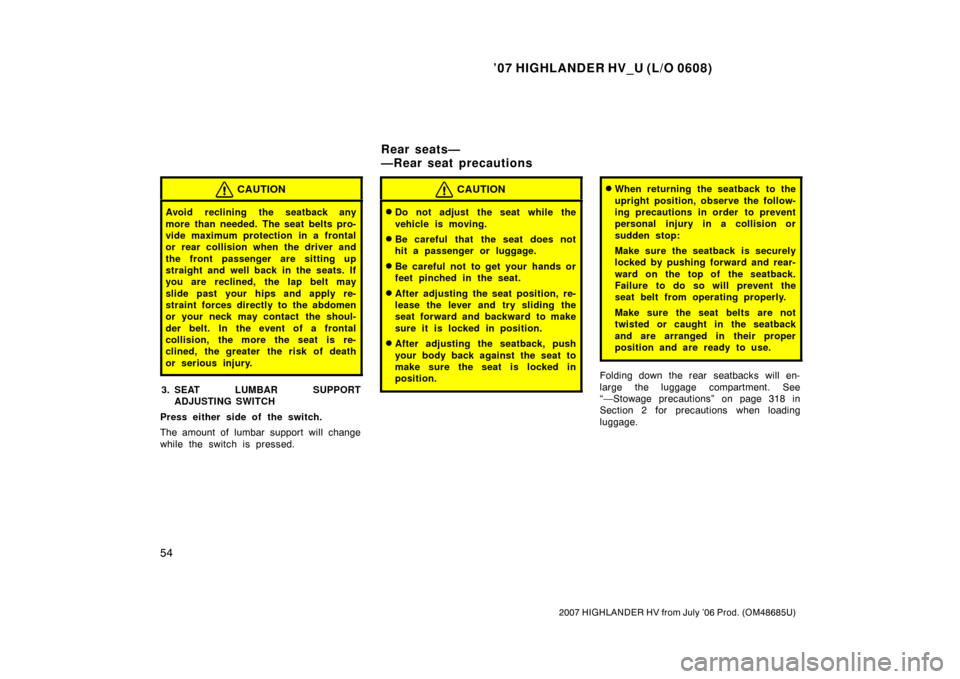

CAUTION
Do not adjust the seat while the
vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
Be careful not to get your hands or
feet pinched in the seat.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or
sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Folding down the rear seatbacks will en-
large the luggage compartment. See
“—Stowage precautions” on page 318 in
Section 2 for precautions when loading
luggage.
Rear seats—
—Rear seat precautions

’07 HIGHLANDER HV_U (L/O 0608)
55
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Vehicles with third seatVehicles without third seat
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING LEVER
Pull the lever up. Then lean back to the
desired angle and release the lever.
CAUTION
Do not adjust the seat while the
vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
—Adjusting second seats

’07 HIGHLANDER HV_U (L/O 0608)
56
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen or
your neck may contact the shoulder
belt. In the event of a frontal colli-
sion, the more the seat is reclined,
the greater the risk of death or se-
rious injury.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
NOTICE
Do not fold the second seat seatback
forward with the luggage cover hooks
attached.

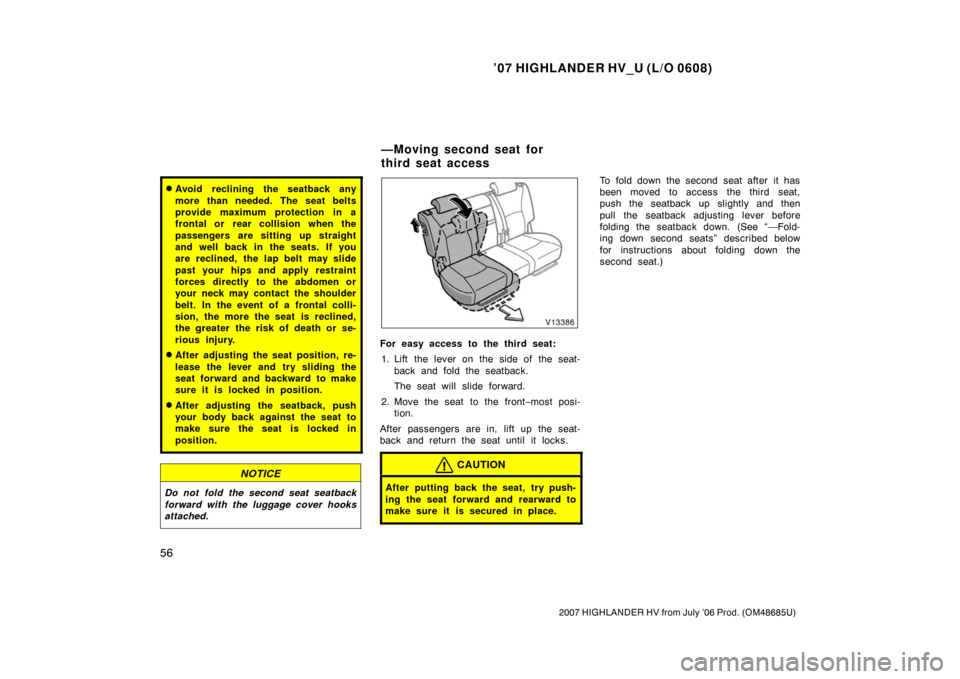

For easy access to the third seat:1. Lift the lever on the side of the seat- back and fold the seatback.
The seat will slide forward.
2. Move the seat to the front −most posi-
tion.
After passengers are in, lift up the seat-
back and return the seat until it locks.
CAUTION
After putting back the seat, try push-
ing the seat forward and rearward to
make sure it is secured in place.
To fold down the second seat after it has
been moved to access the third seat,
push the seatback up slightly and then
pull the seatback adjusting lever before
folding the seatback down. (See “—Fold-
ing down second seats” described below
for instructions about folding down the
second seat.)
—Moving second seat for
third seat access

’07 HIGHLANDER HV_U (L/O 0608)
57
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Vehicles with third seat
Vehicles without third seat
BEFORE FOLDING DOWN SECOND
SEATS1. Stow the center seat belt buckle of the second seat as shown in the il-
lustration.
NOTICE
The seat belt buckle must be stowed
before you fold the second seat.
2. Make sure the outer seat beltspasses through the hangers when
folding the second seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hangers when they are in use.
NOTICE
The seat belt must be stowed before
you fold the seatback.
—Folding down second seats

’07 HIGHLANDER HV_U (L/O 0608)
58
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
FOLDING DOWN SECOND SEATS
(vehicles without third seat)
Pull the seatback angle adjusting lever
to unlock the seatback and fold the
seatback down until it locks.
The seat position returns to the rear−most
position when the seatback is folded
down.
CAUTION
Be careful that the seat does not hit
a passenger or luggage.
NOTICE
Do not fold the second seat seatback
forward with the luggage cover hooks
attached.
Folding down the second seats will en-
large the luggage compartment. See
“—Stowage precautions” on page 318 in
Section 2 for precautions when loading
luggage.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
death or serious injury in a collision
or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.

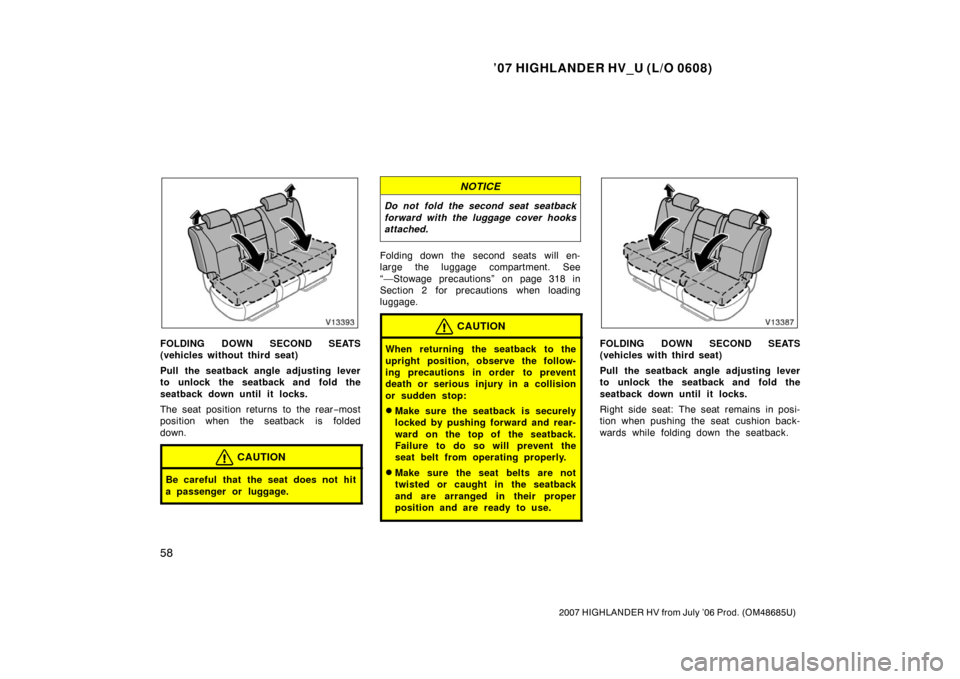

FOLDING DOWN SECOND SEATS
(vehicles with third seat)
Pull the seatback angle adjusting lever
to unlock the seatback and fold the
seatback down until it locks.
Right side seat: The seat remains in posi-
tion when pushing the seat cushion back-
wards while folding down the seatback.

’07 HIGHLANDER HV_U (L/O 0608)
59
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
Be careful that the seat does not
hit a passenger or luggage.
After folding down the right side
seat, try pushing the seat forward
and rearward to make sure it is se-
cured in place.
NOTICE
Do not fold the second seat seatback
forward with the luggage cover hooks
attached.
Folding down the second seats will en-
large the luggage compartment.

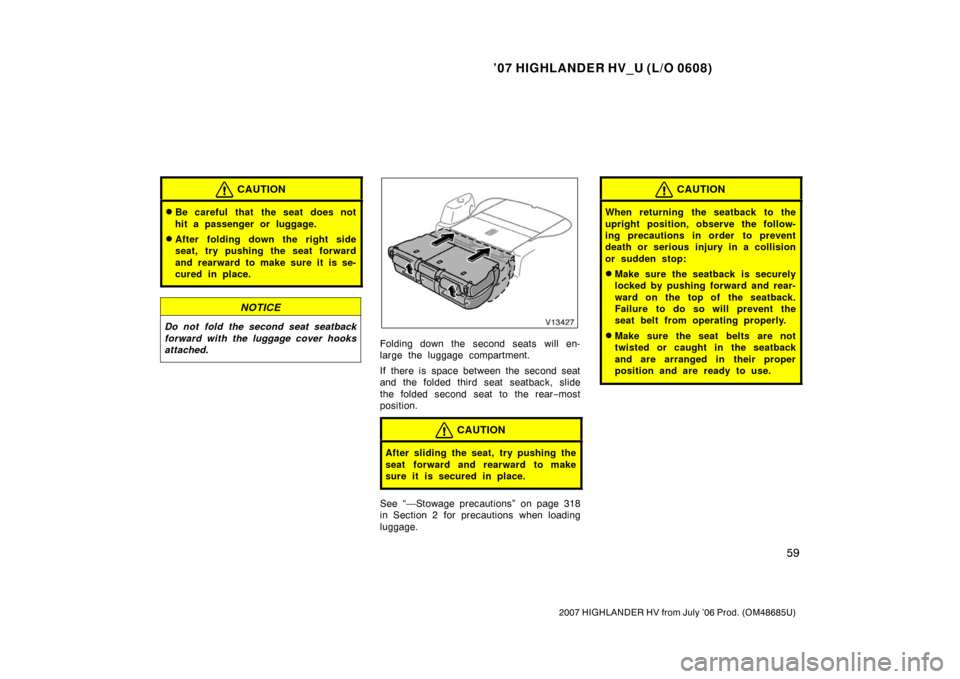

If there is space between the second seat
and the folded third seat seatback, slide
the folded second seat to the rear−most
position.
CAUTION
After sliding the seat, try pushing the
seat forward and rearward to make
sure it is secured in place.
See “—Stowage precautions” on page 318
in Section 2 for precautions when loading
luggage.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
death or serious injury in a collision
or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.

’07 HIGHLANDER HV_U (L/O 0608)
60
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

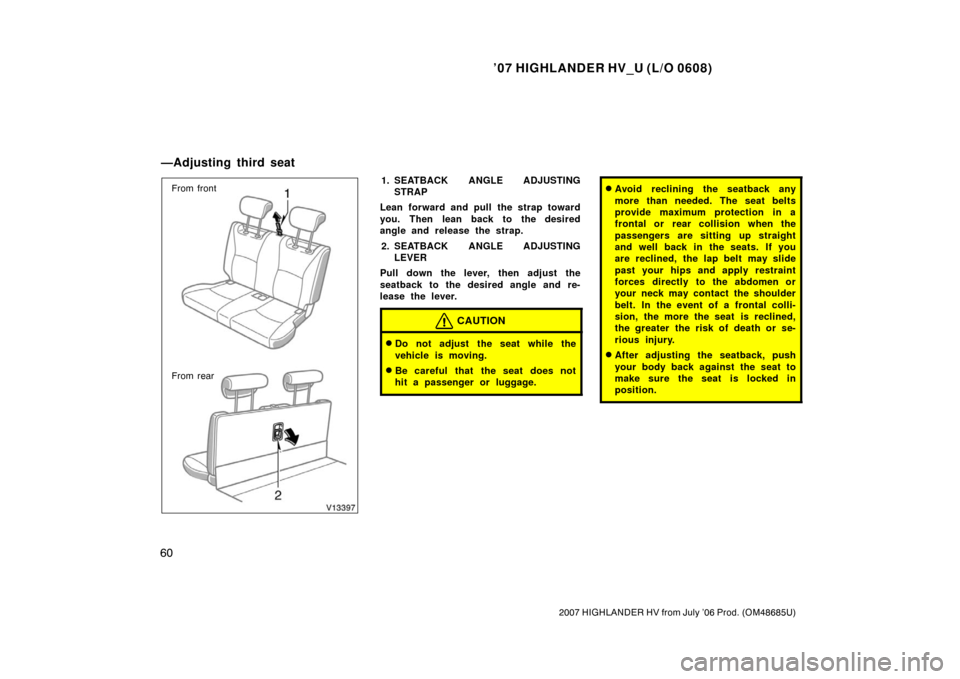

From front
From rear1. SEATBACK ANGLE ADJUSTINGSTRAP
Lean forward and pull the strap toward
you. Then lean back to the desired
angle and release the strap.
2. SEATBACK ANGLE ADJUSTING LEVER
Pull down the lever, then adjust the
seatback to the desired angle and re-
lease the lever.
CAUTION
Do not adjust the seat while the
vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen or
your neck may contact the shoulder
belt. In the event of a frontal colli-
sion, the more the seat is reclined,
the greater the risk of death or se-
rious injury.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
—Adjusting third seat
