2007 TOYOTA HIGHLANDER HYBRID navigation system

’07 HIGHLANDER HV_U (L/O 0608)
2
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Toyota hybrid system combines the
power of a gasoline engine and a trac-
tion motor to minimize fuel consump-
tion and emissions.
Depending on driving conditions, the ve-
hicle runs optimally on a combination of
the gasoline engine and traction motor.
Since the gasoline engine charges the hy-
brid battery as needed, the battery does
not have to be charged from an outside
source like an electric vehicle.Toyota hybrid system performs various
controls depending on the operating
condition. The condition appears on the
multiinformation display and/or naviga-
tion system screen (with navigation
system) when the display and/or screen
is in “Energy Monitor” mode. See “Mul-
tiinformation display” on page 152 in
Section 16 and “Trip information” on
page 271 in Section 110 for the opera-
tion of the display and screen.

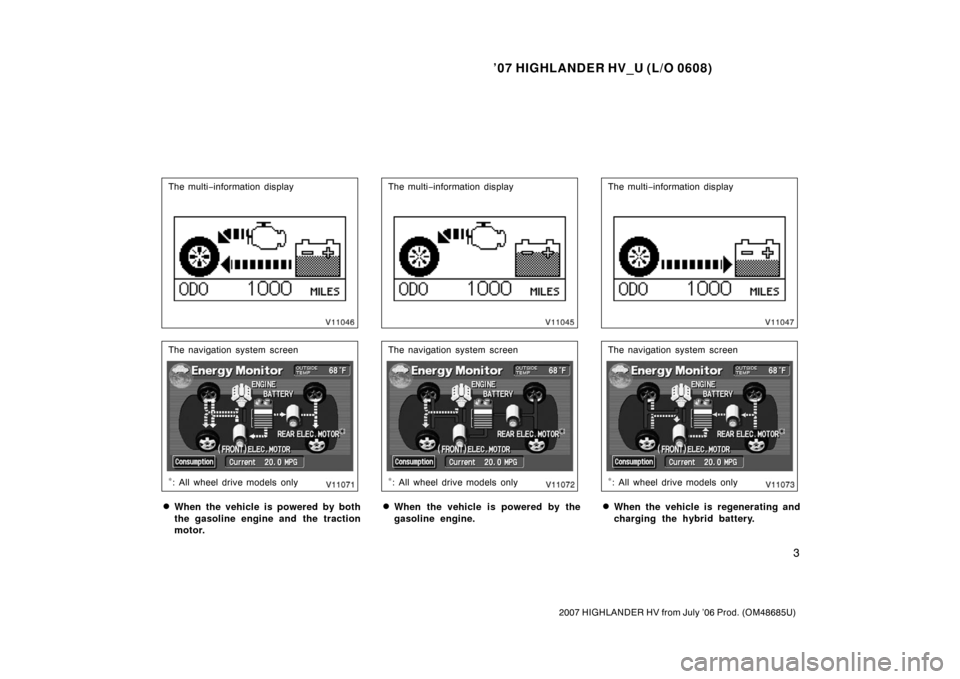

These are representative examples of
energy monitor displays. Depending on
the condition, the energy monitor dis-
plays the graphics different from those
shown below. Depending on conditions,
the graphic does not reflect the actual
motion of the vehicle.The multi
−information display
The navigation system screen
∗: All wheel drive models only
When the vehicle is powered by the
traction motor.
Toyota hybrid system Energy monitor

’07 HIGHLANDER HV_U (L/O 0608)
3
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The multi−information display
The navigation system screen
∗: All wheel drive models only
When the vehicle is powered by both
the gasoline engine and the traction
motor.
The multi −information display
The navigation system screen
∗: All wheel drive models only
When the vehicle is powered by the
gasoline engine.
The multi −information display
The navigation system screen
∗: All wheel drive models only
When the vehicle is regenerating and
charging the hybrid battery.

’07 HIGHLANDER HV_U (L/O 0608)
4
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The multi−information display
The navigation system screen
∗: All wheel drive models only

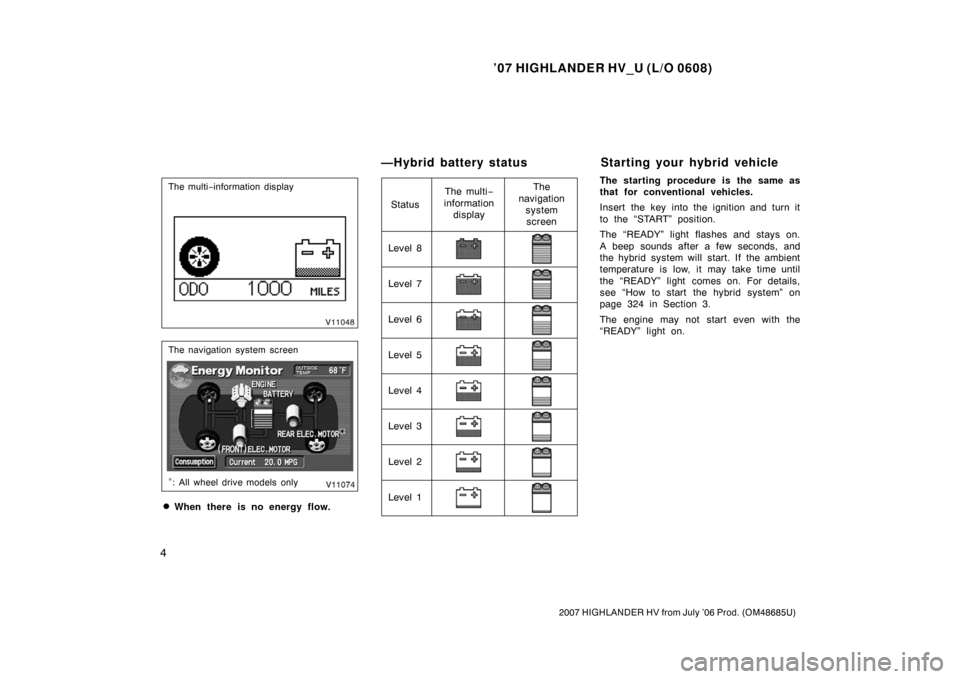

When there is no energy flow. Level 1 Level 2
Level 3
Level 4
Level 5
Level 6
Level 7
Level 8Status
The multi
−
information display The
navigation systemscreen
The starting procedure is the same as
that for conventional vehicles.
Insert the key into the ignition and turn it
to the “START” position.
The “READY” light flashes and stays on.
A beep sounds after a few seconds, and
the hybrid system will start. If the ambient
temperature is low, it may take time until
the “READY” light comes on. For details,
see “How to start the hybrid system” on
page 324 in Section 3.
The engine may not start even with the
“READY” light on.
—Hybrid battery status Starting your hybrid vehicle

’07 HIGHLANDER HV_U (L/O 0608)
5
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Drive your vehicle with smooth accel-
eration and deceleration.
While driving, energy is recovered
through the regenerative brake as the
vehicle decelerates. However, for effi-
cient use, do not accelerate or deceler-
ate your vehicle more than necessary.
Avoid abrupt acceleration and decelera-
tion.
The power of the hybrid battery can be
checked on the multi−information dis-
play or the navigation system screen
(with navigation system). See “—Hybrid
battery status” on page 4 for details.
Gradual or non −abrupt acceleration and
deceleration will make more effectively
use of the traction motor without hav-
ing to use gasoline engine power. When parking, be sure to put the trans-
mission into the “P” position. While
driving, put the transmission into the
“D” position.
In the “N” position, the gasoline engine
operates but electricity cannot be gen-
erated. The hybrid battery will be dis-
charged requiring unnecessary engine
power to recharge.
The hybrid system automatically re-
charges the hybrid battery when the
remaining battery power is reduced.
However, the hybrid battery cannot be
recharged if the transmission is in the
“N” position.
For detailed information, see “How to save
fuel and make your vehicle last longer” on
page 335 in Section 3.
INFORMATION
The gasoline engine starts and stops
automatically. (It stops during a low
load driving, deceleration or when the
vehicle is stopped.)
As long as the “READY” light remains
on, you can start your vehicle using
the electric motor even with the gaso-
line engine stopped.
The gasoline engine may not stop au-
tomatically in the following condi-
tions:
 During gasoline engine warmup
 During hybrid battery charging
 During low or high hybrid battery
temperature
Efficient use of your hybrid
vehicle

’07 HIGHLANDER HV_U (L/O 0608)
9
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
The driver should pay special atten-
tion to pedestrians when the vehicle
is powered only by the traction mo-
tor. Because there is no engine
noise, the pedestrians may mis-
judge the vehicle’s movement.
When you leave your vehicle, be
sure to turn off the hybrid system.
Be sure to put the transmission in
the “P” position because the ve-
hicle can move when the “READY”
light is on even if the engine is
stopped. When the “READY” light is
on, do not leave your vehicle in a
shift position other than the “P”
and “N” positions. The vehicle will
creep and start abruptly if the ac-
celerator pedal is depressed by
mistake. This may cause death or
serious injury.
The multiinformation display
The navigation system screen
If you open the door with the hybrid
system turned on and the transmission
is not in the “P” position, a message
appears on the multiinformation dis-
play and navigation system screen (for
vehicles with navigation system).
When you leave your vehicle, or stop
or park for a while, put the transmis-
sion in the “P” position.
Charging the hybrid battery while driv-
ing is important. In the “N” position,
the hybrid battery will not be charged.
Do not leave the transmission in the
“N” position. The motor generator oper-
ates in the “P”, “R”, “D” and “B” posi-
tions. When you drive, put the trans-
mission in the “D” or “B” position and
depress the accelerator pedal. When
driving in a traffic jam, operate the
vehicle in the “D” position to prevent
the hybrid battery from being dischar-
ged.

’07 HIGHLANDER HV_U (L/O 0608)
15
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

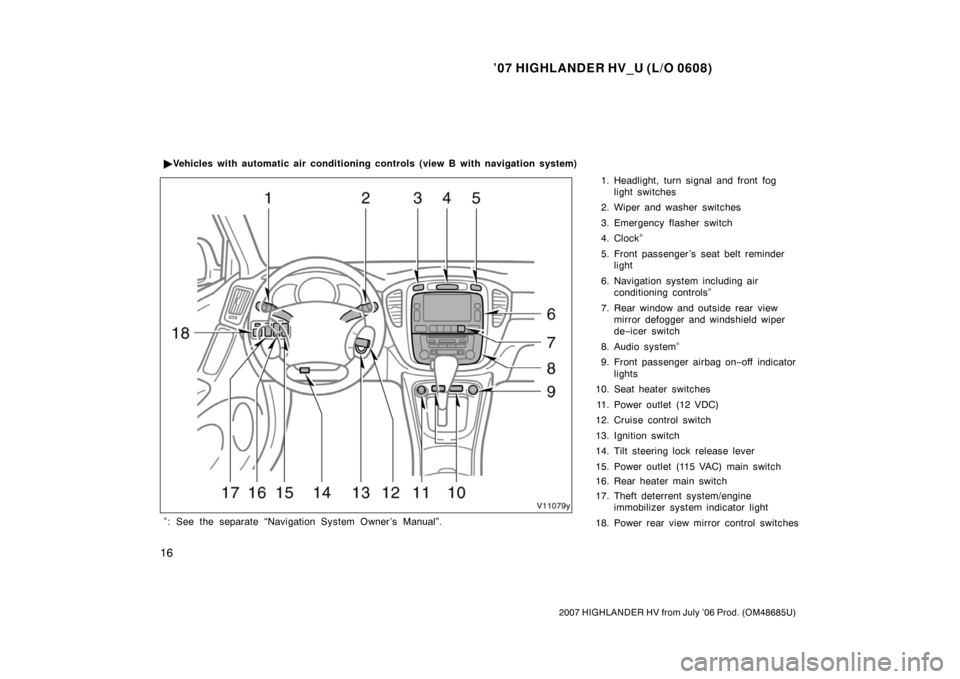

1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Trip information button
6. Front passenger ’s seat belt reminder light
7. Air conditioning controls and trip information display
8. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
9. Audio system
10. Front passenger airbag on −off indicator
lights
11. Seat heater switches
12. Power outlet (12 VDC)
13. Cruise control switch
14. Ignition switch
15. Tilt steering lock release lever
16. Power outlet (115 VAC) main switch
17. Rear heater main switch
18. Theft deterrent system/engine immobilizer system indicator light
19. Power rear view mirror control switches

Vehicles with automatic air conditioning controls (view B without navigation system)

’07 HIGHLANDER HV_U (L/O 0608)
16
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

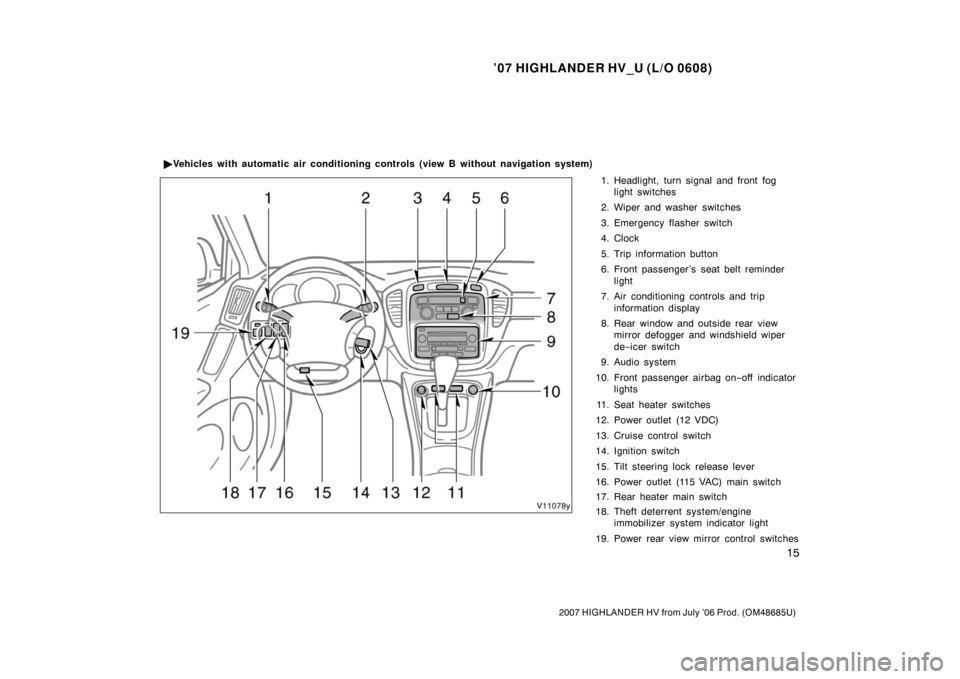

1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
∗
5. Front passenger ’s seat belt reminder light
6. Navigation system including air conditioning controls
∗
7. Rear window and outside rear viewmirror defogger and windshield wiper
de− icer switch
8. Audio system
∗
9. Front passenger airbag on− off indicator
lights
10. Seat heater switches
11. Power outlet (12 VDC)
12. Cruise control switch
13. Ignition switch
14. Tilt steering lock release lever
15. Power outlet (115 VAC) main switch
16. Rear heater main switch
17. Theft deterrent system/engine immobilizer system indicator light
18. Power rear view mirror control switches
∗: See the separate “Navigation System Owner ’s Manual”.

Vehicles with automatic air conditioning controls (view B with navigation system)

’07 HIGHLANDER HV_U (L/O 0608)
139
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
Without navigation system (type A)
Without navigation system (type B)
With navigation system

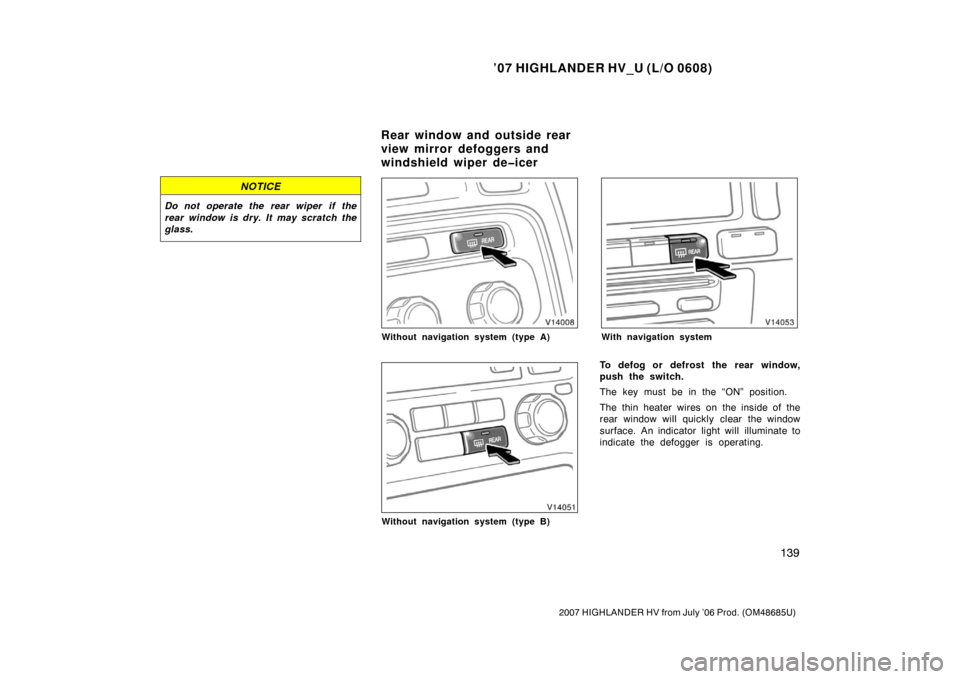

To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surface. An indicator light will illuminate to
indicate the defogger is operating.
Rear window and outside rear
view mirror defoggers and
windshield wiper deicer
