2007 SATURN RELAY Owners Manual

You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Your vehicle has a right front passenger’s
airbag. SeePassenger Sensing System on
page 93. We recommend that rear-facing child
restraints be secured in a rear seat, even if
the airbag or airbags are off. If your child
restraint is forward-facing, move the seat as
far back as it will go before securing the
child restraint in this seat. SeeManual Seats
on page 9orPower Seats on page 10.
When the passenger sensing system has
turned off the right front passenger’s airbag or
airbags, the off indicator in the passenger
airbag status indicator should light and stay lit
when you turn the ignition to RUN or
START. SeePassenger Airbag Status
Indicator on page 224.
2. Put the child restraint on the seat.3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
81
ProCarManuals.com

5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.
82
ProCarManuals.com

8. If the airbag or airbags are off, the off indicator
on the instrument panel will be lit and stay lit
when the key is turned to RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your retailer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.Airbag System
Your vehicle has a frontal airbag for the driver and
a frontal airbag for the right front passenger.
Your vehicle may also have side impact airbags.
Side impact airbags are available for the driver, the
right front passenger and the second row
captain’s chairs (if equipped).
If your vehicle has a side impact airbag, the word
AIRBAG will appear on the airbag covering on
the side of the seatback closest to the door.
Frontal airbags are designed to help reduce the
risk of injury from the force of an inating
frontal airbag. But these airbags must inate very
quickly to do their job and comply with federal
regulations.
83
ProCarManuals.com

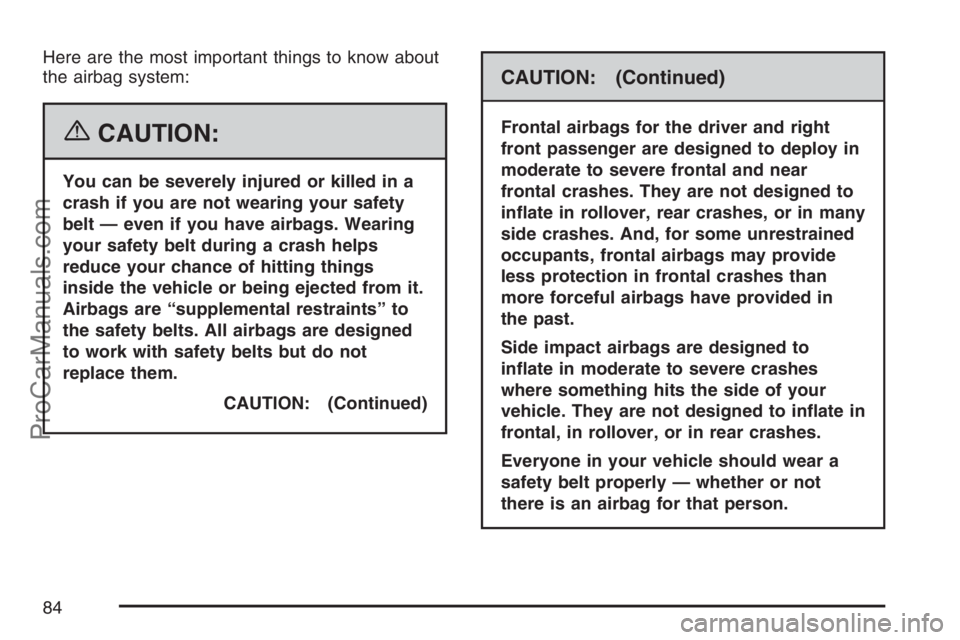

Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
inside the vehicle or being ejected from it.
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts but do not
replace them.
CAUTION: (Continued)
CAUTION: (Continued)
Frontal airbags for the driver and right
front passenger are designed to deploy in
moderate to severe frontal and near
frontal crashes. They are not designed to
inate in rollover, rear crashes, or in many
side crashes. And, for some unrestrained
occupants, frontal airbags may provide
less protection in frontal crashes than
more forceful airbags have provided in
the past.
Side impact airbags are designed to
inate in moderate to severe crashes
where something hits the side of your
vehicle. They are not designed to inate in
frontal, in rollover, or in rear crashes.
Everyone in your vehicle should wear a
safety belt properly — whether or not
there is an airbag for that person.
84
ProCarManuals.com

{CAUTION:
Both frontal and side impact airbags
inate with great force, faster than the
blink of an eye. If you are too close to an
inating airbag, as you would be if you
were leaning forward, it could seriously
injure you. Safety belts help keep you in
position for airbag ination before and
during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while
still maintaining control of the vehicle.
Occupants should not lean on or sleep
against the door.
{CAUTION:
Anyone who is up against, or very close
to, any airbag when it inates can be
seriously injured or killed. Airbags plus
lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system is
designed for them. Young children and
infants need the protection that a child
restraint system can provide. Always
secure children properly in your vehicle.
To read how, seeOlder Children on
page 56orInfants and Young Children on
page 59.
85
ProCarManuals.com

There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an
electrical problem. SeeAirbag Readiness Light on
page 223for more information.Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
86
ProCarManuals.com

The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.If your vehicle has a side impact airbag for the
driver, it is in the side of the driver’s seatback
closest to the door.
87
ProCarManuals.com

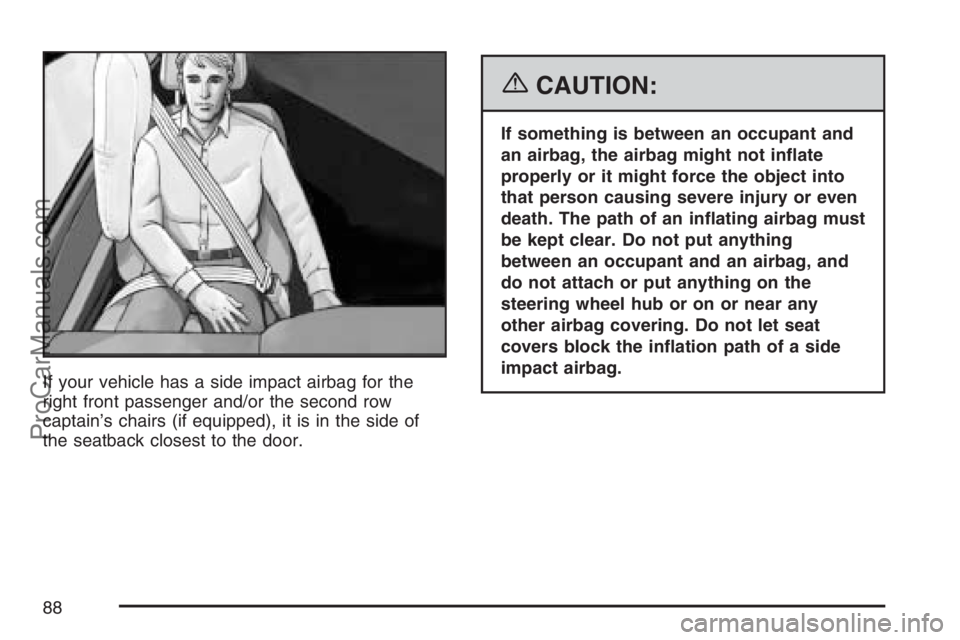

If your vehicle has a side impact airbag for the
right front passenger and/or the second row
captain’s chairs (if equipped), it is in the side of
the seatback closest to the door.
{CAUTION:
If something is between an occupant and
an airbag, the airbag might not inate
properly or it might force the object into
that person causing severe injury or even
death. The path of an inating airbag must
be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. Do not let seat
covers block the ination path of a side
impact airbag.
88
