2007 NISSAN TIIDA EC Engine Control System

NATS (NISSAN ANTI-THEFT SYSTEM)
SEC-13
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
- Mechanical key
- ABS actuator control unit
- EPS control unit
- IPDM E/R
 NATS trouble diagnosis, system initialization and additional registration of other mechanical key IDs must be
carried out using CONSULT-III hardware and SECURITY CARD.
When NATS initialization has been completed, the ID of the inserted mechanical key or mechanical key IDs
can be carried out.
 Possible symptom of NATS malfunction is “Engine cannot start”. In C11, the engine can be started with the
Intelligent Key system and NATS. Identify the possible causes according to “Work Flow”, Refer to SEC-4,
"Work Flow".
 If ECM other than Genuine NISSAN is installed, the engine cannot be started. For ECM replacement proce-
dure, refer to SEC-7, "
ECM RE-COMMUNICATING FUNCTION : Description".
PRECAUTIONS FOR KEY REGISTRATION
 The key registration is a procedure that erases the current NATS ID once, and then re-registers a new ID.
Therefore the registered Intelligent Key is necessary for this procedure. Before starting the registration oper-
ation collect all registered Intelligent Keys from the customer.
 The NATS ID registration is the procedure that registers the ID stored into the transponder (integrated in
mechanical key) to BCM.
The Intelligent Key ID registration is the procedure that registers the ID to Intelligent Key unit.
 When performing the Intelligent Key system registration only, the engine cannot be started by inserting the
key into the key cylinder. When performing the NATS registration only, the engine cannot be started by using
the mechanical key.
SECURITY INDICATOR
 Always flashes with ignition knob released (ignition knob switch: OFF) condition on ignition knob LOCK posi-
tion.
 Always flashes with ignition knob released (ignition knob switch: OFF) condition on mechanical key removed
position.
 Turns ON steady when the NATS is activated.
MAINTENANCE INFORMATION
CAUTION:
It is necessary to perform NATS ID registration when replacing any of the following part.
If it's not (or fail to do so), the electrical system may not operate properly.
 BCM
ECM
 Intelligent Key unit
 Intelligent Key
 IPDM E/R
 NATS antenna amp.

SEC-34
< COMPONENT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2552 INTELLIGENT KEY
B2552 INTELLIGENT KEY
DescriptionINFOID:0000000001404081
Intelligent key unit performs engine start operation and steering lock control by crosschecking ID with the Intel-
ligent key.
DTC LogicINFOID:0000000001404082
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?
YES >> Refer to SEC-34, "Diagnosis Procedure".
NO >> INSPECTION END.
Diagnosis ProcedureINFOID:0000000001404083
1.REPLACE INTELLIGENT KEY UNIT
1. Replace Intelligent Key unit.
2. Perform initialization with CONSULT-III. Re-register all mechanical keys. Refer to CONSULT-III Operation
Manual.
3. Start the engine.
Does the engine start?
YES >> INSPECTION END
NO >> Perform “DTC confirmation procedure”. Refer to SEC-34, "
DTC Logic".
Special Repair RequirementINFOID:0000000001404084
1.REQUIRED WORK WHEN REPLACING INTELLIGENT KEY UNIT
Initialize control unit. Refer to CONSULT-III operation manual.
>> Work end.
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
B2552INTELLIGENT KEY
UNITMalfunction is detected inside Intelligent
key unit.Intelligent Key unit

BCM (BODY CONTROL MODULE)
SEC-55
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P

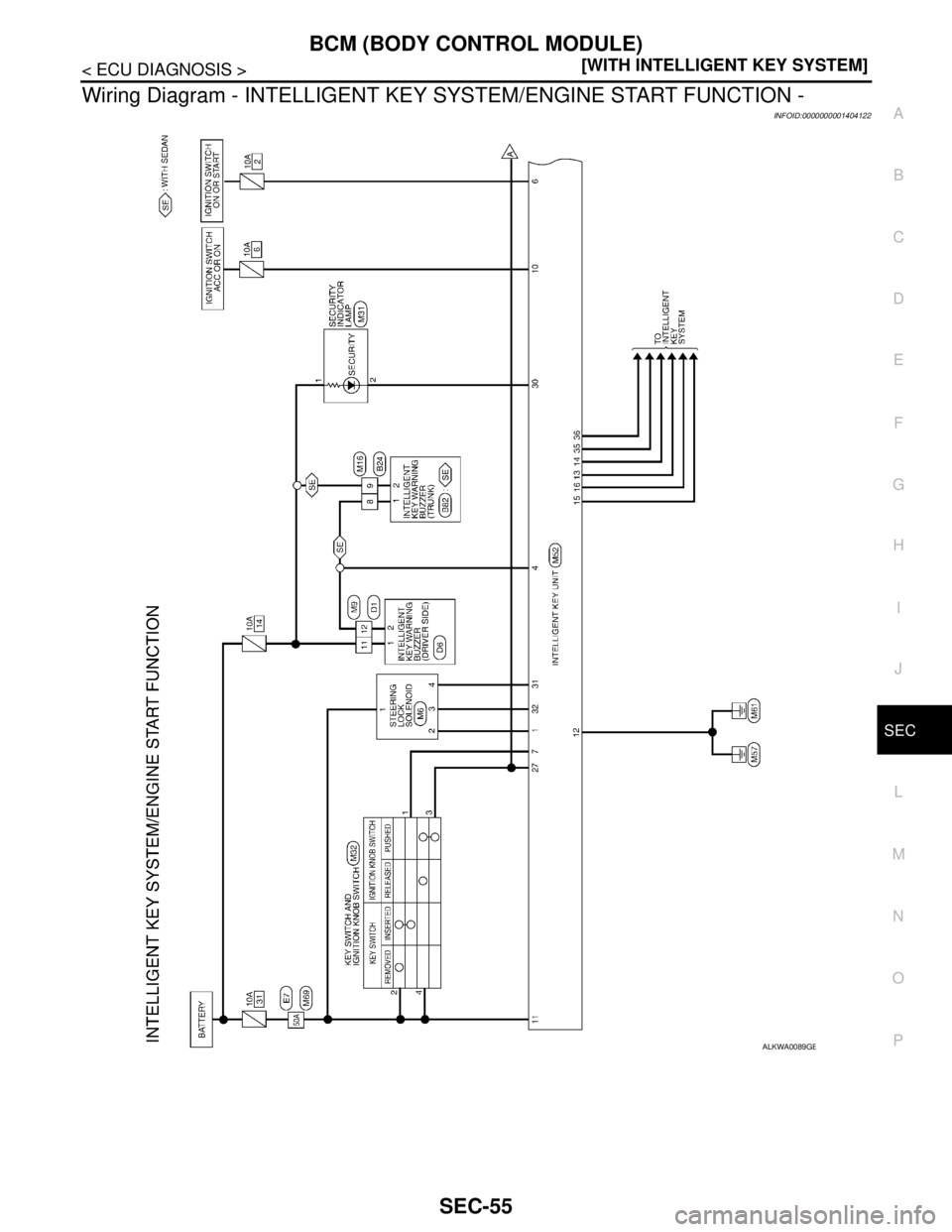

Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -
INFOID:0000000001404122
ALKWA0089GB

BCM (BODY CONTROL MODULE)
SEC-69
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
REAR WIPER CONTROL
BCM detects a rear wiper stopping position according to a rear wiper auto stop signal.
When a rear wiper auto stop signal is in the condition listed below, BCM stops power supply to rear wiper after
rear wiper is activated for five seconds.
NOTE:
The above operation is repeated when operating the rear wiper switch one minute after the stop of the rear
wiper caused by Fail-safe.
TURN SIGNAL LAMP CONTROL
BCM detects the turn signal lamp circuit status from the terminal voltage.
BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn signal
lamp operating.
NOTE:
The blinking speed is normal while activating the hazard warning lamp.
LIGHT & RAIN SENSOR MALFUNCTION DETECTION FUNCTION
BCM controls the following items when LIGHT & RAIN sensor has a malfunction.
Auto Light Control
Headlamp is turned ON.
Front Wiper Control
The condition just before the activation of Fail-safe is maintained until the front wiper switch is turned OFF.
DTC Inspection Priority ChartINFOID:0000000001404126
DTC IndexINFOID:0000000001404127
NOTE:
Details of time display
 CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-
tion switch OFF → ON again.
Display contents of CONSULT Fail-safe Cancellation
B2190: NATS ANTENNA AMP Inhibits engine cranking
 Inhibits steering lock unlocking (Intelligent Key unit)
Fuel cut (ECM)Erase DTC
B2191: DIFFERENCE OF KEY Inhibits engine cranking
 Inhibits steering lock unlocking (Intelligent Key unit)
Fuel cut (ECM)Erase DTC
B2192: ID DISCORD BCM-ECM Fuel cut (ECM) Erase DTC
B2193: CHAIN OF BCM-ECM Fuel cut (ECM) Erase DTC
B2194: DISCORD BCM-I-KEY Inhibits engine cranking
 Inhibits steering lock unlocking (Intelligent Key unit)
Fuel cut (ECM)Erase DTC
Ignition switch Rear wiper switch Auto stop signal
ONOFFRear wiper stop position signal cannot be
input 5 seconds.
ON The signal does not change for 5 seconds.
Priority DTC
1 U1000: CAN COMM CIRCUIT
 U1010: CONTROL UNIT (CAN)
2 B2190: NATS ANTENNA AMP
 B2191: DIFFERNCE OF KEY
 B2192: ID DISCORD BCM-ECM
 B2193: CHAIN OF BCM-ECM
 B2194: DISCORD BCM-I-KEY

INTELLIGENT KEY UNIT
SEC-71
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
INTELLIGENT KEY UNIT
Reference ValueINFOID:0000000001404128
For LHD vehicles, refer to DLK-381, "Reference Value".
For RHD vehicles, refer to DLK-151, "
Reference Value".
Fail SafeINFOID:0000000001404132
DTC Inspection Priority ChartINFOID:0000000001404133
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
DTC IndexINFOID:0000000001404134
NOTE:
Details of time display
 CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-
tion switch OFF → ON again.
 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1
→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter
remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF → ON after returning to the normal condition if the malfunction is detected again.
Display contents of CONSULT-III Fail-safe Cancellation
B2013: STRG COMM 1  Inhibits steering look unlocking Erase DTC
B2552: INTELLIGENT KEY Inhibits steering look unlocking
 Inhibits engine cranking
(BCM)
Fuel cut
(ECM)Erase DTC
B2590: NATS MALFUNCTION Inhibits steering look unlocking
 Inhibits engine cranking
(BCM)
Fuel cut
(ECM)Erase DTC
Priority DTC
1 U1000: CAN COMM CIRCUIT
 U1010: CONTROL UNIT (CAN)
 B2552: INTELIGENT KEY
2 B2013: STRG COMM 1
 B2590: NATS MALFUNCTION
CONSULT display Detection condition Fail-safe Diagnosis
No DTC is detected.
further testing
may be required.———
U1000: CAN COMM CIRCUITIntelligent Key unit cannot receive CAN communi-
cation signal continuously for 2 seconds or more.—Check CAN communi-
cation system.
Refer to SEC-21
U1010: CONTROL UNIT (CAN)Intelligent Key unit detects internal CAN communi-
cation circuit malfunction.—Replace Intelligent Key
unit.
B2013: STRG COMM 1The ID verification result between Intelligent key
unit and steering lock unit are NG. Or Intelligent Key
unit cannot communicate with steering lock unit.×Perform steering lock
unit ID registration with
CONSULT-III

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
SEC-73
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)
Reference ValueINFOID:0000000001404135
Refer to IPDM E/R.
Fail SafeINFOID:0000000001404139
CAN communication control
When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.
If no CAN communication is available with ECM
*1: HR engine models
*2: MR engine and K9K engine models
If no CAN communication is available with BCM
Ignition relay malfunction detection function
 IPDM E/R monitors the voltage at the contact circuit and excitation coil circuit of the ignition relay inside it.
 IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the excitation
coil circuit.
 If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to
alert the user to the ignition relay malfunction when the ignition switch is turned OFF.
Control part Fail-safe in operation
Cooling fan The cooling fan relay-2*
1 or the cooling fan relay-3*2 turns ON when the ignition switch
is turned ON
 Turns off the fan motor low relay when the ignition switch is turned OFF
A/C compressor A/C relay OFF
Control part Fail-safe in operation
Headlamp The headlamp low relay turns ON when the ignition switch is turned ON
 The headlamp low relay turns OFF when the ignition switch is turned OFF
 Headlamp high relay OFF
Parking lamps
 License plate lamps
 Tail lamps
 Illuminations The tail lamp relay turns ON when the ignition switch is turned ON
 The tail lamp relay turns OFF when the ignition switch is turned OFF
Front wiper The status just before activation of fail-safe control is maintained until the ignition
switch is turned OFF while the front wiper is operating at LO or HI speed.
 The front wiper is operated at LO speed until the ignition switch is turned OFF if the
fail-safe control is activated while the front wiper is set in the INT mode and the front
wiper motor is operating.
Front fog lamps Front fog lamp relay OFF
Starter motor Inhibit relay OFF
Rear window defogger Rear window defogger relay OFF
Headlamp washer Headlamp washer relay OFF
PTC heater PTC heater relay OFF
DTC Ignition switch Ignition relay Tail lamp relay
—ONON—
—OFFOFF—
B2098: IGN RLY ON OFF ON ON (10 minutes)
B2099: IGN RLY OFF ON OFF —

SEC-74
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
NOTE:
The tail lamp relay is turned OFF when the ignition switch is turned ON.
Front wiper control
IPDM E/R detects the front wiper stop position with the front wiper auto stop signal.
When the front wiper auto stop signal is in the conditions listed below, IPDM E/R repeats a front wiper 10 sec-
onds operation and 20 seconds stop five times.
NOTE:
This operation status can be confirmed on the IPDM E/R “Data Monitor” that displays “BLOCK” for the item
“WIP PROT” while the wiper is stopped.
DTC IndexINFOID:0000000001404140
NOTE:
The details of time display are as follows.
 CRNT: The malfunctions that are detected now.
 PAST: The number is indicated when it is normal at present and a malfunction was detected in the past.Ignition switch Front wiper switch Front wiper auto stop signal
ONOFFThe front wiper auto stop signal (stop posi-
tion) cannot be input for 10 seconds.
ONThe front wiper auto stop signal does not
change for 10 seconds.
CONSULT display Fail-safe
TimingNOTEReference page
No DTC is detected.
further testing
may be required.————
U1000: CAN COMM CIRCUIT×CRNT PASTXX-XX, "*****"
B2098: IGN RELAY ON×CRNT PASTXX-XX, "*****"
B2099: IGN RELAY OFF — CRNT PASTXX-XX, "*****"
B2100: EEPROM — CRNT PASTXX-XX, "*****"

PRE-INSPECTION FOR DIAGNOSTIC
SEC-77
< ON-VEHICLE MAINTENANCE >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
ON-VEHICLE MAINTENANCE
PRE-INSPECTION FOR DIAGNOSTIC
Basic InspectionINFOID:0000000001404144
The engine start function, door lock function, and NATS in the Intelligent Key system are closely related to
each other regarding control. Narrow down the functional area in question by performing basic inspection to
identify which function is malfunctioning. The vehicle security function can operate only when the door lock is
operating normally. Therefore, it is easy to identify any factor unique to the vehicle security system by perform-
ing the vehicle security operation check after basic inspection.
1.CHECK DOOR LOCK OPERATION
Check the door lock for normal operation with the Intelligent Key and door request switch.
Successful door lock operation with the Intelligent Key and request switch indicates that the remote keyless
entry receiver and inside key antenna required for engine start are functioning normally.
Identify the malfunctioning point by referring to the DLK section if the door cannot be unlocked.
Can the door be locked with the Intelligent Key and door request switch?
YES >> GO TO 2.
NO >> Refer to XX-XX, "*****"
.
2.CHECK IGNITION KNOB SWITCH OPERATION-1
With all registered Intelligent Keys, check if ignition knob can rotate when carrying Intelligent Key inside the
vehicle.
Does ignition knob rotate?
YES >> GO TO 3.
NO >> Refer to SEC-76, "
Symptom Table".
3.CHECK IGNITION KNOB SWITCH OPERATION-2
Insert registered mechanical key into key cylinder, and check if ignition knob can rotate. Check for all regis-
tered mechanical keys.
Does ignition knob rotate?
YES >> GO TO 4.
NO (Does not rotate with some of mechanical keys)>>Perform mechanical key registration.
NO (Does not rotate with all mechanical keys)>>Refer to SEC-76, "
Symptom Table".
4.CHECK VEHICLE SECURITY SYSTEM
Check the vehicle security system for normal operation.
The vehicle security function can operate only when the door lock function is operating normally.
Therefore, it is easy to identify any factor unique to the vehicle security by performing the vehicle security
operation check after this basic inspection.
>> Go to SEC-77, "
Vehicle Security Operation Check".
Vehicle Security Operation CheckINFOID:0000000001404145
1.INSPECTION START
Turn ignition switch “OFF” and pull out mechanical key from key cylinder.
NOTE:
Before starting operation check, open front windows.
>> GO TO 2.
2.CHECK SECURITY INDICATOR LAMP
1. Lock doors using Intelligent Key.
2. Check that security indicator lamp illuminates for 30 seconds.
Security indicator lamp should illuminate.
OK >> GO TO 3.
