2007 NISSAN 350Z Roof Workshop Manual

STORAGE LID
RF-129
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2006 November2007 350Z

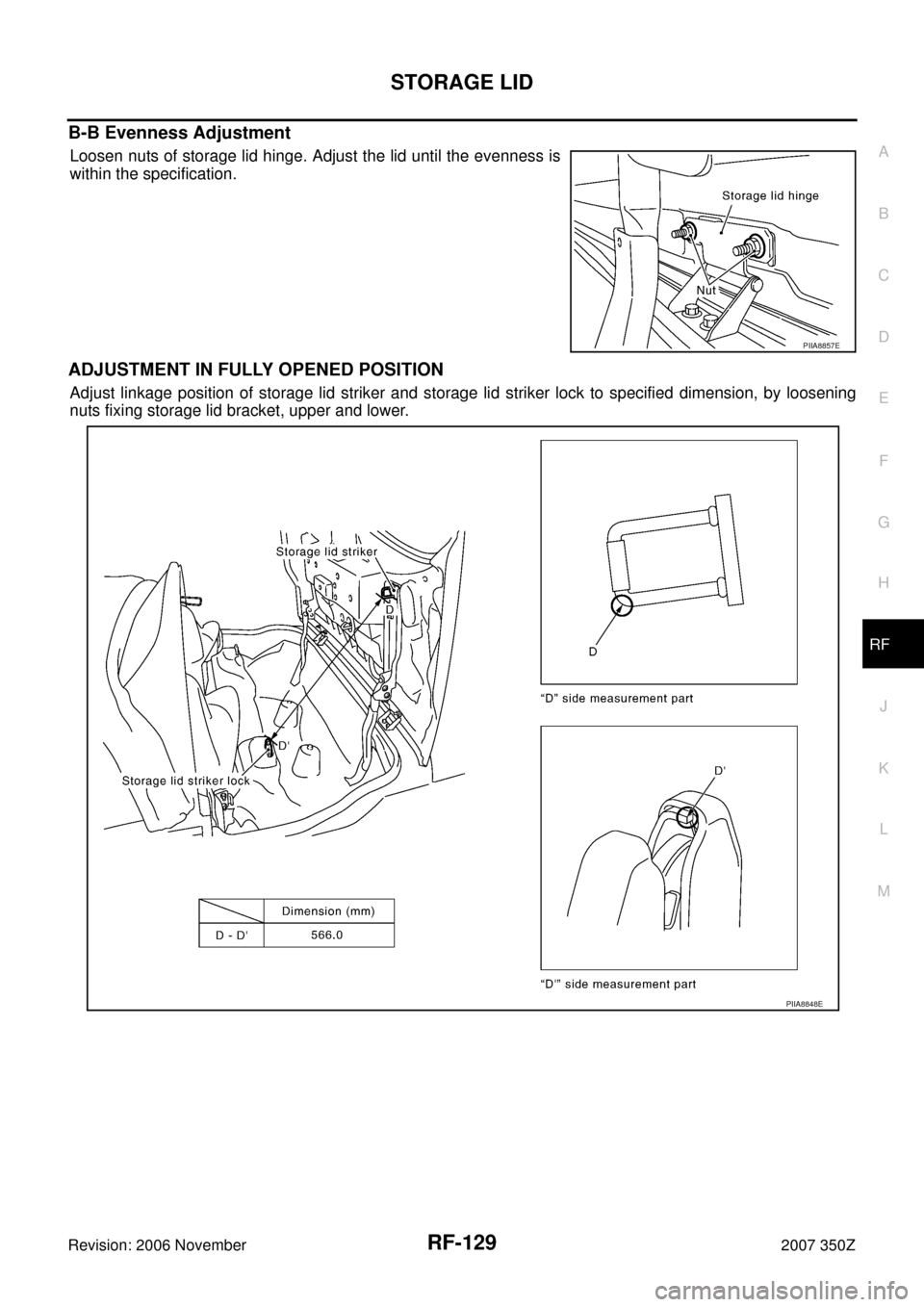

B-B Evenness Adjustment
Loosen nuts of storage lid hinge. Adjust the lid until the evenness is
within the specification.
ADJUSTMENT IN FULLY OPENED POSITION
Adjust linkage position of storage lid striker and storage lid striker lock to specified dimension, by loosening
nuts fixing storage lid bracket, upper and lower.
PIIA8857E
PIIA8848E

RF-130
STORAGE LID
Revision: 2006 November2007 350Z

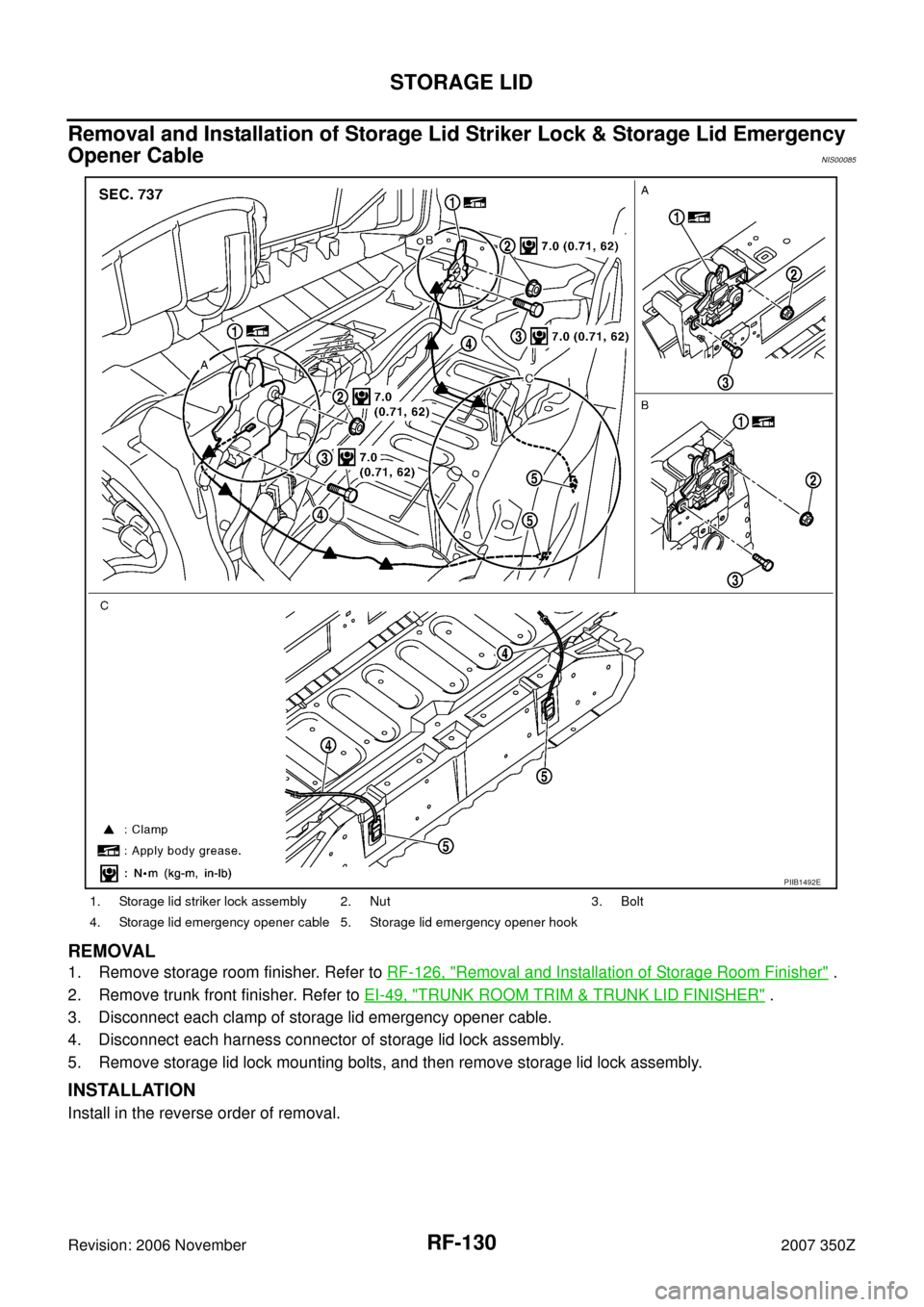

Removal and Installation of Storage Lid Striker Lock & Storage Lid Emergency
Opener Cable
NIS00085
REMOVAL
1. Remove storage room finisher. Refer to RF-126, "Removal and Installation of Storage Room Finisher" .
2. Remove trunk front finisher. Refer to EI-49, "
TRUNK ROOM TRIM & TRUNK LID FINISHER" .
3. Disconnect each clamp of storage lid emergency opener cable.
4. Disconnect each harness connector of storage lid lock assembly.
5. Remove storage lid lock mounting bolts, and then remove storage lid lock assembly.
INSTALLATION
Install in the reverse order of removal.
1. Storage lid striker lock assembly 2. Nut 3. Bolt
4. Storage lid emergency opener cable 5. Storage lid emergency opener hook
PIIB1492E
