CONDITION: CL 4
While the roof is closing, the 5th bow actuator operates (DOWN operation) to lower the 5th bow.

CONDITOIN: CL 5
The roof is closing, and 5th bow is lowering.

CONDITION: CL 6
The roof stops at the fully-closed position. The 5th bow actuator inverts, raising the 5th bow.

CONDITON: CL 7
The 5th bow stops in the fully-open position. The storage lid actuator operates (DOWN operation) lower
the storage lid.

CONDITION: CL 8
The storage lid inverts and stops at the fully-closed position. The 5th bow actuator operates (DOWN oper-
ation) to lower the 5th bow.

CONDITION: CL 9
The 5th bow is lowering.
Item Condition
Roof actuator (LH and RH) : CLOSE
5th bow actuator : DOWN
5th bow full open detection switch : ON → OFF
Item Condition
Roof actuator (LH and RH) : CLOSE
5th bow full close detection switch : ON → OFF
5th bow actuator : DOWN → STOP
Roll bar interference prevention switch : ON → OFF
Item Condition
Roof full close detection switch : ON → OFF
Roof actuator (LH and RH) : CLOSE → STOP
5th bow actuator : UP
5th bow full close detection switch : OFF → ON
Item Condition
5th bow full open detection switch : OFF → ON
5th bow actuator : UP → STOP
Storage lid actuator (LH and RH) : CLOSE
Storage lid full open detection switch : ON → OFF
Storage lid full close detection switch (LH) : ON → OFF
Item Condition
Storage lid full close detection switch (RH) : ON → OFF
Storage lid actuator : CLOSE → OPEN → STOP
5th bow actuator : DOWN
5th bow full open detection switch : ON → OFF
Item Condition
5th bow actuator : DOWN
5th bow full close detection switch : ON → OFF

RF-18
SOFT TOP
Revision: 2006 November2007 350Z

CONDITION: CL 10
5th bow auto closure operates. The passenger seat tilts back. Closing operation is completed, soft top
front lock is locked, and the indicator lamp turns OFF. The passenger seat also returns to its original posi-
tion.
Item Condition
5th bow actuator : DOWN → STOP
5th bow half-latch switch : ON → OFF
5th bow full-latch switch : ON → OFF
5th bow ending switch : ON → OFF
5th bow closure motor : CLOSE → STOP
Power window request signal : OFF
Indicator lamp : ON → OFF

SOFT TOP
RF-19
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2006 November2007 350Z
Operation ChartNIS0006D
CLOSE → OPEN

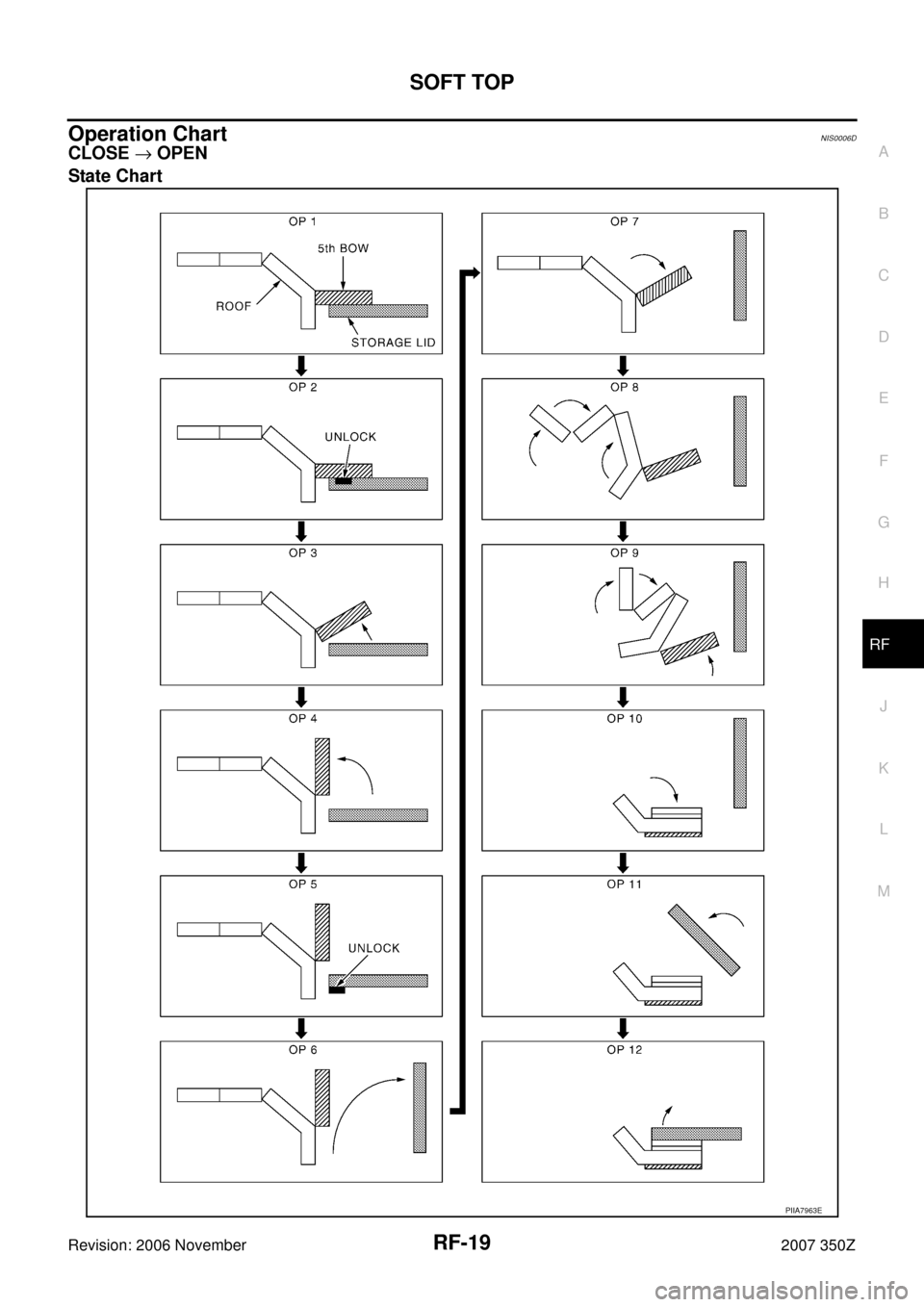

State Chart
PIIA7963E

RF-20
SOFT TOP
Revision: 2006 November2007 350Z

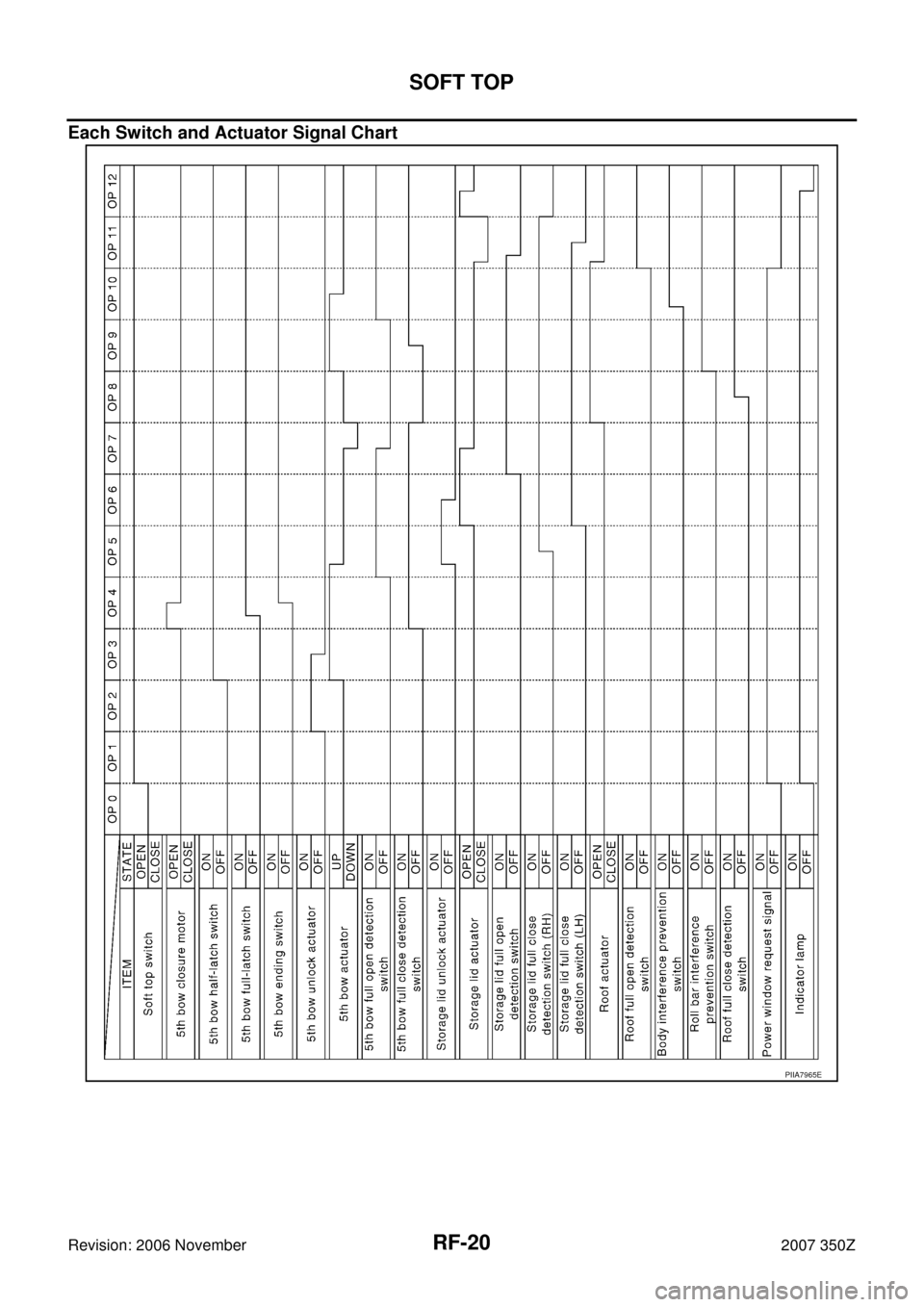

Each Switch and Actuator Signal Chart
PIIA7965E

SOFT TOP
RF-21
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2006 November2007 350Z
OPEN → CLOSE

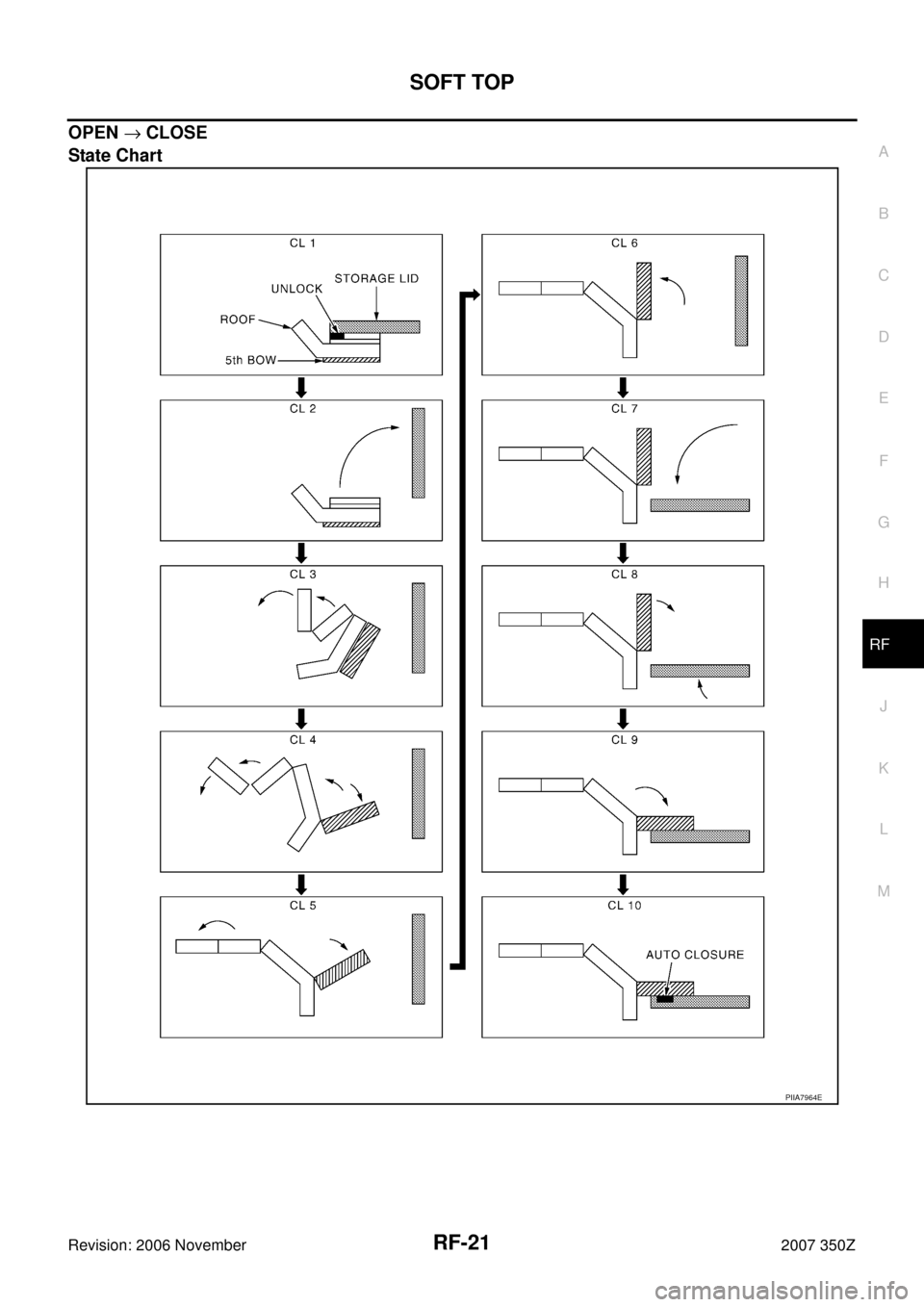

State Chart
PIIA7964E

RF-22
SOFT TOP
Revision: 2006 November2007 350Z

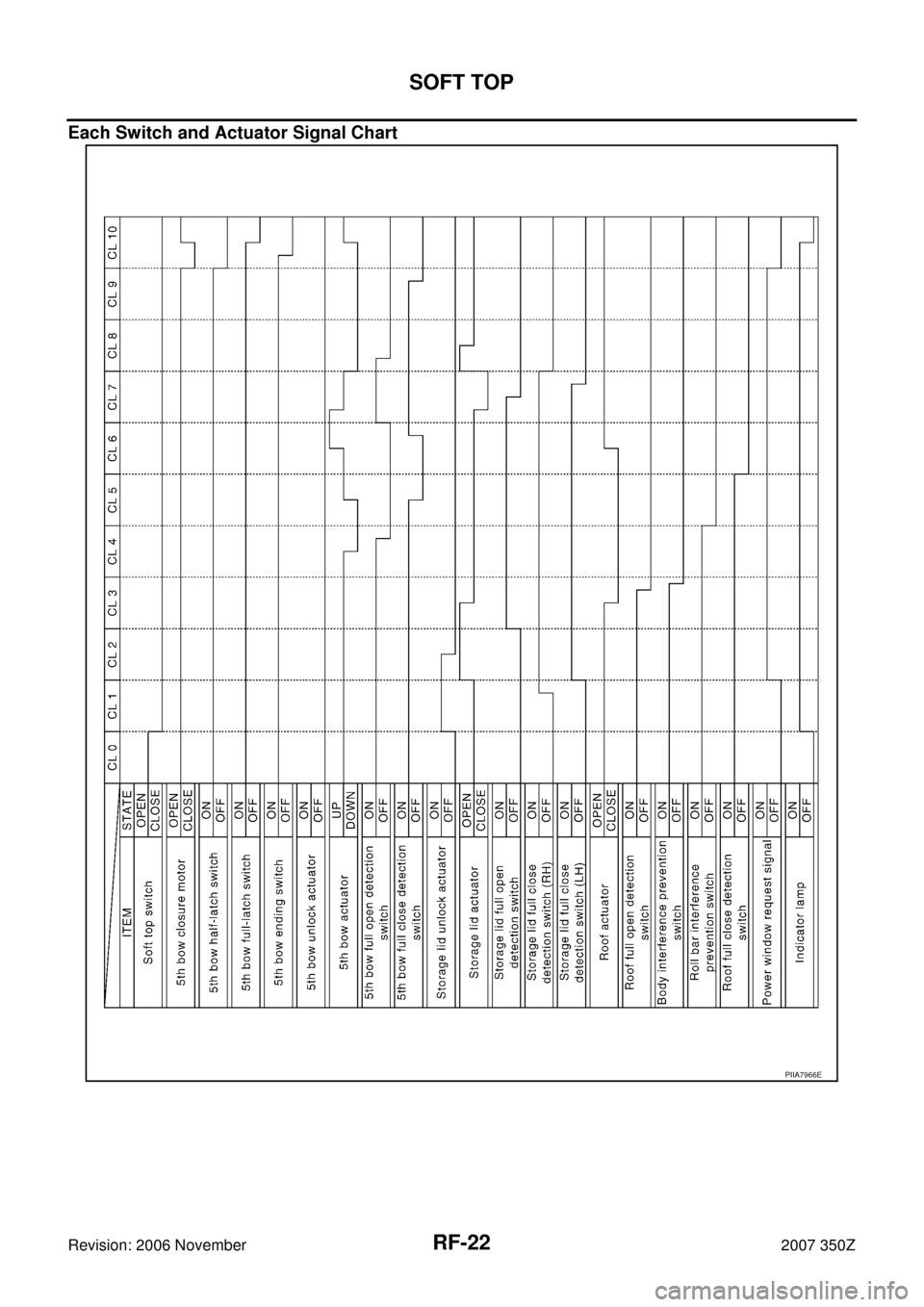

Each Switch and Actuator Signal Chart
PIIA7966E

SOFT TOP
RF-23
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2006 November2007 350Z
Indicator LampNIS0006E
The indicator lights, turns off or blinks according to the operating state.
*: The soft top operates for approximately 30 seconds after turn ignition switch OFF.
Turns OFF : The open / close operation stops or completes or any switch is malfunctioning
Lights : The soft top is operating or the operation stops on the way
Blinks : The soft top cannot be operated, do not response or front lock is unlocked at
the fully closed position
State of roofThe operation stops when the soft top is,
Operation
full open or
full closein position on
the way
Operational condition Turning off Lighting Lighting
Out of operational
conditionWhen battery voltage decreases remarkably Turning off Lighting Lighting
Brake pedal is not depressed Turning off Lighting Lighting
Vehicle speed is 5 km/h (3 MPH) or more Turning off Lighting Lighting
Ignition switch: OFF Turning off Turning off* Turning off*
Malfunction ofany switch of the system Turning off Lighting Blinking
soft top control unit Blinking Blinking Blinking
vehicle speed signal Blinking Blinking Blinking

RF-24
SOFT TOP
Revision: 2006 November2007 350Z

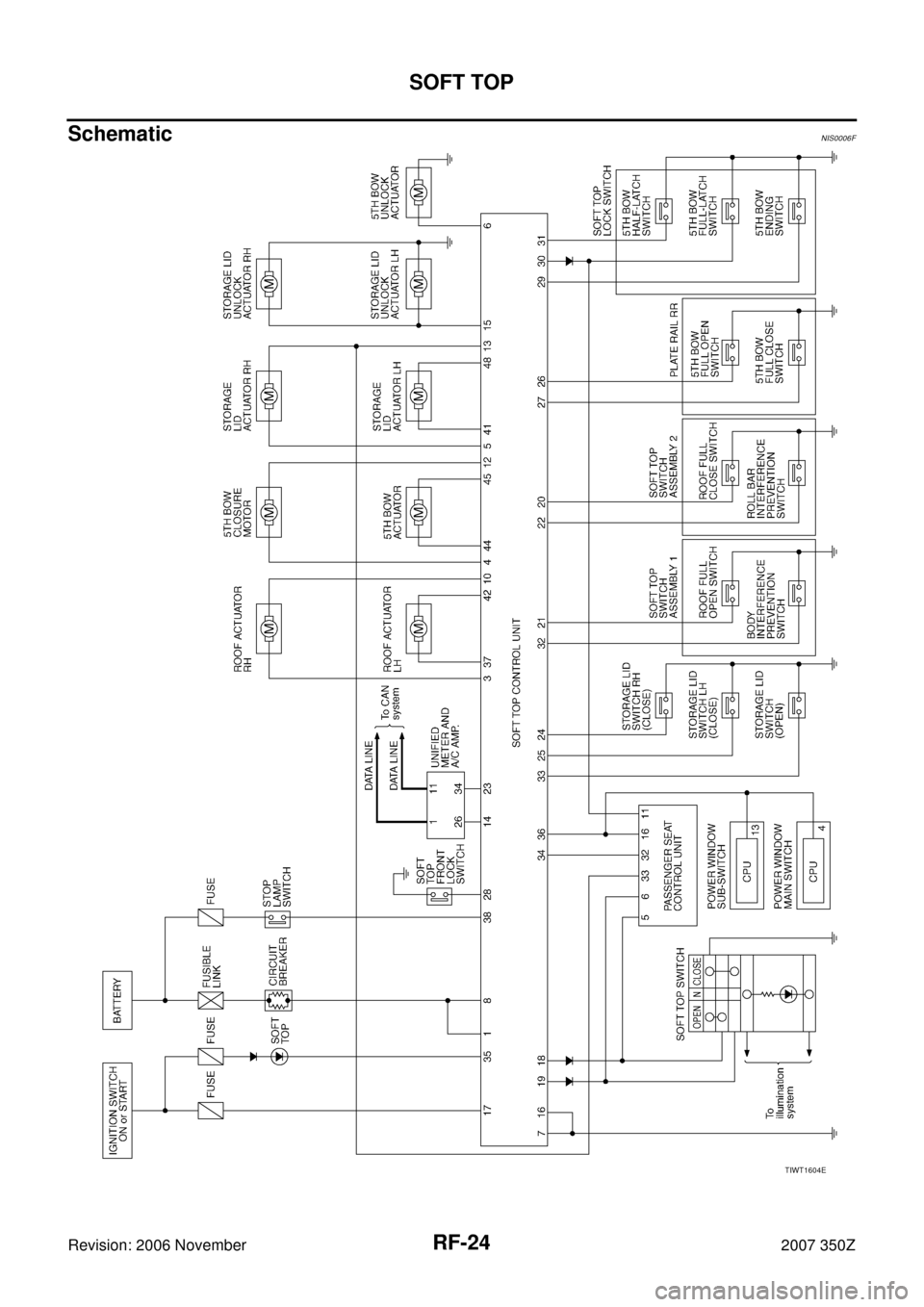

SchematicNIS0006F
