ASSEMBLY

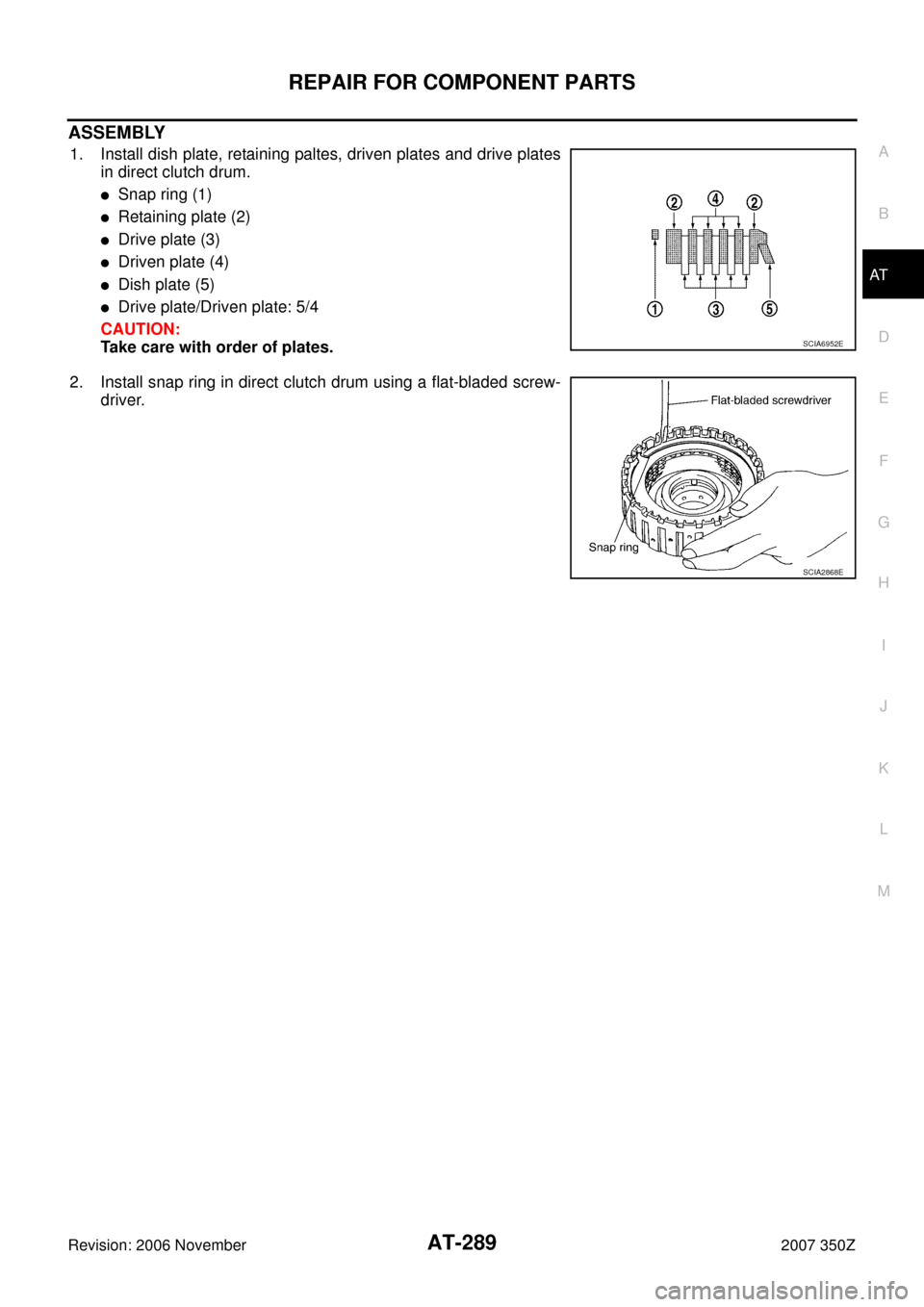

1. Install dish plate, retaining paltes, driven plates and drive plates
in direct clutch drum.
Snap ring (1)
Retaining plate (2)
Drive plate (3)
Driven plate (4)
Dish plate (5)
Drive plate/Driven plate: 5/4
CAUTION:
Take care with order of plates.
2. Install snap ring in direct clutch drum using a flat-bladed screw-
driver.
SCIA6952E
SCIA2868E
Page 290 of 312
AT-290
ASSEMBLY
Revision: 2006 November2007 350Z
ASSEMBLYPFP:00000
Assembly (1)NCS0009I

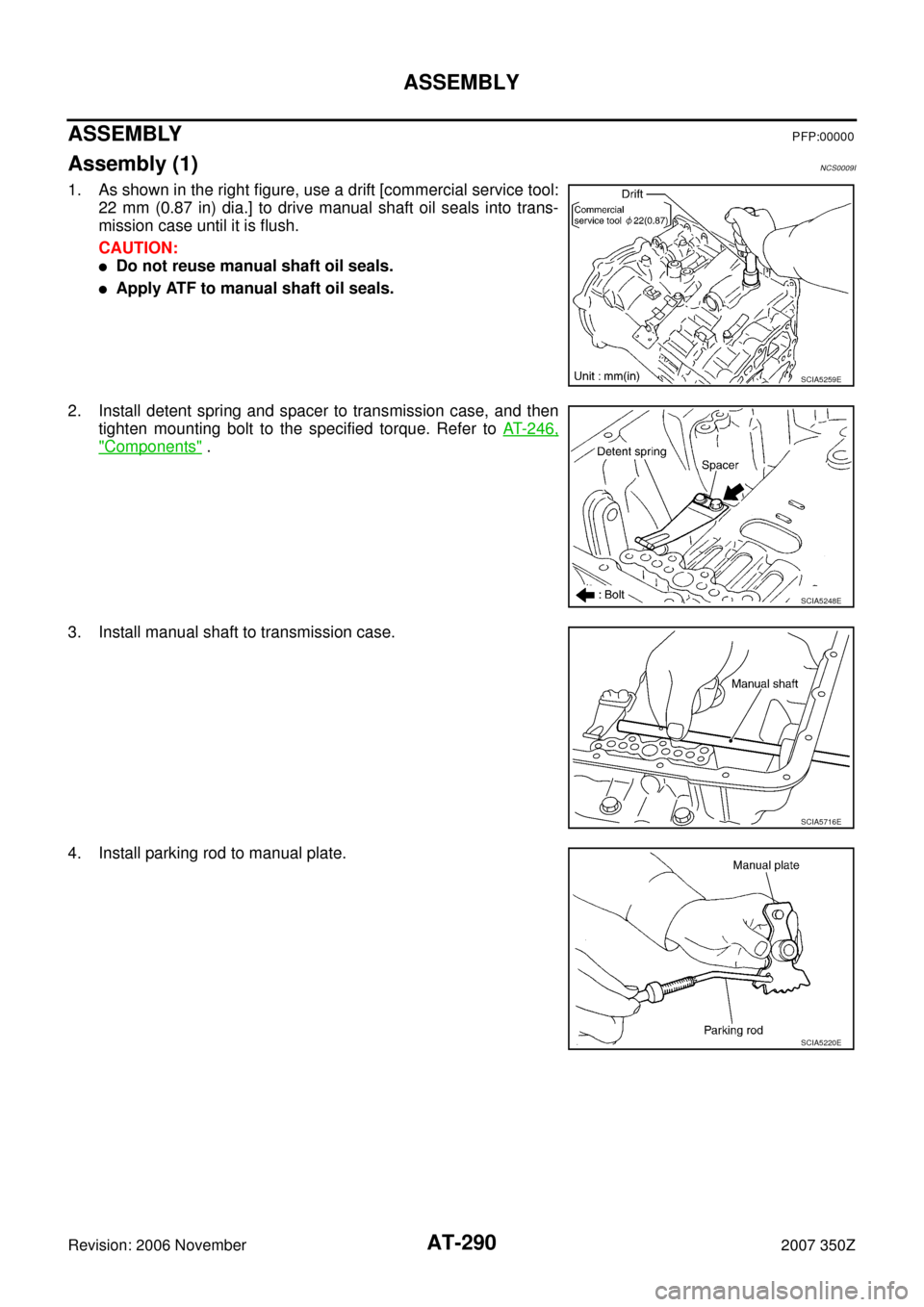

1. As shown in the right figure, use a drift [commercial service tool:
22 mm (0.87 in) dia.] to drive manual shaft oil seals into trans-
mission case until it is flush.
CAUTION:
Do not reuse manual shaft oil seals.
Apply ATF to manual shaft oil seals.
2. Install detent spring and spacer to transmission case, and then
tighten mounting bolt to the specified torque. Refer to AT- 2 4 6 ,
"Components" .
3. Install manual shaft to transmission case.
4. Install parking rod to manual plate.
SCIA5259E
SCIA5248E
SCIA5716E
SCIA5220E
Page 291 of 312
ASSEMBLY
AT-291
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
5. Install manual plate (with parking rod) to manual shaft.
6. Install retaining pin into manual plate and manual shaft.
a. Fit pinhole of manual plate to pinhole of manual shaft with a pin punch.
b. Tap retaining pin into manual plate using a hammer.
CAUTION:
Do not reuse retaining pin.
Drive retaining pin to 2±0.5 mm (0.08±0.020 in) over man-
ual plate.
7. Install retaining pin into transmission case and manual shaft.
a. Fit pinhole of transmission case to pinhole of manual shaft with a pin punch.
b. Tap the retaining pin into transmission case using a hammer.
CAUTION:
Do not reuse retaining pin.
Drive retaining pin to 5±1 mm (0.20±0.04 in) over trans-
mission case.
8. Install O-rings to servo assembly.
CAUTION:
Do not reuse O-rings.
Apply petroleum jelly to O-rings.
SCIA5715E
SCIA7165E
SCIA2427E
SCIA5719E
Page 292 of 312
AT-292
ASSEMBLY
Revision: 2006 November2007 350Z
9. Install return spring to servo assembly.
10. Install servo assembly in transmission case.
11. Install snap ring to transmission case using pair of snap ring pli-
ers.
12. Install D-rings in reverse brake piston.
CAUTION:
Do not reuse D-rings.
Apply ATF to D-rings.
13. Install reverse brake piston in transmission case.
SCIA5717E
SCIA5679E
SCIA2333E
SCIA6330E
SCIA2325E
Page 293 of 312
ASSEMBLY
AT-293
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
14. Install needle bearing to drum support edge surface.
CAUTION:
Take care with the direction of needle bearing. Refer to
AT- 2 5 3 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .
Apply petroleum jelly to needle bearing.
15. Install seal rings to drum support.
CAUTION:
Do not reuse seal rings.
Apply petroleum jelly to seal rings.
16. Install return spring and spring retainer in transmission case.
17. Set the SST on spring retainer and install snap ring (fixing spring
retainer) in transmission case while compressing return spring.
CAUTION:
Securely assemble them using a flat-bladed screwdriver so
that snap ring tension is slightly weak.
SCIA2796E
SCIA3333E
SCIA2324E
SCIA5877E
Page 294 of 312
AT-294
ASSEMBLY
Revision: 2006 November2007 350Z
18. Install reverse brake retaining plate, drive plates, driven plates
and dish plates in transmission case.
Snap ring (1)
Retaining plate (2)
Drive plate (3)
Driven plate (4)
Dish plate (5)
Dish plate (6)
Driveplate/Driven plate: 6/6
CAUTION:
Take care with order of plates.
19. Assemble N-spring.
20. Install reverse brake retaining plate in transmission case.
21. Install snap ring in transmission case.SCIA8088E
SCIA5249E
SCIA2439E
Page 295 of 312

ASSEMBLY
AT-295
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
22. Measure clearance between retaining plate and snap ring. If not
within specified clearance, select proper retaining plate. Refer to
“Parts Information” for retaining plate selection.
23. Install needle bearing to transmission case.
CAUTION:
Take care with the direction of needle bearing. Refer to
AT- 2 5 3 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .
Apply petroleum jelly to needle bearing.
24. Install revolution sensor to transmission case, and then tighten
mounting bolt to the specified torque. Refer to AT- 2 4 6 , "
Compo-
nents" .
CAUTION:
Do not subject it to impact by dropping or hitting it.
Do not disassemble.
Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.
Do not place in an area affected by magnetism.
25. As shown in the figure, drive rear oil seal into rear extension until
it is flush using a drift.
CAUTION:
Do not reuse rear oil seal.
Apply ATF to rear oil seal.
26. Install return spring (1) to parking pawl (2).Specified clearance “A”:
Refer to AT- 3 1 2 , "
Reverse Brake" .
SCIA3129E
SCIA5031E
SCIA2320E
SCIA5311E
SCIA6180J
Page 296 of 312
AT-296
ASSEMBLY
Revision: 2006 November2007 350Z

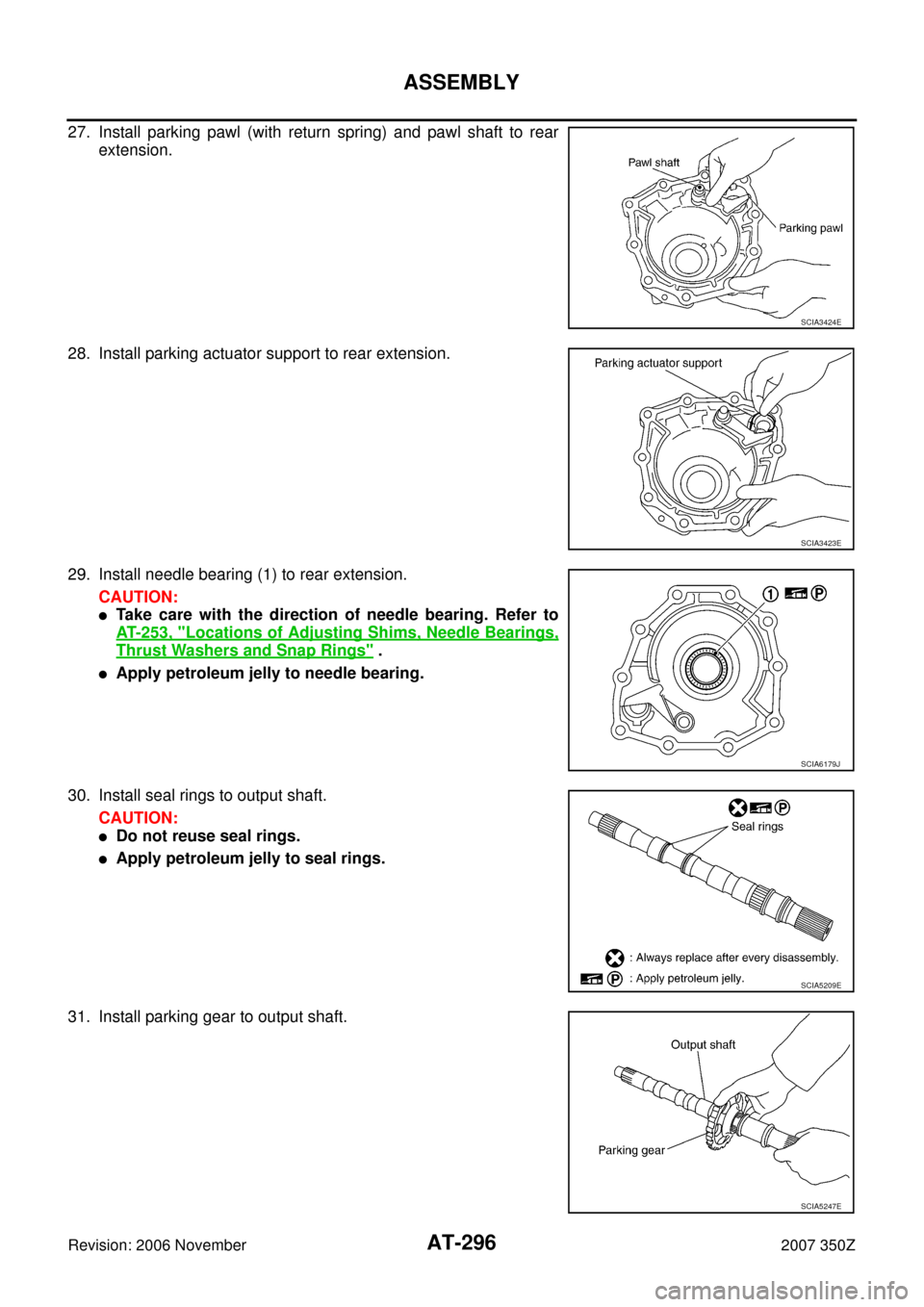

27. Install parking pawl (with return spring) and pawl shaft to rear
