A/T Interlock

If there is an A/T interlock judgment malfunction, the transmission is fixed in 2nd gear to make driving pos-
sible.
NOTE:
When the vehicle is driven fixed in 2nd gear a turbine revolution sensor malfunction is displayed,
but this is not a turbine revolution sensor malfunction.

When interlock is detected at the 3rd gear or more, it is locked at the 2nd gear.
A/T 1st Engine Braking
When there is an A/T first gear engine brake judgment malfunction, the low coast brake solenoid is switched
OFF to avoid the engine brake operation.
Line Pressure Solenoid
The solenoid is switched OFF and the line pressure is set to the maximum hydraulic pressure to make driving
possible.
Torque Converter Clutch Solenoid
The solenoid is switched OFF to release the lock-up.
Low Coast Brake Solenoid
When a malfunction (electrical or functional) occurs, in order to make driving possible, if the solenoid is ON,
the A/T is held in 2nd gear; if the solenoid is OFF, the A/T is held in 4th gear. (Engine brake is not applied in
1st and 2nd gear.)
Input Clutch Solenoid
If a malfunction (electrical or functional) occurs with the solenoid either ON or OFF, the A/T is held in 4th gear
to make driving possible.
Direct Clutch Solenoid
If a malfunction (electrical or functional) occurs with the solenoid either ON or OFF, the A/T is held in 4th gear
to make driving possible.
Front Brake Solenoid
If a malfunction (electrical or functional) occurs with the solenoid ON, in order to make driving possible, the A/
T is held in 5th gear; if the solenoid is OFF, 4th gear.
High and Low Reverse Clutch Solenoid
If a malfunction (electrical or functional) occurs with the solenoid either ON or OFF, the A/T is held in 4th gear
to make driving possible.
Turbine Revolution Sensor 1 or 2
The control is the same as if there were no turbine revolution sensors, 5th gear and manual mode are prohib-
ited.

AT-42
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
How to Perform Trouble Diagnosis for Quick and Accurate RepairNCS00021
INTRODUCTION
The TCM receives a signal from the vehicle speed sensor, accelera-
tor pedal position sensor (throttle position sensor) or PNP switch and
provides shift control or lock-up control via A/T solenoid valves.
The TCM also communicates with the ECM by means of a signal
sent from sensing elements used with the OBD-related parts of the
A/T system for malfunction-diagnostic purposes. The TCM is capa-
ble of diagnosing malfunctioning parts while the ECM can store mal-
functions in its memory.
Input and output signals must always be correct and stable in the
operation of the A/T system. The A/T system must be in good oper-
ating condition and be free of valve seizure, solenoid valve malfunc-
tion, etc.
It is much more difficult to diagnose a error that occurs intermittently
rather than continuously. Most intermittent errors are caused by poor
electric connections or improper wiring. In this case, careful check-
ing of suspected circuits may help prevent the replacement of good
parts.
A visual check only may not find the cause of the errors. A road test
with CONSULT-III (or GST) or a circuit tester connected should be
performed. Follow the AT- 4 3 , "
WORK FLOW" .
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such errors, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “DIAGNOSTIC WORKSHEET” as
shown on the example (Refer to AT- 4 4
) should be used.
Start your diagnosis by looking for “conventional” errors first. This will
help troubleshoot driveability errors on an electronically controlled
engine vehicle.
Also check related Service bulletins.
SAT631IB
SAT632I
SEF234G

TROUBLE DIAGNOSIS
AT-43
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
WORK FLOW
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.
Make good use of the two sheets provided, AT- 4 4 , "
Information from Customer" and AT- 4 4 , "Diagnostic Work-
sheet Chart" , to perform the best troubleshooting possible.

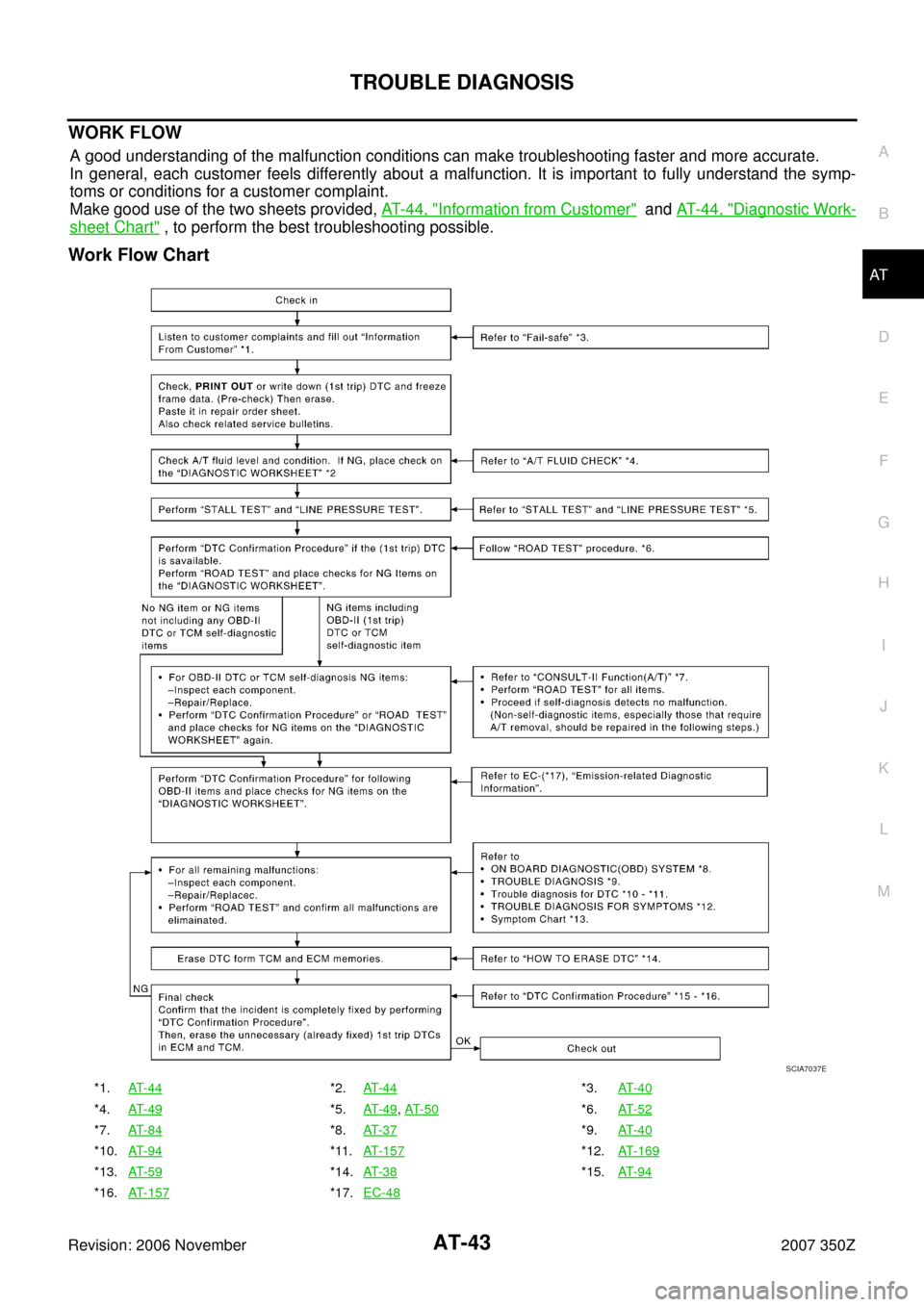

Work Flow Chart
*1.AT- 4 4*2.AT- 4 4*3.AT- 4 0
*4.AT- 4 9*5.AT- 4 9, AT- 5 0*6.AT- 5 2
*7.AT- 8 4*8.AT- 3 7*9.AT- 4 0
*10.AT- 9 4*11.AT- 1 5 7*12.AT- 1 6 9
*13.AT- 5 9*14.AT- 3 8*15.AT- 9 4
*16.AT-157*17.EC-48
SCIA7037E

AT-44
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS

WHAT..... Vehicle & A/T model

WHEN..... Date, Frequencies

WHERE..... Road conditions

HOW..... Operating conditions, Symptoms
Diagnostic Worksheet Chart
Customer name MR/MS Model & Year VIN
Trans. Model Engine Mileage
Incident Date Manuf. Date In Service Date
Frequency❏ Continuous❏ Intermittent ( times a day)
Symptoms❏ Vehicle does not move. (❏ Any position❏ Particular position)
❏ No up-shift (❏ 1st → 2nd❏ 2nd → 3rd❏ 3rd → 4th ❏ 4th → 5th)
❏ No down-shift (❏ 5th → 4th ❏ 4th → 3rd❏ 3rd → 2nd❏ 2nd → 1st)
❏ Lock-up malfunction
❏ Shift point too high or too low.
❏ Shift shock or slip (❏ N → D❏ Lock-up❏ Any drive position)
❏ Noise or vibration
❏ No kick down
❏ No pattern select
❏ Others
()
A/T CHECK indicator lamp❏ Continuously lit❏ Not lit
Malfunction indicator lamp (MIL)❏ Continuously lit❏ Not lit
1❏ Read the item on cautions concerning fail-safe and understand the customer's complaint.AT- 4 0
2❏ A/T fluid inspectionAT- 4 9❏ Leak (Repair leak location.)
❏ State
❏ Amount
3❏ Stall test and line pressure testAT- 4 9
,
AT- 5 0
❏ Stall test
❏ Torque converter one-way clutch
❏ Front brake
❏ High and low reverse clutch
❏ Low coast brake
❏ Forward brake
❏ Reverse brake
❏ Forward one-way clutch❏ 1st one-way clutch
❏ 3rd one-way clutch
❏ Engine
❏ Line pressure low
❏ Except for input clutch and direct
clutch, clutches and brakes OK
❏ Line pressure inspection - Suspected part:

TROUBLE DIAGNOSIS
AT-45
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
4❏ Perform all road tests and enter checks in required inspection items.AT- 5 2
4-1.Check before engine is started AT- 5 3
❏ AT- 1 7 2 , "A/T Check Indicator Lamp Does Not Come On"
❏ Perform self-diagnostics. Enter checks for detected items. AT- 8 6 , AT- 9 2
❏ AT-94, "DTC U1000 CAN COMMUNICATION LINE"
❏ AT-97, "DTC P0615 START SIGNAL CIRCUIT"
❏ AT-101, "DTC P0700 TCM"
❏ AT-102, "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
❏ AT-106, "DTC P0717 TURBINE REVOLUTION SENSOR"
❏ AT-108, "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)"
❏ AT-113, "DTC P0725 ENGINE SPEED SIGNAL"
❏ AT-115, "DTC P0731 A/T 1ST GEAR FUNCTION"
❏ AT-117, "DTC P0732 A/T 2ND GEAR FUNCTION"
❏ AT-119, "DTC P0733 A/T 3RD GEAR FUNCTION"
❏ AT-121, "DTC P0734 A/T 4TH GEAR FUNCTION"
❏ AT-123, "DTC P0735 A/T 5TH GEAR FUNCTION"
❏ AT-125, "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
❏ AT-127, "DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)"
❏ AT-129, "DTC P0745 LINE PRESSURE SOLENOID VALVE"
❏ AT-131, "DTC P1705 THROTTLE POSITION SENSOR"
❏ AT-134, "DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT"
❏ AT-139, "DTC P1721 VEHICLE SPEED SENSOR MTR"
❏ AT-141, "DTC P1730 A/T INTERLOCK"
❏ AT-143, "DTC P1731 A/T 1ST ENGINE BRAKING"
❏ AT-145, "DTC P1752 INPUT CLUTCH SOLENOID VALVE"
❏ AT-147, "DTC P1757 FRONT BRAKE SOLENOID VALVE"
❏ AT-149, "DTC P1762 DIRECT CLUTCH SOLENOID VALVE"
❏ AT-151, "DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE"
❏ AT-153, "DTC P1772 LOW COAST BRAKE SOLENOID VALVE"
❏ AT-155, "DTC P1774 LOW COAST BRAKE SOLENOID VALVE FUNCTION"
❏ AT-157, "DTC P1815 MANUAL MODE SWITCH"
4-2.Check at IdleAT- 5 3
❏ AT- 1 7 3 , "Engine Cannot Be Started in “P” or “N” Position"
❏ AT- 1 7 3 , "In “P” Position, Vehicle Moves When Pushed"
❏ AT- 1 7 4 , "In “N” Position, Vehicle Moves"
❏ AT- 1 7 5 , "Large Shock (“N” to “D” Position)"
❏ AT- 1 7 7 , "Vehicle Does Not Creep Backward in “R” Position"
❏ AT- 1 7 9 , "Vehicle Does Not Creep Forward in “D” Position"
4-3.Cruise testAT- 5 5
Part 1
❏ AT- 1 8 1 , "
Vehicle Cannot Be Started from D1"
❏ AT- 1 8 3 , "A/T Does Not Shift: D1 → D2"
❏ AT- 1 8 5 , "A/T Does Not Shift: D2 → D3"
❏ AT- 1 8 7 , "A/T Does Not Shift: D3 → D4"
❏ AT- 1 8 9 , "A/T Does Not Shift: D4 → D5"
❏ AT- 1 9 1 , "A/T Does Not Lock-up"
❏ AT- 1 9 3 , "A/T Does Not Hold Lock-up Condition"
❏ AT- 1 9 4 , "Lock-up Is Not Released"
❏ AT- 1 9 5 , "Engine Speed Does Not Return to Idle"

AT-46
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
44-3.Part 2AT- 5 7
❏ AT-181, "Vehicle Cannot Be Started from D1"
❏ AT-183, "A/T Does Not Shift: D1 → D2"
❏ AT-185, "A/T Does Not Shift: D2 → D3"
❏ AT-187, "A/T Does Not Shift: D3 → D4"
Part 3AT- 5 8
❏ AT-196, "Cannot Be Changed to Manual Mode"
❏ AT-196, "A/T Does Not Shift: 5th Gear → 4th Gear"
❏ AT-198, "A/T Does Not Shift: 4th Gear → 3rd Gear"
❏ AT-199, "A/T Does Not Shift: 3rd Gear → 2nd Gear"
❏ AT-201, "A/T Does Not Shift: 2nd Gear → 1st Gear"
❏ AT-202, "Vehicle Does Not Decelerate by Engine Brake"
❏ Perform self-diagnostics. Enter checks for detected items. AT- 8 6 , AT- 9 2
❏ AT- 9 4 , "DTC U1000 CAN COMMUNICATION LINE"
❏ AT- 9 7 , "DTC P0615 START SIGNAL CIRCUIT"
❏ AT-101, "DTC P0700 TCM"
❏ AT-102, "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
❏ AT-106, "DTC P0717 TURBINE REVOLUTION SENSOR"
❏ AT-108, "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)"
❏ AT- 11 3 , "DTC P0725 ENGINE SPEED SIGNAL"
❏ AT- 11 5 , "DTC P0731 A/T 1ST GEAR FUNCTION"
❏ AT- 11 7 , "DTC P0732 A/T 2ND GEAR FUNCTION"
❏ AT- 11 9 , "DTC P0733 A/T 3RD GEAR FUNCTION"
❏ AT-121, "DTC P0734 A/T 4TH GEAR FUNCTION"
❏ AT-123, "DTC P0735 A/T 5TH GEAR FUNCTION"
❏ AT-125, "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
❏ AT-127, "DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)"
❏ AT-129, "DTC P0745 LINE PRESSURE SOLENOID VALVE"
❏ AT-131, "DTC P1705 THROTTLE POSITION SENSOR"
❏ AT-134, "DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT"
❏ AT-139, "DTC P1721 VEHICLE SPEED SENSOR MTR"
❏ AT-141, "DTC P1730 A/T INTERLOCK"
❏ AT-143, "DTC P1731 A/T 1ST ENGINE BRAKING"
❏ AT-145, "DTC P1752 INPUT CLUTCH SOLENOID VALVE"
❏ AT-147, "DTC P1757 FRONT BRAKE SOLENOID VALVE"
❏ AT-149, "DTC P1762 DIRECT CLUTCH SOLENOID VALVE"
❏ AT-151, "DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE"
❏ AT-153, "DTC P1772 LOW COAST BRAKE SOLENOID VALVE"
❏ AT-155, "DTC P1774 LOW COAST BRAKE SOLENOID VALVE FUNCTION"
❏ AT-157, "DTC P1815 MANUAL MODE SWITCH"
5❏ Inspect each system for items found to be NG in the self-diagnostics and repair or replace the malfunctioning parts.
6❏ Perform all road tests and enter the checks again for the required items.AT- 5 2
7❏ For any remaining NG items, perform the “diagnostics procedure” and repair or replace the malfunctioning
parts. See the chart for diagnostics by symptoms. (This chart also contains other symptoms and inspection pro-
cedures.)AT- 5 9
8❏ Erase the results of the self-diagnostics from TCM and ECM.AT- 9 3,
AT- 3 8

TROUBLE DIAGNOSIS
AT-47
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

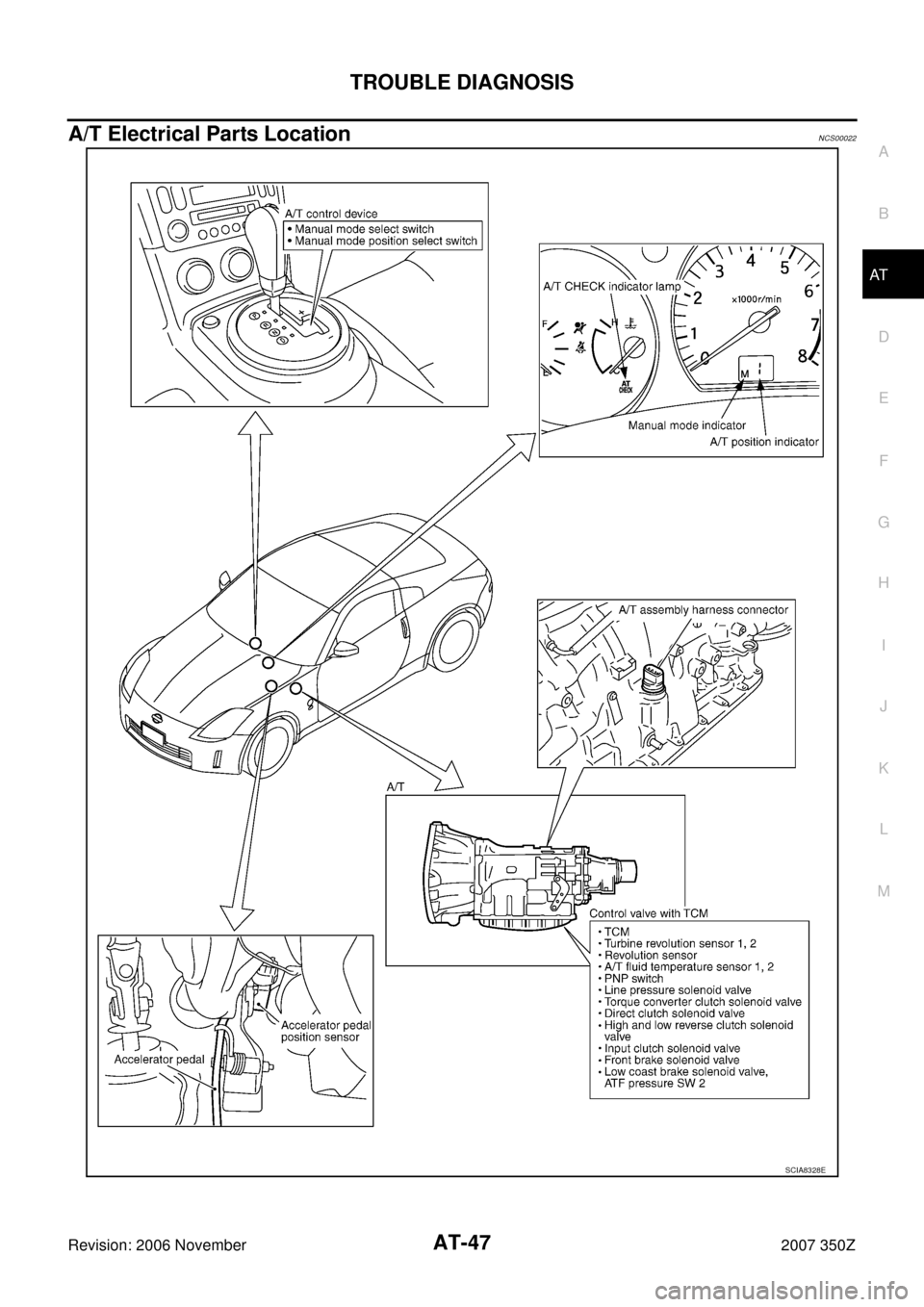

A/T Electrical Parts LocationNCS00022
SCIA8328E

AT-48
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
Circuit DiagramNCS00023
TCWT0437E
