DISASSEMBLY
AT-257
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

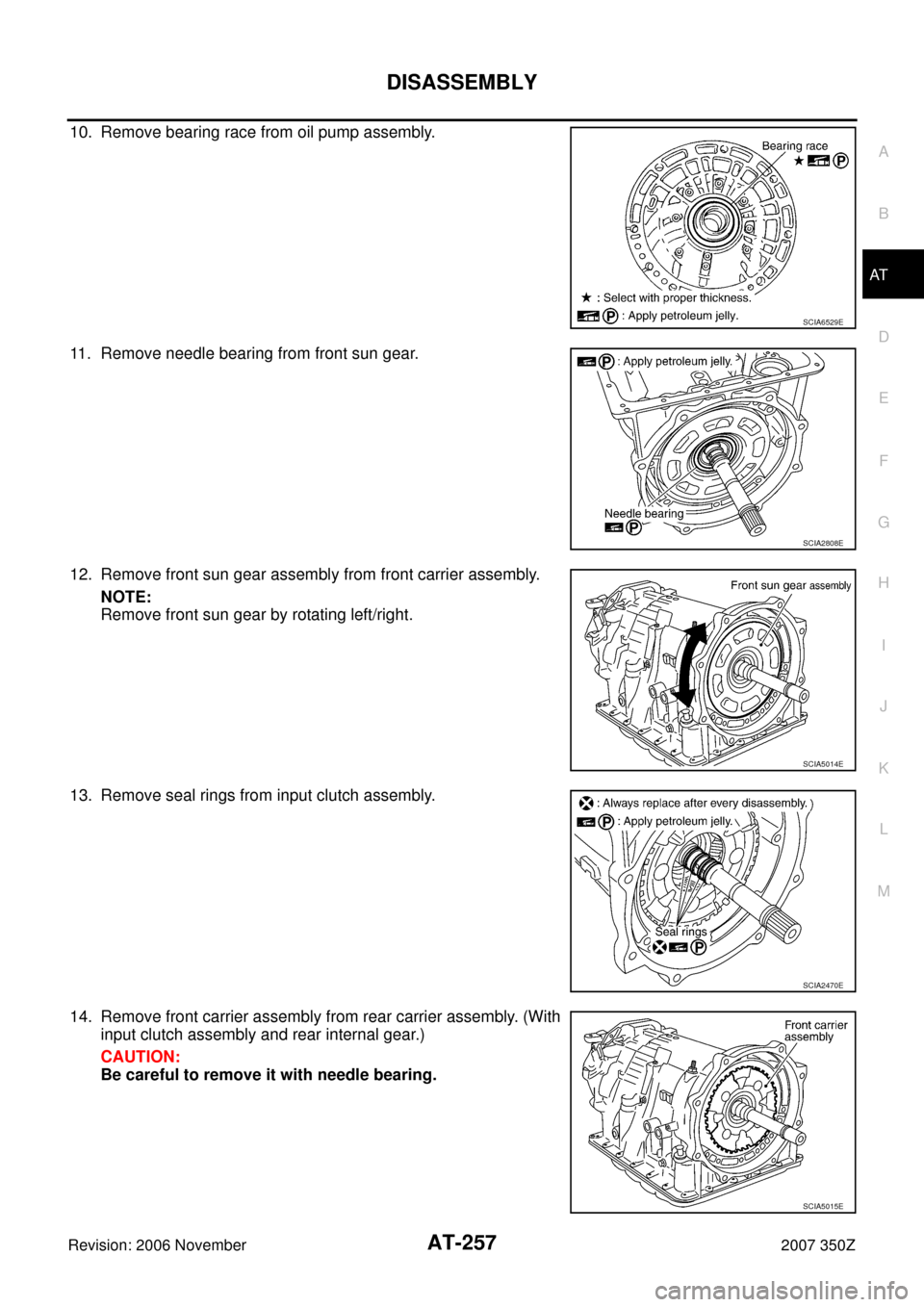

10. Remove bearing race from oil pump assembly.
11. Remove needle bearing from front sun gear.
12. Remove front sun gear assembly from front carrier assembly.
NOTE:
Remove front sun gear by rotating left/right.
13. Remove seal rings from input clutch assembly.
14. Remove front carrier assembly from rear carrier assembly. (With
input clutch assembly and rear internal gear.)
CAUTION:
Be careful to remove it with needle bearing.
SCIA6529E
SCIA2808E
SCIA5014E
SCIA2470E
SCIA5015E

AT-258
DISASSEMBLY
Revision: 2006 November2007 350Z

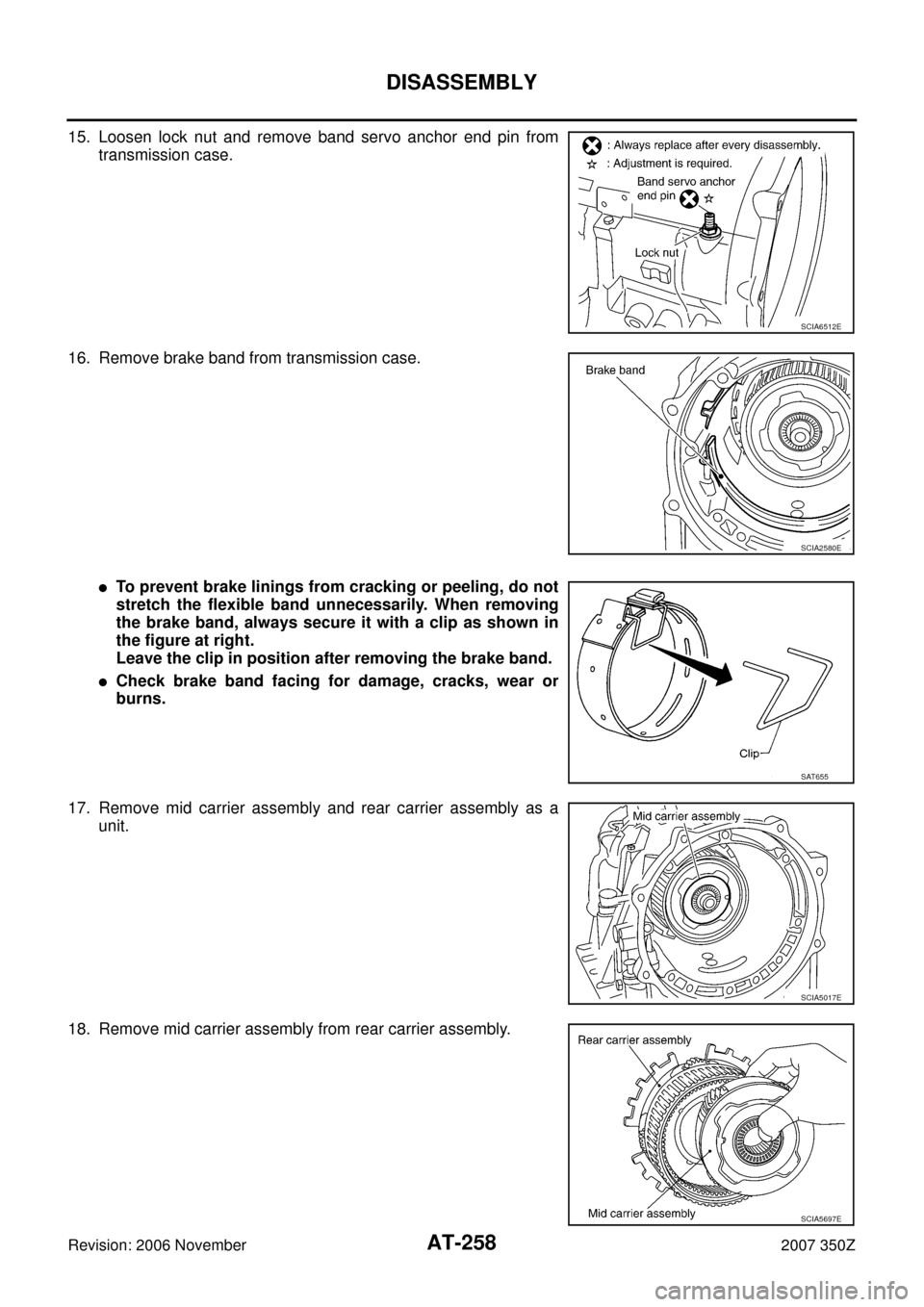

15. Loosen lock nut and remove band servo anchor end pin from
transmission case.
16. Remove brake band from transmission case.

To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown in
the figure at right.
Leave the clip in position after removing the brake band.

Check brake band facing for damage, cracks, wear or
burns.
17. Remove mid carrier assembly and rear carrier assembly as a
unit.
18. Remove mid carrier assembly from rear carrier assembly.
SCIA6512E
SCIA2580E
SAT655
SCIA5017E
SCIA5697E

DISASSEMBLY
AT-259
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
19. Remove needle bearing (front side) from mid carrier assembly.
20. Remove needle bearing (rear side) from mid carrier assembly.
21. Remove bearing race from rear carrier assembly.
22. Remove needle bearing from rear carrier assembly.
23. Remove mid sun gear assembly, rear sun gear assembly and
high and low reverse clutch hub as a unit.
CAUTION:
Be careful to remove then with bearing race and needle
bearing.
SCIA2805E
SCIA2804E
SCIA5175E
SCIA2803E
SCIA5018E

AT-260
DISASSEMBLY
Revision: 2006 November2007 350Z
24. Remove high and low reverse clutch assembly from direct clutch
assembly.
CAUTION:
Make sure that needle bearing is installed to high and low
reverse clutch assembly edge surface.
25. Remove direct clutch assembly from reverse brake.
26. Remove needle bearing from drum support.
27. Remove snap ring from A/T assembly harness connector.
28. Push A/T assembly harness connector.
CAUTION:
Be careful not to damage connector.
SCIA2306E
SCIA5019E
SCIA5198E
SCIA5021E
SCIA5022E

DISASSEMBLY
AT-261
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
29. Remove clips (1), oil pan (2) and oil pan gasket.

: Front

: Oil pan mounting bolt

Drain bolt (3)
30. Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to AT- 1 4 , "
A/T Fluid Cooler Cleaning".
31. Remove magnets from oil pan.
32. Disconnect A/T fluid temperature sensor 2 connector (A).
CAUTION:
Be careful not to damage connector.
33. Straighten terminal clips ( ) to free terminal cord assembly and
A/T fluid temperature sensor 2 harness.
34. Disconnect revolution sensor connector.
CAUTION:
Be careful not to damage connector.
SCIA8117E
SCIA5199E
SCIA5200E
SCIA8124E
SCIA7524E

AT-262
DISASSEMBLY
Revision: 2006 November2007 350Z
35. Straighten terminal clip to free revolution sensor harness.
36. Remove bolts (A), (B) and (C) from control valve with TCM.

: Front
37. Remove control valve with TCM from transmission case.
CAUTION:
When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.
38. Remove A/T fluid temperature sensor 2 with bracket from con-
trol valve with TCM.
39. Remove bracket from A/T fluid temperature sensor 2.
SCIA7526E
Bolt symbol Length mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA8077E
SCIA5260E
SCIA5301E
SCIA5264E

DISASSEMBLY
AT-263
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

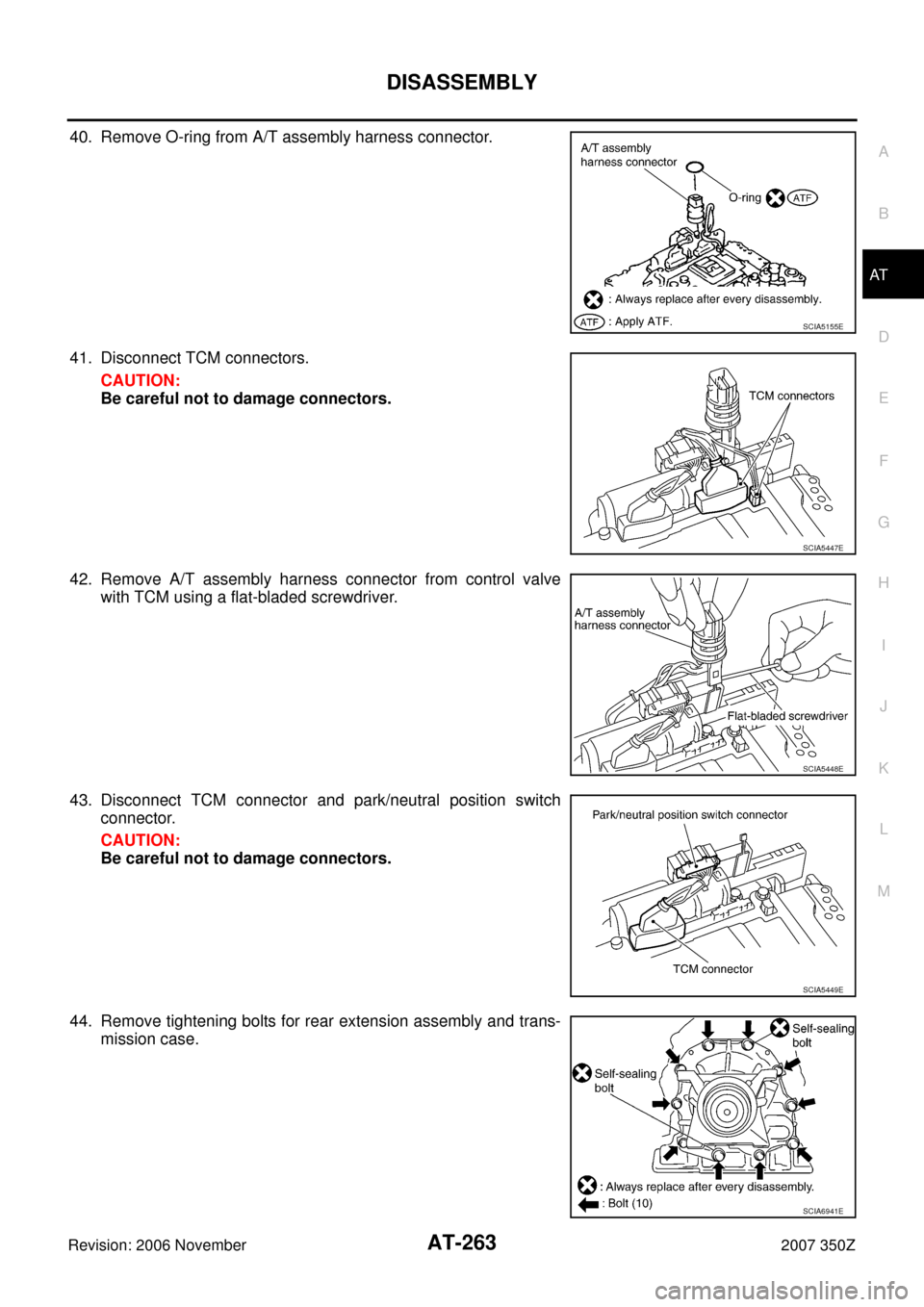

40. Remove O-ring from A/T assembly harness connector.
41. Disconnect TCM connectors.
CAUTION:
Be careful not to damage connectors.
42. Remove A/T assembly harness connector from control valve
with TCM using a flat-bladed screwdriver.
43. Disconnect TCM connector and park/neutral position switch
connector.
CAUTION:
Be careful not to damage connectors.
44. Remove tightening bolts for rear extension assembly and trans-
mission case.
SCIA5155E
SCIA5447E
SCIA5448E
SCIA5449E
SCIA6941E

AT-264
DISASSEMBLY
Revision: 2006 November2007 350Z

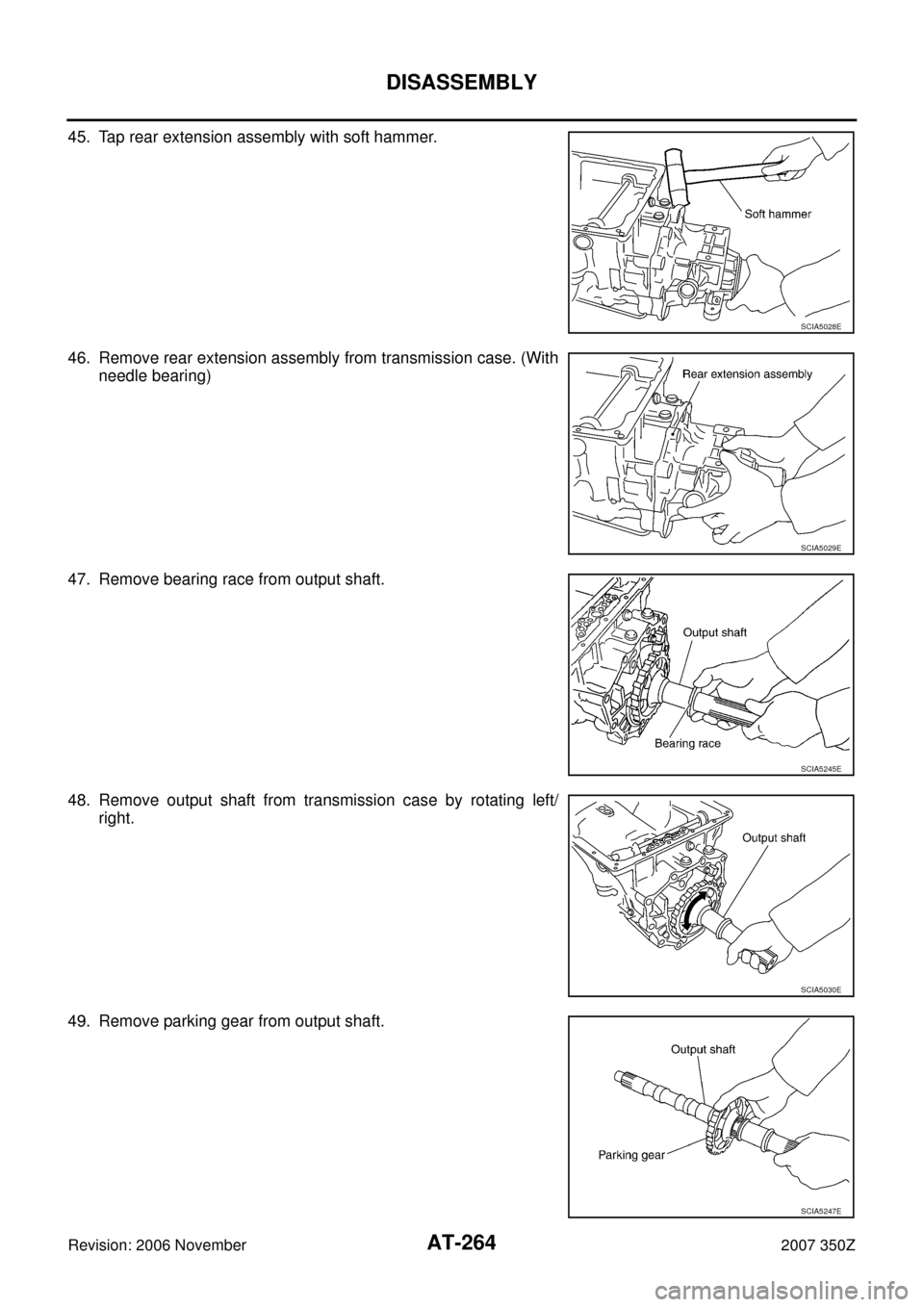

45. Tap rear extension assembly with soft hammer.
46. Remove rear extension assembly from transmission case. (With
needle bearing)
47. Remove bearing race from output shaft.
48. Remove output shaft from transmission case by rotating left/
right.
49. Remove parking gear from output shaft.
SCIA5028E
SCIA5029E
SCIA5245E
SCIA5030E
SCIA5247E
