A/T SHIFT LOCK SYSTEMPFP:34950
DescriptionNCS0008W
The mechanical key interlock mechanism also operates as a shift lock:
With the ignition switch turned to ON, the selector lever cannot be shifted from “P” position to any other
position unless the brake pedal is depressed.
With the key removed, the selector lever cannot be shifted from “P” position to any other position.
The key cannot be removed unless the selector lever is placed in “P” position.
The shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock sole-
noid and by the operation of the rotator and slider located inside the key cylinder.

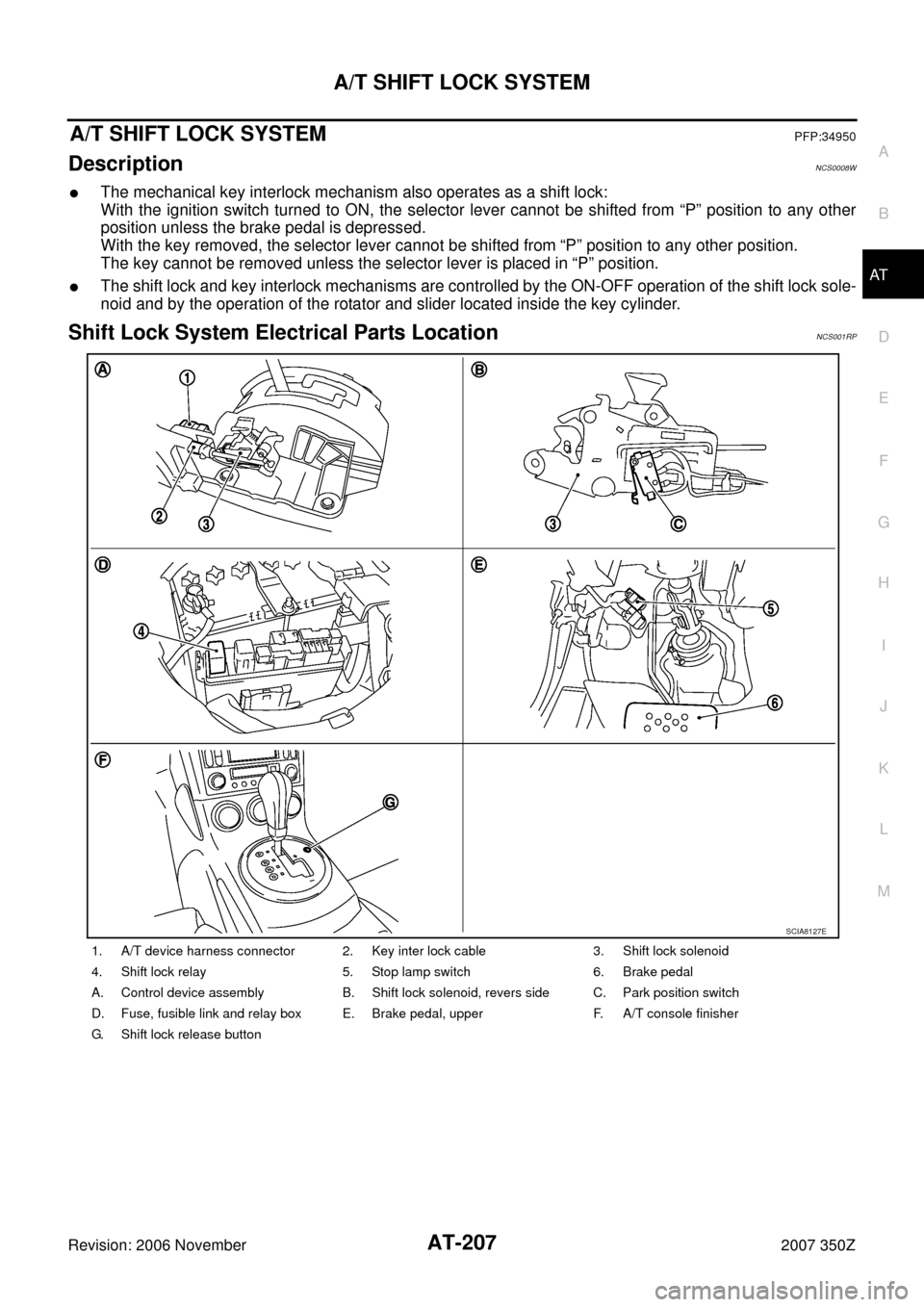

Shift Lock System Electrical Parts LocationNCS001RP
1. A/T device harness connector 2. Key inter lock cable 3. Shift lock solenoid
4. Shift lock relay 5. Stop lamp switch 6. Brake pedal
A. Control device assembly B. Shift lock solenoid, revers side C. Park position switch
D. Fuse, fusible link and relay box E. Brake pedal, upper F. A/T console finisher
G. Shift lock release button
SCIA8127E
