6A-150 ENGINE MECHANICAL (4JK1/4JJ1)
Crank Case and Oil Pan

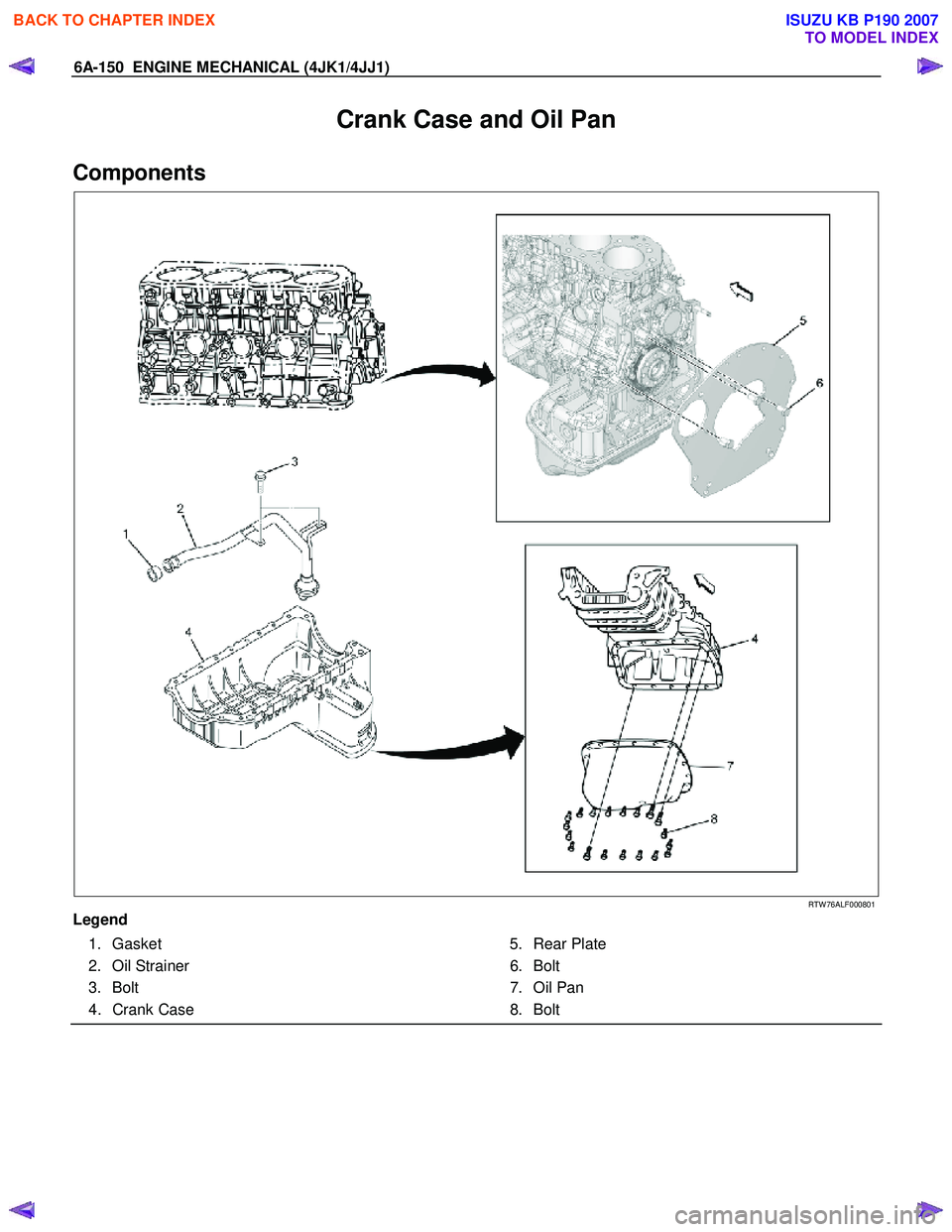

Components
RTW 76ALF000801
Legend 1. Gasket
2. Oil Strainer
3. Bolt
4. Crank Case 5. Rear Plate
6. Bolt
7. Oil Pan
8. Bolt
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1511 of 6020
ENGINE MECHANICAL (4JK1/4JJ1) 6A-151
Removal

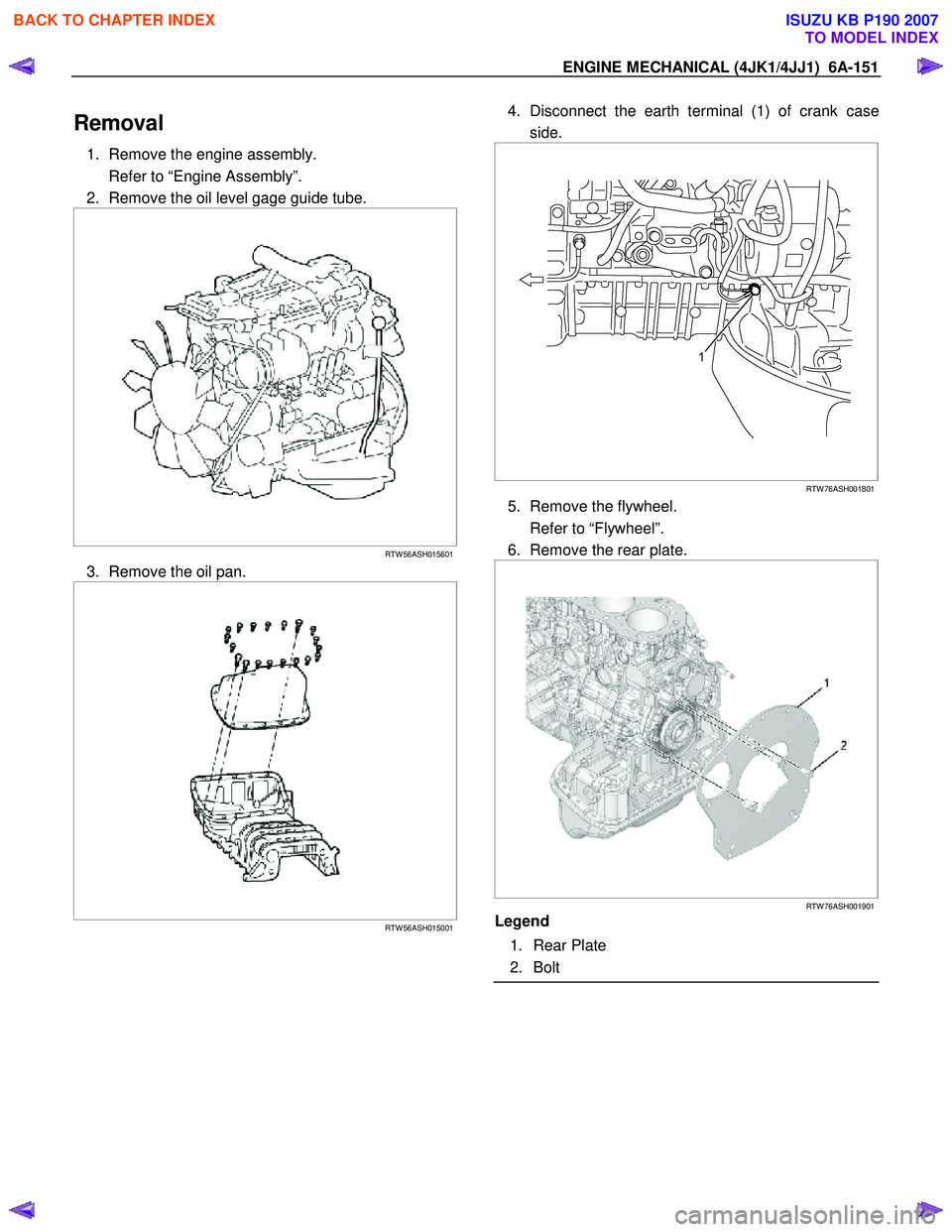

1. Remove the engine assembly.
Refer to “Engine Assembly”.
2. Remove the oil level gage guide tube.
RTW 56ASH015601
3. Remove the oil pan.
RTW 56ASH015001
4. Disconnect the earth terminal (1) of crank case
side.
RTW 76ASH001801
5. Remove the flywheel.
Refer to “Flywheel”.
6. Remove the rear plate.
RTW 76ASH001901
Legend
1. Rear Plate
2. Bolt
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1512 of 6020
6A-152 ENGINE MECHANICAL (4JK1/4JJ1)
7. Remove the cylinder head.
Refer to “Cylinder Head”.
8. Remove the timing gear case.
Refer to “Timing Gear Case”.
9. Remove the retainer.
RTW 76ASH002001
Legend
1. Retainer
2. Bolt
10. Remove the crank case.
RTW 56ASH021901
Legend
1. O-ring
2. Crank Case
Note:
Take care not to damage the O-ring.
Disassembly

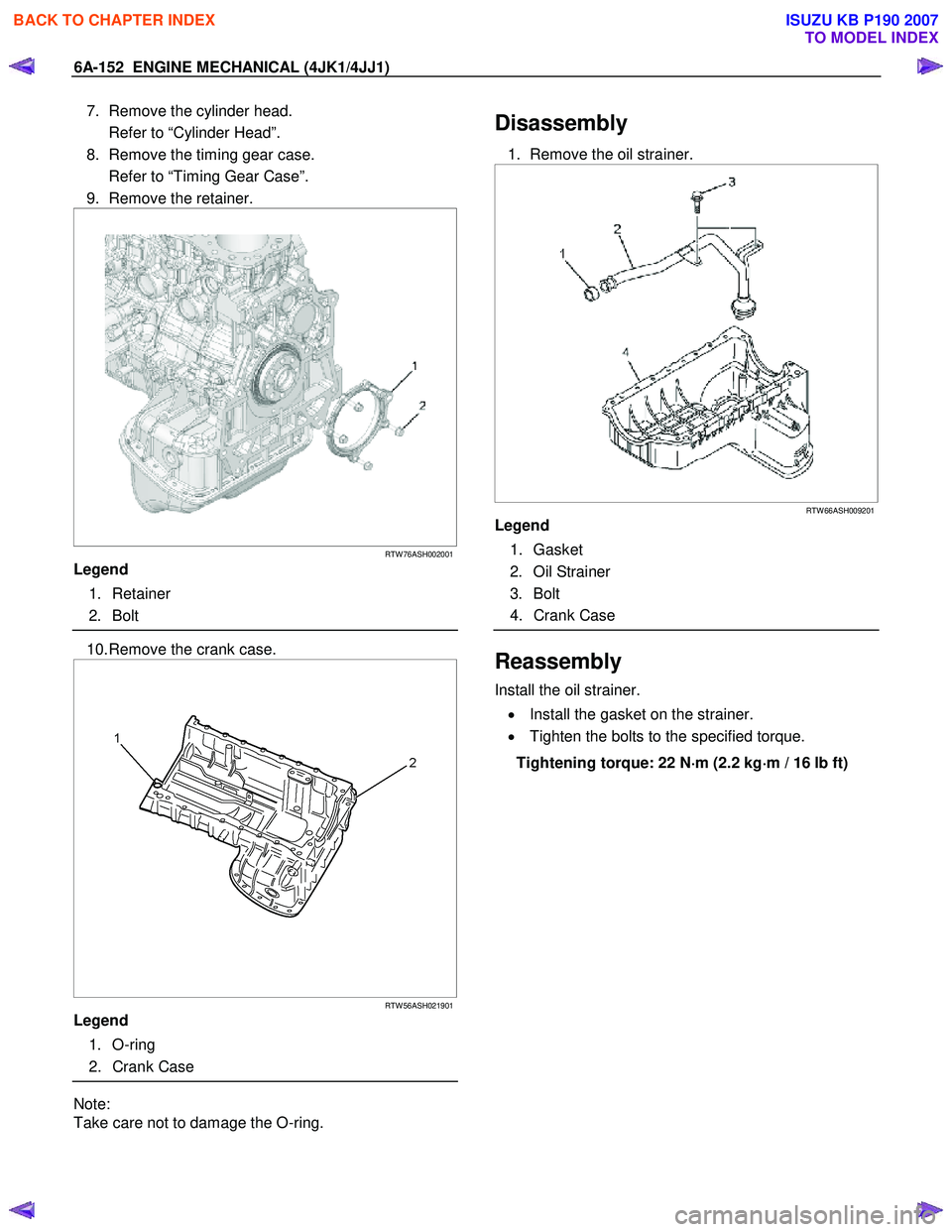

1. Remove the oil strainer.
RTW 66ASH009201
Legend
1. Gasket
2. Oil Strainer
3. Bolt
4. Crank Case
Reassembly
Install the oil strainer.
• Install the gasket on the strainer.
• Tighten the bolts to the specified torque.
Tightening torque: 22 N ⋅
⋅⋅
⋅
m (2.2 kg ⋅
⋅⋅
⋅
m / 16 lb ft)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1513 of 6020

ENGINE MECHANICAL (4JK1/4JJ1) 6A-153
Installation

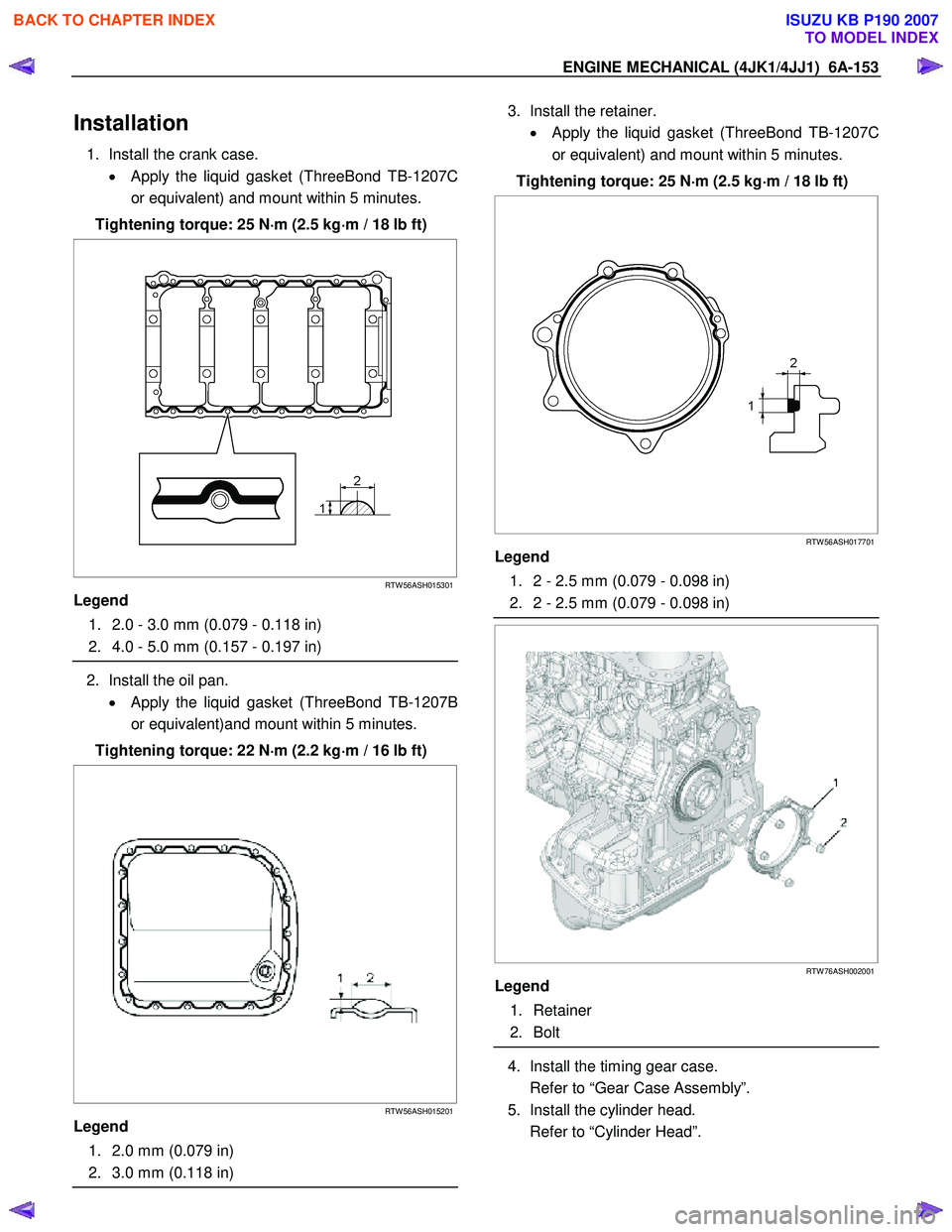

1. Install the crank case.
• Apply the liquid gasket (ThreeBond TB-1207C
or equivalent) and mount within 5 minutes.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
RTW 56ASH015301
Legend
1. 2.0 - 3.0 mm (0.079 - 0.118 in)
2. 4.0 - 5.0 mm (0.157 - 0.197 in)
2. Install the oil pan.
• Apply the liquid gasket (ThreeBond TB-1207B
or equivalent)and mount within 5 minutes.
Tightening torque: 22 N ⋅
⋅⋅
⋅
m (2.2 kg ⋅
⋅⋅
⋅
m / 16 lb ft)
RTW 56ASH015201
Legend
1. 2.0 mm (0.079 in)
2. 3.0 mm (0.118 in)
3. Install the retainer.
• Apply the liquid gasket (ThreeBond TB-1207C
or equivalent) and mount within 5 minutes.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
RTW 56ASH017701
Legend
1. 2 - 2.5 mm (0.079 - 0.098 in)
2. 2 - 2.5 mm (0.079 - 0.098 in)
RTW 76ASH002001
Legend
1. Retainer
2. Bolt
4. Install the timing gear case.
Refer to “Gear Case Assembly”.
5. Install the cylinder head.
Refer to “Cylinder Head”.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1514 of 6020
6A-154 ENGINE MECHANICAL (4JK1/4JJ1)

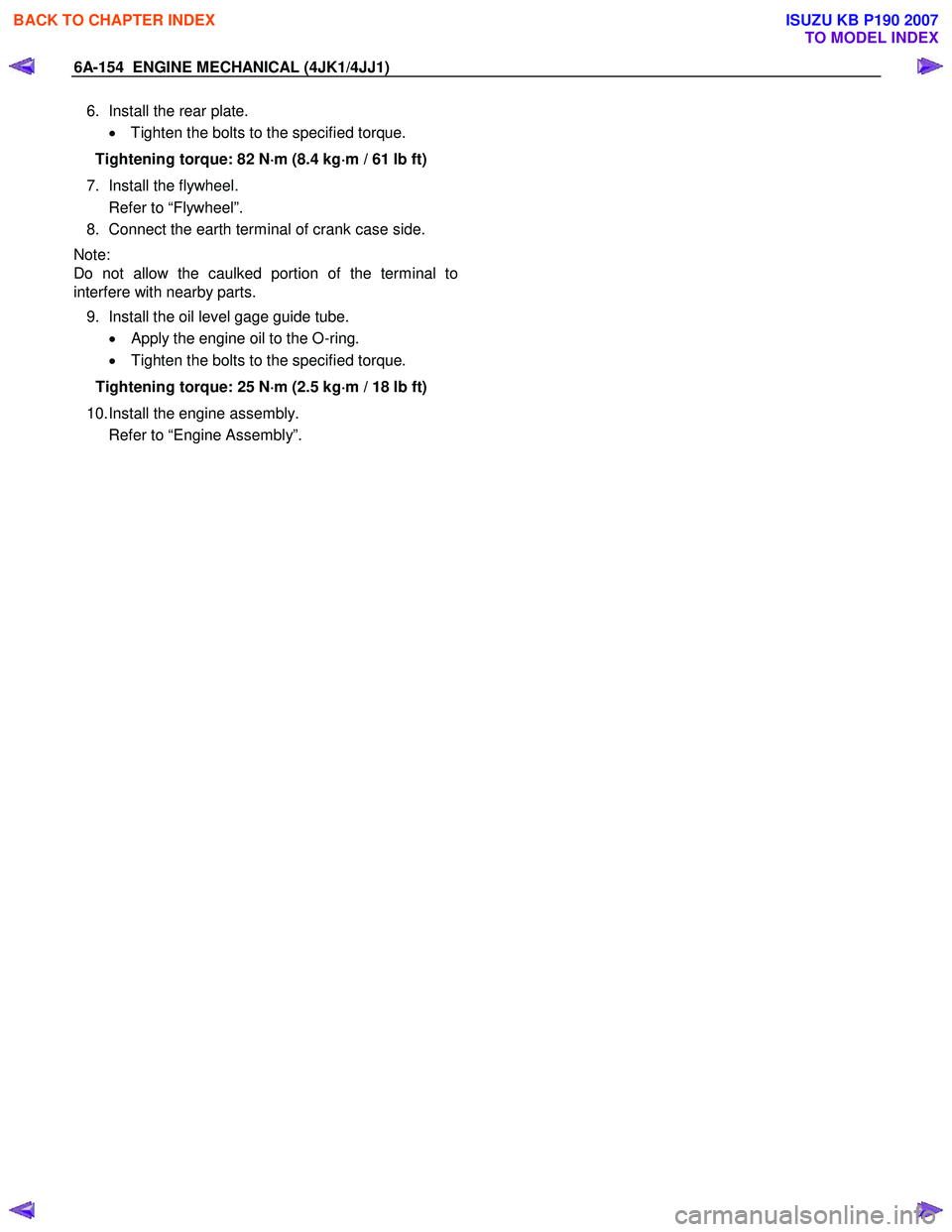

6. Install the rear plate.
• Tighten the bolts to the specified torque.
Tightening torque: 82 N ⋅
⋅⋅
⋅
m (8.4 kg ⋅
⋅⋅
⋅
m / 61 lb ft)
7. Install the flywheel.
Refer to “Flywheel”.
8. Connect the earth terminal of crank case side.
Note:
Do not allow the caulked portion of the terminal to
interfere with nearby parts.
9. Install the oil level gage guide tube. • Apply the engine oil to the O-ring.
• Tighten the bolts to the specified torque.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
10. Install the engine assembly.
Refer to “Engine Assembly”.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1515 of 6020
ENGINE MECHANICAL (4JK1/4JJ1) 6A-155

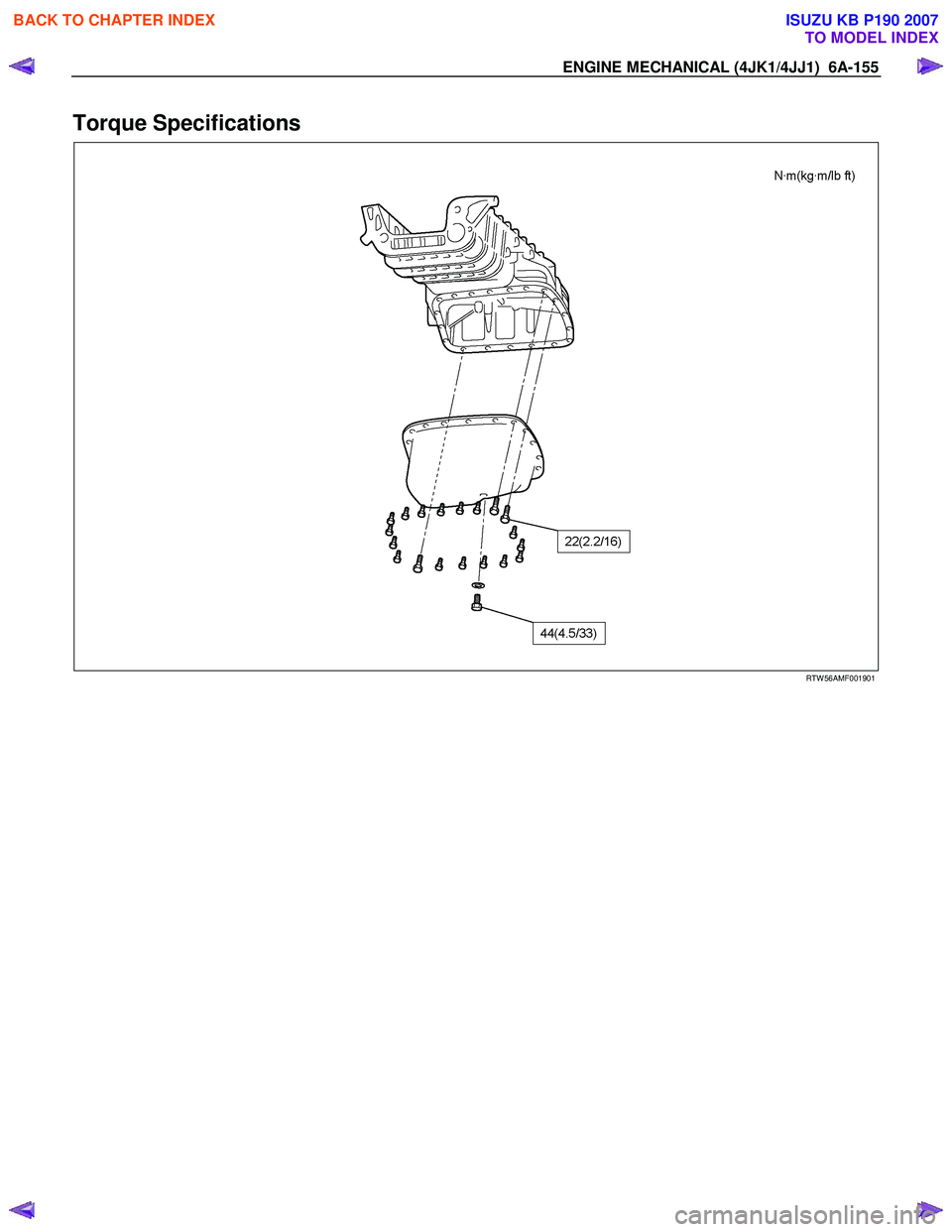

Torque Specifications
RTW 56AMF001901
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1516 of 6020
6A-156 ENGINE MECHANICAL (4JK1/4JJ1)
Oil Pump
Components
RTW 66AMF000701
Legend 1. Bolt 2. Oil Pump Assembly
Removal
1. Drain the engine coolant.
2. Remove the radiator upper hose.
3. Remove the upper fan shroud.
4. Remove the fan and fan clutch. • Loosen the fan clutch nuts.
• Remove the fan together with the fan clutch.
Take care not to damage the radiator core.
5. Remove the fan drive belt and pulley. • Loosen the tension adjust bolt on the generato
r
and A/C.
• Remove the fan drive belt with the fan pulley.
6. Remove the lower fan shroud.
7. Disconnect the power steering pump. • Disconnect the bracket of the power steering oil
hose clip (1).
LTW 56ASH000101
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 1517 of 6020
ENGINE MECHANICAL (4JK1/4JJ1) 6A-157
8. Remove the vacuum pump.
• Remove the vacuum pipe bracket and vacuum
pipe.
• Remove the oil pipe (feed side and return side)
of vacuum pump.
9. Remove the noise cover (1).
RTW 56CSH001401
10. Remove the crank pulley.
11. Remove the front cover.
RTW 56ASH019701

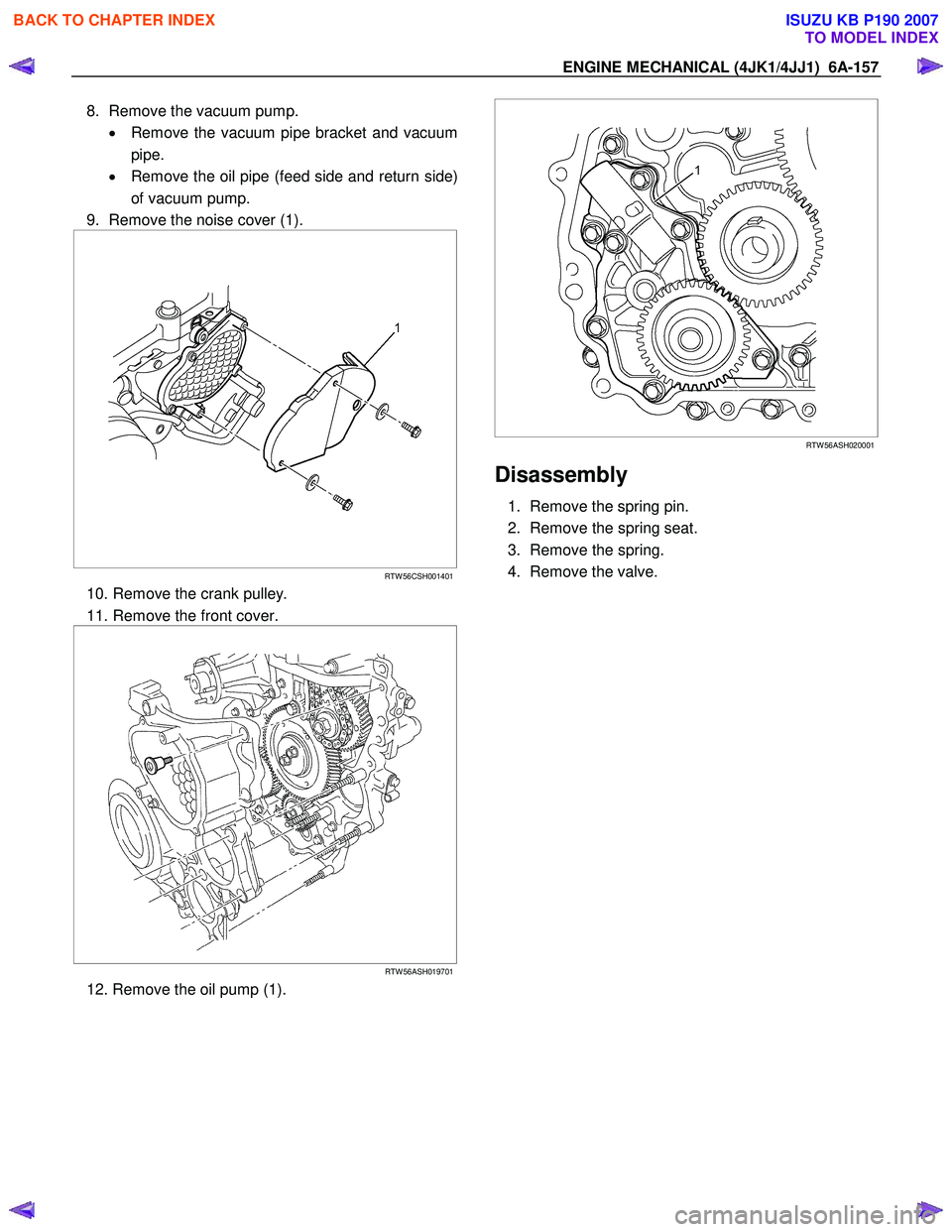

12. Remove the oil pump (1).
RTW 56ASH020001
Disassembly
1. Remove the spring pin.
2. Remove the spring seat.
3. Remove the spring.
4. Remove the valve.
BACK TO CHAPTER INDEX
TO MODEL INDEX
