2007 INFINITI M35 Mass air flow

TROUBLE DIAGNOSIS
EC-99
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Symptom Matrix ChartNBS004T1
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-675
Fuel pressure regulator system334444444 4EC-88
Fuel injector circuit 11232 22 2EC-669
Evaporative emission system334444444 4EC-39
Air Positive crankcase ventilation sys-
tem
334444444 41EC-51
Incorrect idle speed adjustment 1 1 1 1 1EC-78
Electric throttle control actuator 112332222 2 2EC-
604,EC-
598 ,EC-
610 ,EC-
615
IgnitionIncorrect ignition timing adjustment33111 11 1EC-78
Ignition circuit 11222 22 2EC-691
Main power supply and ground circuit22333 33 23EC-154
Mass air flow sensor circuit
1
122
222 2EC-193,
EC-202
Engine coolant temperature sensor circuit
333EC-214,
EC-226
Air fuel ratio (A/F) sensor 1 circuitEC-234
,
EC-244
,
EC-253
,
EC-262
,
EC-646
Throttle position sensor circuit
22EC-219
,
EC-342
,
EC-518
,
EC-520
,
EC-631
Accelerator pedal position sensor circuit 3 2 1EC-
617,EC-
624 ,EC-
638 ,EC-
486
Knock sensor circuit 2 3EC-359
Crankshaft position sensor (POS) circuit 2 2EC-364

TROUBLE DIAGNOSIS
EC-101
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FL-10
Fuel piping 5 5 5 5 5 5EM-47
Vapor lock—
Valve deposit
5 555 55 5—
Poor fuel (Heavy weight gaso-
line, Low octane)—
Air Air duct
55555 5EM-19
Air cleanerEM-19
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator)
5555EM-19
Electric throttle control actuatorEM-21
Air leakage from intake manifold/
Collector/GasketEM-26
Cranking Battery
111111
11SC-4
Generator circuitSC-20
Starter circuit 3SC-8
Signal plate 6EM-124
PNP switch 4AT- 11 3
Engine Cylinder head
55555 55 5EM-102
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-124
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nismTiming chain
55555 55 5EM-66
CamshaftEM-85
Intake valve timing controlEM-66
Intake valve
3EM-85
Exhaust valve

TROUBLE DIAGNOSIS
EC-103
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Engine Control Component Parts LocationNBS004T2
1. IPDM E/R 2. ICC brake hold relay
(ICC models only)3. Battery current sensor
4. Cooling fan relay 5. Power steering pressure sensor 6. Refrigerant pressure sensor
7. Intake valve timing control solenoid
valve (bank 1)8. Cooling fan motor-2 9. Cooling fan control module
10. Intake valve timing control solenoid
valve (bank 2)11. Cooling fan motor-1 12. Mass air flow sensor
(with built in intake air temperature
sensor)
13. Ignition coil (with power transistor)
and spark plug (bank 2)14. Camshaft position sensor (PHASE)
(Bank 2)15. Electric throttle control actuator
(with built in throttle position sensor,
throttle control motor)
16. Fuel injector (bank 2) 17. Knock sensor 18. Fuel injector (bank 1)
19. EVAP canister purge volume con-
trol solenoid valve20. Camshaft position sensor (PHASE)
(Bank 1)21. Engine coolant temperature sensor
22. Ignition coil (with power transistor)
and spark plug (bank 1)23. EVAP service port
PBIB2781E

EC-104
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45

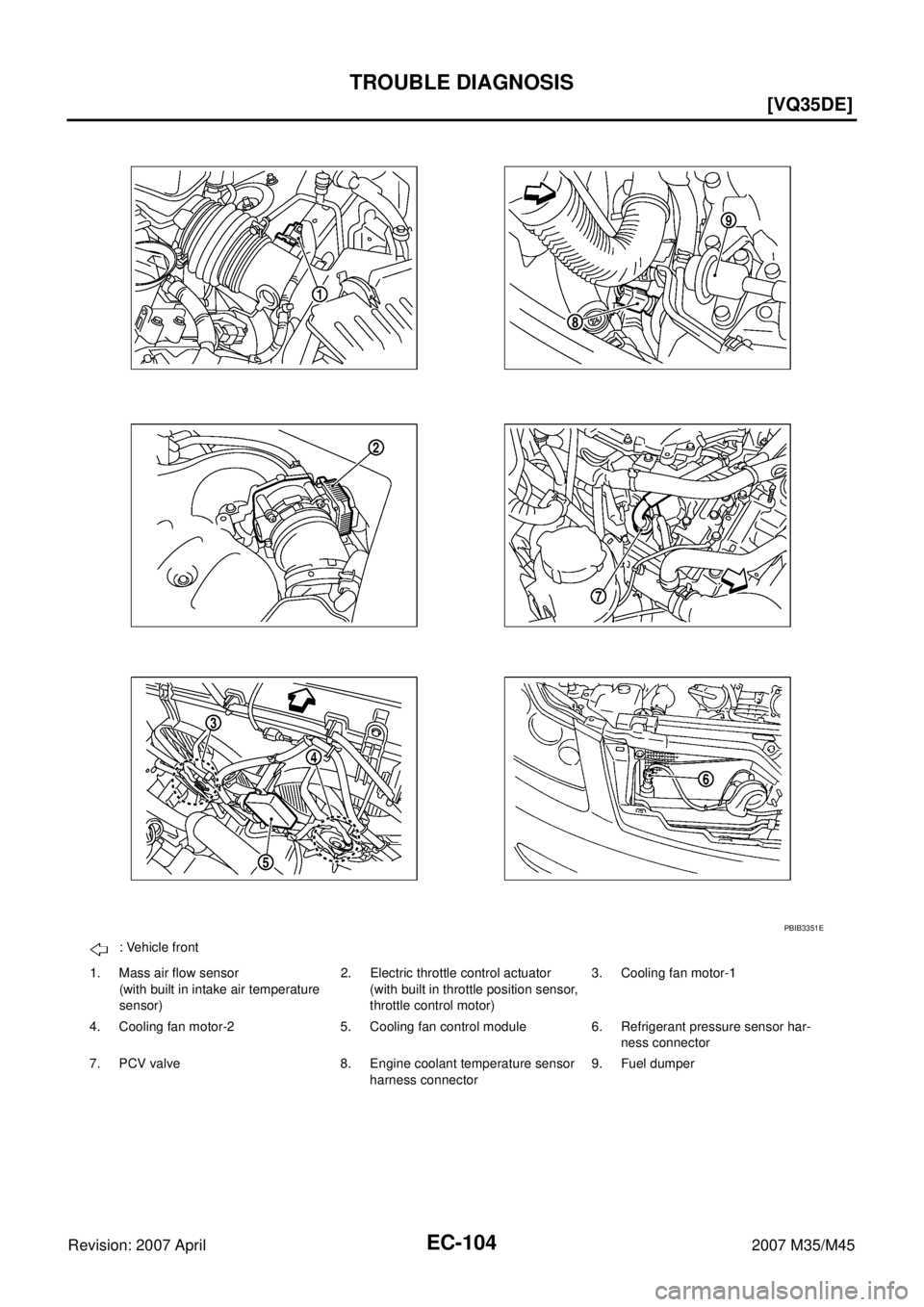

: Vehicle front
1. Mass air flow sensor
(with built in intake air temperature
sensor)2. Electric throttle control actuator
(with built in throttle position sensor,
throttle control motor)3. Cooling fan motor-1
4. Cooling fan motor-2 5. Cooling fan control module 6. Refrigerant pressure sensor har-
ness connector
7. PCV valve 8. Engine coolant temperature sensor
harness connector9. Fuel dumper
PBIB3351E

TROUBLE DIAGNOSIS
EC-119
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
50 W Throttle position sensor 1[Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully releasedMore than 0.36V
[Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully depressedLess than 4.75V
51 W Mass air flow sensor[Engine is running]

Warm-up condition

Idle speed0.9 - 1.2V
[Engine is running]

Warm-up condition

Engine speed: 2,500 rpm1.6 - 1.9V
55 WHeated oxygen sensor 2
(bank 2)[Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are met
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load0 - Approximately 1.0V
57 GR/L
A/F sensor 1 (bank 2)[Engine is running]

Warm-up condition

Idle speedApproximately 2.6V
58 LG/BApproximately 2.3V
76 W/LApproximately 3.1V
77 YApproximately 2.3V
60
61
62
79
80
81V/W
P
Y/R
GR/R
GR/B
G/RIgnition signal No. 5
Ignition signal No. 3
Ignition signal No. 1
Ignition signal No. 6
Ignition signal No. 4
Ignition signal No. 2[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle0 - 0.2V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm0.1 - 0.4V
66 BSensor ground
(Throttle position sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
67 B/W Sensor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0V
68 L/YSensor power supply
(Power steering pressure
sensor)[Ignition switch: ON]Approximately 5V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0044E
PBIB0045E

EC-124
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
ItemDIAGNOSTIC TEST MODE
WORK
SUP-
PORTSELF-DIAGNOS-
TIC RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*1FREEZE
FRAME
DATA*2SRT
STATUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)××××
Camshaft position sensor
(PHASE)××××
Mass air flow sensor×××
Engine coolant temperature sen-
sor×××××
Air fuel ratio (A/F) sensor 1×××××
Heated oxygen sensor 2×××××
Wheel sensor××××
Accelerator pedal position sensor×××
Throttle position sensor××××
Fuel tank temperature sensor××××
EVAP control system pressure
sensor×××
Intake air temperature sensor××××
Knock sensor×
Refrigerant pressure sensor××
Closed throttle position switch
(accelerator pedal position sensor
signal)××
Air conditioner switch××
Park/neutral position (PNP) switch×××
Stop lamp switch×××
Power steering pressure sensor×××
Battery voltage××
Load signal××
Fuel level sensor×××
Battery current sensor×××
ICC steering switch×××
ASCD steering switch×××
ICC brake switch×××
ASCD brake switch×××

TROUBLE DIAGNOSIS
EC-127
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
*: The items are the same as those of 1st trip freeze frame data.
DATA MONITOR MODE
Monitored Item
×: Applicable VEHICL SPEED
[km/h] or [mph]

The vehicle speed at the moment a malfunction is detected is displayed.
ABSOL TH·P/S [%]

The throttle valve opening angle at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec]

The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE [°C]
or [°F]

The intake air temperature at the moment a malfunction is detected is displayed. Freeze frame data
item*Description
Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks
ENG SPEED [rpm]××

Indicates the engine speed computed
from the signal of the crankshaft position
sensor (POS) and camshaft position sen-
sor (PHASE).
Accuracy becomes poor if engine speed
drops below the idle rpm.

If the signal is interrupted while the
engine is running, an abnormal value may
be indicated.
MAS A/F SE-B1 [V]××

The signal voltage of the mass air flow
sensor is displayed.
When the engine is stopped, a certain
value is indicated.
B/FUEL SCHDL
[msec]×

“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.
A/F ALPHA-B1 [%]×

The mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.
When the engine is stopped, a certain
value is indicated.

This data also includes the data for the
air-fuel ratio learning control. A/F ALPHA-B2 [%]×
COOLAN TEMP/S
[°C] or [°F]××

The engine coolant temperature (deter-
mined by the signal voltage of the engine
coolant temperature sensor) is displayed.

When the engine coolant temperature
sensor is open or short-circuited, ECM
enters fail-safe mode. The engine coolant
temperature determined by the ECM is
displayed.
A/F SEN1 (B1) [V]××

The A/F signal computed from the input
signal of the air fuel ratio (A/F) sensor 1 is
displayed. A/F SEN1 (B2) [V]×
HO2S2 (B1) [V]×

The signal voltage of the heated oxygen
sensor 2 is displayed.
HO2S2 (B2) [V]×
HO2S2 MNTR (B1)
[RICH/LEAN]×

Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after
three way catalyst is relatively small.
LEAN: means the amount of oxygen after
three way catalyst is relatively large.

When the engine is stopped, a certain
value is indicated.
HO2S2 MNTR (B2)
[RICH/LEAN]×
VHCL SPEED SE
[km/h] or [mph]××

The vehicle speed computed from the
vehicle speed signal sent from combina-
tion meter is displayed.
BATTERY VOLT
[V]××

The power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V]××

The accelerator pedal position sensor
signal voltage is displayed.
ACCEL SENS 2 signal is converted be
ECM internally. Thus, they differs from
ECM terminal voltage signal. ACCEL SEN 2 [V]×

TROUBLE DIAGNOSIS
EC-129
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45MASS AIRFLOW
[g·m/s]
Indicates the mass air flow computed by
ECM according to the signal voltage of
the mass air flow sensor.
PURG VOL C/V
[%]

Indicates the EVAP canister purge vol-
ume control solenoid valve control value
computed by the ECM according to the
input signals.

The opening becomes larger as the value
increases.
INT/V TIM (B1)
[°CA]

Indicates [°CA] of intake camshaft
advanced angle.
INT/V TIM (B2)
[°CA]
INT/V SOL (B1) [%]

The control value of the intake valve tim-
ing control solenoid valve (determined by
ECM according to the input signals) is
indicated.

The advance angle becomes larger as
the value increases. INT/V SOL (B2) [%]
AIR COND RLY
[ON/OFF]×

The air conditioner relay control condition
(determined by ECM according to the
input signals) is indicated.
FUEL PUMP RLY
[ON/OFF]×

Indicates the fuel pump relay control con-
dition determined by ECM according to
the input signals.
FPCM [HI/LOW]×

The control condition of the fuel pump
control module (FPCM) (determined by
the ECM according to the input signal) is
indicated.
VENT CONT/V
[ON/OFF]

The control condition of the EVAP canis-
ter vent control valve (determined by
ECM according to the input signals) is
indicated.
ON: Closed
OFF: Open
THRTL RELAY
[ON/OFF]×

Indicates the throttle control motor relay
control condition determined by the ECM
according to the input signals.
HO2S2 HTR (B1)
[ON/OFF]

Indicates [ON/OFF] condition of heated
oxygen sensor 2 heater determined by
ECM according to the input signals. HO2S2 HTR (B2)
[ON/OFF]
I/P PULLY SPD
[rpm]

Indicates the engine speed computed
from the turbine revolution sensor signal.
VEHICLE SPEED
[km/h] or [MPH]

The vehicle speed computed from the
vehicle speed signal sent from TCM is
displayed.
IDL A/V LEARN
[YET/CMPLT]

Display the condition of idle air volume
learning
YET: Idle Air Volume Learning has not
been performed yet.
CMPLT: Idle Air Volume Learning has
already been performed successfully. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks
