2007 CHEVROLET TRAIL BLAZER Owners Manual

The top tether anchors for each rear seating
position are located on the oor in the cargo area
of your vehicle.Do not use the rear tie-down brackets near the
liftgate for attaching top tethers. Be sure to use an
anchor located on the same side of the vehicle
as the seating position where the child restraint will
be placed.
Do not secure a child restraint in the right front
passenger’s position, if a national or local
law requires that the top tether be attached, or if
the instructions that come with the child restraint
say that the top tether must be attached. There is
no place to attach the top tether in this position.
Accident statistics show that children are safer
if they are restrained in the rear rather than
the front seat. SeeWhere to Put the Restraint on
page 52for additional information.
57

Securing a Child Restraint Designed for
the LATCH System
{CAUTION:
If a LATCH-type child restraint is not
attached to anchors, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured
or killed. Make sure that a LATCH-type
child restraint is properly installed using
the anchors, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint,
and also the instructions in this manual.
{CAUTION:
Each top tether anchor and lower anchor
in the vehicle is designed to hold only
one child restraint. Attaching more than
one child restraint to a single anchor
could cause the anchor or attachment to
come loose or even break during a crash.
A child or others could be injured if this
happens. To help prevent injury to people
and damage to your vehicle, attach only
one child restraint per anchor.
58

{CAUTION:
Children can be seriously injured or
strangled if a shoulder belt is wrapped
around their neck and the safety belt
continues to tighten. Secure any unused
safety belts behind the child restraint so
children cannot reach them. Pull the
shoulder belt all the way out of the
retractor to set the lock, if your vehicle has
one, after the child restraint has been
installed. Be sure to follow the instructions
of the child restraint manufacturer.
Notice:Contact between the child restraint or
the LATCH attachment parts and the vehicle’s
safety belt assembly may cause damage to
these parts. Make sure when securing unused
safety belts behind the child restraint that
there is no contact between the child restraint
or the LATCH attachment parts and the
vehicle’s safety belt assembly.Folding an empty rear seat with the safety
belts secured may cause damage to the safety
belt or the seat. When removing the child
restraint, always remember to return the safety
belts to their normal, stowed position before
folding the rear seat.
1. Attach and tighten the lower attachments to
the lower anchors. If the child restraint does
not have lower attachments or the desired
seating position does not have lower anchors,
secure the child restraint with the top tether
and the safety belts. Refer to your child
restraint manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Pull the strap at the center of the seat
where the seat cushion meets the
seatback. This will allow you to fold the
seat cushion up and out of the way.
Lift the ap to expose the anchors and
then lower the seat cushion. See
Rear Seat Operation on page 18for
additional information. Be sure the
cushion is locked into place.
59

1.3. Put the child restraint on the seat.
1.4. Attach and tighten the lower
attachments on the child restraint to the
lower anchors.
2. If the child restraint manufacturer recommends
that the top tether be attached, attach and
tighten the top tether to the top tether anchor,
if equipped. Refer to the child restraint
instructions and the following steps:
2.1. Find the top tether anchor.
2.2. Route and tighten the top tether
according to your child restraint
instructions and the following
instructions. If your vehicle has a cargo
shade, route the top tether between
the seatback and the cargo shade.If the position you are
using does not have a
head restraint and
you are using a single
tether, route the
tether over the
seatback.
If the position you are
using does not have a
head restraint and
you are using a dual
tether, route the
tether over the
seatback.
60

For vehicles that have a
head restraint, fold
down the head restraint
and route the single
tether under the
head restraint and in
between the head
restraint posts.
SeeRear Seat Operation on page 18.
If the position you are
using has a head
restraint and you are
using a dual tether,
route the tether around
the head restraint.
3. Push and pull the child restraint in different
directions to be sure it is secure.Securing a Child Restraint in a Rear
Outside Seat Position
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 53.
If your child restraint does not have the LATCH
system, you will be using the lap-shoulder
belt to secure the child restraint in this position.
Be sure to follow the instructions that came
with the child restraint. Secure the child in the
child restraint when and as the instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
61

3. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.
62

5. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt.6. If your child restraint manufacturer
recommends using a top tether, attach and
tighten the top tether to the top tether anchor.
Refer to the instructions that came with the
child restraint and toLower Anchors and
Tethers for Children (LATCH) on page 53.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt and let it go
back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger.
63

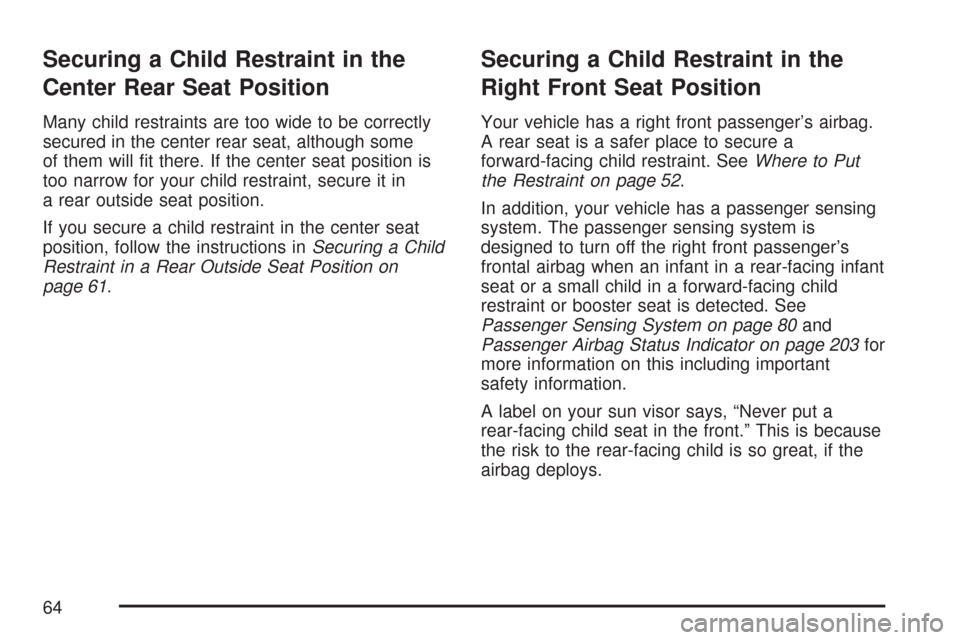

Securing a Child Restraint in the
Center Rear Seat Position
Many child restraints are too wide to be correctly
secured in the center rear seat, although some
of them will t there. If the center seat position is
too narrow for your child restraint, secure it in
a rear outside seat position.
If you secure a child restraint in the center seat
position, follow the instructions inSecuring a Child
Restraint in a Rear Outside Seat Position on
page 61.
Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger’s airbag.
A rear seat is a safer place to secure a
forward-facing child restraint. SeeWhere to Put
the Restraint on page 52.
In addition, your vehicle has a passenger sensing
system. The passenger sensing system is
designed to turn off the right front passenger’s
frontal airbag when an infant in a rear-facing infant
seat or a small child in a forward-facing child
restraint or booster seat is detected. See
Passenger Sensing System on page 80and
Passenger Airbag Status Indicator on page 203for
more information on this including important
safety information.
A label on your sun visor says, “Never put a
rear-facing child seat in the front.” This is because
the risk to the rear-facing child is so great, if the
airbag deploys.
64
